Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#1197) — 293 parça

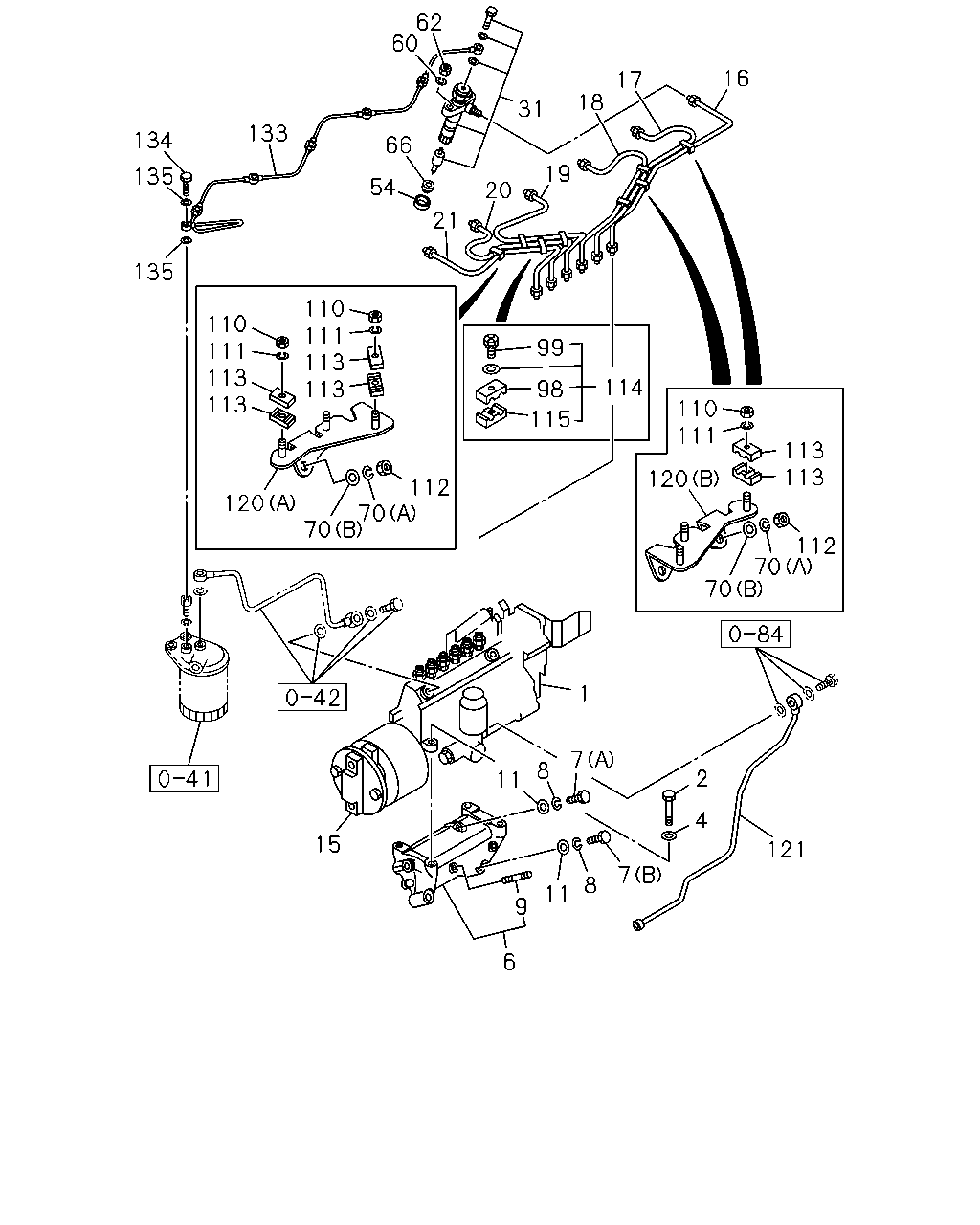

62 60 16 17 18 31 133 134 66 19 135 54 20 21 135 110 111 113 113 110 111 113 113 99 114 98 110 111 115 113 113 120 112 120 70 70 112 70 70 1 7 2 8 11 4 15 121 7 8 11 9 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) TAMPER PROOF INJ PUMP SET<W44>	1-15602-812-0	01	1	9203-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. TAMPER PROOF INJ PUMP SET<W44>	1-15602-761-0	01	1	9202-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-760-1	01	1	9202-9211	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-905-0	01	1	9212-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. RLD GOVERNOR ADR,VAR8(RC7)	8-94393-462-3	01	1	9202-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOVERNOR ADR,VAR8(RC7)	8-94393-477-2	01	1	9206-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. RLD GOVERNOR ADR,VAR8(RC7),TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94393-459-2	01	1	9202-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. RLD GOVERNOR ADR,VAR8(RC7),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94393-461-2	01	1	9405-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAIWAN EMISSION REGULATION<TAL>	1-15602-290-0	01	1	9306-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TAIWAN EMISSION REGULATION<TAL>	1-15602-966-0	01	1	9306-			●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	9202-	●	●	●
4	WASHER; INJ PUMP ID=8.5 MITSUBISHI	9-09851-934-0	04	1	9202-	●	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-087-0	01	1	9202-	●		●
6	BRACKET; INJ PUMP TO C/BL	8-94394-086-0	01	1	9202-		●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16806-050-0	03	1	9202-	●		●
7	BOLT; INJ PUMP BRKT (B) M10X65	0-16806-065-0	02	1	9202-	●		●
7	BOLT; INJ PUMP BRKT (A) M10X75 FLANGE	8-94399-669-1	02	1	9202-		●
7	BOLT; INJ PUMP BRKT (B) M10X55 FLANGE	8-94399-863-1	02	1	9202-		●
8	WASHER; LK,INJ PUMP BRKT ID=10.2	9-09150-510-0	05	1	9202-	●		●
9	STUD; CLIP	9-04010-612-0	02	1	9202-	●		●
11	WASHER; INJ PUMP BRKT ID=10.5 OD=18	9-09160-510-0	05	1	9202-	●		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-113-2	01	1	9202-	●		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-365-3	01	1	9202-9210		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94393-155-0	01	1	9211-		●
16	PIPE; INJ NO.1	1-15413-940-1	01	1	9202-	●
16	PIPE; INJ NO.1	8-94396-001-5	01	1	9202-		●
16	PIPE; INJ NO.1	1-15414-044-1	01	1	9306-			●
17	PIPE; INJ NO.2	1-15413-941-1	01	1	9202-	●
17	PIPE; INJ NO.2	8-94396-002-6	01	1	9202-		●
17	PIPE; INJ NO.2	1-15414-045-1	01	1	9306-			●
18	PIPE; INJ NO.3	1-15413-942-1	01	1	9202-	●
18	PIPE; INJ NO.3	8-94396-003-4	01	1	9202-		●
18	PIPE; INJ NO.3	1-15414-046-1	01	1	9306-			●
19	PIPE; INJ NO.4	1-15413-943-1	01	1	9202-	●
19	PIPE; INJ NO.4	8-94396-004-5	01	1	9202-		●
19	PIPE; INJ NO.4	1-15414-047-1	01	1	9306-			●
20	PIPE; INJ NO.5	1-15413-944-1	01	1	9202-	●
20	PIPE; INJ NO.5	8-94396-005-2	01	1	9202-		●
20	PIPE; INJ NO.5	1-15414-022-1	01	1	9306-			●
21	PIPE; INJ NO.6	1-15413-945-1	01	1	9202-	●
21	PIPE; INJ NO.6	8-94396-364-3	01	1	9202-		●
21	PIPE; INJ NO.6	1-15414-023-1	01	1	9306-			●
31	NOZZLE ASM; INJ	1-15300-288-3	06	1	9202-	●
31	NOZZLE ASM; INJ (A)	8-94396-564-2	06	1	9202-9303		●
31	NOZZLE ASM; INJ (B)	8-94394-787-1	06	1	9304-		●
31	NOZZLE ASM; INJ TAIWAN EMISSION REGULATION<TAL>	1-15300-251-1	06	1	9306-			●
31	NOZZLE ASM; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15300-186-0	06	1	9505-			●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	9202-	●		●
60	WASHER; NOZZLE HOLDER ID=8.2	9-09150-508-0	12	1	9202-	●		●
62	NUT; NOZZLE HOLDER M8	9-09110-408-0	12	1	9202-	●		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9202-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	9202-	●		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94377-623-0	06	1	9202-		●
70	WASHER; LK,BRKT (A) ID=8.2	9-09150-508-0	04	1	9306-			●
70	WASHER; LK,BRKT (B) ID=8.4 OD=18	9-09160-608-0	04	1	9306-			●
98	CLIP; "A",INJ PIPE	9-15419-613-0	07	1	9202-	●
98	CLIP; "A",INJ PIPE	8-94397-445-0	03	1	9202-		●
99	BOLT; CLIP,INJ,PIPE M5X20	9-09802-539-0	07	1	9202-	●
99	BOLT; CLIP,INJ,PIPE	8-94365-129-0	03	1	9202-		●
110	NUT; CLIP M5	9-99110-405-0	06	1	9306-			●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9306-			●
112	NUT; BRKT,INJ PIPE CLIP M8	9-09110-408-0	04	1	9306-			●
113	CLIP; INJ PIPE (A)	1-09701-091-0	02	1	9202-		●
113	CLIP; INJ PIPE (B)	8-94397-444-0	01	1	9202-		●
113	CLIP; INJ PIPE	9-15419-613-0	12	1	9306-			●
114	CLIP; INJ PIPE	9-15419-612-0	07	1	9202-	●
115	CLIP; "B",INJ PIPE	9-15419-614-0	07	1	9202-	●
115	CLIP; "B",INJ PIPE	8-94397-444-0	03	1	9202-		●
120	BRACKET; INJ PIPE (A)	1-15419-211-0	01	1	9306-			●
120	BRACKET; INJ PIPE (B)	1-15419-212-0	01	1	9306-			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-099-0	01	1	9202-	●		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94393-020-1	01	1	9202-		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-185-0	01	1	9202-	●		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94396-587-0	01	1	9202-9404		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-144-0	01	1	9405-		●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	01	1	9202-	●	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9202-9305	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9306-	●	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9202-9305		●

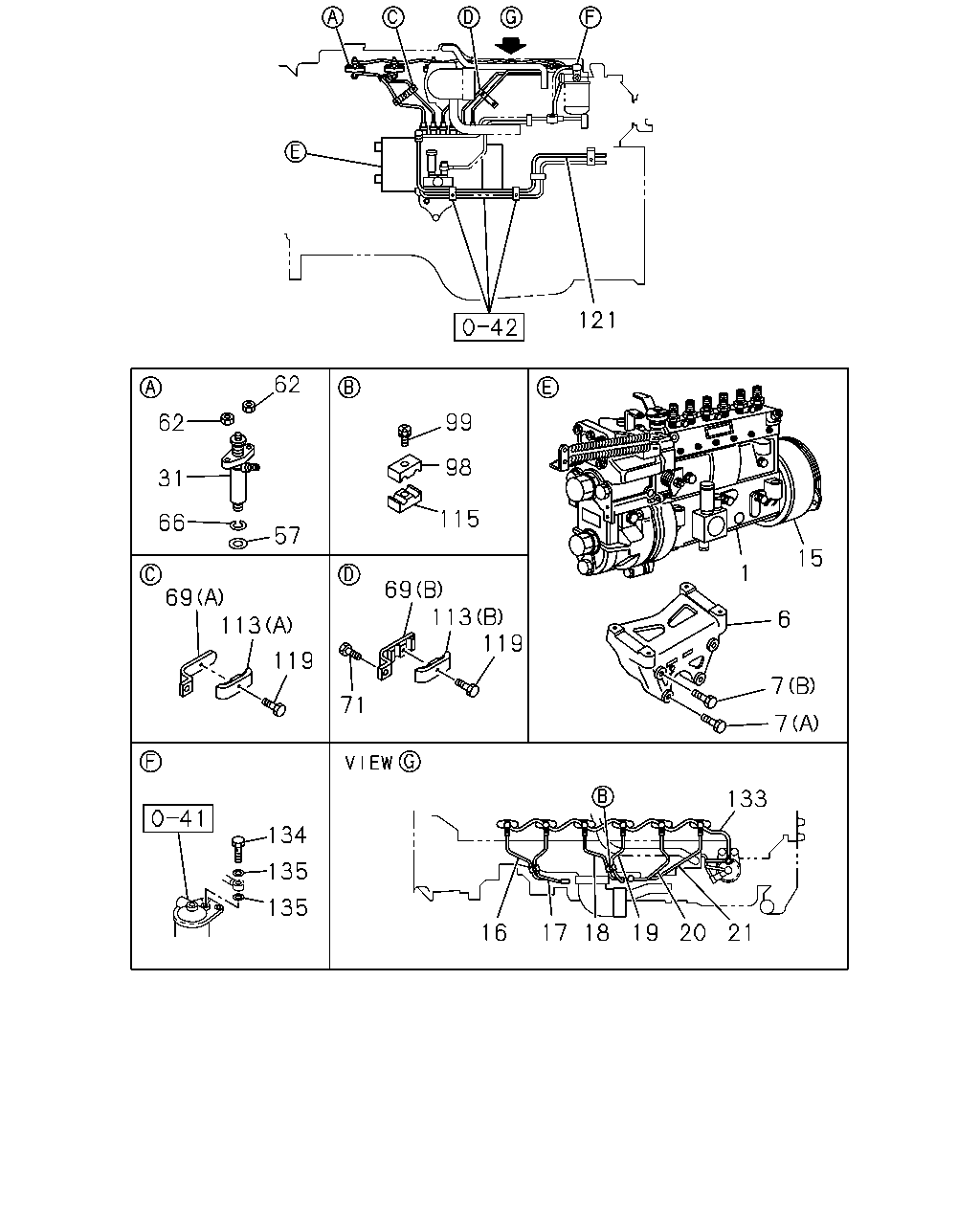

121 62 99 62 98 31 115 66 57 15 1 69 113 119 69 113 6 119 7 71 7 133 134 135 135 16 17 18 19 20 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) TAMPER PROOF INJ PUMP SET<W44>	1-15602-812-0	01	1	9203-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. TAMPER PROOF INJ PUMP SET<W44>	1-15602-761-0	01	1	9202-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-760-1	01	1	9202-9211	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-905-0	01	1	9212-	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. RLD GOVERNOR ADR,VAR8(RC7)	8-94393-462-3	01	1	9202-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOVERNOR ADR,VAR8(RC7)	8-94393-477-2	01	1	9206-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. RLD GOVERNOR ADR,VAR8(RC7),TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94393-459-2	01	1	9202-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> EXC. RLD GOVERNOR ADR,VAR8(RC7),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	8-94393-461-2	01	1	9405-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAIWAN EMISSION REGULATION<TAL>	1-15602-290-0	01	1	9306-			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. TAIWAN EMISSION REGULATION<TAL>	1-15602-966-0	01	1	9306-			●
6	BRACKET; INJ PUMP TO C/BL	1-19751-087-0	01	1	9202-	●		●
6	BRACKET; INJ PUMP TO C/BL	8-94394-086-0	01	1	9202-		●
7	BOLT; INJ PUMP BRKT (A) M10X50	0-16806-050-0	03	1	9202-	●		●
7	BOLT; INJ PUMP BRKT (B) M10X65	0-16806-065-0	02	1	9202-	●		●
7	BOLT; INJ PUMP BRKT (A) M10X75 FLANGE	8-94399-669-1	02	1	9202-		●
7	BOLT; INJ PUMP BRKT (B) M10X55 FLANGE	8-94399-863-1	02	1	9202-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-113-2	01	1	9202-	●		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-365-3	01	1	9202-9210		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94393-155-0	01	1	9211-		●
16	PIPE; INJ NO.1	1-15413-940-1	01	1	9202-	●
16	PIPE; INJ NO.1	8-94396-001-5	01	1	9202-		●
16	PIPE; INJ NO.1	1-15414-044-1	01	1	9306-			●
17	PIPE; INJ NO.2	1-15413-941-1	01	1	9202-	●
17	PIPE; INJ NO.2	8-94396-002-6	01	1	9202-		●
17	PIPE; INJ NO.2	1-15414-045-1	01	1	9306-			●
18	PIPE; INJ NO.3	1-15413-942-1	01	1	9202-	●
18	PIPE; INJ NO.3	8-94396-003-4	01	1	9202-		●
18	PIPE; INJ NO.3	1-15414-046-1	01	1	9306-			●
19	PIPE; INJ NO.4	1-15413-943-1	01	1	9202-	●
19	PIPE; INJ NO.4	8-94396-004-5	01	1	9202-		●
19	PIPE; INJ NO.4	1-15414-047-1	01	1	9306-			●
20	PIPE; INJ NO.5	1-15413-944-1	01	1	9202-	●
20	PIPE; INJ NO.5	8-94396-005-2	01	1	9202-		●
20	PIPE; INJ NO.5	1-15414-022-1	01	1	9306-			●
21	PIPE; INJ NO.6	1-15413-945-1	01	1	9202-	●
21	PIPE; INJ NO.6	8-94396-364-3	01	1	9202-		●
21	PIPE; INJ NO.6	1-15414-023-1	01	1	9306-			●
31	NOZZLE ASM; INJ	1-15300-288-3	06	1	9202-	●
31	NOZZLE ASM; INJ (A)	8-94396-564-2	06	1	9202-9303		●
31	NOZZLE ASM; INJ (B)	8-94394-787-1	06	1	9304-		●
31	NOZZLE ASM; INJ TAIWAN EMISSION REGULATION<TAL>	1-15300-251-1	06	1	9306-			●
31	NOZZLE ASM; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15300-186-0	06	1	9505-			●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09563-215-0	06	1	9504-		●
62	NUT; NOZZLE HOLDER M8	9-09110-408-0	12	1	9202-	●		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	9202-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	9202-	●		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94377-623-0	06	1	9202-		●
69	BRACKET; INJ PIPE CLIP (A)	8-94396-086-0	01	1	9202-		●
69	BRACKET; INJ PIPE CLIP (B)	8-94396-087-0	01	1	9202-		●
71	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	02	1	9202-		●
98	CLIP; "A",INJ PIPE	9-15419-613-0	07	1	9202-	●
98	CLIP; "A",INJ PIPE	8-94397-445-0	03	1	9202-		●
99	BOLT; CLIP,INJ,PIPE M5X20	9-09802-539-0	07	1	9202-	●
99	BOLT; CLIP,INJ,PIPE	8-94365-129-0	03	1	9202-		●
113	CLIP; INJ PIPE (A)	1-09701-091-0	02	1	9202-		●
113	CLIP; INJ PIPE (B)	8-94397-444-0	01	1	9202-		●
113	CLIP; INJ PIPE	9-15419-613-0	12	1	9306-			●
115	CLIP; "B",INJ PIPE	9-15419-614-0	07	1	9202-	●
115	CLIP; "B",INJ PIPE	8-94397-444-0	03	1	9202-		●
119	BOLT; CLIP,INJ PIPE M6X22 FLANGE	0-28210-622-0	03	1	9202-9204		●
119	BOLT; CLIP,INJ PIPE M6X22 FLANGE	0-28280-622-0	03	1	9205-9305		●
119	BOLT; CLIP,INJ PIPE M6X22 FLANGE	0-28080-622-0	03	1	9306-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-099-0	01	1	9202-	●		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94393-020-1	01	1	9202-		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-185-0	01	1	9202-	●		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94396-587-0	01	1	9202-9404		●
133	PIPE; INJ NOZZLE LEAK OFF	8-94395-144-0	01	1	9405-		●
134	BOLT; JOINT,LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	01	1	9202-	●	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9202-9305	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	02	1	9306-	●	●	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9202-9305		●

31 34 36 36 37 38 32 39 44 45 42 41 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ	1-15300-288-3	06	1	9202-	●
31	NOZZLE ASM; INJ (A)	8-94396-564-2	06	1	9202-9303		●
31	NOZZLE ASM; INJ (B)	8-94394-787-1	06	1	9304-		●
31	NOZZLE ASM; INJ TAIWAN EMISSION REGULATION<TAL>	1-15300-251-1	06	1	9306-			●
31	NOZZLE ASM; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15300-186-0	06	1	9505-			●
32	HOLDER ASM; NOZZLE	1-15330-101-0	06	1	9202-9305	●
32	HOLDER ASM; NOZZLE	1-15330-087-1	06	1	9306-	●		●
32	HOLDER ASM; NOZZLE (A)	8-94396-576-0	06	1	9202-9303		●
32	HOLDER ASM; NOZZLE (B)	8-94394-788-0	06	1	9304-		●
33	NOZZLE; INJ	1-15311-234-0	06	1	9202-	●
33	NOZZLE; INJ	8-94396-575-1	06	1	9202-		●
33	NOZZLE; INJ TAIWAN EMISSION REGULATION<TAL>	1-15311-209-0	06	1	9306-			●
33	NOZZLE; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15311-164-0	06	1	9505-			●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	06	1	9202-9305	●	●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	06	1	9306-		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9306-	●		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94171-195-0	06	1	9202-9305	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	9306-	●		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	9202-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	12	1	9202-9303	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	12	1	9304-9305	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9306-	●		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	12	1	9304-		●
37	NUT; CAP,NOZZLE HOLDER	5-15332-006-0	06	1	9202-	●		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	06	1	9202-	●		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	8-94169-503-0	06	1	9202-	●		●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	5-15351-001-0	06	1	9202-	●		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-51339-003-0	06	1	9202-9305	●		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	9306-	●		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9202-	●		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	9202-		●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	06	1	9202-	●		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9202-	●		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	12	1	9202-		●

31 32 34 36 31 58 140 44 43 146 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ	1-15300-288-3	06	1	9202-	●
31	NOZZLE ASM; INJ (A)	8-94396-564-2	06	1	9202-9303		●
31	NOZZLE ASM; INJ (B)	8-94394-787-1	06	1	9304-		●
31	NOZZLE ASM; INJ TAIWAN EMISSION REGULATION<TAL>	1-15300-251-1	06	1	9306-			●
31	NOZZLE ASM; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15300-186-0	06	1	9505-			●
32	HOLDER ASM; NOZZLE	1-15330-101-0	06	1	9202-9305	●
32	HOLDER ASM; NOZZLE	1-15330-087-1	06	1	9306-	●		●
32	HOLDER ASM; NOZZLE (A)	8-94396-576-0	06	1	9202-9303		●
32	HOLDER ASM; NOZZLE (B)	8-94394-788-0	06	1	9304-		●
33	NOZZLE; INJ	1-15311-234-0	06	1	9202-	●
33	NOZZLE; INJ	8-94396-575-1	06	1	9202-		●
33	NOZZLE; INJ TAIWAN EMISSION REGULATION<TAL>	1-15311-209-0	06	1	9306-			●
33	NOZZLE; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15311-164-0	06	1	9505-			●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	06	1	9202-9305	●	●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	06	1	9306-		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9306-	●		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94171-195-0	06	1	9202-9305	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	9306-	●		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	9202-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	12	1	9202-9303	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	12	1	9304-9305	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9306-	●		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	12	1	9304-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	06	1	9202-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9202-	●		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	9202-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9202-	●		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	12	1	9202-		●
58	FLANGE; INJ,NOZZLE HOLDER	8-94319-320-0	06	1	9202-9303		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	06	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97116-029-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97116-032-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97116-033-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97116-034-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97116-035-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.51	8-97116-036-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97116-037-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.53	8-97116-038-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97116-039-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.55	8-97116-040-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97116-041-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.57	8-97116-042-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97116-043-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.59	8-97116-044-0	AR	1	9304-		●
146	SPACER; NOZZLE	1-15339-095-0	06	1	9202-		●

31 32 34 36 36 58 145 140 44 43 146 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ	1-15300-288-3	06	1	9202-	●
31	NOZZLE ASM; INJ (A)	8-94396-564-2	06	1	9202-9303		●
31	NOZZLE ASM; INJ (B)	8-94394-787-1	06	1	9304-		●
31	NOZZLE ASM; INJ TAIWAN EMISSION REGULATION<TAL>	1-15300-251-1	06	1	9306-			●
31	NOZZLE ASM; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15300-186-0	06	1	9505-			●
32	HOLDER ASM; NOZZLE	1-15330-101-0	06	1	9202-9305	●
32	HOLDER ASM; NOZZLE	1-15330-087-1	06	1	9306-	●		●
32	HOLDER ASM; NOZZLE (A)	8-94396-576-0	06	1	9202-9303		●
32	HOLDER ASM; NOZZLE (B)	8-94394-788-0	06	1	9304-		●
33	NOZZLE; INJ	1-15311-234-0	06	1	9202-	●
33	NOZZLE; INJ	8-94396-575-1	06	1	9202-		●
33	NOZZLE; INJ TAIWAN EMISSION REGULATION<TAL>	1-15311-209-0	06	1	9306-			●
33	NOZZLE; INJ EXC. TAIWAN EMISSION REGULATION<TAL>	1-15311-164-0	06	1	9505-			●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	06	1	9202-9305	●	●
34	BOLT; EYE,NOZZLE HOLDER M8X18 EYE BOLT	1-09675-037-1	06	1	9306-		●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	9306-	●		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94171-195-0	06	1	9202-9305	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	9306-	●		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	9202-		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	12	1	9202-9303	●	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	12	1	9304-9305	●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	9306-	●		●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	12	1	9304-		●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	06	1	9202-		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	06	1	9202-	●		●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	9202-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	12	1	9202-	●		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	8-94174-139-0	12	1	9202-		●
58	FLANGE; INJ,NOZZLE HOLDER	8-94319-320-0	06	1	9202-9303		●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	06	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97116-029-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97116-032-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97116-033-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97116-034-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97116-035-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.51	8-97116-036-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97116-037-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.53	8-97116-038-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	9202-9303		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97116-039-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.55	8-97116-040-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97116-041-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.57	8-97116-042-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97116-043-0	AR	1	9304-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.59	8-97116-044-0	AR	1	9304-		●
145	GASKET; RET NUT	8-94128-915-0	06	1	9202-9303		●
146	SPACER; NOZZLE	1-15339-095-0	06	1	9202-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
