2-53A — TRANSMISSION OIL COOLER SYSTEM (#11969) — 65 parça

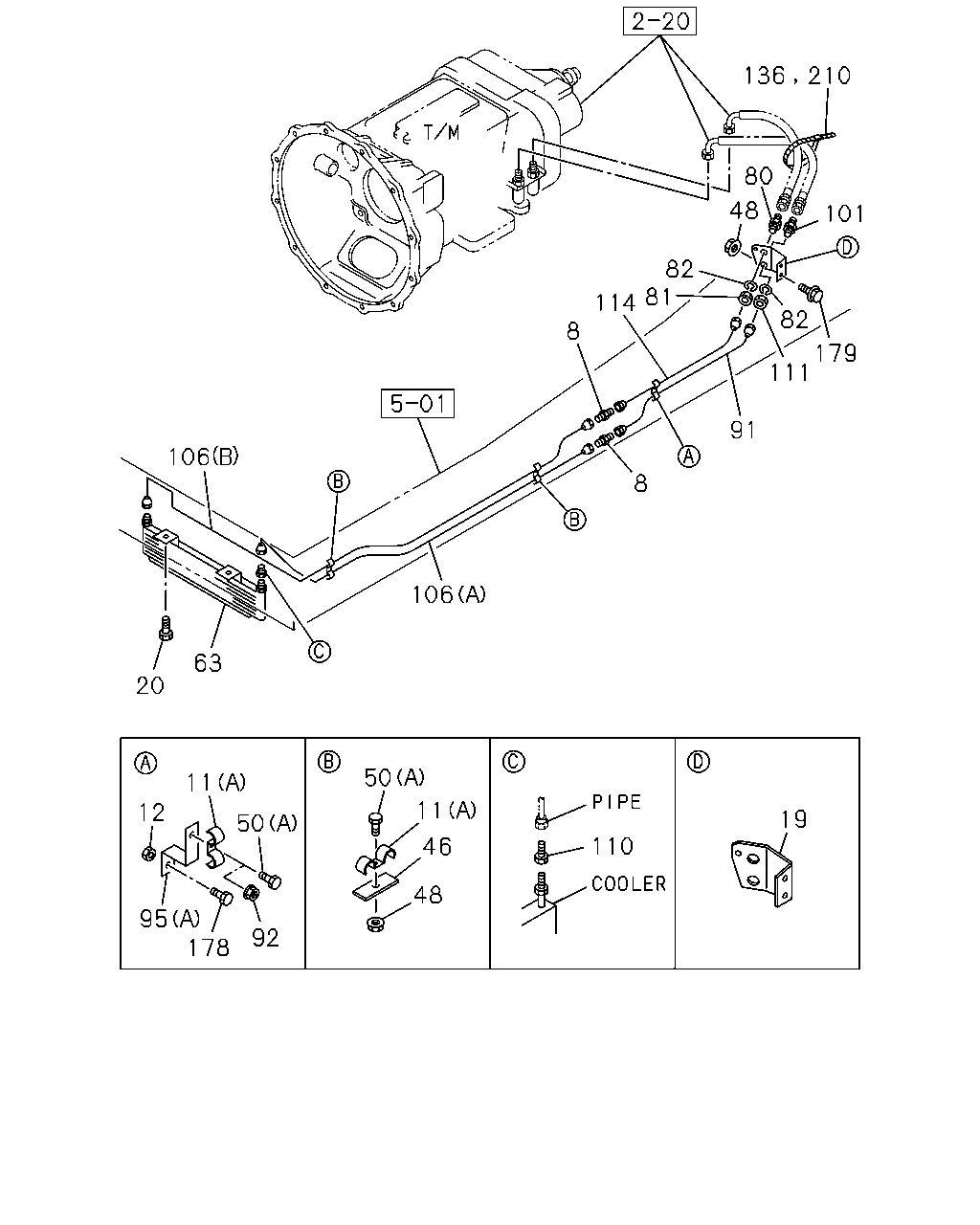

çizim 80073
136 210 80 101 82 48 82 179 81 114 111 8 91 8 106 106 20 63 11 12 50 95 178 92 50 11 46 48 110 19
BalonParca AdiParca NoAdetTipApplied Date A B
8 UNION
M22 		9-09233-015-1 02 1 0105-0106 ● ●
8 UNION
M22 		9-09233-015-1 02 1 0107-0607 ● ●
8 UNION
M22 L=51 		0-92123-015-0 02 1 0608- ● ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0105-0106 ● ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 01 1 0107- ● ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0105-0106 ● ●
11 CLIP; PIPE
(A) ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0107- ● ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0105-0106 ● ●
12 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ●
12 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
19 BRACKET; FLEX HOSE 1-47478-566-0 01 1 0105-0106 ● ●
19 BRACKET; FLEX HOSE 1-47478-566-0 01 1 0107- ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28081-020-0 02 1 0105-0512 ● ●
20 BOLT; COOLER TO BRKT
M10X20 FLANGE 		0-28051-020-0 02 1 0601- ● ●
46 BRACKET; OIL PIPE
L=50 		1-47475-299-2 02 1 0105-0106 ● ●
46 BRACKET; OIL PIPE
L=50 		1-47475-299-2 02 1 0107- ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0106 ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0105-0106 ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0310 ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0107-0310 ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0311-0602 ● ●
48 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0311-0602 ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
48 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
50 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0105-0106 ● ●
50 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0105-0106 ● ●
50 BOLT; CLIP
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0107-0512 ● ●
50 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
63 COOLER; OIL 1-21700-290-0 01 1 0105-0609 ● ●
63 COOLER; OIL 1-21700-394-0 01 1 0610- ● ●
80 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0105- ● ●
81 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0106 ● ●
81 NUT; UNION
M22 		9-09111-422-0 01 1 0107-0512 ● ●
81 NUT; UNION
M22 		0-91111-522-0 01 1 0601- ● ●
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0105-0106 ● ●
82 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 02 1 0107-0603 ● ●
82 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 02 1 0604- ● ●
91 PIPE; OIL,FLEX HOSE TO UNION
L=911 		1-49163-072-0 01 1 0105-0106 ● ●
91 PIPE; OIL,FLEX HOSE TO UNION 1-49166-215-0 01 1 0107- ● ●
92 NUT; CLIP
M8 FLANGE 		0-91150-108-0 01 1 0107-0602 ● ●
92 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
95 BRACKET; CLIP
(A) 		1-47475-881-0 01 1 0105-0106 ● ●
95 BRACKET; CLIP
(A) 		1-47477-669-1 01 1 0107- ● ●
101 UNION; FLEX HOSE
M22 & M30 STRAIGHT 		1-09664-237-0 01 1 0105- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2317 		1-49164-311-0 01 1 0105-0106 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2324 		1-49166-216-0 01 1 0107-0206 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(A) L=2305 		1-49166-669-0 01 1 0207- ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=1703 		1-49164-312-0 01 1 0105-0106 ● ●
106 PIPE ASM; OIL,COOLER TO UNION
(B) L=1695 		1-49166-217-0 01 1 0107- ● ●
110 UNION; OIL PIPE 1-09654-398-0 02 1 0105-0106 ● ●
110 UNION; OIL PIPE 1-09654-398-0 02 1 0107- ● ●
111 NUT; UNION
M22 		9-09111-422-0 01 1 0105-0106 ● ●
111 NUT; UNION
M22 		9-09111-422-0 01 1 0107-0512 ● ●
111 NUT; UNION
M22 		0-91111-522-0 01 1 0601- ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=1071 		1-49163-073-0 01 1 0105-0106 ● ●
114 PIPE; OIL,UNION TO FLEX HOSE
L=1073 		1-49166-218-0 01 1 0107- ● ●
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 0105-0108 ● ●
136 CLIP; FLEX HOSE
L=250 		1-09707-126-0 01 1 0109- ● ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0105-0106 ● ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 0107-0512 ● ●
178 BOLT; BRKT,CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0105-0512 ● ●
179 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0105-0108 ● ●
210 BAND; FLEX HOSE
L=175 		1-09707-178-0 01 1 0109- ● ●
