4-42 — POWER STEERING OIL PUMP (#119686) — 29 parça

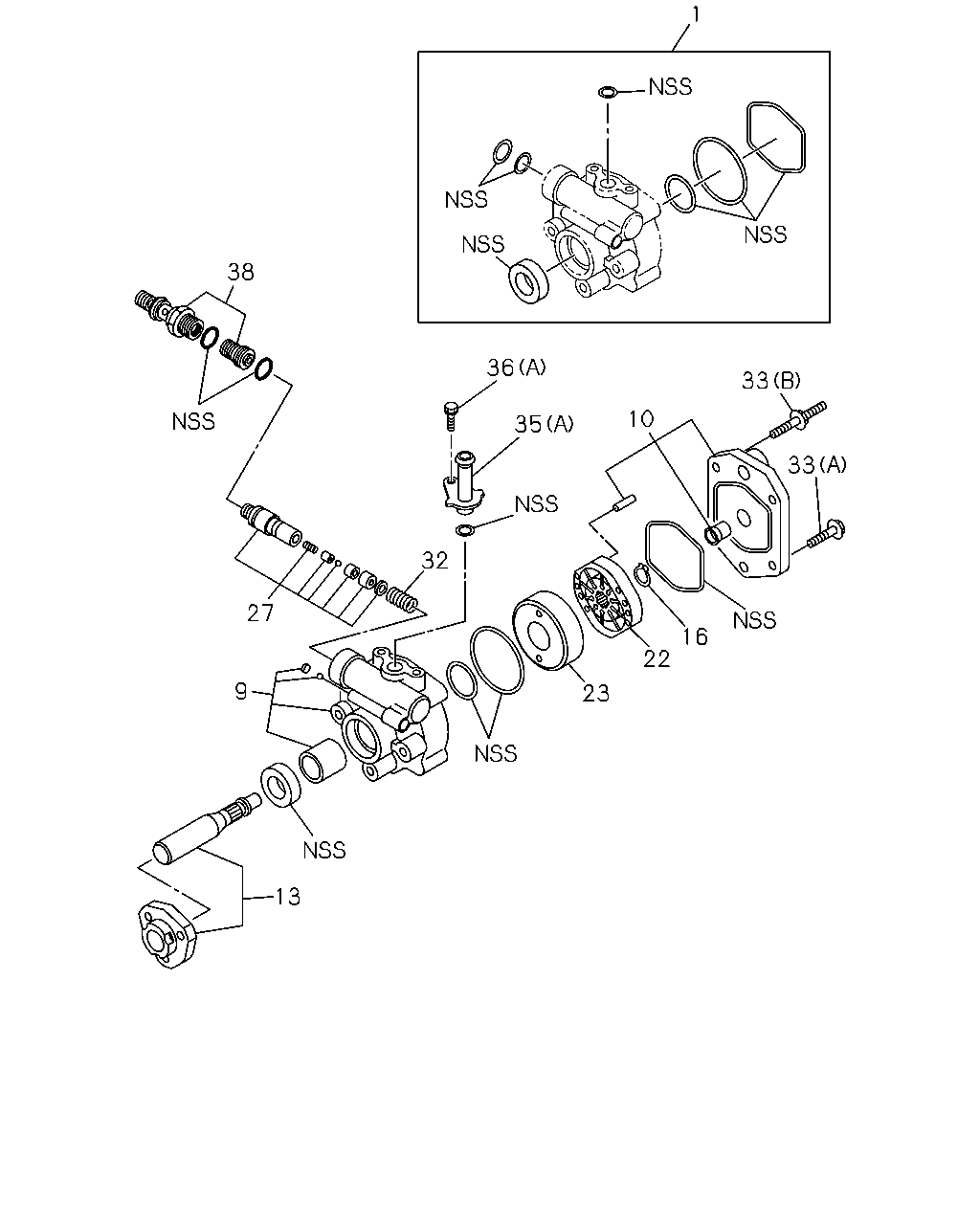

çizim 351093
1 38 27 32 10 33 33 16 22 23 13 9 36 35
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; OIL PUMP
ASM PART: B = 8-97946-697-0 		8-97184-735-0 01 1 -
9 BODY ASM; FRT,OIL PUMP
ASM PART: B = 8-97946-697-0 		8-97946-693-0 01 1 -
10 BODY ASM; RR,OIL PUMP
ASM PART: B = 8-97946-697-0 		8-97946-689-0 01 1 -
13 SHAFT KIT; RET
ASM PART: B = 8-97946-697-0 		8-97306-614-0 01 1 -
16 RING; RET,OIL PUMP
ASM PART: B = 8-97946-697-0 		8-94411-358-0 01 1 -
22 CARTRIDGE ASM; OIL PUMP
ASM PART: B = 8-97946-697-0 		8-97946-615-0 01 1 -
23 PLATE; SIDE,OIL PUMP
ASM PART: B = 8-97946-697-0 		8-97184-728-0 01 1 -
27 VALVE ASM; OIL PUMP
ASM PART: B = 8-97946-697-0 		8-97184-731-0 01 1 -
32 SPRING; OIL PUMP
ASM PART: B = 8-97946-697-0 		8-97184-766-0 01 1 -
33 BOLT; COVER
(A) ASM PART: B = 8-97946-697-0 		8-98028-773-0 03 1 -
33 BOLT; COVER
(B) ASM PART: B = 8-97946-697-0 		8-98034-093-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: B = 8-97946-697-0 		8-98033-923-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: A = 8-97946-164-0 		8-98165-869-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: A = 8-97946-164-0 		8-98166-383-0 01 1 -
36 BOLT; CONN,PIPE
(A) ASM PART: B = 8-97946-697-0 		8-98028-783-0 01 1 -
36 BOLT; CONN,PIPE
(A) ASM PART: A = 8-97946-164-0 		8-98165-884-0 01 1 -
36 BOLT; CONN,PIPE
(B) ASM PART: A = 8-97946-164-0 		8-98166-386-0 02 1 -
38 CONNECTOR; OIL PUMP
ASM PART: B = 8-97946-697-0 		8-97184-732-0 01 1 -

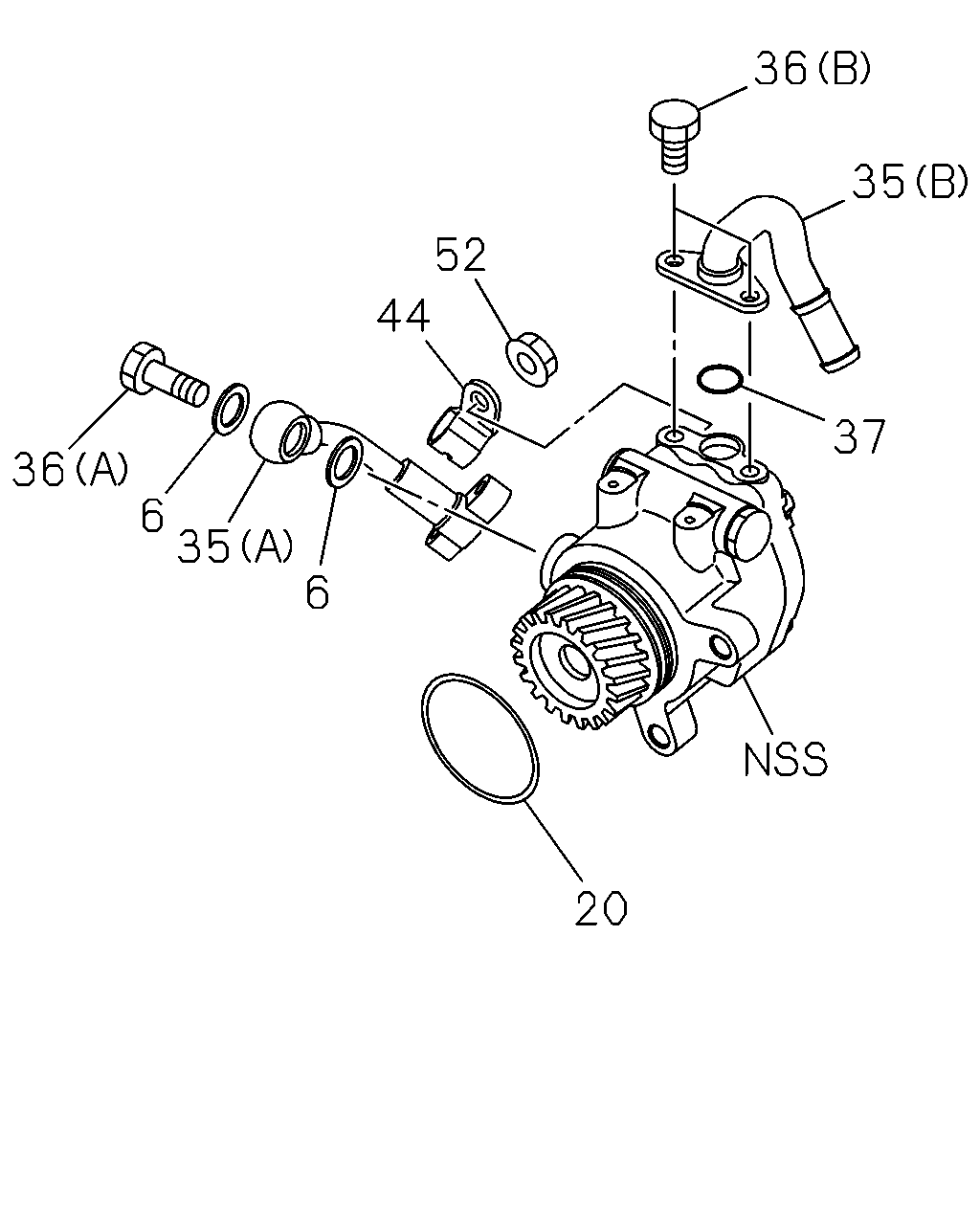

çizim 351096
36 52 44 35 6 36 6 20 37 35
BalonParca AdiParca NoAdetTipApplied Date
6 WASHER; PL,OIL PUMP
ASM PART: A = 8-97946-164-0 		8-98165-870-0 02 1 -
20 GASKET; FRT,OIL PUMP
ASM PART: A = 8-97946-164-0 		8-98165-868-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: B = 8-97946-697-0 		8-98033-923-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(A) ASM PART: A = 8-97946-164-0 		8-98165-869-0 01 1 -
35 PIPE; HOSE CONN,OIL PUMP
(B) ASM PART: A = 8-97946-164-0 		8-98166-383-0 01 1 -
36 BOLT; CONN,PIPE
(A) ASM PART: B = 8-97946-697-0 		8-98028-783-0 01 1 -
36 BOLT; CONN,PIPE
(A) ASM PART: A = 8-97946-164-0 		8-98165-884-0 01 1 -
36 BOLT; CONN,PIPE
(B) ASM PART: A = 8-97946-164-0 		8-98166-386-0 02 1 -
37 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97946-164-0 		8-98166-384-0 01 1 -
44 BRACKET; OIL PUMP,P/S & EDS
ASM PART: A = 8-97946-164-0 		8-98165-885-0 01 1 -
52 NUT; OIL PUMP
ASM PART: A = 8-97946-164-0 		8-98165-887-0 01 1 -
