Isuzu WW
▶
TRUCKS
▶
EXZ
▶
10878 - EXZ RHD FUEL TANK 400L
▶
2 - Clutch, Transmission, Trans Axle
▶
2-39C - POWER ASSISTOR
▶
2-39C — POWER ASSISTOR
(#11968) — 66 parça
Tümü
A - MJD7S M/T
B - MJX16P M/T
◀

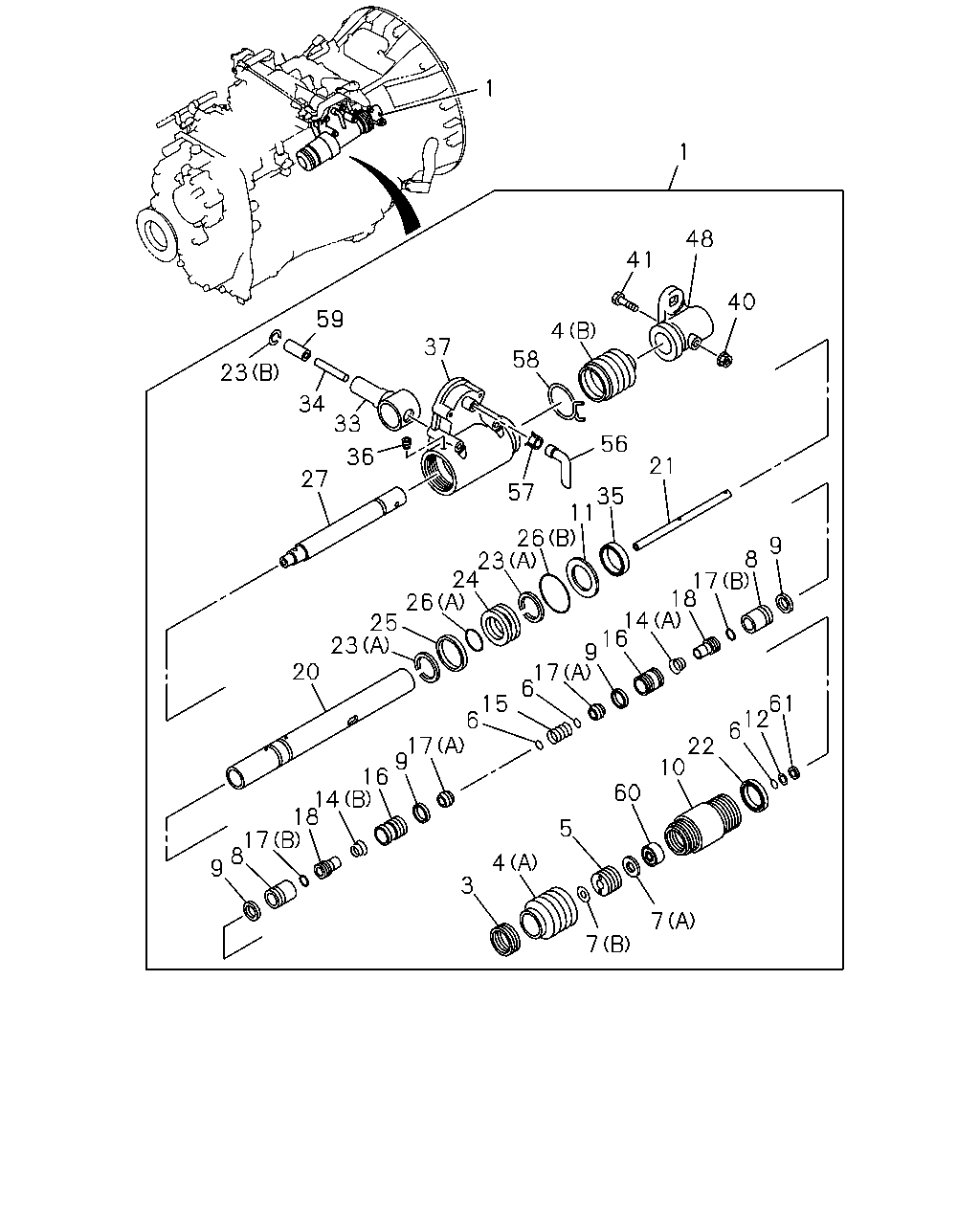

[239C] COMPONENT (46 parça)

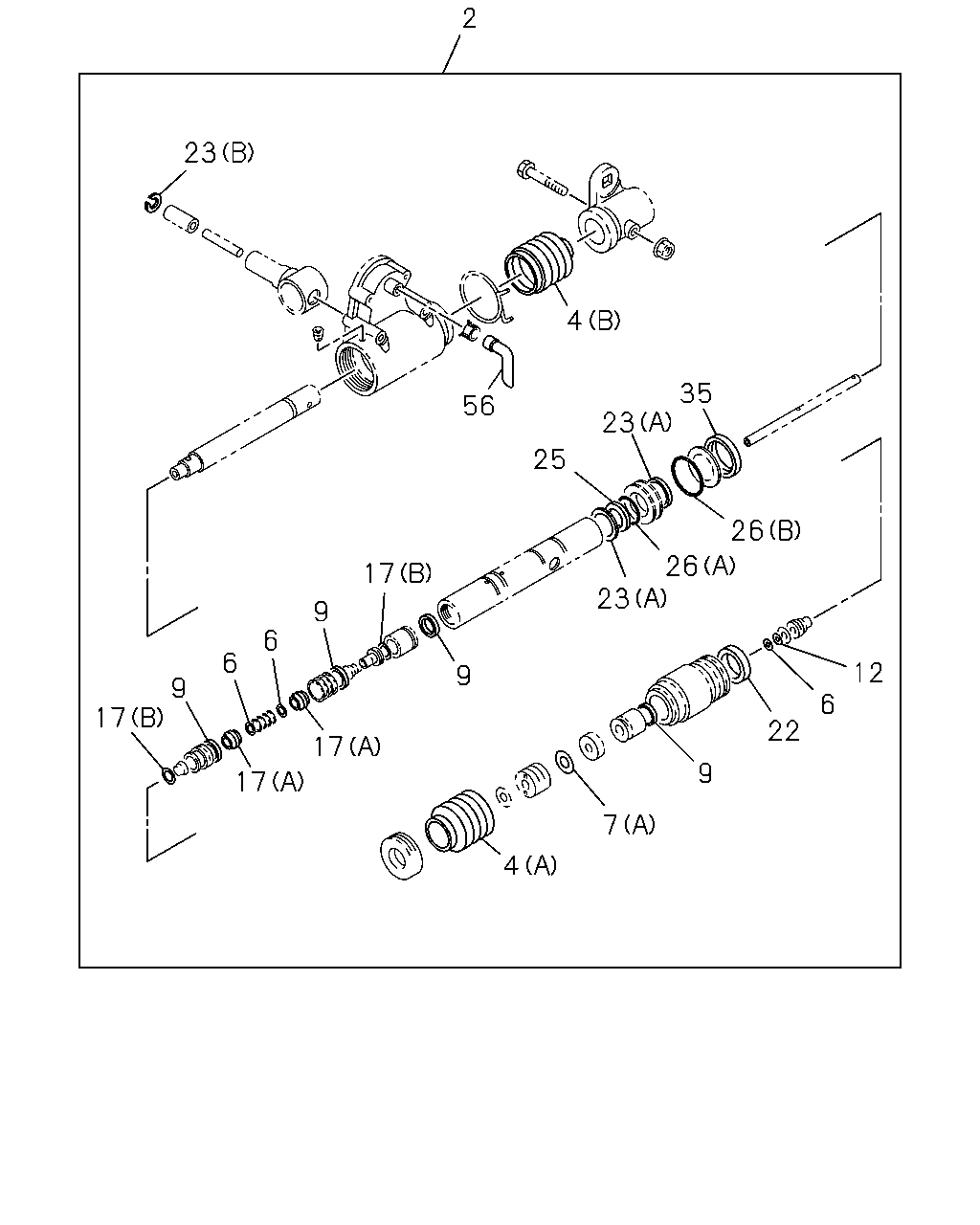

[239C] REPAIR KIT (20 parça)
▶
1
1
41
48
40
4
58
59
23
37
34
33
36
27
57
56
21
20
35
23
25
26
11
24
23
26
9
8
17
18
14
16
9
17
6
15
6
17
9
16
14
18
17
8
9
3
7
7
4
60
5
10
22
6
12
61
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
ASSISTOR ASM; POWER,SHIFT
1-33730-270-1
01
1
0107-
●
●
3
NUT; LK,ROD
1-33739-025-0
01
1
0107-
●
●
4
BOOT; POWER SHIFTER
(A)
1-33739-038-0
01
1
0107-
●
●
4
BOOT; POWER SHIFTER
(B)
1-33739-571-0
01
1
0107-0108
●
●
4
BOOT; POWER SHIFTER
(B)
1-33738-101-0
01
1
0109-
●
●
5
CONNECTOR; CYL
1-33739-596-0
01
1
0107-
●
●
6
GASKET
1-33739-013-0
03
1
0107-
●
●
7
FILTER; AIR
(B)
1-33738-036-0
01
1
0107-
●
●
7
FILTER; AIR
(A)
1-33739-033-0
01
1
0107-
●
●
8
TUBE
1-33739-560-0
02
1
0107-
●
●
9
RING; SQUARE
1-33739-086-0
04
1
0107-
●
●
10
CYLINDER; POWER SHIFTER
1-33739-605-0
01
1
0107-
●
●
11
PLATE; CYL
1-33739-600-0
01
1
0107-
●
●
12
RING; RET
1-33739-016-0
01
1
0107-
●
●
14
SPRING; VALVE LIFTER
(A)
1-33739-347-0
01
1
0107-
●
●
14
SPRING; VALVE LIFTER
(B)
1-33739-354-0
01
1
0107-
●
●
15
SPRING; VALVE SEAL
1-33739-014-0
01
1
0107-
●
●
16
SEAT; VALVE
1-33739-067-0
02
1
0107-
●
●
17
SEAL ASM; VALVE
(A)
1-33739-012-0
02
1
0107-
●
●
17
SEAL ASM; VALVE
(B)
9-83335-055-0
02
1
0107-
●
●
18
LIFTER; VALVE
1-33739-586-0
02
1
0107-
●
●
20
ROD ASM; W/CAP
1-33739-599-0
01
1
0107-
●
●
21
PIPE; AIR,POWER SHIFTER
1-33739-598-0
01
1
0107-
●
●
22
SEAL; OIL
1-33739-353-0
01
1
0107-
●
●
23
RING; RET
(A)
1-33739-022-0
02
1
0107-
●
●
23
RING; RET
(B)
1-33739-564-0
01
1
0107-
●
●
24
PISTON
1-33739-601-0
01
1
0107-
●
●
25
RING; "X",PISTON
1-33739-613-0
01
1
0107-
●
●
26
GASKET
(A)
1-33739-124-0
01
1
0107-
●
●
26
GASKET
(B)
1-33739-604-0
01
1
0107-
●
●
27
ROD; POWER SHIFTER
1-33739-597-0
01
1
0107-
●
●
33
STRIKER; POWER SHIFTER
1-33739-609-0
01
1
0107-
●
●
34
PIN; STRAIGHT,POWER SHIFTER
1-33739-575-0
01
1
0107-
●
●
35
GASKET; CUP
1-33739-073-0
01
1
0107-
●
●
36
SCREW; SET
1-33739-040-0
01
1
0107-
●
●
37
HOUSING; POWER SHIFTER
1-33739-603-0
01
1
0107-
●
●
40
NUT; LEVER
1-33739-940-0
01
1
0107-
●
●
41
BOLT; SET,LEVER
1-33739-939-0
01
1
0107-
●
●
48
LEVER; CONT,CABLE
1-33739-591-1
01
1
0107-
●
●
56
HOSE; POWER SHIFTER
1-33739-570-0
01
1
0107-
●
●
57
CLAMP; HOSE
1-33739-569-0
01
1
0107-
●
●
58
CLAMP; BOOT
1-33739-562-0
01
1
0107-0108
●
●
59
SHIM; POWER SHIFTER
1-33739-563-0
01
1
0107-0108
●
●
59
SHIM; POWER SHIFTER
1-33738-102-0
01
1
0109-
●
●
60
COLLAR; CYL
1-33739-595-0
01
1
0107-
●
●
61
PLATE; VLV LIFTER
1-33739-581-0
01
1
0107-
●
●
2
23
4
56
35
25
23
26
26
23
12
6
22
9
7
4
17
17
9
17
9
6
6
9
17
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; POWER SHIFTER
1-33739-607-0
01
1
0107-0108
●
●
2
REPAIR KIT; POWER SHIFTER
1-33738-106-0
01
1
0109-
●
●
4
BOOT; POWER SHIFTER
(A)
1-33739-038-0
01
1
0107-
●
●
4
BOOT; POWER SHIFTER
(B)
1-33739-571-0
01
1
0107-0108
●
●
4
BOOT; POWER SHIFTER
(B)
1-33738-101-0
01
1
0109-
●
●
6
GASKET
1-33739-013-0
03
1
0107-
●
●
7
FILTER; AIR
(B)
1-33738-036-0
01
1
0107-
●
●
7
FILTER; AIR
(A)
1-33739-033-0
01
1
0107-
●
●
9
RING; SQUARE
1-33739-086-0
04
1
0107-
●
●
12
RING; RET
1-33739-016-0
01
1
0107-
●
●
17
SEAL ASM; VALVE
(A)
1-33739-012-0
02
1
0107-
●
●
17
SEAL ASM; VALVE
(B)
9-83335-055-0
02
1
0107-
●
●
22
SEAL; OIL
1-33739-353-0
01
1
0107-
●
●
23
RING; RET
(A)
1-33739-022-0
02
1
0107-
●
●
23
RING; RET
(B)
1-33739-564-0
01
1
0107-
●
●
25
RING; "X",PISTON
1-33739-613-0
01
1
0107-
●
●
26
GASKET
(A)
1-33739-124-0
01
1
0107-
●
●
26
GASKET
(B)
1-33739-604-0
01
1
0107-
●
●
35
GASKET; CUP
1-33739-073-0
01
1
0107-
●
●
56
HOSE; POWER SHIFTER
1-33739-570-0
01
1
0107-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
