2-20 — MANUAL TRANSMISSION ASM AND CASE (#119672) — 109 parça

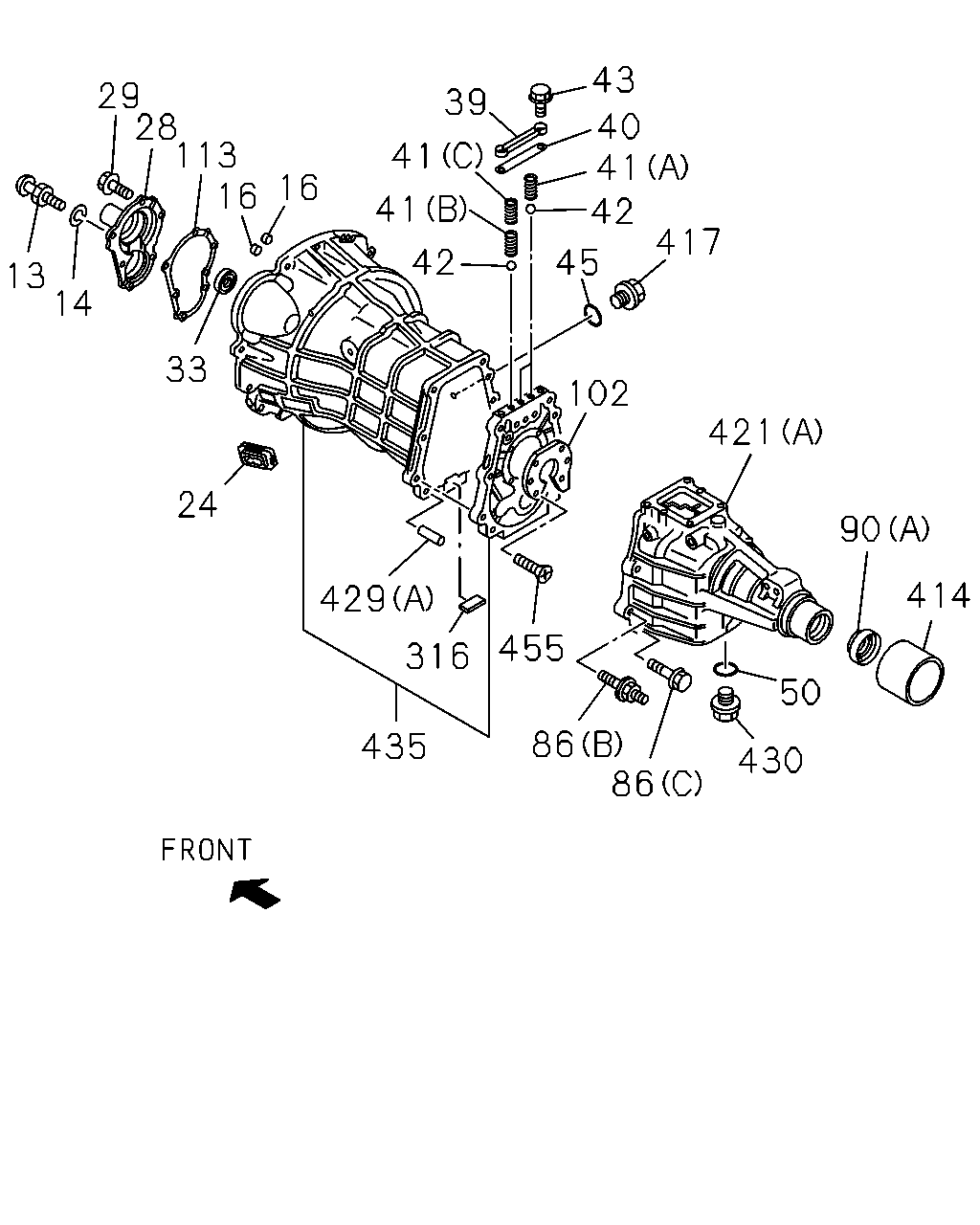

435 86 86 50 430 455 316 429 24 33 14 13 29 16 113 28 16 42 41 41 39 43 41 40 45 42 421 417 102 90 414

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1305-	●	●
14	WASHER; LK,SUPPORT ID=12.2	0-91510-512-0	01	1	1305-	●	●
16	PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1305-	●	●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	1305-	●	●
28	COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1305-	●	●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1305-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1305-	●	●
39	PLATE; DETENT SPR	8-98035-571-0	01	1	1305-	●	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1305-	●	●
41	SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1305-	●	●
41	SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1305-	●	●
41	SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1305-	●	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1305-	●	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-97365-376-0	02	1	1305-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1305-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1305-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1305-	●		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1305-	●	●
86	BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1305-	●	●
86	BOLT; RR COVER 4X4(TFS***) (A) M8X45 FLANGE	0-28050-845-0	16	1	1305-	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1305-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1305-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97947-841-0	01	1	1305-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1305-	●		●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1305-	●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1305-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1305-	●	●
414	COVER; DUST,RR COVER	8-98027-802-0	01	1	1305-		●
414	COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1305-	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1305-	●	●
417	PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1305-	●		●
421	COVER; RR,TRANS (A)	8-98191-921-0	01	1	1305-1405		●
421	COVER; RR,TRANS 4X2(TFB***) (A)	8-98191-921-0	01	1	1305-1405	●
421	COVER; RR,TRANS (A)	8-97978-059-0	01	1	1406-		●
421	COVER; RR,TRANS 4X2(TFB***) (A)	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X4(TFS***) (B)	8-98214-238-0	01	1	1305-1409	●
421	COVER; RR,TRANS 4X4(TFS***) (B)	8-97978-061-0	01	1	1410-	●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1305-	●	●
429	PIN; STRAIGHT 4X4(TFS***) (B) OD=10 L=20	8-97135-423-0	02	1	1305-	●		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1305-	●	●
430	PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1305-	●		●
435	CASE; TRANS	8-98047-230-0	01	1	1305-	●	●
455	SCREW; BRG RET M8X22	8-98035-654-0	04	1	1305-	●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL	8-98211-726-0	01	1	1305-		●
1	TRANSMISSION ASM; MANUAL 4X2(TFB***) 4JK1-TCX ENG(LR0)	8-98172-462-0	01	1	1305-	●
1	TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98172-959-0	01	1	1305-	●

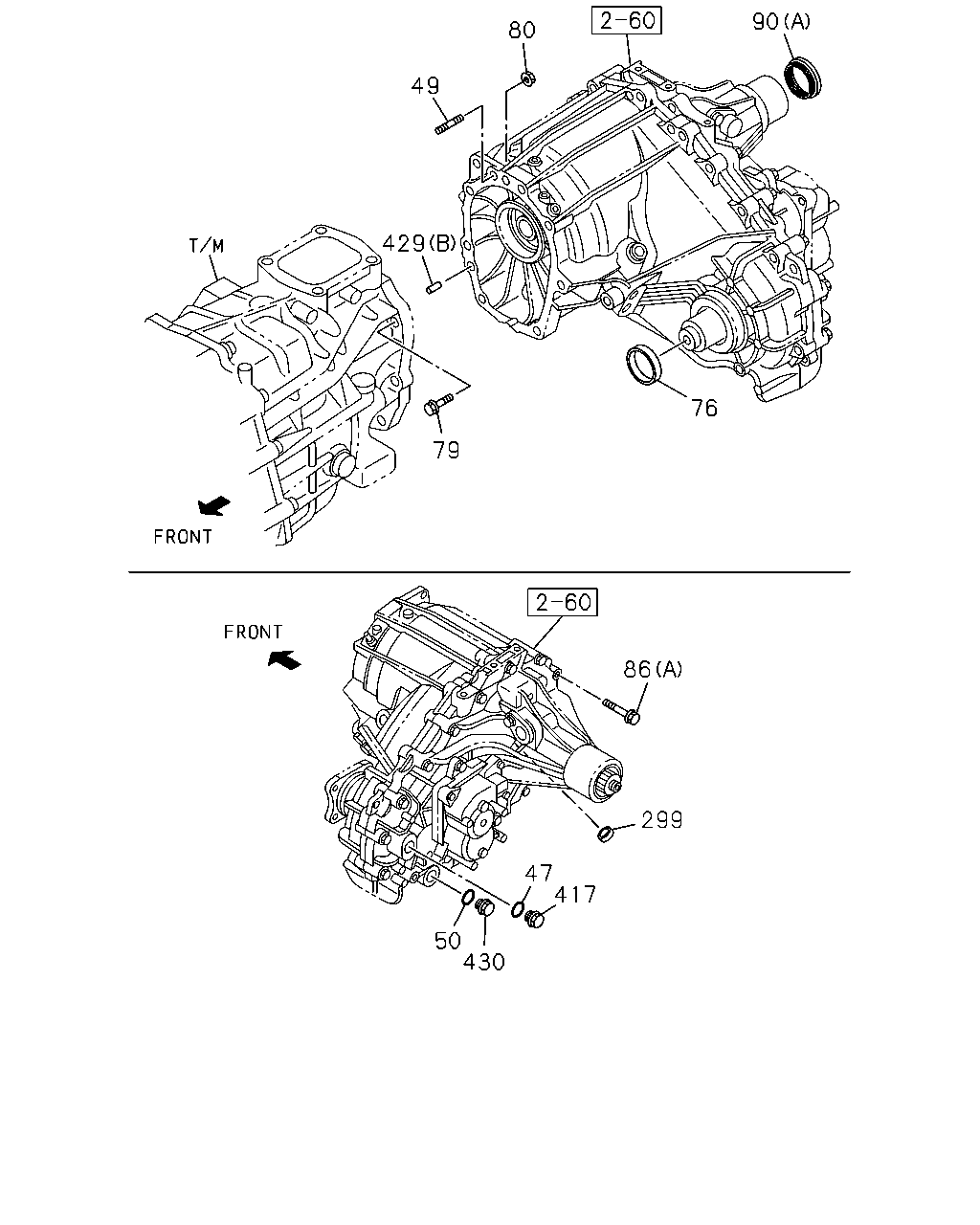

49 80 90 76 79 429 50 417 47 299 86 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1305-	●		●
49	STUD; TRANSFER CASE 4X4(TFS***) M10X30 L=45	8-98035-675-0	01	1	1305-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1305-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1305-	●		●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1305-	●		●
79	BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1305-	●
79	BOLT; TRANSFER CASE 4X4(TFS***) M10X45 FLANGE	0-28051-045-0	07	1	1305-			●
80	NUT; TRANSFER CASE 4X4(TFS***) M10 FLANGE	0-91180-110-0	01	1	1305-	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1305-	●	●
86	BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1305-	●	●
86	BOLT; RR COVER 4X4(TFS***) (A) M8X45 FLANGE	0-28050-845-0	16	1	1305-	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1305-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1305-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97947-841-0	01	1	1305-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1305-	●		●
299	PLUG; SHIFTER ROD 4X4(TFS***) OD=15.6	8-94173-641-0	02	1	1305-	●		●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1305-	●	●
417	PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1305-	●		●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1305-	●	●
429	PIN; STRAIGHT 4X4(TFS***) (B) OD=10 L=20	8-97135-423-0	02	1	1305-	●		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1305-	●	●
430	PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1305-	●		●

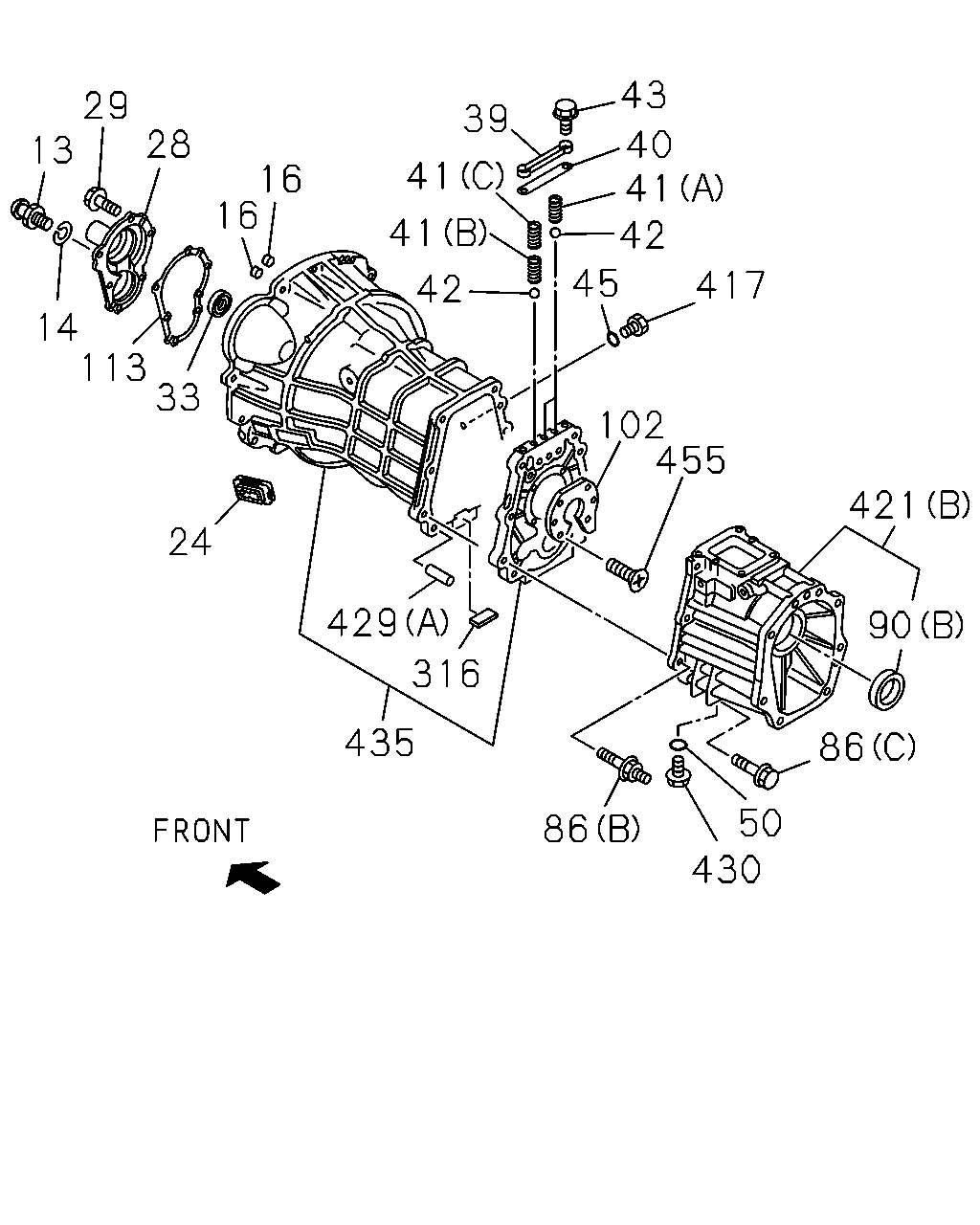

421 90 86 50 430 86 435 316 429 24 33 113 14 13 29 16 16 28 42 41 41 39 43 41 40 42 45 417 102 455

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1305-	●	●
14	WASHER; LK,SUPPORT ID=12.2	0-91510-512-0	01	1	1305-	●	●
16	PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1305-	●	●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	1305-	●	●
28	COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1305-	●	●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1305-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1305-	●	●
39	PLATE; DETENT SPR	8-98035-571-0	01	1	1305-	●	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1305-	●	●
41	SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1305-	●	●
41	SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1305-	●	●
41	SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1305-	●	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1305-	●	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-97365-376-0	02	1	1305-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1305-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	8-97115-712-0	01	1	1305-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1305-	●		●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1305-	●	●
86	BOLT; RR COVER (C) M10X55 FLANGE	8-98035-672-0	07	1	1305-	●	●
86	BOLT; RR COVER 4X4(TFS***) (A) M8X45 FLANGE	0-28050-845-0	16	1	1305-	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97947-840-0	01	1	1305-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (A) NOK	8-97947-840-0	01	1	1305-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97947-841-0	01	1	1305-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97046-705-3	01	1	1305-	●		●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1305-	●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1305-	●	●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1305-	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1305-	●	●
417	PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1305-	●		●
421	COVER; RR,TRANS (A)	8-98191-921-0	01	1	1305-1405		●
421	COVER; RR,TRANS 4X2(TFB***) (A)	8-98191-921-0	01	1	1305-1405	●
421	COVER; RR,TRANS (A)	8-97978-059-0	01	1	1406-		●
421	COVER; RR,TRANS 4X2(TFB***) (A)	8-97978-059-0	01	1	1406-	●
421	COVER; RR,TRANS 4X4(TFS***) (B)	8-98214-238-0	01	1	1305-1409	●
421	COVER; RR,TRANS 4X4(TFS***) (B)	8-97978-061-0	01	1	1410-	●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1305-	●	●
429	PIN; STRAIGHT 4X4(TFS***) (B) OD=10 L=20	8-97135-423-0	02	1	1305-	●		●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1305-	●	●
430	PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1305-	●		●
435	CASE; TRANS	8-98047-230-0	01	1	1305-	●	●
455	SCREW; BRG RET M8X22	8-98035-654-0	04	1	1305-	●	●
