5-20 — BATTERY CARRIER (#119659) — 13 parça

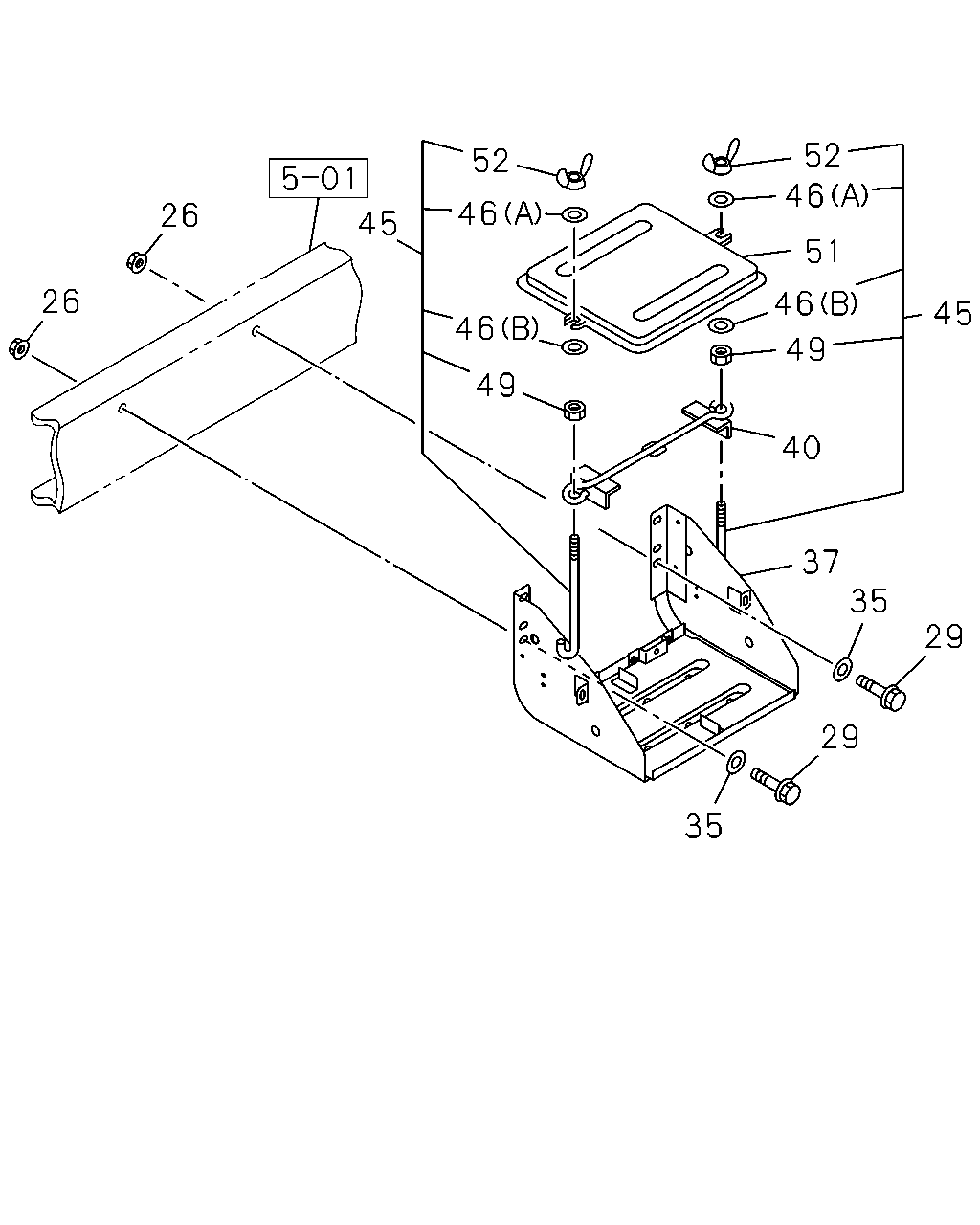

çizim 351246
45 46 51 46 52 49 40 37 29 35 29 35 49 46 46 52 45 26 26
BalonParca AdiParca NoAdetTipApplied Date A B
26 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 04 1 1304- ● ●
29 BOLT; BRKT TO FRAME
M10X35 FLANGE THA 		0-28661-035-0 04 1 1304- ● ●
35 WASHER; PL,BATTERY CARRIER
ID=10.5 OD=22 T=1.6 IMA 		0-91610-610-0 04 1 1304- ● ●
37 BRACKET; BATTERY
THA 		8-97923-653-1 01 1 1304- ● ●
40 CLAMP; BATTERY
THA 		8-97910-232-0 01 1 1304- ● ●
45 ROD; TENSION,BATTERY 8-97915-640-1 02 1 1304-1305 ● ●
45 ROD; TENSION,BATTERY
THA 		8-97926-647-0 02 1 1306- ● ●
46 WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 IMA 		0-91610-608-0 02 1 1304-1305 ● ●
46 WASHER; PL,BATTERY TO CARRIER
(A) ID=8.4 OD=18 IMA 		0-91614-608-0 02 1 1306- ● ●
46 WASHER; PL,BATTERY TO CARRIER
(B) ID=8.4 OD=22 THA 		0-91614-708-0 02 1 1304- ● ●
49 NUT; ROD,BATTERY
M8 IMA 		0-91110-508-0 02 1 1304- ● ●
51 COVER; BATTERY
THA 		8-97915-940-0 01 1 1304- ● ●
52 NUT; WING,COVER FIX
M8 WING NUT THA 		0-91118-408-0 02 1 1304- ● ●
