8-01 — LAMP; FRONT AND FRONT SIDE (#119658) — 100 parça

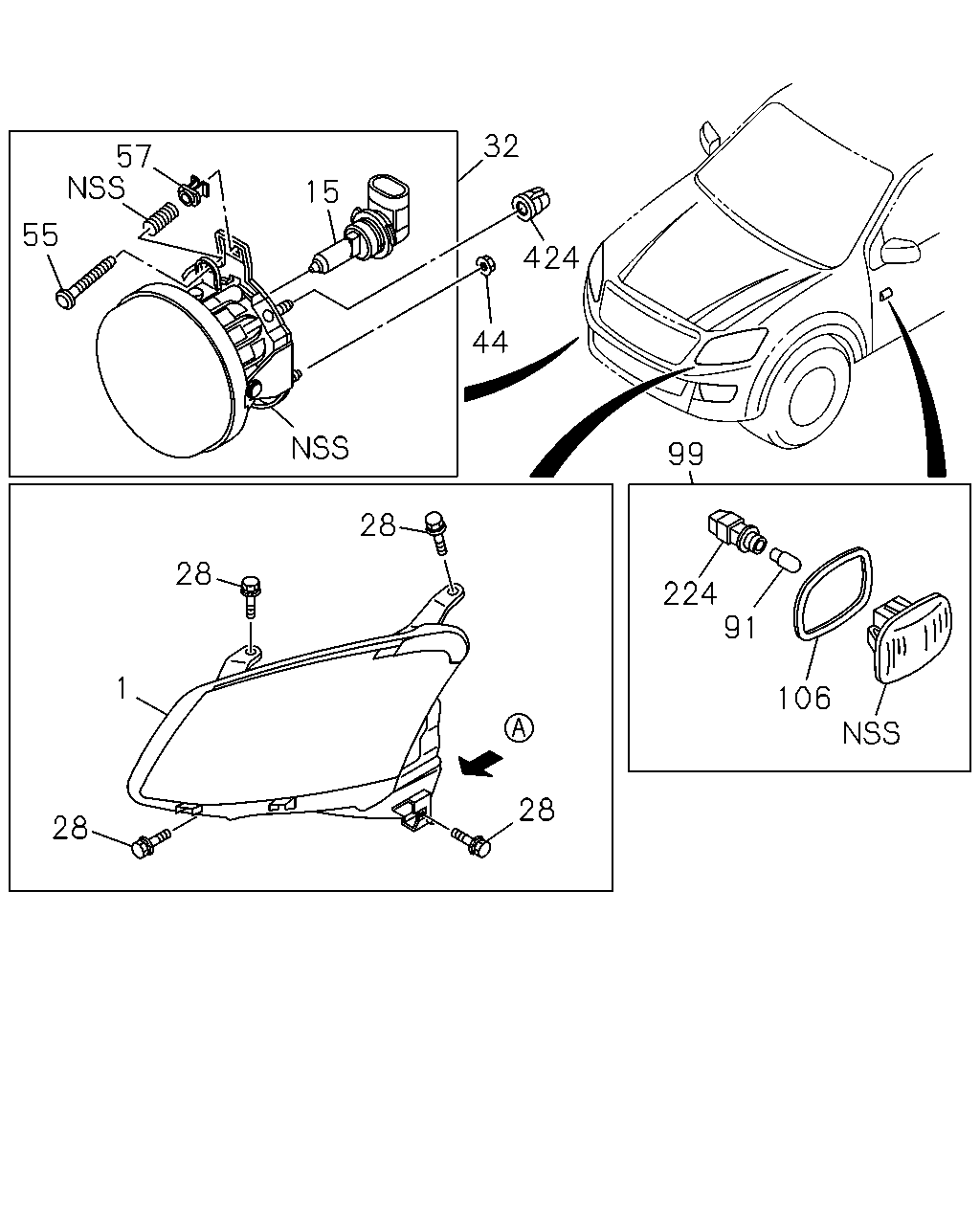

çizim 351526
32 424 44 99 224 91 106 28 28 28 1 28 55 57 15
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; HEAD
EQUIPMENT IMPACT<EPS> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98222-275-2 01 1 1410- ●
1 LAMP ASM; HEAD
EQUIPMENT IMPACT<EPS> 		8-98222-275-2 01 1 1410- ●
1 LAMP ASM; HEAD
EQUIPMENT IMPACT<EPS> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98222-276-2 01 1 1410- ●
1 LAMP ASM; HEAD
EQUIPMENT IMPACT<EPS> 		8-98222-276-2 01 1 1410- ●
1 LAMP ASM; HEAD 8-98125-391-6 01 1 1305- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-391-6 01 1 1305- ●
1 LAMP ASM; HEAD 8-98125-392-6 01 1 1305- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-392-6 01 1 1305- ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-382-6 01 1 1305-1409 ●
1 LAMP ASM; HEAD 8-98125-382-6 01 1 1305-1409 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS> 		8-98125-382-7 01 1 1410- ●
1 LAMP ASM; HEAD
EXC. EQUIPMENT IMPACT<EPS> 		8-98125-382-7 01 1 1410- ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-383-6 01 1 1305-1409 ●
1 LAMP ASM; HEAD 8-98125-383-6 01 1 1305-1409 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS> 		8-98125-383-7 01 1 1410- ●
1 LAMP ASM; HEAD
EXC. EQUIPMENT IMPACT<EPS> 		8-98125-383-7 01 1 1410- ●
15 BULB; FOG LAMP
FOG LAMP<T96> 12V 51W 		8-97286-998-0 02 1 1305- ● ● ● ●
28 BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER 		8-98062-140-0 08 1 1305- ● ● ● ●
32 LAMP ASM; FOG
FOG LAMP<T96> 		8-98169-680-0 02 1 1305- ● ● ● ●
44 NUT; FOG LAMP
FOG LAMP<T96> M6 FLANGE 		8-98055-704-0 04 1 1305- ● ● ● ●
55 SCREW; ADJ,FOG LAMP
FOG LAMP<T96> 		8-98017-834-0 02 1 1305- ● ● ● ●
57 NUT; UNIT TO SCREW,FOG LAMP
FOG LAMP<T96> 		8-98017-835-0 02 1 1305- ● ● ● ●
91 BULB; SIDE TURN SIGNAL
12V 5W 		8-97310-952-0 02 1 1305- ● ●
91 BULB; SIDE TURN SIGNAL
DOOR MIRROR<RT9> 12V 5W 		8-97310-952-0 02 1 1305- ●
99 LAMP; SIDE FLASHER 8-98084-153-0 02 1 1305- ● ●
99 LAMP; SIDE FLASHER
DOOR MIRROR<RT9> 		8-98084-153-0 02 1 1305- ●
106 GASKET; SIDE TURN SIGNAL 8-97333-420-0 02 1 1305- ● ●
106 GASKET; SIDE TURN SIGNAL
DOOR MIRROR<RT9> 		8-97333-420-0 02 1 1305- ●
224 SOCKET; SIDE FLASHER LAMP 8-97310-953-0 02 1 1305- ● ●
224 SOCKET; SIDE FLASHER LAMP
DOOR MIRROR<RT9> 		8-97310-953-0 02 1 1305- ●
424 RETAINER; FOG LAMP
FOG LAMP<T96> 		8-97372-854-0 02 1 1305- ● ● ● ●

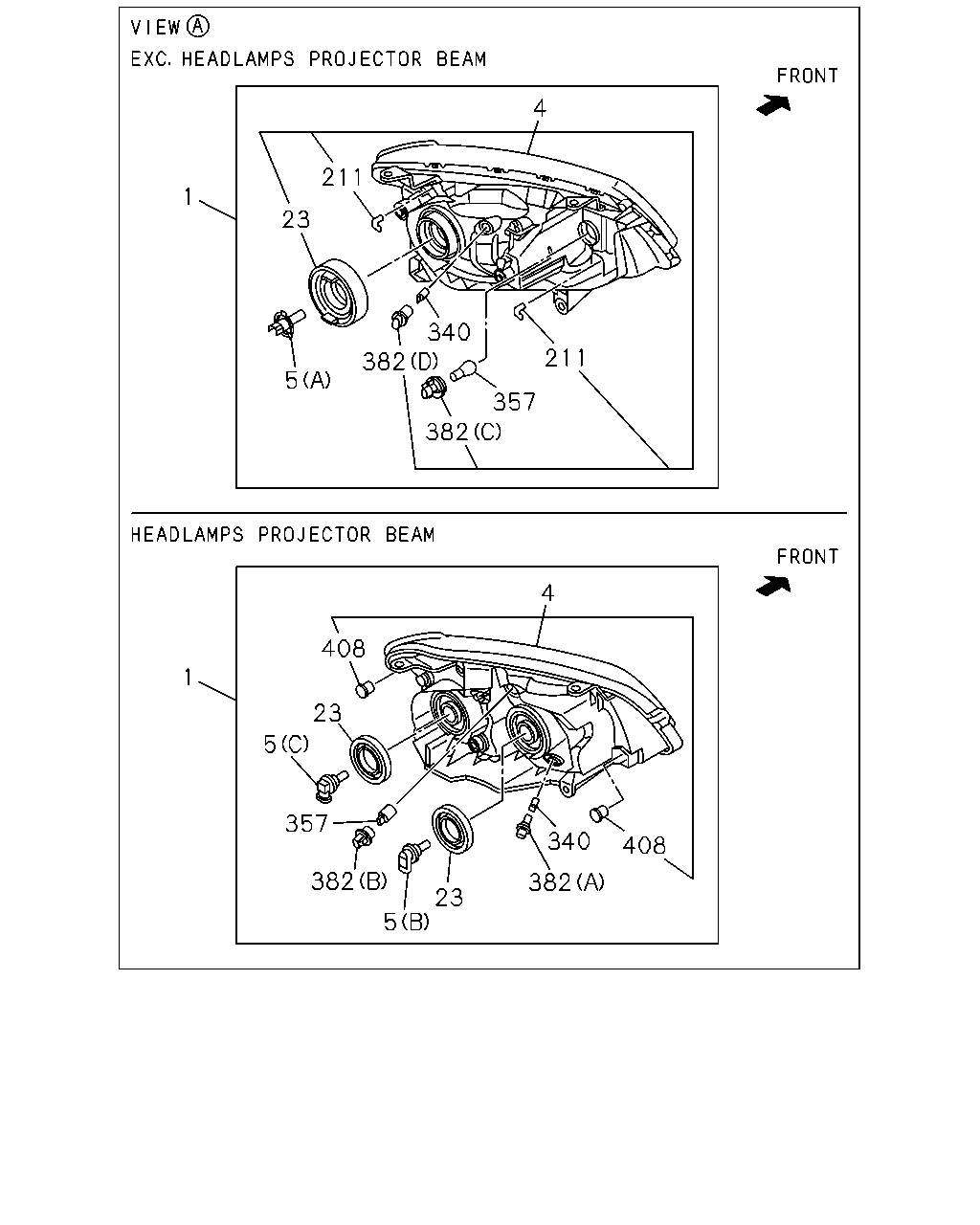

çizim 351531
4 211 23 1 382 5 340 357 382 211 4 408 23 1 5 357 382 23 5 382 340 408
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LAMP ASM; HEAD
EQUIPMENT IMPACT<EPS> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98222-275-2 01 1 1410- ●
1 LAMP ASM; HEAD
EQUIPMENT IMPACT<EPS> 		8-98222-275-2 01 1 1410- ●
1 LAMP ASM; HEAD
EQUIPMENT IMPACT<EPS> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98222-276-2 01 1 1410- ●
1 LAMP ASM; HEAD
EQUIPMENT IMPACT<EPS> 		8-98222-276-2 01 1 1410- ●
1 LAMP ASM; HEAD 8-98125-391-6 01 1 1305- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-391-6 01 1 1305- ●
1 LAMP ASM; HEAD 8-98125-392-6 01 1 1305- ● ●
1 LAMP ASM; HEAD
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-392-6 01 1 1305- ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-382-6 01 1 1305-1409 ●
1 LAMP ASM; HEAD 8-98125-382-6 01 1 1305-1409 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS> 		8-98125-382-7 01 1 1410- ●
1 LAMP ASM; HEAD
EXC. EQUIPMENT IMPACT<EPS> 		8-98125-382-7 01 1 1410- ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98125-383-6 01 1 1305-1409 ●
1 LAMP ASM; HEAD 8-98125-383-6 01 1 1305-1409 ●
1 LAMP ASM; HEAD
HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS> 		8-98125-383-7 01 1 1410- ●
1 LAMP ASM; HEAD
EXC. EQUIPMENT IMPACT<EPS> 		8-98125-383-7 01 1 1410- ●
4 HEADLAMP UNIT
EQUIPMENT IMPACT<EPS> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98253-037-1 01 1 1410- ●
4 HEADLAMP UNIT
EQUIPMENT IMPACT<EPS> 		8-98253-037-1 01 1 1410- ●
4 HEADLAMP UNIT
EQUIPMENT IMPACT<EPS> HEADLAMPS PROJECTOR BEAM<8LH> 		8-98253-038-1 01 1 1410- ●
4 HEADLAMP UNIT
EQUIPMENT IMPACT<EPS> 		8-98253-038-1 01 1 1410- ●
4 HEADLAMP UNIT 8-98186-215-0 01 1 1305- ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-215-0 01 1 1305- ●
4 HEADLAMP UNIT 8-98186-216-0 01 1 1305- ● ●
4 HEADLAMP UNIT
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-216-0 01 1 1305- ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-199-0 01 1 1305-1309 ●
4 HEADLAMP UNIT 8-98186-199-0 01 1 1305-1309 ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS> 		8-98186-199-2 01 1 1310- ●
4 HEADLAMP UNIT
EXC. EQUIPMENT IMPACT<EPS> 		8-98186-199-2 01 1 1310- ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-200-1 01 1 1305-1409 ●
4 HEADLAMP UNIT 8-98186-200-1 01 1 1305-1409 ●
4 HEADLAMP UNIT
HEADLAMPS PROJECTOR BEAM<8LH> EXC. EQUIPMENT IMPACT<EPS> 		8-98186-200-2 01 1 1410- ●
4 HEADLAMP UNIT
EXC. EQUIPMENT IMPACT<EPS> 		8-98186-200-2 01 1 1410- ●
5 BULB; HEADLAMP
(A) 12V 55/60W 		8-98186-377-0 02 1 1305- ● ●
5 BULB; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (A) 12V 55/60W 		8-98186-377-0 02 1 1305- ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 12V 60W 		8-97289-997-0 02 1 1305- ●
5 BULB; HEADLAMP
(B) 12V 60W 		8-97289-997-0 02 1 1305- ●
5 BULB; HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (C) 12V 55W 		8-98160-205-0 02 1 1305- ●
5 BULB; HEADLAMP
(C) 12V 55W 		8-98160-205-0 02 1 1305- ●
23 COVER; BULB,HEADLAMP 8-97332-448-0 02 1 1305- ● ●
23 COVER; BULB,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97332-448-0 02 1 1305- ●
23 COVER; BULB,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-97675-961-0 04 1 1305- ●
23 COVER; BULB,HEADLAMP 8-97675-961-0 04 1 1305- ●
211 TUBE; HEADLAMP 8-97333-983-0 06 1 1305-1311 ● ●
211 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97333-983-0 06 1 1305-1311 ●
211 TUBE; HEADLAMP 8-97333-983-0 04 1 1312- ● ●
211 TUBE; HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 		8-97333-983-0 04 1 1312- ●
340 BULB; POSITION
12V 5W 		8-98257-815-0 02 1 1406- ● ●
340 BULB; POSITION
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W 		8-98257-815-0 02 1 1406- ●
340 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 1305-1405 ● ● ● ●
340 BULB; POSITION
HEADLAMPS PROJECTOR BEAM<8LH> 12V 5W 		8-94124-595-0 02 1 1406- ●
340 BULB; POSITION
12V 5W 		8-94124-595-0 02 1 1406- ●
357 BULB; TURN SIGNAL
12V 21W 		8-97179-967-0 02 1 1305- ● ●
357 BULB; TURN SIGNAL
EXC. HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W 		8-97179-967-0 02 1 1305- ●
357 BULB; TURN SIGNAL
HEADLAMPS PROJECTOR BEAM<8LH> 12V 21W 		8-98160-206-0 02 1 1305- ●
357 BULB; TURN SIGNAL
12V 21W 		8-98160-206-0 02 1 1305- ●
382 PLUG; SOCKET,HEADLAMP
(C) 		8-97332-446-0 02 1 1305-1311 ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-97332-446-0 02 1 1305-1311 ●
382 PLUG; SOCKET,HEADLAMP
(C) 		8-98206-114-0 02 1 1312- ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (C) 		8-98206-114-0 02 1 1312- ●
382 PLUG; SOCKET,HEADLAMP
(D) 		8-97332-447-0 02 1 1305- ● ●
382 PLUG; SOCKET,HEADLAMP
EXC. HEADLAMPS PROJECTOR BEAM<8LH> (D) 		8-97332-447-0 02 1 1305- ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (A) 		8-98012-788-0 02 1 1305- ●
382 PLUG; SOCKET,HEADLAMP
(A) 		8-98012-788-0 02 1 1305- ●
382 PLUG; SOCKET,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> (B) 		8-98160-270-1 02 1 1305- ●
382 PLUG; SOCKET,HEADLAMP
(B) 		8-98160-270-1 02 1 1305- ●
408 CAP; BREATHER,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98186-375-0 04 1 1305-1411 ●
408 CAP; BREATHER,HEADLAMP 8-98186-375-0 04 1 1305-1411 ●
408 CAP; BREATHER,HEADLAMP
HEADLAMPS PROJECTOR BEAM<8LH> 		8-98300-478-0 04 1 1412- ●
408 CAP; BREATHER,HEADLAMP 8-98300-478-0 04 1 1412- ●
