◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#119657) — 280 parça

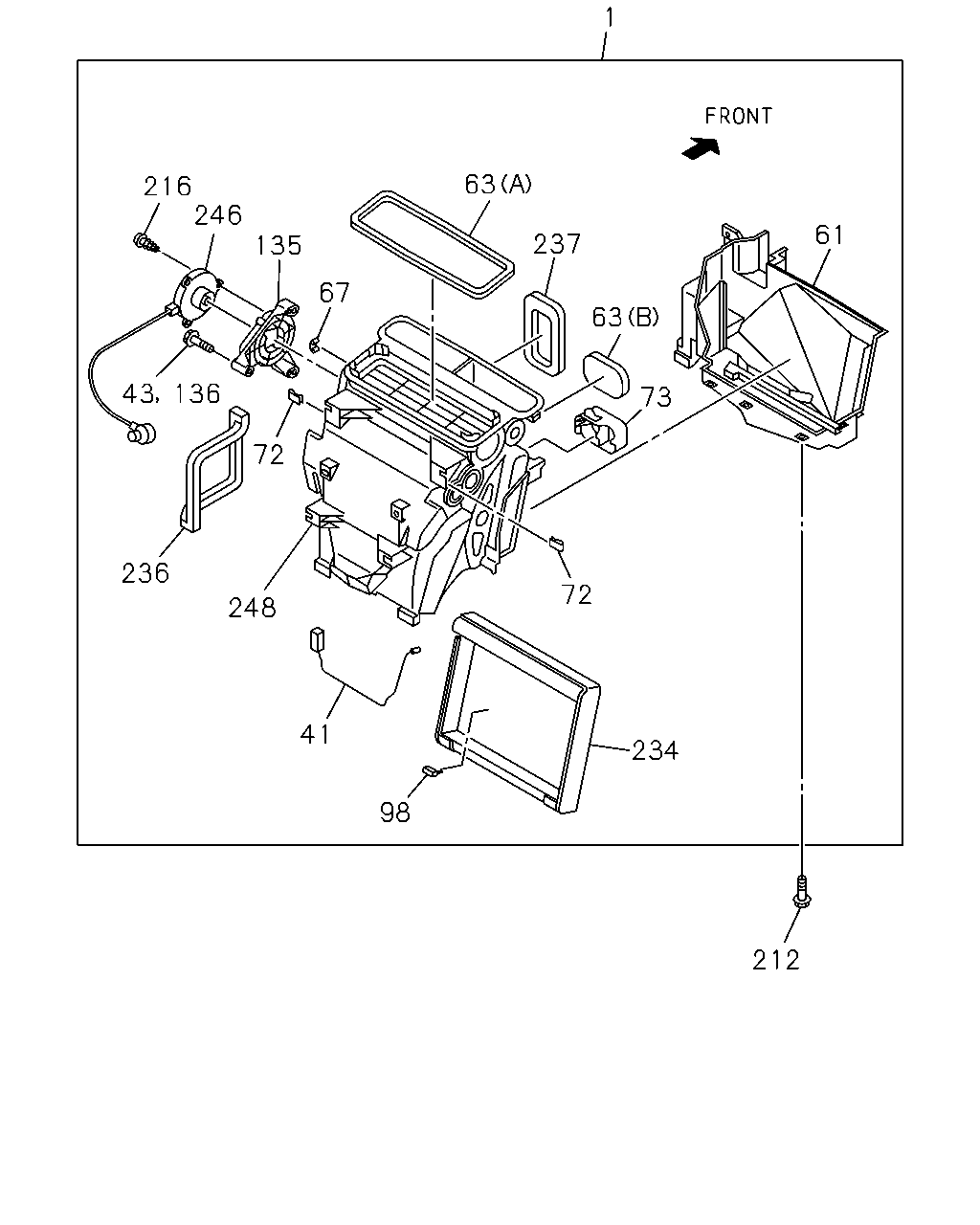

çizim 351777
61 212 234 98 41 248 236 72 136 43 216 135 246 67 63 237 63 73 72 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98233-010-0 01 1 1305- ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1305- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-010-0 01 1 1305- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-011-1 01 1 1305- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1305- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-011-1 01 1 1305- ●
1 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-019-1 01 1 1305- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-017-0 01 1 1305- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-018-1 01 1 1305- ● ●
1 HEATER UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-009-1 01 1 1305- ● ●
1 HEATER UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-009-1 01 1 1305- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-008-1 01 1 1305- ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1305- ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-383-0 01 1 1305- ● ● ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-382-0 01 1 1305- ● ●
41 THERMOSTAT; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1305- ● ●
41 THERMOSTAT; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98157-121-0 01 1 1305- ●
43 SCREW; CASE,HTR UNIT 8-98233-593-0 15 1 1305- ● ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-573-0 01 1 1305- ● ● ● ●
61 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-572-0 01 1 1305- ● ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98139-358-0 02 1 1305- ● ● ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98139-361-1 01 1 1305- ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1305- ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65), COOLER WO/HEATER FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1305- ● ● ●
63 LINING; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 01 1 1305- ● ●
63 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1305- ●
67 CLIP; HTR UNIT 8-98157-123-0 01 1 1305- ● ● ● ●
72 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1305- ● ● ● ●
73 PLATE; HTR UNIT 8-98233-591-0 01 1 1305- ● ● ● ●
98 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98157-122-0 01 1 1305- ● ● ● ●
135 COVER; HTR
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98139-377-0 01 1 1305- ● ● ● ●
136 SCREW; PLATE 8-98233-593-0 02 1 1305- ● ● ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 05 1 1305- ● ● ● ●
216 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98233-593-0 03 1 1305- ● ● ● ●
234 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98139-376-1 01 1 1305- ● ● ● ●
236 GASKET; HEATER 8-98139-357-0 01 1 1305- ● ● ● ●
237 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1305- ● ● ● ●
246 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1305- ●
246 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-124-2 01 1 1305- ● ● ●
246 ACTUATOR; MODE
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1305- ● ●
246 ACTUATOR; MODE
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-397-1 01 1 1305- ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-565-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-565-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-566-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-566-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-570-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-564-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-564-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-563-0 01 1 1305- ●

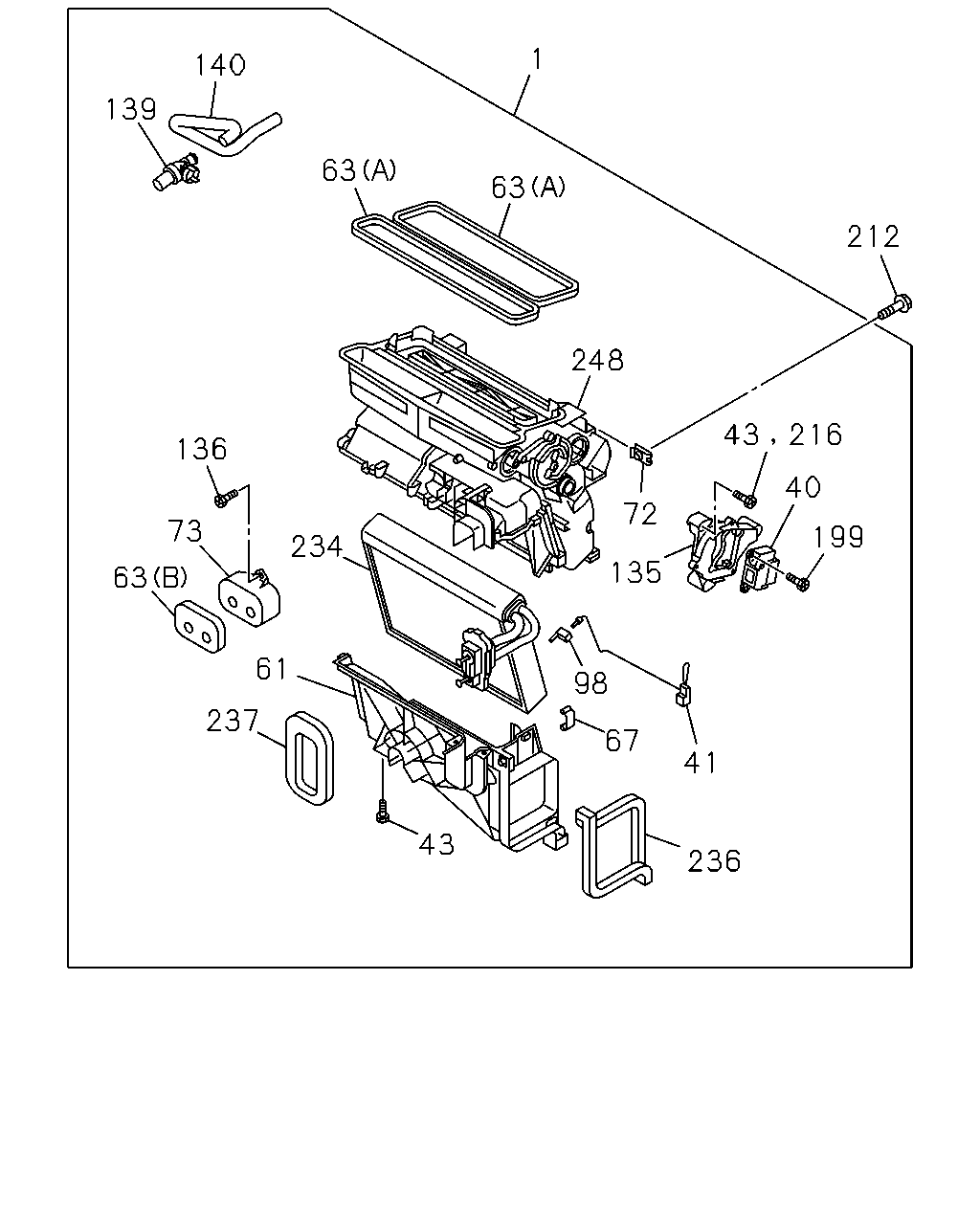

çizim 351779
236 41 67 98 43 237 63 136 73 234 61 139 140 63 63 248 43 72 216 135 199 40 212 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98233-010-0 01 1 1305- ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1305- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-010-0 01 1 1305- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-011-1 01 1 1305- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1305- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-011-1 01 1 1305- ●
1 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-019-1 01 1 1305- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-017-0 01 1 1305- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-018-1 01 1 1305- ● ●
1 HEATER UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-009-1 01 1 1305- ● ●
1 HEATER UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-009-1 01 1 1305- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-008-1 01 1 1305- ●
40 ACTUATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-385-0 01 1 1305- ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1305- ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-383-0 01 1 1305- ● ● ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-382-0 01 1 1305- ● ●
41 THERMOSTAT; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1305- ● ●
41 THERMOSTAT; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98157-121-0 01 1 1305- ●
43 SCREW; CASE,HTR UNIT 8-98233-593-0 15 1 1305- ● ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-573-0 01 1 1305- ● ● ● ●
61 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-572-0 01 1 1305- ● ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98139-358-0 02 1 1305- ● ● ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98139-361-1 01 1 1305- ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1305- ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65), COOLER WO/HEATER FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1305- ● ● ●
63 LINING; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 01 1 1305- ● ●
63 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1305- ●
67 CLIP; HTR UNIT 8-98157-123-0 01 1 1305- ● ● ● ●
72 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1305- ● ● ● ●
73 PLATE; HTR UNIT 8-98233-591-0 01 1 1305- ● ● ● ●
98 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98157-122-0 01 1 1305- ● ● ● ●
135 COVER; HTR
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98139-377-0 01 1 1305- ● ● ● ●
136 SCREW; PLATE 8-98233-593-0 02 1 1305- ● ● ● ●
139 ASPIRATOR; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-392-1 01 1 1305- ● ●
140 HOSE; AIR
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-393-1 01 1 1305- ● ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-593-0 05 1 1305- ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 05 1 1305- ● ● ●
199 SCREW; ACTUATOR
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-593-0 02 1 1305- ● ●
199 SCREW; ACTUATOR
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-593-0 03 1 1305- ● ●
199 SCREW; ACTUATOR
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 03 1 1305- ●
212 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 05 1 1305- ● ● ● ●
216 SCREW; COVER,HEATER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98233-593-0 03 1 1305- ● ● ● ●
234 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98139-376-1 01 1 1305- ● ● ● ●
236 GASKET; HEATER 8-98139-357-0 01 1 1305- ● ● ● ●
237 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1305- ● ● ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-565-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-565-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-566-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-566-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-570-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-564-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-564-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-563-0 01 1 1305- ●

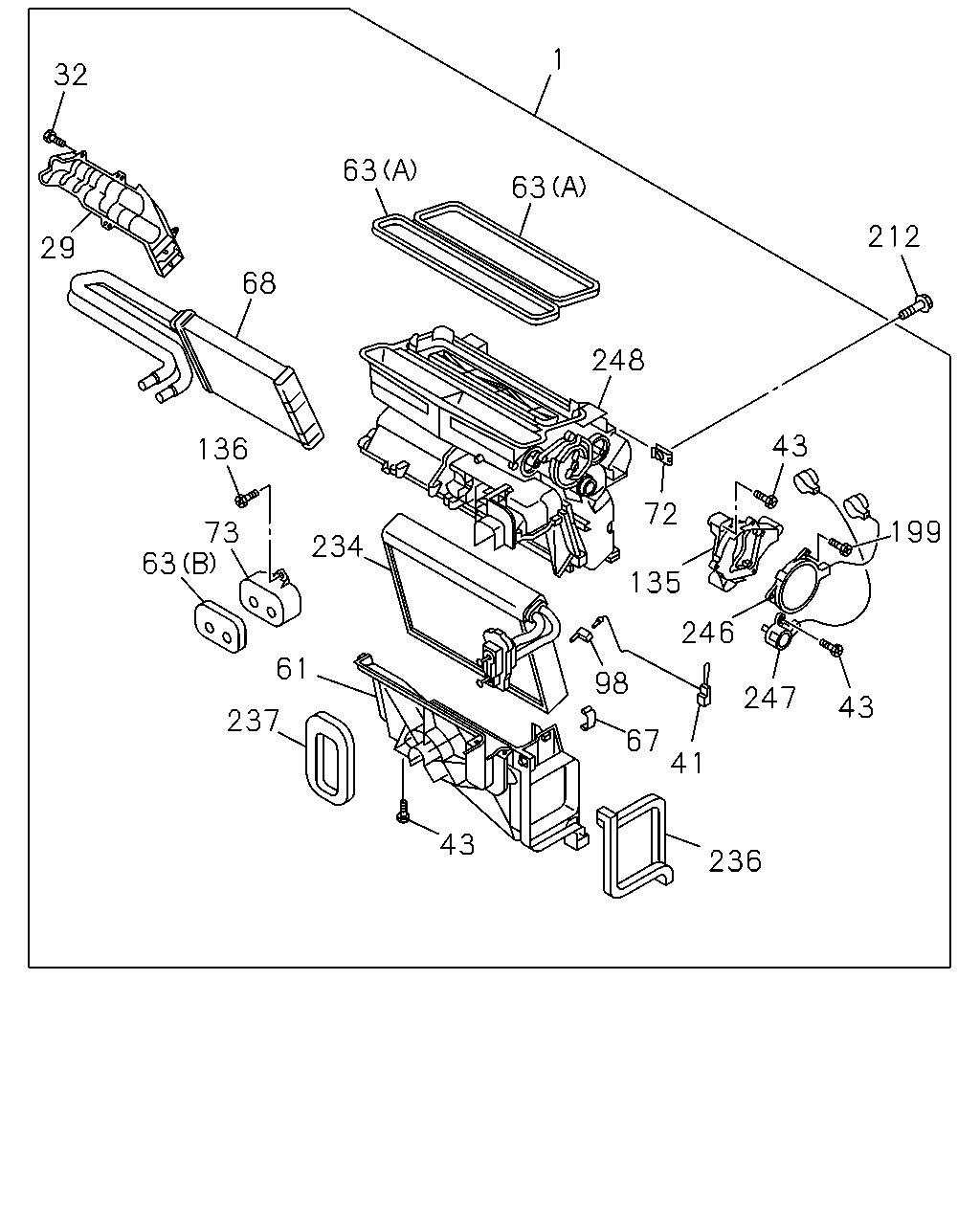

çizim 351783
43 236 41 67 43 237 63 73 136 234 72 246 135 98 247 199 43 212 63 1 63 32 29 68 248 61
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98233-010-0 01 1 1305- ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1305- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-010-0 01 1 1305- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-011-1 01 1 1305- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1305- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-011-1 01 1 1305- ●
1 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-019-1 01 1 1305- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-017-0 01 1 1305- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-018-1 01 1 1305- ● ●
1 HEATER UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-009-1 01 1 1305- ● ●
1 HEATER UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-009-1 01 1 1305- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-008-1 01 1 1305- ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-590-0 01 1 1305- ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-590-0 01 1 1305- ● ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-593-0 04 1 1305- ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 04 1 1305- ● ● ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1305- ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-383-0 01 1 1305- ● ● ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-382-0 01 1 1305- ● ●
41 THERMOSTAT; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1305- ● ●
41 THERMOSTAT; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98157-121-0 01 1 1305- ●
43 SCREW; CASE,HTR UNIT 8-98233-593-0 15 1 1305- ● ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-573-0 01 1 1305- ● ● ● ●
61 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-572-0 01 1 1305- ● ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98139-358-0 02 1 1305- ● ● ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98139-361-1 01 1 1305- ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1305- ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65), COOLER WO/HEATER FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1305- ● ● ●
63 LINING; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 01 1 1305- ● ●
63 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1305- ●
67 CLIP; HTR UNIT 8-98157-123-0 01 1 1305- ● ● ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-374-0 01 1 1305- ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-374-0 01 1 1305- ● ● ●
72 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1305- ● ● ● ●
73 PLATE; HTR UNIT 8-98233-591-0 01 1 1305- ● ● ● ●
98 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98157-122-0 01 1 1305- ● ● ● ●
135 COVER; HTR
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98139-377-0 01 1 1305- ● ● ● ●
136 SCREW; PLATE 8-98233-593-0 02 1 1305- ● ● ● ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-593-0 05 1 1305- ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 05 1 1305- ● ● ●
199 SCREW; ACTUATOR
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-593-0 02 1 1305- ● ●
199 SCREW; ACTUATOR
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-593-0 03 1 1305- ● ●
199 SCREW; ACTUATOR
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 03 1 1305- ●
212 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 05 1 1305- ● ● ● ●
234 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98139-376-1 01 1 1305- ● ● ● ●
236 GASKET; HEATER 8-98139-357-0 01 1 1305- ● ● ● ●
237 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1305- ● ● ● ●
246 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1305- ●
246 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-124-2 01 1 1305- ● ● ●
246 ACTUATOR; MODE
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1305- ● ●
246 ACTUATOR; MODE
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-397-1 01 1 1305- ●
247 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1305- ●
247 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-398-1 01 1 1305- ● ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-565-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-565-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-566-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-566-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-570-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-564-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-564-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-563-0 01 1 1305- ●

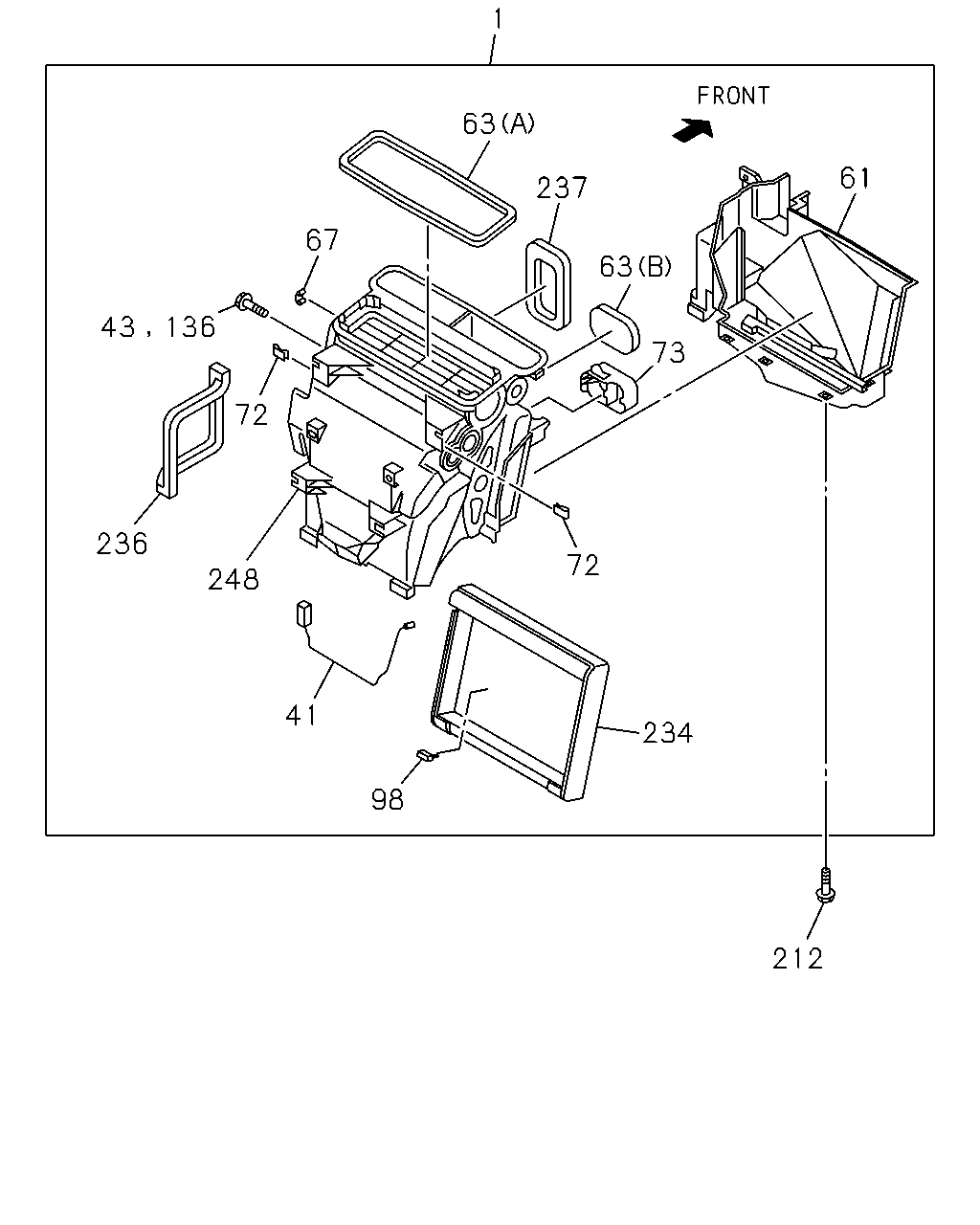

çizim 351789
63 67 43 136 72 236 248 41 98 234 72 73 63 237 61 212 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98233-010-0 01 1 1305- ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1305- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-010-0 01 1 1305- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-011-1 01 1 1305- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1305- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-011-1 01 1 1305- ●
1 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-019-1 01 1 1305- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-017-0 01 1 1305- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-018-1 01 1 1305- ● ●
1 HEATER UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-009-1 01 1 1305- ● ●
1 HEATER UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-009-1 01 1 1305- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-008-1 01 1 1305- ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98139-383-0 01 1 1305- ●
41 THERMOSTAT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-383-0 01 1 1305- ● ● ●
41 THERMOSTAT; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-382-0 01 1 1305- ● ●
41 THERMOSTAT; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98157-121-0 01 1 1305- ● ●
41 THERMOSTAT; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98157-121-0 01 1 1305- ●
43 SCREW; CASE,HTR UNIT 8-98233-593-0 15 1 1305- ● ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-573-0 01 1 1305- ● ● ● ●
61 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-572-0 01 1 1305- ● ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98139-358-0 02 1 1305- ● ● ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98139-361-1 01 1 1305- ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1305- ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65), COOLER WO/HEATER FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1305- ● ● ●
63 LINING; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 01 1 1305- ● ●
63 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1305- ●
67 CLIP; HTR UNIT 8-98157-123-0 01 1 1305- ● ● ● ●
72 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1305- ● ● ● ●
73 PLATE; HTR UNIT 8-98233-591-0 01 1 1305- ● ● ● ●
98 CLIP; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98157-122-0 01 1 1305- ● ● ● ●
136 SCREW; PLATE 8-98233-593-0 02 1 1305- ● ● ● ●
212 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 05 1 1305- ● ● ● ●
234 EVAPORATOR ASM; HEATER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98139-376-1 01 1 1305- ● ● ● ●
236 GASKET; HEATER 8-98139-357-0 01 1 1305- ● ● ● ●
237 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1305- ● ● ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-565-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-565-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-566-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-566-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-570-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-564-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-564-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-563-0 01 1 1305- ●

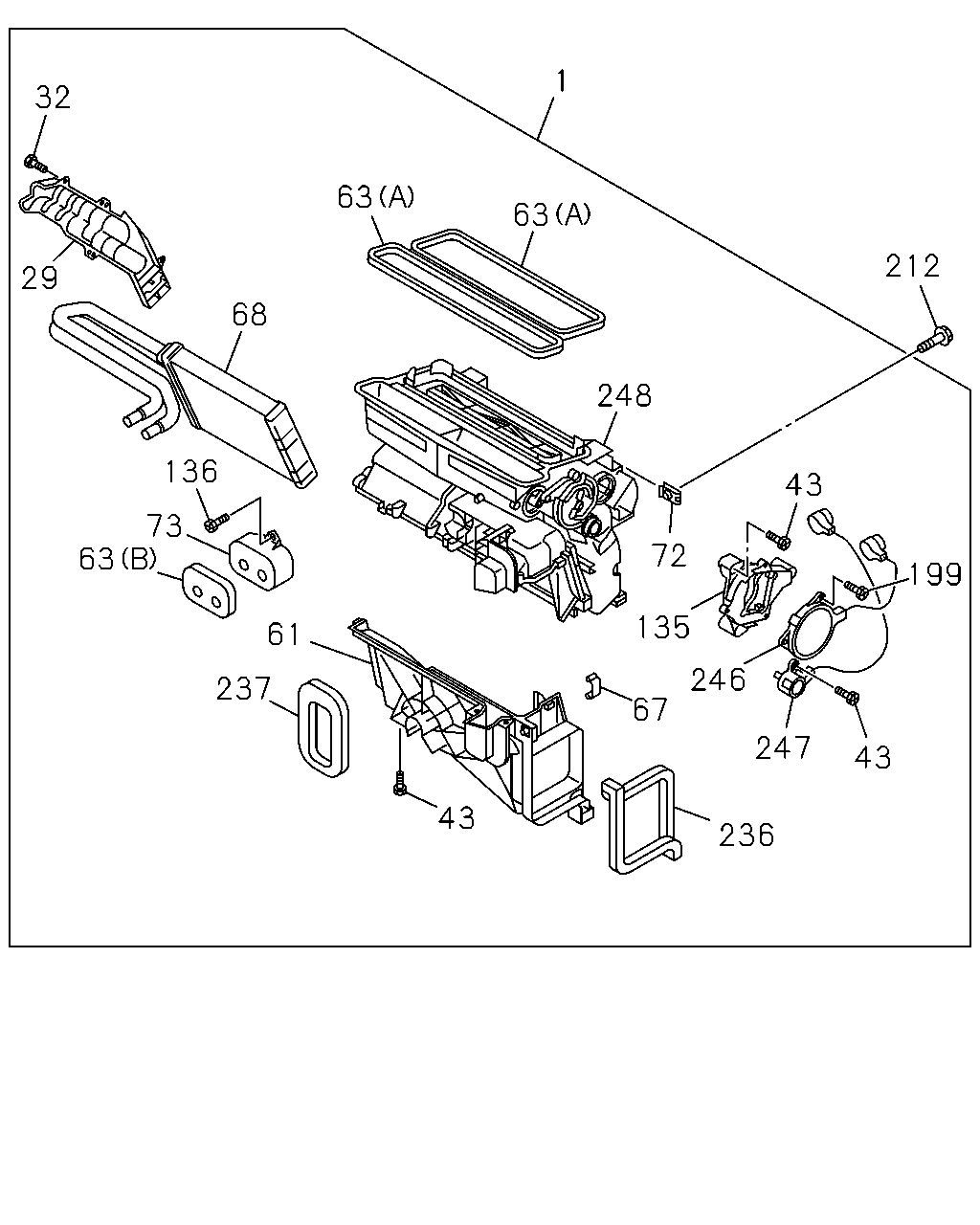

çizim 351796
236 43 247 246 67 135 237 72 43 199 61 43 63 73 136 68 29 32 63 63 248 212 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 HEATER UNIT
HEATER & DEFROSTER(C42) 		8-98233-010-0 01 1 1305- ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-010-0 01 1 1305- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-010-0 01 1 1305- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-011-1 01 1 1305- ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-011-1 01 1 1305- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-011-1 01 1 1305- ●
1 HEATER UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-019-1 01 1 1305- ● ●
1 HEATER UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-017-0 01 1 1305- ● ●
1 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-018-1 01 1 1305- ● ●
1 HEATER UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-009-1 01 1 1305- ● ●
1 HEATER UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-009-1 01 1 1305- ●
1 HEATER UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-008-1 01 1 1305- ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-590-0 01 1 1305- ●
29 COVER; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-590-0 01 1 1305- ● ● ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-593-0 04 1 1305- ●
32 SCREW; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 04 1 1305- ● ● ●
43 SCREW; CASE,HTR UNIT 8-98233-593-0 15 1 1305- ● ● ● ●
61 CASE; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-573-0 01 1 1305- ● ● ● ●
61 CASE; HTR UNIT
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-572-0 01 1 1305- ● ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98139-358-0 02 1 1305- ● ● ● ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98139-361-1 01 1 1305- ●
63 LINING; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) (B) 		8-98139-361-1 01 1 1305- ● ● ●
63 LINING; HTR UNIT
AUTO COOLER SYSTEM(CJ2),COOLER WO/HEATER(C65), COOLER WO/HEATER FRESH AIR(8NF) (B) 		8-98157-118-1 01 1 1305- ● ● ●
63 LINING; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> (A) 		8-98139-358-0 01 1 1305- ● ●
63 LINING; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) 		8-98139-358-0 01 1 1305- ●
67 CLIP; HTR UNIT 8-98157-123-0 01 1 1305- ● ● ● ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-374-0 01 1 1305- ●
68 CORE; HTR UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-374-0 01 1 1305- ● ● ●
72 NUT; CASE,HTR UNIT 8-98139-394-1 03 1 1305- ● ● ● ●
73 PLATE; HTR UNIT 8-98233-591-0 01 1 1305- ● ● ● ●
135 COVER; HTR
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98139-377-0 01 1 1305- ● ● ● ●
136 SCREW; PLATE 8-98233-593-0 02 1 1305- ● ● ● ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98233-593-0 05 1 1305- ●
199 SCREW; ACTUATOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 05 1 1305- ● ● ●
199 SCREW; ACTUATOR
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-593-0 02 1 1305- ● ●
199 SCREW; ACTUATOR
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-593-0 03 1 1305- ● ●
199 SCREW; ACTUATOR
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-593-0 03 1 1305- ●
212 BOLT; HTR UNIT
M6X20 FLANGE 		0-28650-620-0 05 1 1305- ● ● ● ●
236 GASKET; HEATER 8-98139-357-0 01 1 1305- ● ● ● ●
237 INSULATOR; EVAPORATOR 8-98139-360-1 01 1 1305- ● ● ● ●
246 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98157-124-2 01 1 1305- ●
246 ACTUATOR; MODE
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98157-124-2 01 1 1305- ● ● ●
246 ACTUATOR; MODE
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98139-397-1 01 1 1305- ● ●
246 ACTUATOR; MODE
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-397-1 01 1 1305- ●
247 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) 		8-98139-398-1 01 1 1305- ●
247 ACTUATOR; TEMP
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98139-398-1 01 1 1305- ● ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) 		8-98233-565-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-565-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-565-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98233-566-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-566-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-566-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
AUTO COOLER SYSTEM(CJ2) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-570-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
HEATER & DEFROSTER(C42) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-568-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) REAR HEATER DUCT<S8C> 		8-98233-569-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) EXC. REAR HEATER DUCT<S8C> 		8-98233-564-0 01 1 1305- ● ●
248 CASE ASM; HTR UNIT
COOLER WO/HEATER(C65) REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) 		8-98233-564-0 01 1 1305- ●
248 CASE ASM; HTR UNIT
REAR BODY DBL WALL CTR PULL(E63),REAR BODY DELETE(8HH) COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-563-0 01 1 1305- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
