Isuzu WW
▶
TRUCKS
▶
NLR
▶
51479 - NLR/NMR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

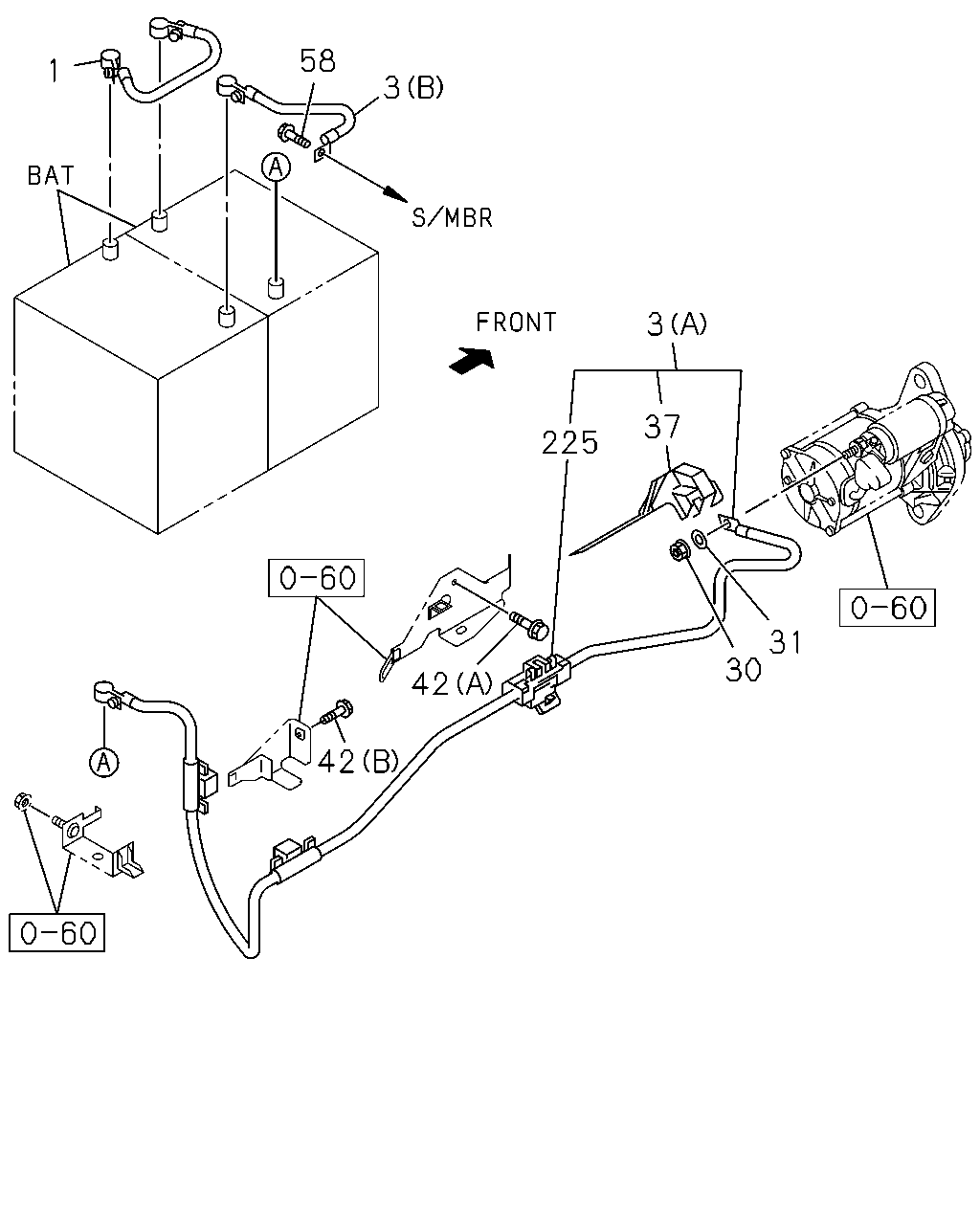

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#119655) — 11 parça
31
30
37
3
225
3
58
1
42
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CABLE; BATTERY
L=280 THA
8-97922-383-0
01
1
1304-
3
HARNESS; CABLE,BATTERY TO STARTER
WHEEL BASE 2400MM<24W> (A)
8-97924-474-0
01
1
1304-
3
HARNESS; CABLE,BATTERY TO STARTER
(B) THA
8-97922-384-0
01
1
1304-
3
HARNESS; CABLE,BATTERY TO STARTER
WHEEL BASE 3300MM<33W> (A)
8-97924-475-0
01
1
1304-
30
NUT; CABLE,STARTER TO BATTERY
M8 IMA
0-91110-508-0
01
1
1304-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2 THA
0-91510-808-0
01
1
1304-
37
CAP; TERMINAL,BATTERY CABLE
THA
8-98042-507-0
01
1
1304-
42
BOLT; BRKT,BATTERY CABLE
(B) M6X25 FLANGE THA
0-28650-625-0
01
1
1304-
42
BOLT; BRKT,BATTERY CABLE
(A) M6X16 FLANGE IMA
8-97329-599-0
01
1
1304-
58
BOLT; CABLE,BATTERY
M8X24 W/PL WASHER IMA
8-98141-256-1
01
1
1304-
225
BLOCK; TERMINAL
THA
8-98029-689-0
01
1
1304-
