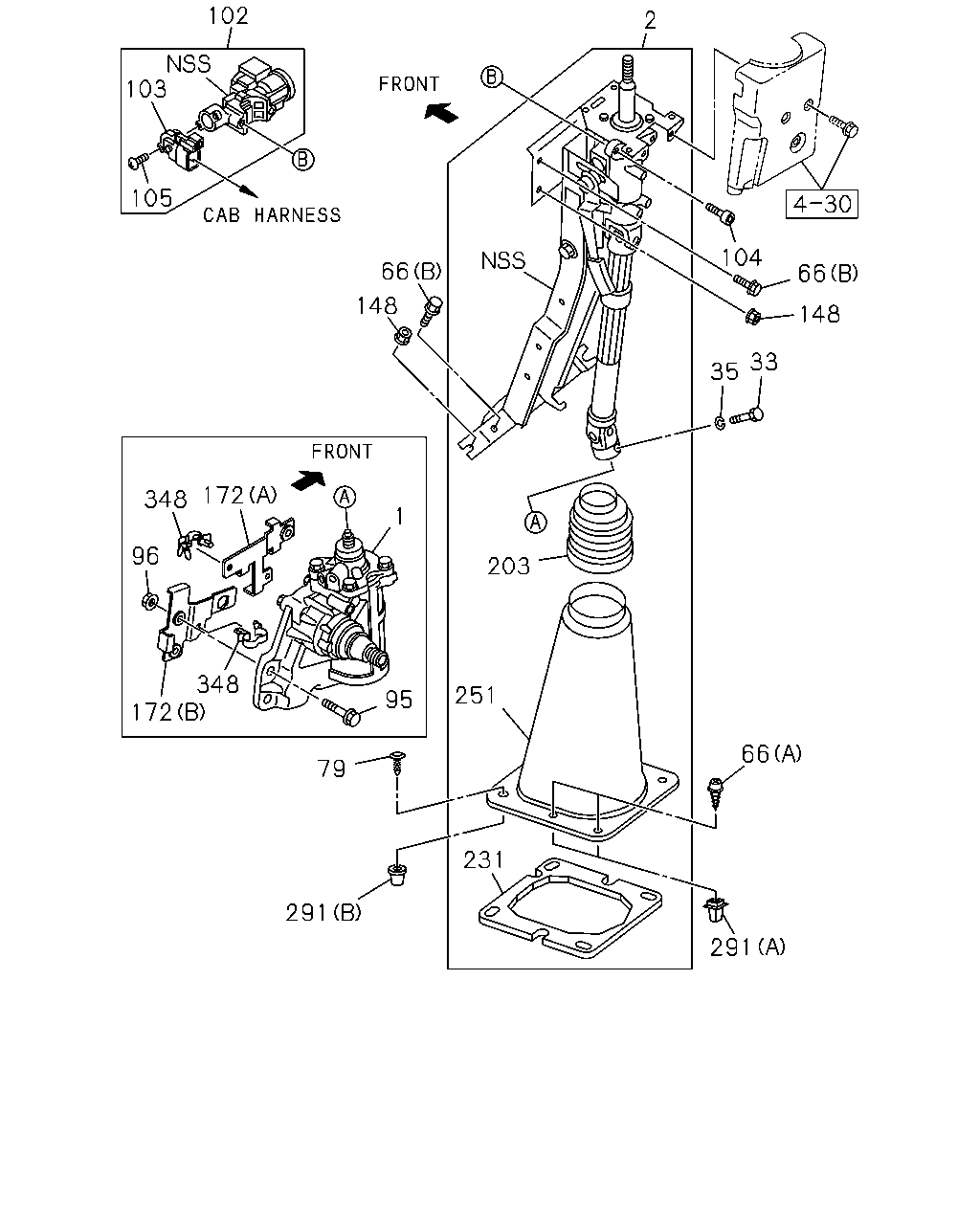

4-31 — STEERING COLUMN AND SHAFT (#119653) — 23 parça

102 103 105 2 148 203 251 95 79 291 172 96 1 172 348 348 148 66 66 291 231 104 33 35 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT. IMA	8-98110-219-5	01	1	1304-	●	●
2	SHAFT ASM; STRG BLACK	8-97418-802-1	01	1	1304-	●	●
33	BOLT; STRG SHAFT TO UNIT M8X30 IMA	8-97359-615-0	01	1	1304-	●	●
35	WASHER; LK,STRG SHAFT ID=8.2 THA	0-91510-808-0	01	1	1304-	●	●
66	BOLT; STRG COLUMN (B) M8X20 FLANGE THA	0-28650-820-0	02	1	1304-	●	●
66	BOLT; STRG COLUMN (A) M5X18 TAPPING IMA	0-72180-518-0	04	1	1304-	●	●
66	BOLT; STRG COLUMN (B) M8X24.5 W/LK&PL WASHER IMA	8-98051-939-0	02	1	1304-	●	●
79	CLIP; STRG COLUMN COVER L=19 BLACK IMA	8-94363-776-0	02	1	1304-	●	●
95	BOLT; STRG UNIT M12X47 FLANGE IMA	8-98055-055-0	04	1	1304-	●	●
96	NUT; STRG UNIT M12 FLANGE IMA	8-97359-618-0	01	1	1304-	●	●
102	LOCK ASM; STRG THA	8-97948-271-0	01	1	1309-	●	●
103	SWITCH; IGNITION THA	8-98045-349-0	01	1	1304-	●	●
104	BOLT; STRG LOCK TO COLUMN M8X20 TORQUE SHEAR BOLT IMA	8-97321-385-0	02	1	1304-	●	●
105	SCREW; IGN SW THA	8-98045-346-0	02	1	1304-	●	●
148	NUT; COLUMN TO BRKT M8 W/DISHED WASHER IMA	8-97329-625-0	03	1	1304-	●	●
172	BRACKET; STRG (A) IMA	8-98055-256-1	01	1	1304-	●	●
172	BRACKET; STRG (B) IMA	8-98081-033-0	01	1	1304-	●	●
203	BOOT; STRG COLUMN LWR	8-98137-331-0	01	1	1304-	●	●
231	SEAL; RUBBER,STRG COLUMN	8-98137-329-0	01	1	1304-	●	●
251	COVER; LWR BLACK	8-97418-804-0	01	1	1304-	●	●
291	GROMMET; STRG SHAFT COVER (A) H=15 IMA	8-94463-268-1	04	1	1304-	●	●
291	GROMMET; STRG SHAFT COVER (B) IMA	8-98029-442-1	02	1	1304-	●	●
348	CLIP; BRKT,STRG ID=5-12 L=22 IMA	1-09709-288-0	02	1	1304-	●	●
