2-05 — CLUTCH PIPING (#119652) — 68 parça
çizim 350571
235 42 16 210 101 106 51 107 27 210 207 30 42
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 03 1 1305-
27 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1305-
27 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 03 1 1305-
30 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1305-
30 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1305-
30 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28651-025-0 02 1 1305-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1305-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1305-1402
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403-
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98184-114-0 01 1 1305-
51 WASHER; LK
ID=14.2 		0-91510-514-0 01 1 1305-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE 8-98184-197-0 01 1 1305-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1305-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1305-
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1305-
107 NUT; UNION,OIL PIPE
M14 		0-91111-514-0 01 1 1305-
207 BOLT; CLIP
M8X20 FLANGE THA 		0-28650-820-0 01 1 1305-
210 NUT; CLIP
M8 FLANGE THA 		0-91180-108-0 03 1 1305-
235 GASKET; FLEX HOSE
ID=10.2 OD=16.0 THA 		9-09571-410-0 01 1 1305-

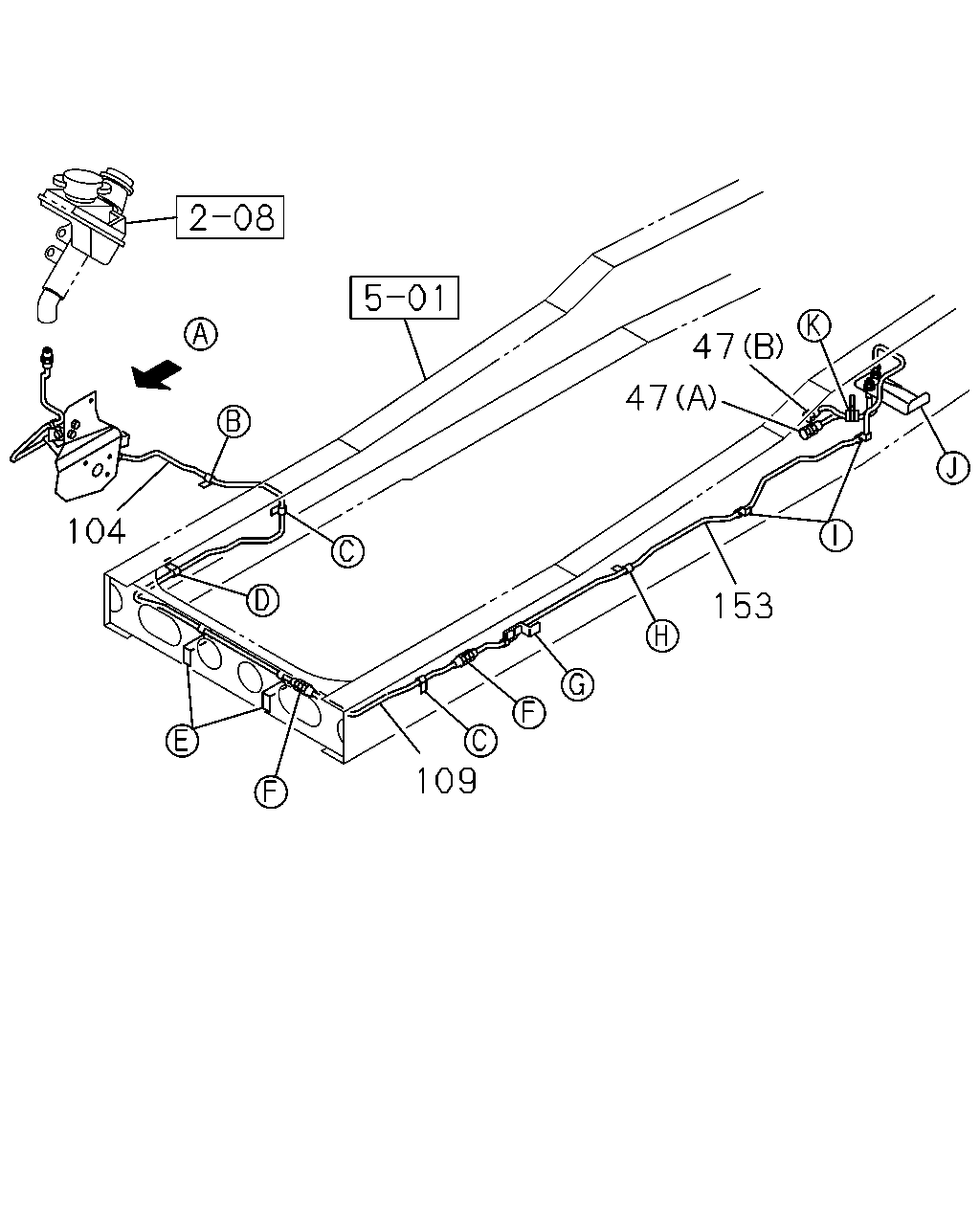

çizim 350573
104 47 47 109 153
BalonParca AdiParca NoAdetTipApplied Date
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 1305-
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 1305-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1796 SERVICED BY L=1800 		1-47428-768-0 01 1 1305-
109 PIPE; AIR,UNION TO UNION
L=1676 SERVICED BY L=1700 		1-47428-767-0 01 1 1305-
153 PIPE ASM; CLU,UNION TO FLEX
L=1156 SERVICED BY L=1250 		1-47428-764-0 01 1 1305-

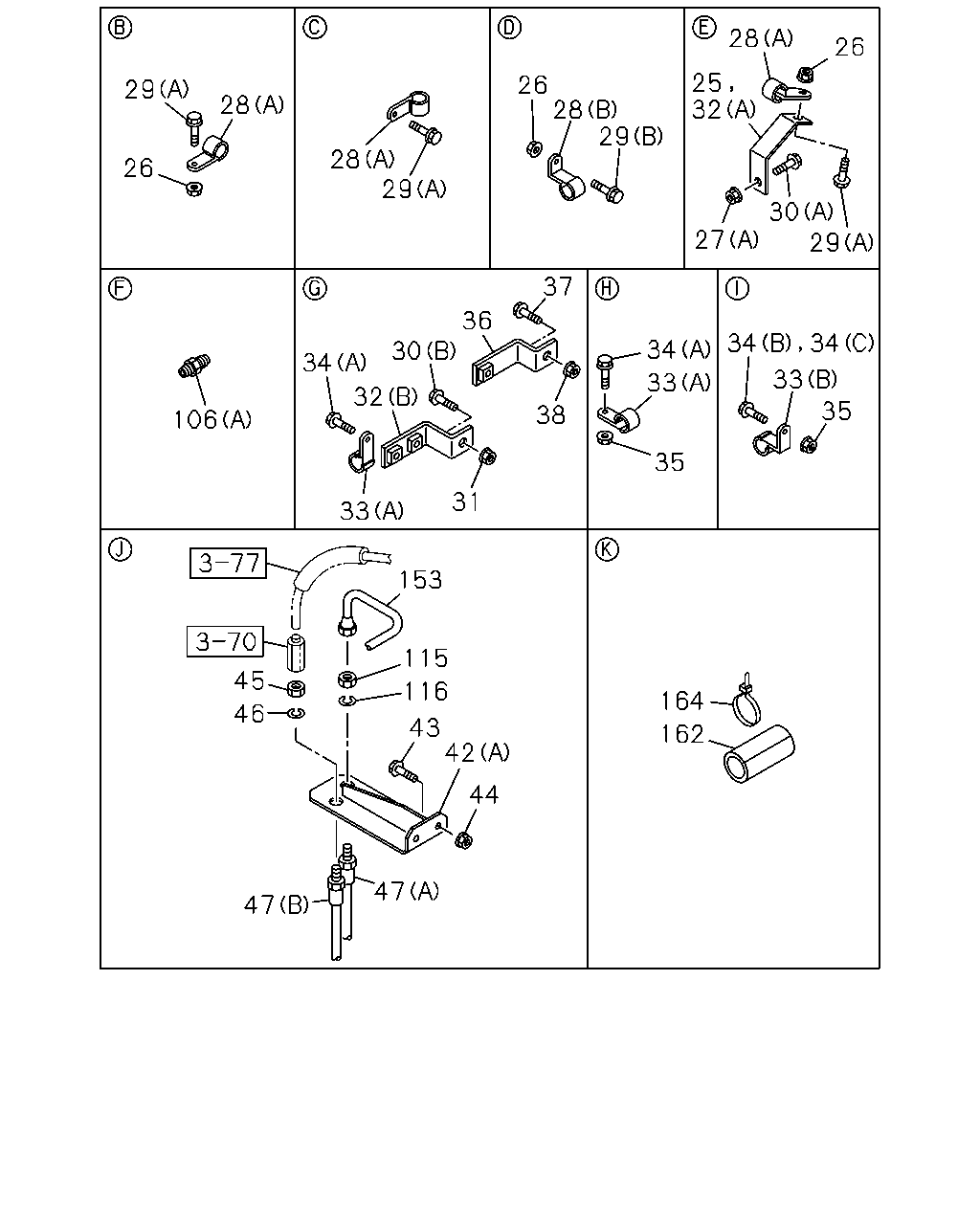

çizim 352778
28 26 25 32 27 30 29 28 26 28 28 29 29 29 26 106 34 30 36 37 32 38 31 33 35 33 34 34 34 35 33 164 162 44 42 43 47 47 46 116 45 115 153
BalonParca AdiParca NoAdetTipApplied Date
25 BRACKET; OIL PIPE 8-98123-059-0 01 1 1305-
26 NUT; CLIP,OIL PIPE
M8 FLANGE THA 		0-91180-108-0 03 1 1305-
27 NUT; BRKT
(A) M10 FLANGE THA 		0-91180-210-0 01 1 1305-
27 NUT; BRKT
(B) M10 FLANGE THA 		0-91180-210-0 03 1 1305-
28 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 02 1 1305-
28 CLIP; OIL PIPE
(A) ID=9 L=40 		0-95234-875-0 01 1 1305-
28 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 01 1 1305-
29 BOLT; CLIP,OIL PIPE
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1305-
29 BOLT; CLIP,OIL PIPE
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1305-
30 BOLT; BRKT
(A) M8X25 FLANGE THA 		0-28650-825-0 02 1 1305-
30 BOLT; BRKT
(B) M8X35 FLANGE THA 		0-28650-835-0 01 1 1305-
30 BOLT; BRKT
(B) M10X25 FLANGE THA 		0-28651-025-0 02 1 1305-
31 NUT; BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1305-
31 NUT; BRKT
M10 FLANGE THA 		0-91180-210-0 01 1 1305-
32 BRACKET; CLIP OIL PIPE
(B) 		1-47479-482-0 01 1 1305-
32 BRACKET; CLIP OIL PIPE
(A) 		8-98123-059-0 01 1 1305-
33 CLIP; OIL PIPE
(A) ID=9 L=20 		0-95234-835-0 04 1 1305-
33 CLIP; OIL PIPE
(B) ID=8 H=20 L=20 		1-09700-604-0 02 1 1305-
34 BOLT; PIPE CLIP
(C) M8X16 FLANGE THA 		0-28050-816-0 01 1 1305-
34 BOLT; PIPE CLIP
(A) M8X25 FLANGE THA 		0-28650-825-0 04 1 1305-
34 BOLT; PIPE CLIP
(B) M8X30 FLANGE THA 		0-28650-830-0 01 1 1305-
35 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 01 1 1305-
35 NUT; PIPE CLIP
M8 FLANGE THA 		0-91180-108-0 02 1 1305-
36 BRACKET; CLIP 1-82699-304-0 01 1 1305-
37 BOLT; CLIP BRKT
M8X30 FLANGE THA 		0-28650-830-0 01 1 1305-
38 NUT; CLIP BRKT
M8 FLANGE THA 		0-91180-108-0 01 1 1305-
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-912-1 01 1 1305-
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98091-266-1 01 1 1305-1402
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-98255-490-0 01 1 1403-
42 BRACKET; FLEX HOSE,CLU CONT
(C) 		8-98184-114-0 01 1 1305-
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X35 FLANGE THA 		0-28650-835-0 02 1 1305-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE THA 		0-91180-108-0 02 1 1305-
45 NUT; FLEX HOSE,CLU CONT
M12 		9-09840-280-0 01 1 1305-
46 WASHER; LK,FLEX HOSE,CLU CONT
ID=12.2 		0-91510-512-0 01 1 1305-
47 HOSE; FLEX,CLU CONT
(A) L=350 		1-09363-624-0 01 1 1305-
47 HOSE; FLEX,CLU CONT
(B) L=370 		8-98072-331-0 01 1 1305-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1305-
106 UNION; OIL PIPE
(A) M14 STRAIGHT 		0-92113-008-0 01 1 1305-
106 UNION; OIL PIPE
(B) 		1-09654-191-1 01 1 1305-
115 NUT; FLEX HOSE,CLU CONT
M14 		0-91111-514-0 01 1 1305-
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		0-91510-514-0 01 1 1305-
153 PIPE ASM; CLU,UNION TO FLEX
L=1156 SERVICED BY L=1250 		1-47428-764-0 01 1 1305-
162 COVER; RUBBER,FLEX HOSE
L=175 		1-09707-178-0 01 1 1305-
164 CLIP; BAND,FLEX HOSE
L=350 		1-09707-183-0 01 1 1305-
