Sayfa 4-25 - Isuzu EPC

4-25 — REAR FINAL DRIVE (#119651) — 264 parça

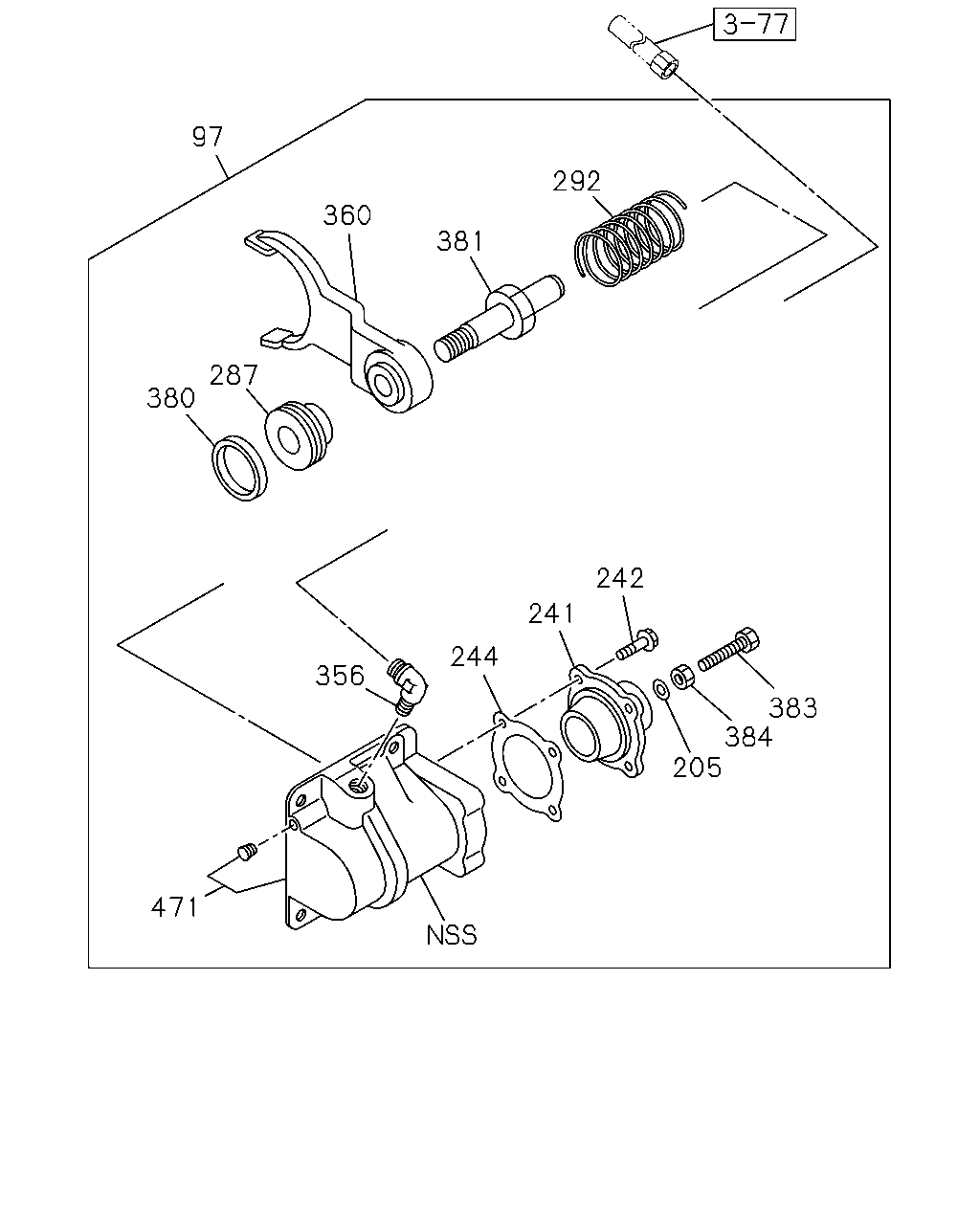

292 381 360 97 287 380 356 244 241 242 383 384 205 471

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	1305-
205	WASHER; PL ID=10.5 OD=18	9-09160-510-0	01	1	1305-
241	COVER; SHIFT HSG	1-48266-012-1	01	1	1305-
242	BOLT; COVER M8X20	0-20800-820-0	04	1	1305-
244	GASKET; COVER	1-48269-062-0	01	1	1305-
287	PISTON; SHIFT UNIT	1-48262-012-0	01	1	1305-
292	SPRING; PISTON	1-48265-007-0	01	1	1305-
356	NIPPLE; SHIFT UNIT M12 & PT1/4 ELBOW	1-09650-430-0	01	1	1305-
360	FORK; SHIFT	1-48269-066-0	01	1	1305-
380	GASKET; PISTON	1-48269-064-0	01	1	1305-
381	ROD; SHIFT	1-48263-005-0	01	1	1305-
383	BOLT; SET,SHIFT UNIT M10X45	0-20801-045-0	01	1	1305-
384	NUT; LK,SHIFT UNIT M10	9-09111-410-0	01	1	1305-
471	CYLINDER ASM; SHIFT UNIT	1-48269-261-0	01	1	1305-

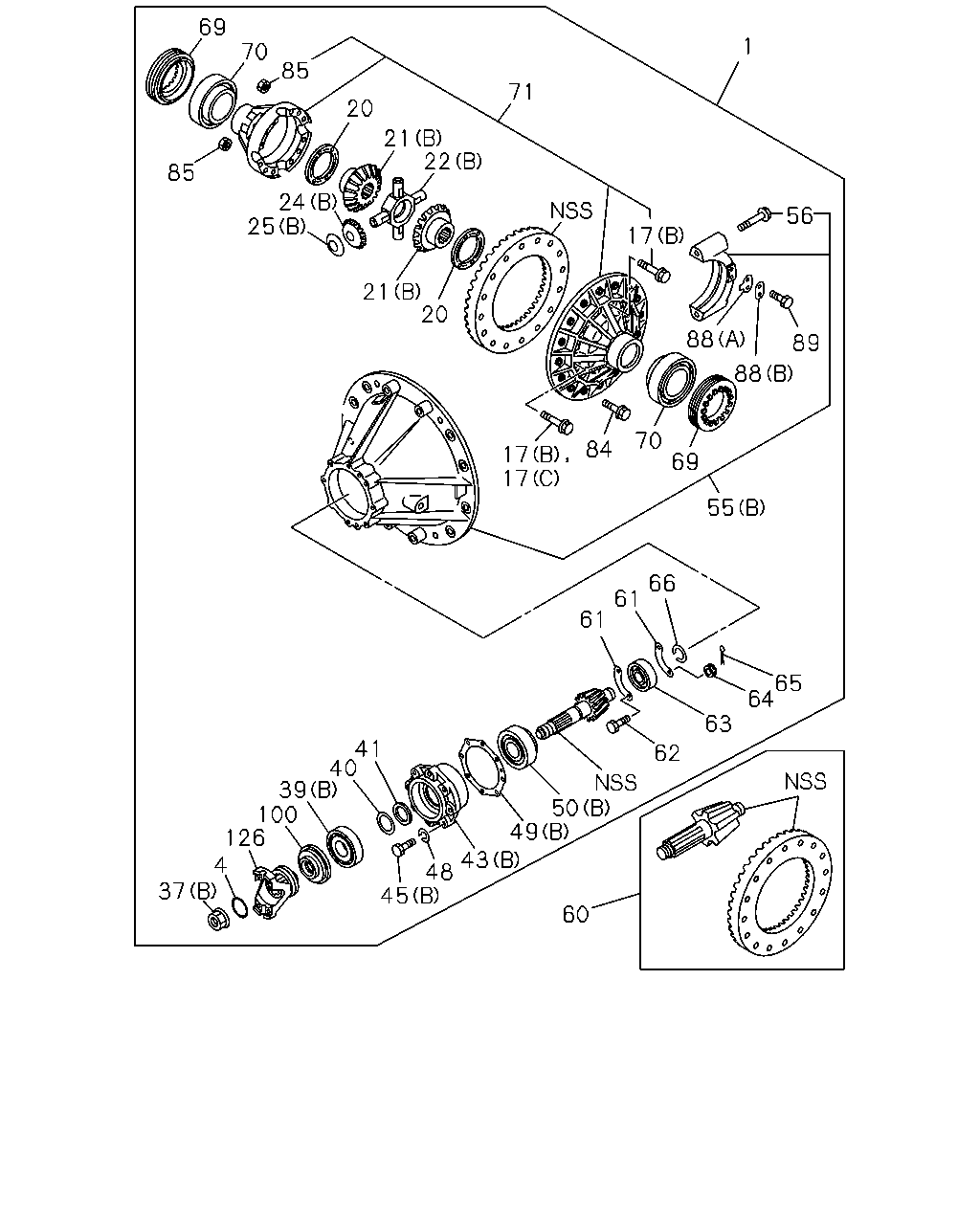

69 85 70 20 22 21 24 25 21 20 71 1 56 17 88 89 88 55 69 70 84 17 17 66 61 61 65 64 63 62 50 49 43 48 45 41 40 39 100 126 4 37 85 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR REARWARD 39/7	1-41001-393-0	01	1	1305-
1	DRIVE ASM; FINAL,RR FORWARD 39/7	1-41002-443-0	01	1	1305-
4	GASKET; FLANGE,FINAL PINION ID=57	1-09623-386-0	01	1	1305-
17	BOLT; DIFF CAGE SETTING (C) M16X125	1-09070-007-0	08	1	1305-
17	BOLT; DIFF CAGE SETTING (B) M16X113	1-09070-018-0	16	1	1305-
17	BOLT; DIFF CAGE SETTING (A) M10X55	1-09070-108-0	08	1	1305-
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	1305-
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	1305-
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	1305-
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	1305-
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	1305-
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	1305-
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	1305-
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-151-0	04	1	1305-
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-169-0	01	1	1305-
22	SPIDER; DIFF PINION (B) OD=35	1-41521-037-2	02	1	1305-
22	SPIDER; DIFF PINION (A)	1-41521-049-2	01	1	1305-
24	GEAR; PINION,DIFF (B) Z=10	1-41551-053-0	08	1	1305-
24	GEAR; PINION,DIFF (A) Z=10	1-41551-055-0	04	1	1305-
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-017-0	08	1	1305-
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-023-0	04	1	1305-
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1305-
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	1305-
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	1305-
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-3	01	1	1305-
39	BEARING; FINAL PINION (B) NSK	1-09812-075-0	01	1	1305-
39	BEARING; FINAL PINION (B) JTEKT	1-09812-076-1	01	1	1305-
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1305-
41	SPACER; FINAL DRIVE PINION BRG T=7.60	1-41229-237-0	AR	1	1305-
41	SPACER; FINAL DRIVE PINION BRG T=7.80	1-41229-238-0	AR	1	1305-
41	SPACER; FINAL DRIVE PINION BRG T=8.00	1-41229-239-0	AR	1	1305-
41	SPACER; FINAL DRIVE PINION BRG T=8.20	1-41229-240-0	AR	1	1305-
41	SPACER; FINAL DRIVE PINION BRG T=8.40	1-41229-241-0	AR	1	1305-
41	SPACER; FINAL DRIVE PINION BRG T=8.60	1-41229-242-0	AR	1	1305-
41	SPACER; FINAL DRIVE PINION BRG T=8.80	1-41229-243-0	AR	1	1305-
41	SPACER; FINAL DRIVE PINION BRG T=9.00	1-41229-244-0	AR	1	1305-
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	1305-
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	1305-
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	1305-
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	1305-
48	WASHER; LK,FINAL PINION ID=16.2	0-91510-516-0	08	1	1305-
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	1305-
50	BEARING; FINAL PINION (B) NSK	1-09812-073-1	01	1	1305-
50	BEARING; FINAL PINION (B) JTEKT	1-09812-074-3	01	1	1305-
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	1305-
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	1305-
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	1305-
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	1305-
56	BOLT; BRG CAP M20X112	1-09070-042-0	08	1	1305-
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/7	1-41210-476-0	01	1	1305-
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/7	1-41210-604-0	01	1	1305-
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	04	1	1305-
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	04	1	1305-
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	02	1	1305-
63	BEARING; PINION PILOT NSK	1-09810-183-0	02	1	1305-
64	NUT; RET M8 SLOTTED	0-91117-508-0	04	1	1305-
65	PIN; SPLIT,RET	0-81122-012-0	04	1	1305-
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	02	1	1305-
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	02	1	1305-
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	02	1	1305-
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	04	1	1305-
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	02	1	1305-
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	32	1	1305-
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	24	1	1305-
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	04	1	1305-
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	04	1	1305-
89	BOLT; LK PLATE M8X16	0-20850-816-0	08	1	1305-
100	SEAL; OIL,FINAL PINION NOK	1-09625-322-0	01	1	1305-
126	COUPLING; DRIVING PINION	1-37245-336-0	01	1	1305-

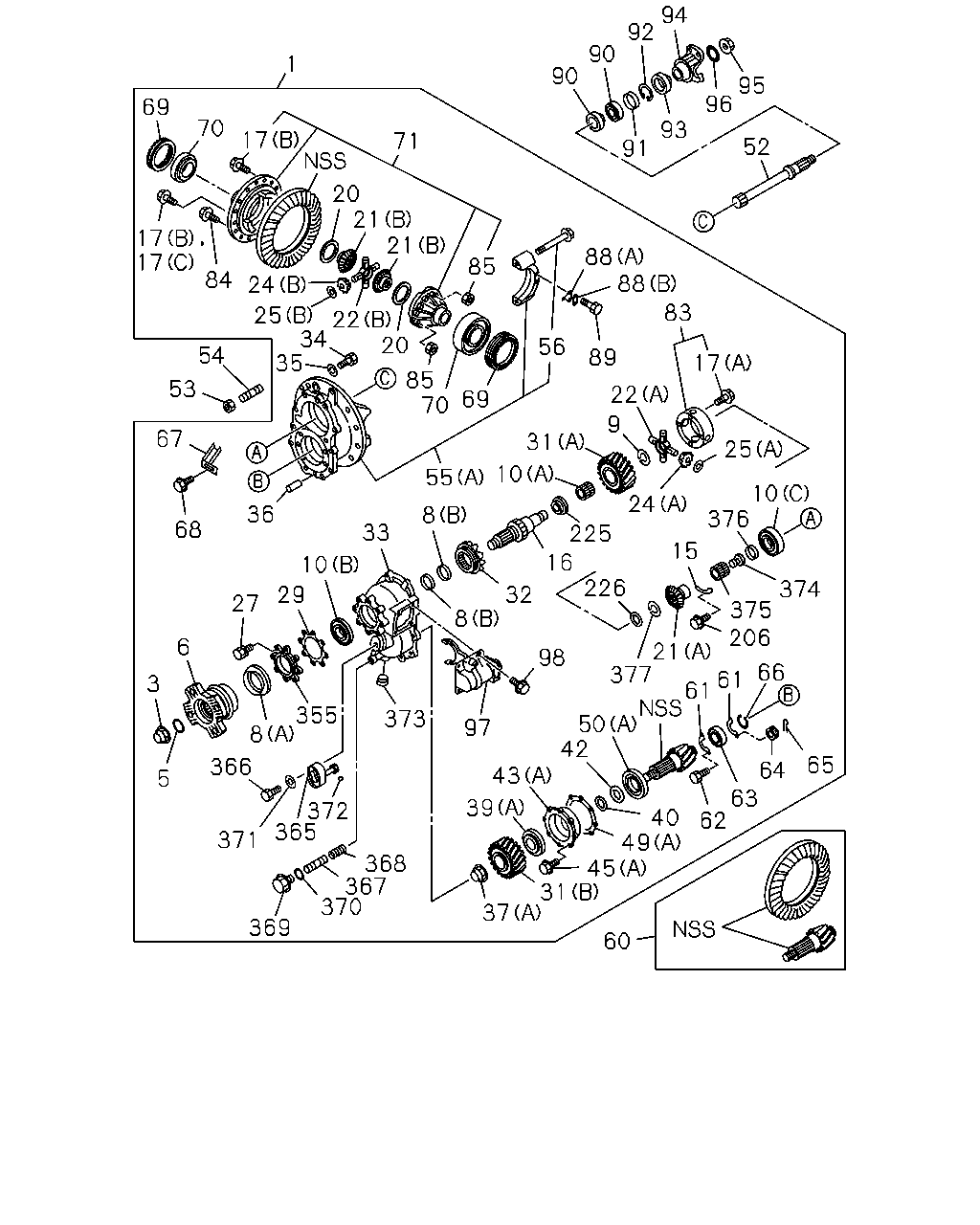

1 90 90 92 94 91 93 96 95 52 88 83 88 56 22 89 85 71 69 17 70 369 60 37 45 40 62 64 65 66 61 61 50 42 43 39 31 49 63 206 377 98 97 21 375 376 15 10 374 226 370 368 365 367 371 366 5 3 27 6 355 29 33 55 10 31 9 70 16 32 8 373 8 372 10 36 68 67 53 54 34 25 24 84 17 17 20 21 21 20 22 85 24 225 25 17 8 69 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR REARWARD 39/7	1-41001-393-0	01	1	1305-
1	DRIVE ASM; FINAL,RR FORWARD 39/7	1-41002-443-0	01	1	1305-
3	NUT; INPUT SHAFT M46 FLANGE	1-09449-071-0	01	1	1305-
5	GASKET; INPUT SHAFT ID=57	1-09623-386-0	01	1	1305-
6	FLANGE ASM; INPUT SHAFT	1-37245-343-0	01	1	1305-
8	SEAL; OIL,INPUT SHAFT (A)	1-09625-323-0	01	1	1305-
8	SEAL; OIL,INPUT SHAFT (B)	1-41349-145-0	02	1	1305-
9	RING; SNAP,BRG,INPUT	1-09588-192-0	01	1	1305-
10	BEARING; INPUT SHAFT (A) JTEKT	1-09811-346-0	01	1	1305-
10	BEARING; INPUT SHAFT (A) NSK	1-09811-347-0	01	1	1305-
10	BEARING; INPUT SHAFT (B) NSK	1-09812-094-0	01	1	1305-
10	BEARING; INPUT SHAFT (C) JTEKT	1-09812-182-0	01	1	1305-
10	BEARING; INPUT SHAFT (C) NSK	1-09812-183-0	01	1	1305-
10	BEARING; INPUT SHAFT (B) JTEKT	1-09812-198-0	01	1	1305-
15	CATCHER; OIL	1-41129-007-0	01	1	1305-
16	SHAFT ASM; INPUT	1-41341-025-0	01	1	1305-
17	BOLT; DIFF CAGE SETTING (C) M16X125	1-09070-007-0	08	1	1305-
17	BOLT; DIFF CAGE SETTING (B) M16X113	1-09070-018-0	16	1	1305-
17	BOLT; DIFF CAGE SETTING (A) M10X55	1-09070-108-0	08	1	1305-
20	WASHER; THRUST,SIDE GEAR T=2.8	1-41562-112-0	AR	1	1305-
20	WASHER; THRUST,SIDE GEAR T=2.9	1-41562-113-0	AR	1	1305-
20	WASHER; THRUST,SIDE GEAR T=3.0	1-41562-114-0	AR	1	1305-
20	WASHER; THRUST,SIDE GEAR T=3.1	1-41562-115-0	AR	1	1305-
20	WASHER; THRUST,SIDE GEAR T=3.2	1-41562-116-0	AR	1	1305-
20	WASHER; THRUST,SIDE GEAR T=3.3	1-41562-117-0	AR	1	1305-
20	WASHER; THRUST,SIDE GEAR T=3.4	1-41562-118-0	AR	1	1305-
21	GEAR; SIDE,DIFF (B) Z=16	1-41561-151-0	04	1	1305-
21	GEAR; SIDE,DIFF (A) Z=16	1-41561-169-0	01	1	1305-
22	SPIDER; DIFF PINION (B) OD=35	1-41521-037-2	02	1	1305-
22	SPIDER; DIFF PINION (A)	1-41521-049-2	01	1	1305-
24	GEAR; PINION,DIFF (B) Z=10	1-41551-053-0	08	1	1305-
24	GEAR; PINION,DIFF (A) Z=10	1-41551-055-0	04	1	1305-
25	WASHER; THRUST,PINION (B) T=1.6	1-41552-017-0	08	1	1305-
25	WASHER; THRUST,PINION (A) T=1.6	1-41552-023-0	04	1	1305-
27	BOLT; BRG RET M12X35 W/LK WASHER	0-50551-235-0	08	1	1305-
29	SHIM; BRG RET T=0.30	1-41349-146-0	AR	1	1305-
29	SHIM; BRG RET T=0.40	1-41349-147-0	AR	1	1305-
29	SHIM; BRG RET T=0.50	1-41349-148-0	AR	1	1305-
29	SHIM; BRG RET T=1.000	1-41349-149-0	AR	1	1305-
31	GEAR; DRIVEN,HELICAL (A) Z=16	1-41351-044-0	01	1	1305-
31	GEAR; DRIVEN,HELICAL (B) Z=31	1-41352-029-0	01	1	1305-
32	SLEEVE; CLU,DIFF LK	1-41355-038-0	01	1	1305-
33	CASE; POWER DIVIDER	1-41321-024-1	01	1	1305-
34	BOLT; CASE TO CARRIER M14X40	0-23851-440-0	10	1	1305-
35	WASHER; CASE TO CARRIER ID=14.2	0-91510-814-0	10	1	1305-
36	PIN; STRAIGHT OD=14 L=28	9-08161-428-0	02	1	1305-
37	NUT; DRIVING PINION (A) M42	1-09449-061-0	01	1	1305-
37	NUT; DRIVING PINION (B) M46 FLANGE	1-09449-071-0	01	1	1305-
39	BEARING; FINAL PINION (A) NSK	1-09812-073-1	01	1	1305-
39	BEARING; FINAL PINION (A) JTEKT	1-09812-074-3	01	1	1305-
39	BEARING; FINAL PINION (B) NSK	1-09812-075-0	01	1	1305-
39	BEARING; FINAL PINION (B) JTEKT	1-09812-076-1	01	1	1305-
40	SHIM; FINAL PINION T=3.25	1-41229-245-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.26	1-41229-246-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.27	1-41229-247-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.28	1-41229-248-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.29	1-41229-249-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.30	1-41229-250-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.31	1-41229-251-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.32	1-41229-252-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.33	1-41229-253-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.34	1-41229-254-0	AR	1	1305-
40	SHIM; FINAL PINION T=3.35	1-41229-255-0	AR	1	1305-
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-237-0	AR	1	1305-
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-238-0	AR	1	1305-
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-239-0	AR	1	1305-
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-240-0	AR	1	1305-
42	COLLAR; DIST,COLLAPSIBLE T=8.40	1-41229-241-0	AR	1	1305-
42	COLLAR; DIST,COLLAPSIBLE T=8.60	1-41229-242-0	AR	1	1305-
42	COLLAR; DIST,COLLAPSIBLE T=8.80	1-41229-243-0	AR	1	1305-
42	COLLAR; DIST,COLLAPSIBLE T=9.00	1-41229-244-0	AR	1	1305-
43	CAGE; FINAL PINION (B) T=81	1-41151-030-0	01	1	1305-
43	CAGE; FINAL PINION (A) T=53	1-41151-053-0	01	1	1305-
45	BOLT; FINAL PINION CAGE (B) M16X55	0-16806-655-0	08	1	1305-
45	BOLT; FINAL PINION CAGE (A) M16X40	1-09070-107-0	08	1	1305-
49	SHIM; FINAL PINION CAGE (B) T=0.50	1-41154-024-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (B) T=1.00	1-41154-025-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (B) T=0.30	1-41154-057-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (B) T=0.40	1-41154-058-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (A) T=0.50	1-41154-071-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (A) T=1.000	1-41154-072-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (A) T=0.30	1-41154-073-0	AR	1	1305-
49	SHIM; FINAL PINION CAGE (A) T=0.40	1-41154-074-0	AR	1	1305-
50	BEARING; FINAL PINION (B) NSK	1-09812-073-1	01	1	1305-
50	BEARING; FINAL PINION (B) JTEKT	1-09812-074-3	01	1	1305-
50	BEARING; FINAL PINION (A) NSK	1-09812-075-0	01	1	1305-
50	BEARING; FINAL PINION (A) JTEKT	1-09812-076-1	01	1	1305-
52	SHAFT; OUTPUT	1-41343-020-0	01	1	1305-
53	NUT; FINAL DRIVE SET M16	0-91110-516-0	01	1	1305-
54	STUD; FINAL DRIVE SET M16X32 L=56	9-09830-243-0	01	1	1305-
55	CARRIER; DIFF (B)	1-41110-109-0	01	1	1305-
55	CARRIER; DIFF (A)	1-41310-050-0	01	1	1305-
56	BOLT; BRG CAP M20X112	1-09070-042-0	08	1	1305-
60	GEAR SET; FINAL DRIVE,RR FORWARD 39/7	1-41210-476-0	01	1	1305-
60	GEAR SET; FINAL DRIVE,RR REARWARD 39/7	1-41210-604-0	01	1	1305-
61	RETAINER; PILOT BRG,PINION T=3.2	1-41227-012-0	04	1	1305-
62	BOLT; RET M8X40 W/PIN HOLE	1-09042-038-1	04	1	1305-
63	BEARING; PINION PILOT JTEKT	1-09810-182-0	02	1	1305-
63	BEARING; PINION PILOT NSK	1-09810-183-0	02	1	1305-
64	NUT; RET M8 SLOTTED	0-91117-508-0	04	1	1305-
65	PIN; SPLIT,RET	0-81122-012-0	04	1	1305-
66	RING; SNAP,PILOT BRG OD=37.2	1-09588-086-2	02	1	1305-
67	PICKUP; OIL,CARRIER	1-41129-008-0	01	1	1305-
68	BOLT; OIL PICKUP FIX M8X12 FLANGE	8-94479-696-1	02	1	1305-
69	NUT; ADJ,DIFF CAGE M155 H=26	1-41121-001-0	02	1	1305-
69	NUT; ADJ,DIFF CAGE M155 H=30	1-41121-002-0	02	1	1305-
70	BEARING; DIFF CAGE JTEKT ID=92 OD=152 T=40	1-09812-225-0	04	1	1305-
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-141-0	02	1	1305-
83	CAGE ASM; DIFF	1-41510-224-0	01	1	1305-
84	BOLT; FINAL DRIVE GEAR M18X38 FLANGE	1-09009-049-1	32	1	1305-
85	NUT; DIFF CAGE SETTING M16	0-91110-516-0	24	1	1305-
88	PLATE; LK,ADJ NUT (A) T=3.2	1-41124-006-0	04	1	1305-
88	PLATE; LK,ADJ NUT (B) T=1.0	9-41124-005-0	04	1	1305-
89	BOLT; LK PLATE M8X16	0-20850-816-0	08	1	1305-
90	BEARING; OUTPUT SHAFT NSK	1-09812-068-0	02	1	1305-
90	BEARING; OUTPUT SHAFT JTEKT	1-09812-069-0	02	1	1305-
91	SHIM; BRG,OUTPUT SHAFT T=4.60	1-41349-020-0	AR	1	1305-
91	SHIM; BRG,OUTPUT SHAFT T=4.70	1-41349-021-0	AR	1	1305-
91	SHIM; BRG,OUTPUT SHAFT T=4.80	1-41349-022-0	AR	1	1305-
91	SHIM; BRG,OUTPUT SHAFT T=4.90	1-41349-023-0	AR	1	1305-
91	SHIM; BRG,OUTPUT SHAFT T=5.00	1-41349-024-0	AR	1	1305-
91	SHIM; BRG,OUTPUT SHAFT T=5.10	1-41349-025-0	AR	1	1305-
91	SHIM; BRG,OUTPUT SHAFT T=5.20	1-41349-026-0	AR	1	1305-
91	SHIM; BRG,OUTPUT SHAFT T=5.30	1-41349-027-0	AR	1	1305-
91	SHIM; BRG,OUTPUT SHAFT T=4.50	1-41349-091-0	AR	1	1305-
91	SHIM; BRG,OUTPUT SHAFT T=5.40	1-41349-092-0	AR	1	1305-
92	RING; SNAP,BRG,OUTPUT SHAFT OD=90.5	9-09180-185-0	01	1	1305-
93	SEAL; OIL,OUTPUT SHAFT	1-09625-217-0	01	1	1305-
94	FLANGE ASM; OUTPUT SHAFT	1-37245-130-1	01	1	1305-
95	NUT; OUTPUT SHAFT M36 FLANGE	1-09449-067-0	01	1	1305-
96	GASKET; SHAFT,OUTPUT ID=42	1-09623-387-0	01	1	1305-
97	SHIFT UNIT; DIFF LOCK	1-48260-060-1	01	1	1305-
98	BOLT; SHIFT UNIT TO CARRIER M10X50 FLANGE	0-28151-050-0	01	1	1305-
98	BOLT; SHIFT UNIT TO CARRIER M10X25 FLANGE	0-28751-025-0	03	1	1305-
206	BOLT; OIL CATCHER M8X12 FLANGE	8-94479-696-1	02	1	1305-
225	WASHER; THRUST T=5.9	1-41552-024-2	AR	1	1305-
225	WASHER; THRUST T=6.0	1-41552-025-2	AR	1	1305-
225	WASHER; THRUST T=6.1	1-41552-026-2	AR	1	1305-
225	WASHER; THRUST T=6.2	1-41552-027-2	AR	1	1305-
225	WASHER; THRUST T=6.3	1-41552-028-2	AR	1	1305-
225	WASHER; THRUST T=6.4	1-41552-029-2	AR	1	1305-
225	WASHER; THRUST T=6.5	1-41552-030-2	AR	1	1305-
225	WASHER; THRUST T=6.6	1-41552-031-2	AR	1	1305-
225	WASHER; THRUST T=6.7	1-41552-032-2	AR	1	1305-
225	WASHER; THRUST T=6.8	1-41552-033-2	AR	1	1305-
225	WASHER; THRUST T=6.9	1-41552-034-2	AR	1	1305-
225	WASHER; THRUST T=7.0	1-41552-035-2	AR	1	1305-
225	WASHER; THRUST T=7.1	1-41552-036-2	AR	1	1305-
226	WASHER; THRUST	1-41562-267-0	01	1	1305-
355	RETAINER; BRG	1-41227-016-0	01	1	1305-
365	PUMP ASM; OIL	1-41381-008-1	01	1	1305-
366	BOLT; PUMP M8X40	0-10805-840-0	04	1	1305-
367	STRAINER; OIL PUMP	1-41383-003-0	01	1	1305-
368	SPRING; STRAINER	1-09580-504-0	01	1	1305-
369	PLUG; STRAINER M24X17 FLANGE	1-09604-023-0	01	1	1305-
370	GASKET; STRAINER ID=26.8	1-09623-058-0	01	1	1305-
371	WASHER; LK,PUMP ID=8.2	0-91510-808-0	04	1	1305-
372	BALL; CASE	9-00097-517-0	01	1	1305-
373	PLUG; CASE PT1/4	1-09605-019-0	01	1	1305-
374	PLUG; INPUT SHAFT	1-09609-020-1	01	1	1305-
375	BEARING; SIDE GEAR JTEKT	1-09811-348-0	01	1	1305-
375	BEARING; SIDE GEAR NSK	1-09811-362-0	01	1	1305-
376	SPACER; BRG,SIDE GEAR	1-41349-150-0	01	1	1305-
377	RING; SNAP,BRG,SIDE GEAR	1-09587-091-0	01	1	1305-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
