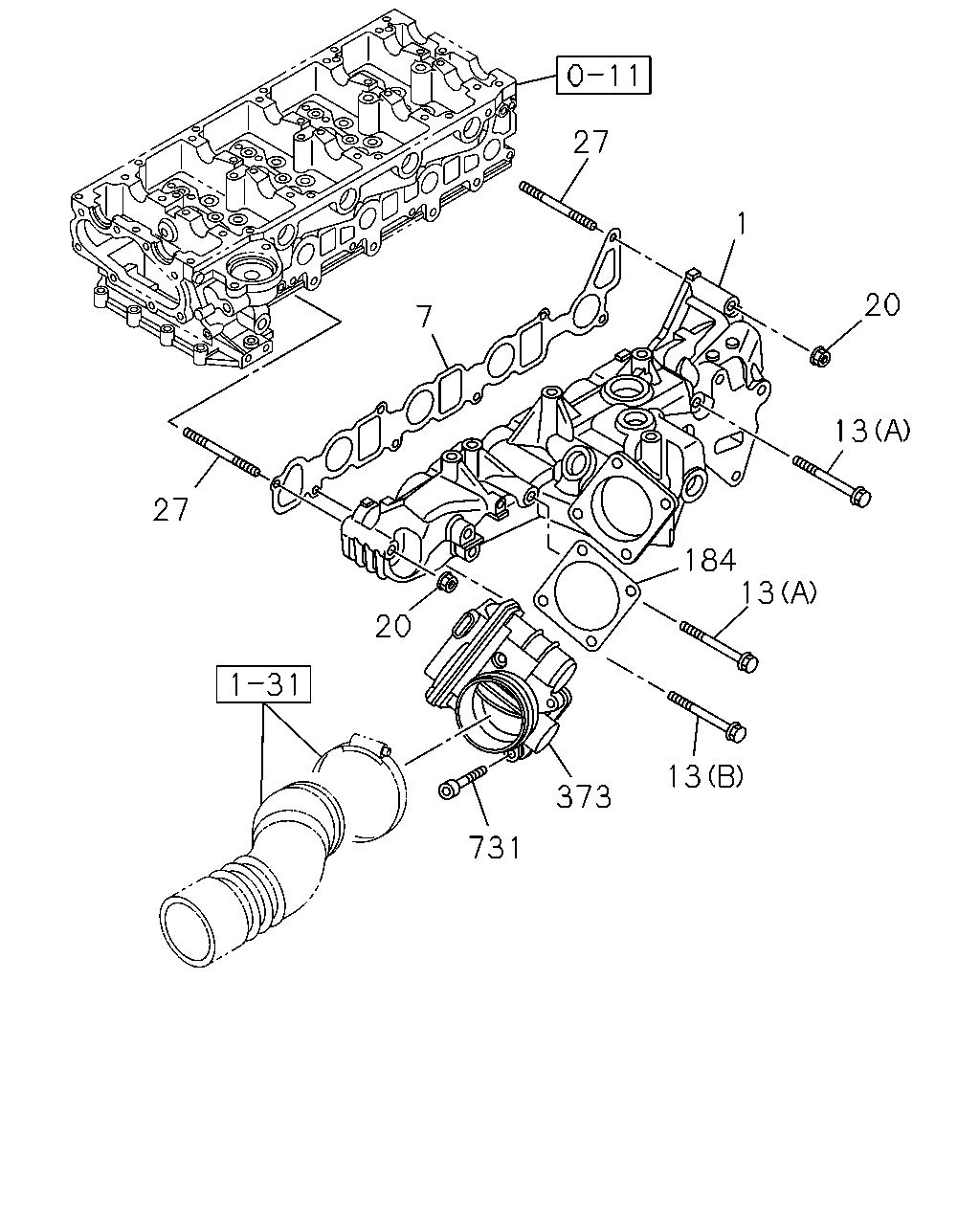

0-25 — INLET MANIFOLD (#119650) — 13 parça

27 1 20 13 184 13 13 373 731 20 27 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MANIFOLD; INL IMA	8-98024-411-1	01	1	1304-
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> THA	8-97312-067-1	01	1	1304-
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> IMA	8-98212-999-0	01	1	1304-
13	BOLT; INL MANIF (A) M8X110 FLANGE THA	0-28055-811-0	02	1	1304-
13	BOLT; INL MANIF (B) M8X70 12-POINT HEAD THA	8-97101-065-0	04	1	1304-
20	NUT; INL MANIF M8 FLANGE THA	0-91180-208-0	02	1	1304-
27	STUD; INL MANIF ENGINE MADE IN THAILAND<6ZP> M8X71 L=83 THA	8-97367-083-0	02	1	1304-
27	STUD; INL MANIF EXC. ENGINE MADE IN THAILAND<6ZP> M8X71 L=83	8-98017-063-0	02	1	1304-
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ENGINE MADE IN THAILAND<6ZP> THA	8-97366-784-1	01	1	1304-
184	GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. ENGINE MADE IN THAILAND<6ZP> THA	8-98096-968-0	01	1	1304-
373	THROTTLE ASM; INT IMA	8-98040-003-4	01	1	1304-
731	BOLT; THROTTLE ASM M6X50 HEX SOCKET THA	0-58330-650-0	04	1	1304-

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

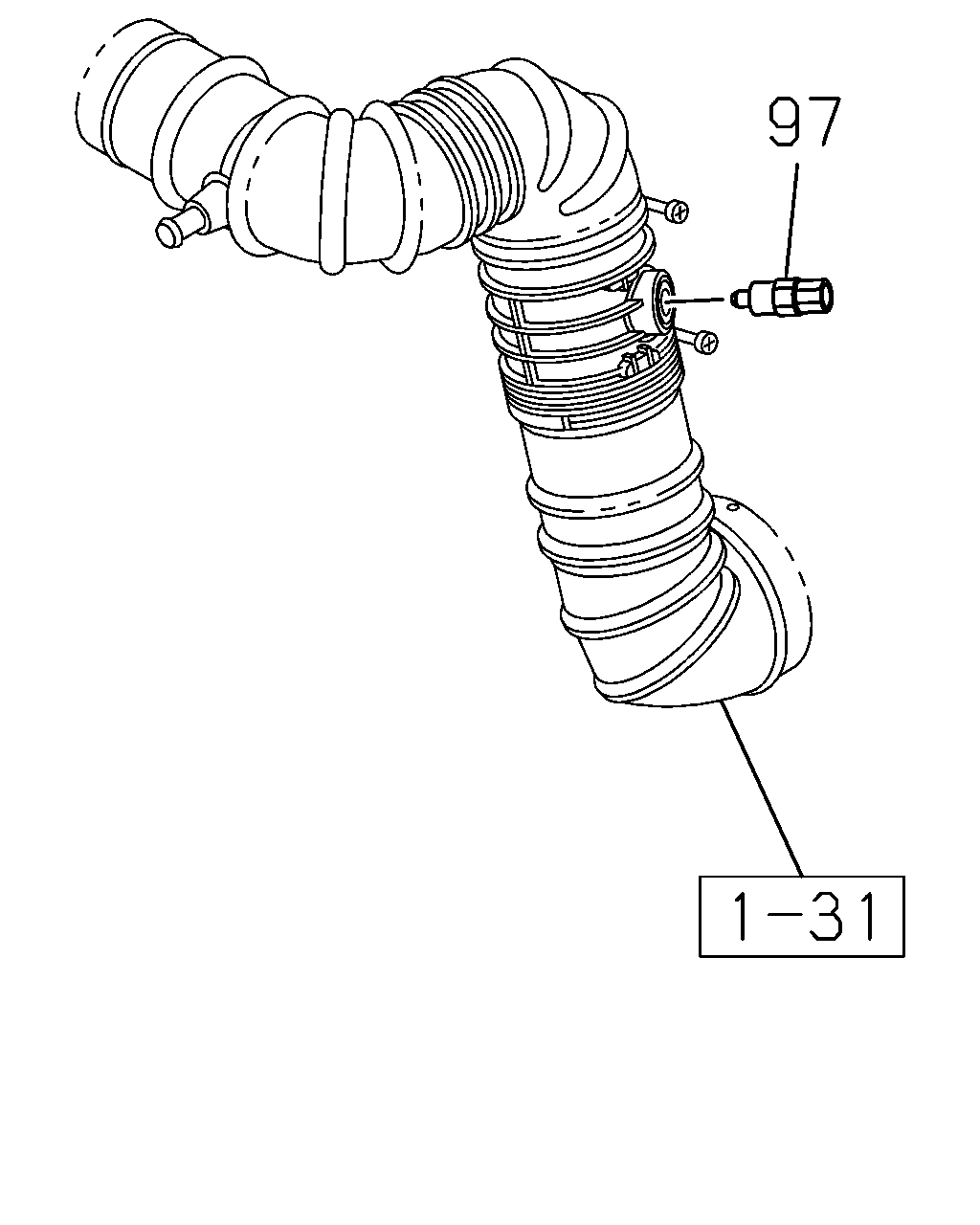

	97	SENSOR; INTAKE,AIR TEMPERATURE IMA	8-12146-830-0	01	1	1304-
