Sayfa 2-36 - Isuzu EPC

2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#11965) — 475 parça

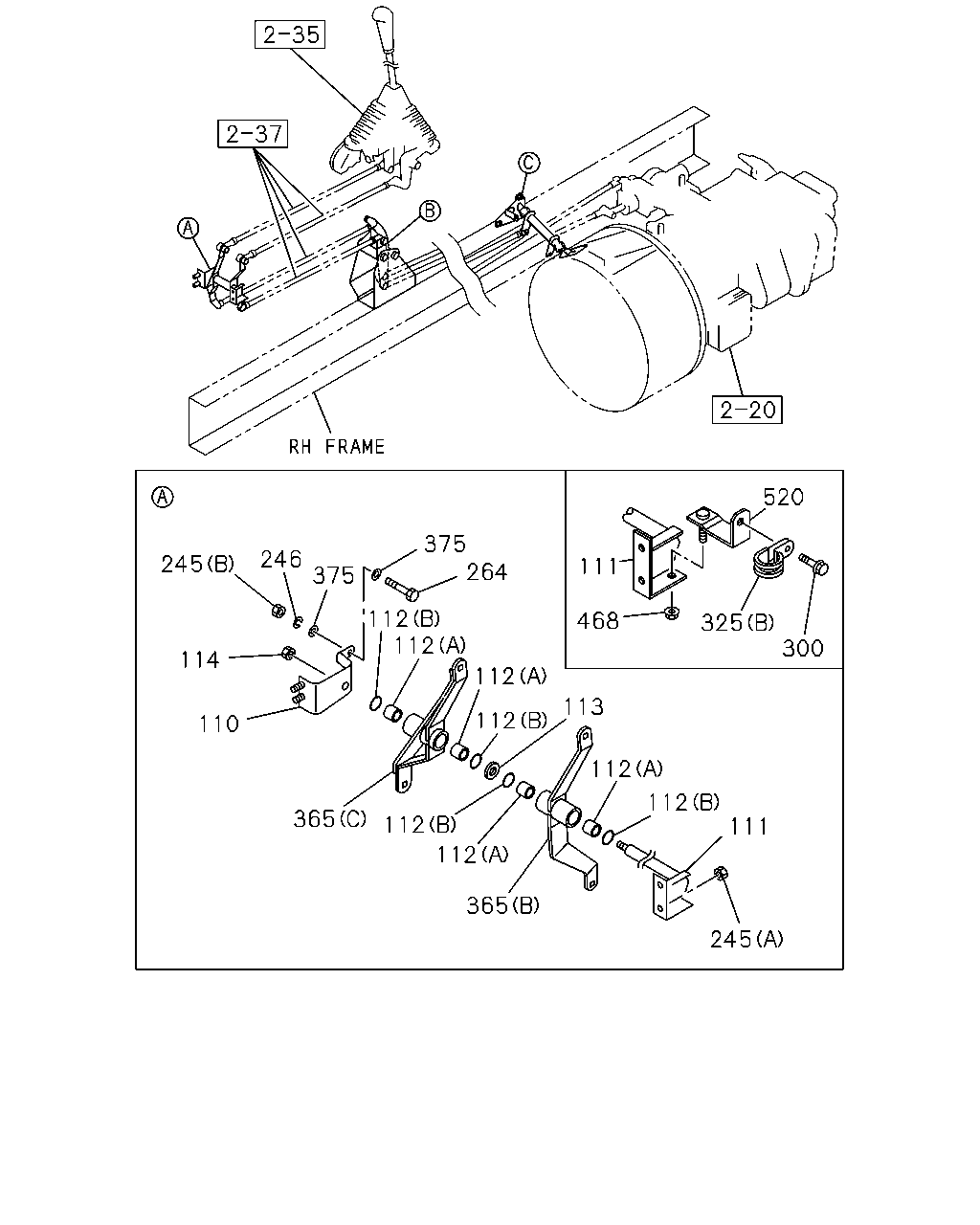

520 300 111 468 325 375 264 246 245 114 375 112 112 112 112 110 113 112 112 111 245 365 112 112 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	0105-
111	SHAFT; RELAY LEVER,1ST	1-33619-468-1	01	1	0105-
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	0105-
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	0105-
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	0105-0605
113	WASHER; RELAY LEVER ID=17 OD=30	0-91610-516-0	01	1	0606-
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	0105-0602
114	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	01	1	0603-
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	0105-0602
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91180-210-0	02	1	0603-
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	0105-
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	0105-
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	0105-0301
264	BOLT; BRKT,RELAY LEVER M10X105	1-79198-008-1	01	1	0302-
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-
300	BOLT; CLIP MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
300	BOLT; CLIP MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28650-820-0	01	1	0601-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250	1-09707-126-0	07	1	0107-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	9-09525-856-0	01	1	0108-0606
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0607-
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) ID=9.5	5-09709-020-0	06	1	0105-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0105-0106
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0107-0107
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) ID=18 L=28	1-09701-067-0	01	1	0107-0107
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) ID=18 L=28	1-09701-067-0	01	1	0108-
325	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5	5-09709-020-0	04	1	0105-
365	LEVER; RELAY,SELECT (B)	1-33651-638-1	01	1	0105-
365	LEVER; RELAY,SELECT (C)	1-33651-649-1	01	1	0105-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0105-
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	0105-
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0105-0105
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0106-
468	NUT; BRKT FULLER M/T<X9B> M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
520	BRACKET; NYLON TUBE FULLER M/T<X9B>	1-79996-545-0	01	1	0105-0304
520	BRACKET; NYLON TUBE FULLER M/T<X9B>	1-79996-628-0	01	1	0305-

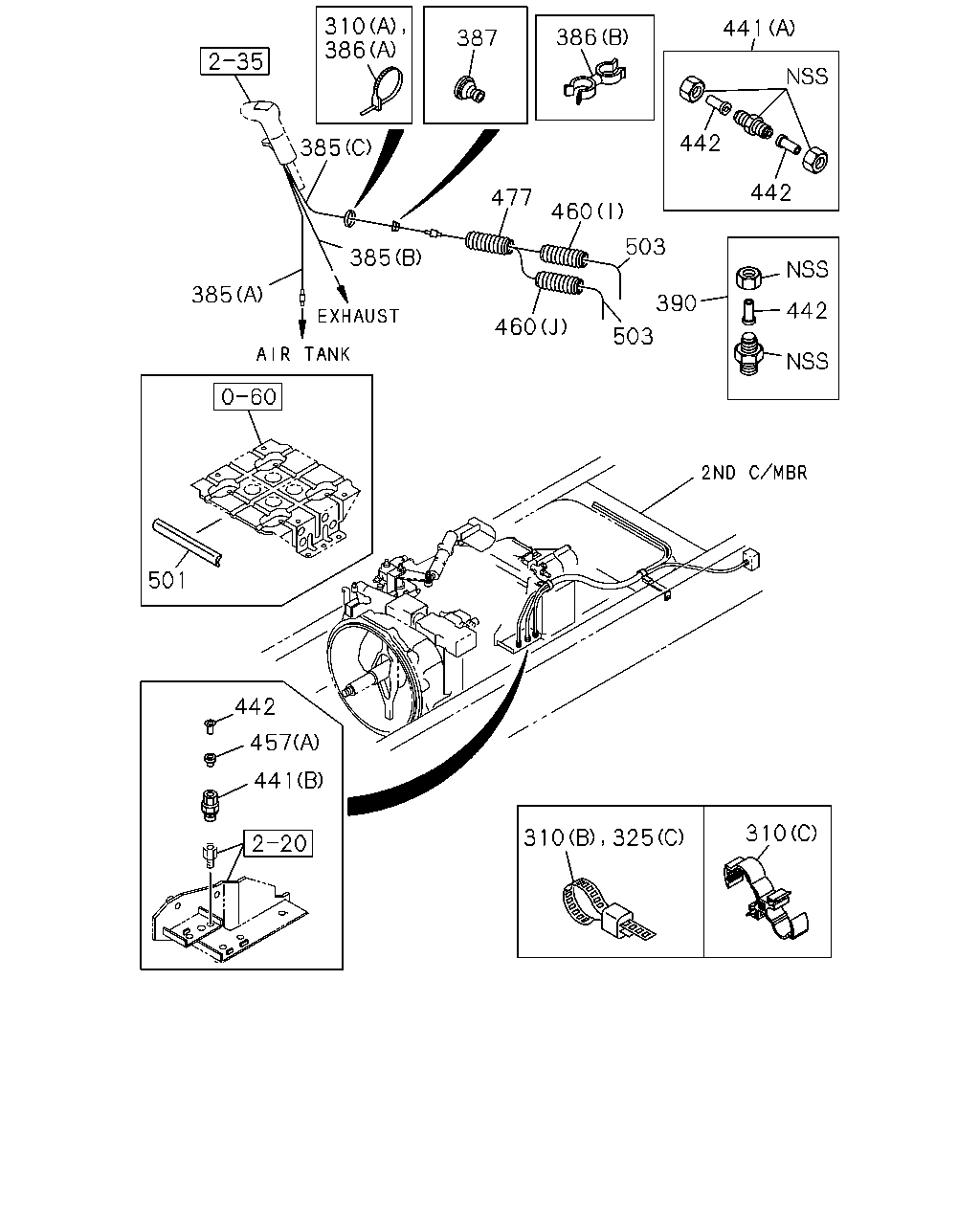

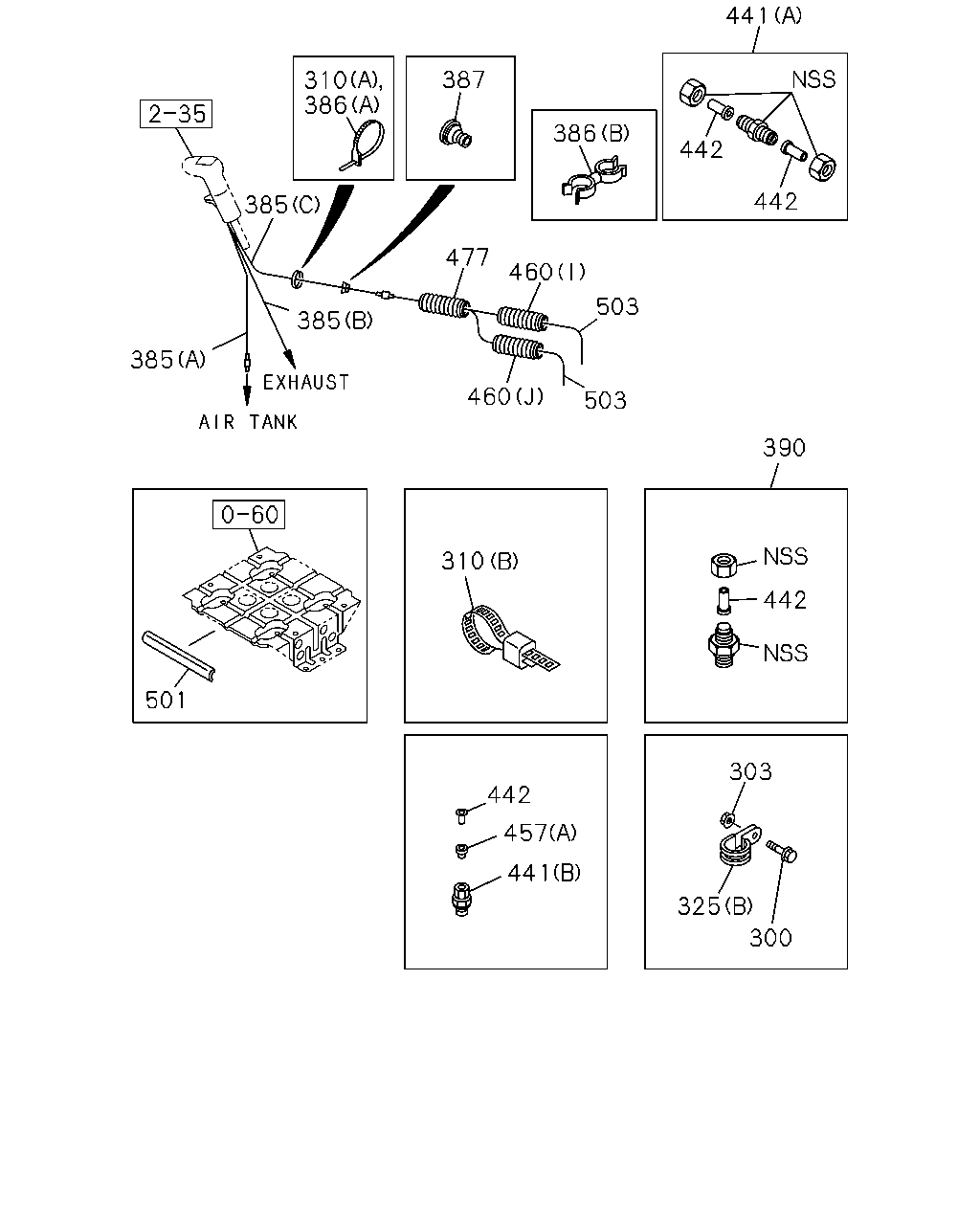

310 387 386 386 442 442 441 477 385 460 503 503 460 385 385 390 310 442 501 442 457 441 303 325 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
300	BOLT; CLIP FULLER M/T<X9B> M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0105-
300	BOLT; CLIP MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28680-820-0	01	1	0107-0512
300	BOLT; CLIP MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8X20 FLANGE	0-28650-820-0	01	1	0601-
303	NUT; CLIP MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91150-108-0	01	1	0107-0602
303	NUT; CLIP MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE	0-91180-108-0	01	1	0603-
310	CLIP; TUBE ZF M/T<X9E> (C) ID=12-16 & 12-16	1-09709-191-0	01	1	0106-0106
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) ID=12-16 & 12-16	1-09709-191-0	01	1	0107-
310	CLIP; TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	16	1	0105-0106
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=250	1-09707-126-0	16	1	0107-
310	CLIP; TUBE ZF M/T<X9E> (A) L=250	5-09707-030-1	02	1	0105-0106
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=250	5-09707-030-1	02	1	0107-
310	CLIP; TUBE ZF M/T<X9E> (A) L=140	5-09707-031-1	01	1	0105-0105
310	CLIP; TUBE ZF M/T<X9E> (A) L=140	5-09707-031-1	03	1	0106-0106
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	03	1	0107-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250	1-09707-126-0	07	1	0107-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	9-09525-856-0	01	1	0108-0606
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0607-
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) ID=9.5	5-09709-020-0	06	1	0105-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0105-0106
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0107-0107
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) ID=18 L=28	1-09701-067-0	01	1	0107-0107
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) ID=18 L=28	1-09701-067-0	01	1	0108-
325	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5	5-09709-020-0	04	1	0105-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (B) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) L=3220 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0305-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON ZF M/T<X9E> (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON ZF M/T<X9E> (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> (C) L=250	1-09707-126-0	08	1	0105-
386	CLIP; CONT CABLE & TUBE ZF M/T<X9E> (A) L=250	5-09707-030-1	02	1	0105-0106
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=250	5-09707-030-1	02	1	0107-0308
386	CLIP; CONT CABLE & TUBE ZF M/T<X9E> (A) L=140	5-09707-031-1	01	1	0105-0106
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	01	1	0107-0308
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	02	1	0309-
386	CLIP; CONT CABLE & TUBE ZF M/T<X9E> (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0106
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0107-0308
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0105-
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0105-0106
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-09332-102-0	01	1	0107-
390	CONNECTOR; STRAIGHT,TRANS SIDE ZF M/T<X9E> DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0105-0106
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0107-
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0105-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0105-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0105-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0107-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	0105-0106
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	0107-
457	GASKET (B)	1-09623-594-0	04	1	0105-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-0106
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (H) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) L=150 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (B) L=250 SERVICED BY L=800	1-83129-031-1	02	1	0105-
460	TUBE; CORRUGATE FULLER M/T<X9B> (F) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0105-0304
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1170 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0108-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (I) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (J) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (J) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
477	TUBE; CORRUGATE ZF M/T<X9E> L=2000 ID=7	1-87410-085-0	01	1	0105-
477	TUBE; CORRUGATE ZF M/T<X9E> L=4000 ID=7	1-87410-086-0	01	1	0105-0106
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=4000 ID=7	1-87410-086-0	01	1	0107-
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-0	04	1	0504-
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0105-0106
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 100X40	1-72498-022-0	04	1	0105-0106
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) 100X40	1-72498-022-0	04	1	0107-0503
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 100X40	1-72498-022-0	04	1	0107-0503
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) 100X40	1-72498-022-0	04	1	0504-
503	TUBE; NYLON ZF M/T<X9E> L=2000 OD=4	1-87410-077-0	01	1	0105-0106
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=2000 OD=4	1-87410-077-0	01	1	0107-
503	TUBE; NYLON ZF M/T<X9E> L=6000 OD=4	1-87410-079-0	01	1	0105-0106
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=6000 OD=4	1-87410-079-0	01	1	0107-

496 465 509 468 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	COVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-79907-090-0	01	1	0105-0105
192	COVER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7)	1-79907-090-0	01	1	0106-
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-47478-772-0	01	1	0105-0105
465	BRACKET; CONNECTOR ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7)	1-47478-772-1	01	1	0106-
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0105-0105
468	NUT; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0106-
468	NUT; BRKT FULLER M/T<X9B> M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0105-
496	FASTENER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F) D8X13.5	1-09987-248-1	02	1	0105-0105
496	FASTENER ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7) D8X13.5	1-09987-248-1	02	1	0106-
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F)	1-47477-825-2	01	1	0105-0105
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7)	1-47477-825-2	01	1	0106-0401
509	SEAL; BRKT ELECTRONIC GOV RED3(KG5),ELECTRONIC GOV RED4(Q4F), RLD GOVERNOR(SD7)	1-47479-978-0	01	1	0402-

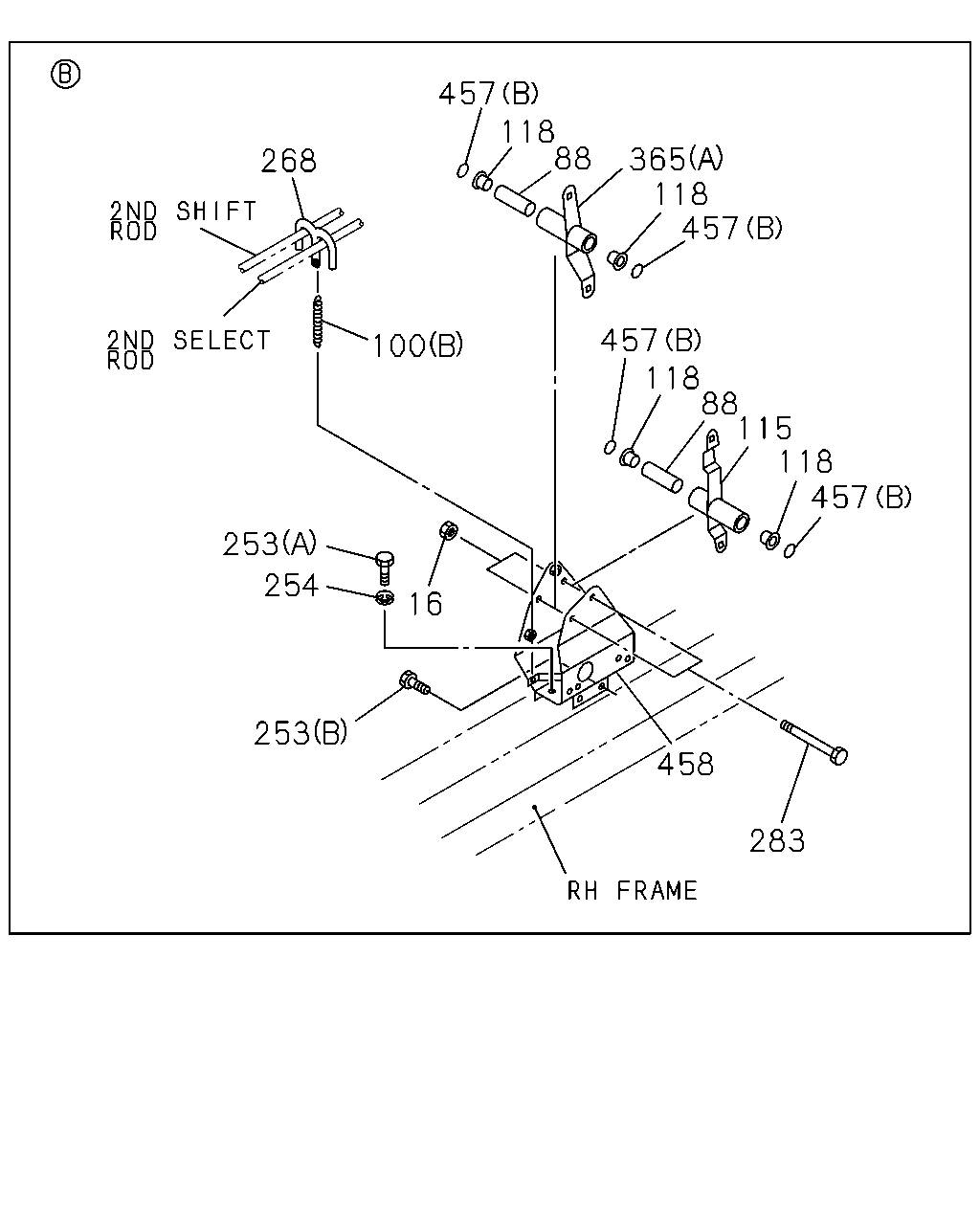

268 457 88 118 365 118 457 457 118 88 115 118 457 100 253 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	0105-0602
16	NUT; RELAY LEVER M10 FLANGE	0-91180-110-0	02	1	0603-
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	0105-
100	SPRING (B)	1-09583-319-0	01	1	0105-
100	SPRING (A)	1-09583-351-0	01	1	0105-
115	LEVER; RELAY,2ND SHIFT	1-33651-769-1	01	1	0105-
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	0105-
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	0105-
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	0105-0512
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	0105-0603
254	WASHER; LK,RELAY LEVER ID=14.2	0-91510-614-0	02	1	0604-
268	BRACKET; LINK ROD	1-33657-216-0	01	1	0105-
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	0105-
365	LEVER; RELAY,SELECT (B)	1-33651-638-1	01	1	0105-
365	LEVER; RELAY,SELECT (C)	1-33651-649-1	01	1	0105-
365	LEVER; RELAY,SELECT (A)	1-33651-771-1	01	1	0105-
457	GASKET (B)	1-09623-594-0	04	1	0105-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-0106
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
458	BRACKET; 2ND RELAY LEVER	1-33657-664-1	01	1	0105-

385 385 385 385 385 385 460 387 460 460 441 501

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (B) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) L=3220 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0305-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON ZF M/T<X9E> (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON ZF M/T<X9E> (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0105-
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0105-0106
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-09332-102-0	01	1	0107-
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0105-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0105-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0105-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (H) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) L=150 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (B) L=250 SERVICED BY L=800	1-83129-031-1	02	1	0105-
460	TUBE; CORRUGATE FULLER M/T<X9B> (F) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0105-0304
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1170 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0108-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (I) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (J) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (J) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-0	04	1	0504-
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0105-0106
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 100X40	1-72498-022-0	04	1	0105-0106
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) 100X40	1-72498-022-0	04	1	0107-0503
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 100X40	1-72498-022-0	04	1	0107-0503
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) 100X40	1-72498-022-0	04	1	0504-

310 385 477 460 442 441 442 442 503 503 390 460 385 385 386 387 386 501 442 457 441 310 325 310

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
310	CLIP; TUBE ZF M/T<X9E> (C) ID=12-16 & 12-16	1-09709-191-0	01	1	0106-0106
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) ID=12-16 & 12-16	1-09709-191-0	01	1	0107-
310	CLIP; TUBE ZF M/T<X9E> (B) L=250	1-09707-126-0	16	1	0105-0106
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=250	1-09707-126-0	16	1	0107-
310	CLIP; TUBE ZF M/T<X9E> (A) L=250	5-09707-030-1	02	1	0105-0106
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=250	5-09707-030-1	02	1	0107-
310	CLIP; TUBE ZF M/T<X9E> (A) L=140	5-09707-031-1	01	1	0105-0105
310	CLIP; TUBE ZF M/T<X9E> (A) L=140	5-09707-031-1	03	1	0106-0106
310	CLIP; TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	03	1	0107-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250	1-09707-126-0	07	1	0107-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	9-09525-856-0	01	1	0108-0606
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0607-
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) ID=9.5	5-09709-020-0	06	1	0105-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0105-0106
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0107-0107
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) ID=18 L=28	1-09701-067-0	01	1	0107-0107
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) ID=18 L=28	1-09701-067-0	01	1	0108-
325	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5	5-09709-020-0	04	1	0105-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (B) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) L=3220 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0305-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON ZF M/T<X9E> (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON ZF M/T<X9E> (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> (C) L=250	1-09707-126-0	08	1	0105-
386	CLIP; CONT CABLE & TUBE ZF M/T<X9E> (A) L=250	5-09707-030-1	02	1	0105-0106
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=250	5-09707-030-1	02	1	0107-0308
386	CLIP; CONT CABLE & TUBE ZF M/T<X9E> (A) L=140	5-09707-031-1	01	1	0105-0106
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	01	1	0107-0308
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	02	1	0309-
386	CLIP; CONT CABLE & TUBE ZF M/T<X9E> (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0106
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0107-0308
387	GROMMET; CONT TUBE,FULLER FULLER M/T<X9B>	1-09332-135-0	01	1	0105-
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-09332-102-0	01	1	0105-0106
387	GROMMET; CONT TUBE,FULLER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-09332-102-0	01	1	0107-
390	CONNECTOR; STRAIGHT,TRANS SIDE ZF M/T<X9E> DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0105-0106
390	CONNECTOR; STRAIGHT,TRANS SIDE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) DIN4 & PT1/8 STRAIGHT	1-09660-765-0	01	1	0107-
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0105-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0105-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0105-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0107-
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	0105-0106
442	INSERT; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=1.4 OD=2.0 L=18	1-09669-100-0	06	1	0107-
457	GASKET (B)	1-09623-594-0	04	1	0105-
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-0106
457	GASKET TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (H) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) L=150 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (B) L=250 SERVICED BY L=800	1-83129-031-1	02	1	0105-
460	TUBE; CORRUGATE FULLER M/T<X9B> (F) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0105-0304
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1170 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0108-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (I) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (J) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (J) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-
477	TUBE; CORRUGATE MJX16P M/T(Y3Z) SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
477	TUBE; CORRUGATE ZF M/T<X9E> L=2000 ID=7	1-87410-085-0	01	1	0105-
477	TUBE; CORRUGATE ZF M/T<X9E> L=4000 ID=7	1-87410-086-0	01	1	0105-0106
477	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=4000 ID=7	1-87410-086-0	01	1	0107-
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 180X40	1-72498-019-0	04	1	0504-
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) 100X40	1-72498-022-0	04	1	0105-0106
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 100X40	1-72498-022-0	04	1	0105-0106
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) 100X40	1-72498-022-0	04	1	0107-0503
501	SEAL; HARNESS PROTECTOR FULLER M/T<X9B> 100X40	1-72498-022-0	04	1	0107-0503
501	SEAL; HARNESS PROTECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) 100X40	1-72498-022-0	04	1	0504-
503	TUBE; NYLON ZF M/T<X9E> L=2000 OD=4	1-87410-077-0	01	1	0105-0106
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=2000 OD=4	1-87410-077-0	01	1	0107-
503	TUBE; NYLON ZF M/T<X9E> L=6000 OD=4	1-87410-079-0	01	1	0105-0106
503	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) L=6000 OD=4	1-87410-079-0	01	1	0107-

385 385 385 385 385 385 460 460 460 460 460 460 445 444 441 309 308 325 315 308 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
308	CLIP; PIPE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0105-0107
308	CLIP; PIPE FULLER M/T<X9B> (B) ID=19 L=28	9-09525-856-0	01	1	0108-0606
308	CLIP; PIPE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0607-
308	CLIP; PIPE FULLER M/T<X9B> (A) ID=12-16 & 12-16	1-09709-191-0	01	1	0105-
309	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	0105-0602
309	NUT; PIPE CLIP FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	01	1	0603-
315	BOLT; PIPE CLIP FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
315	BOLT; PIPE CLIP FULLER M/T<X9B> M8X25 FLANGE	0-28650-825-0	01	1	0601-
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) L=250	1-09707-126-0	07	1	0107-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	9-09525-856-0	01	1	0108-0606
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=19 L=28	0-95235-856-0	01	1	0607-
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) ID=9.5	5-09709-020-0	06	1	0105-
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0105-0106
325	CLIP; NYLON TUBE FULLER M/T<X9B> (B) ID=18 L=28	1-09701-067-0	01	1	0107-0107
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) ID=18 L=28	1-09701-067-0	01	1	0107-0107
325	CLIP; NYLON TUBE MJX16P M/T(Y3Z) EXC. TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) ID=18 L=28	1-09701-067-0	01	1	0108-
325	CLIP; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) ID=9.5	5-09709-020-0	04	1	0105-
385	TUBE; NYLON TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3235 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0108-
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (A) L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (B) L=3130 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3220 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (A) L=3650 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (A) L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0107
385	TUBE; NYLON TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R) (A) L=3220 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0108-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1770 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0305-
385	TUBE; NYLON FULLER M/T<X9B> (B) L=1790 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0105-0304
385	TUBE; NYLON FULLER M/T<X9B> (B) SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0305-
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=150 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON ZF M/T<X9E> (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=1440 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
385	TUBE; NYLON ZF M/T<X9E> (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0105-0106
385	TUBE; NYLON TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (C) L=1650 SERVICED BY L=8000	1-09369-762-0	01	1	0107-
386	CLIP; CONT CABLE & TUBE FULLER M/T<X9B> (C) L=250	1-09707-126-0	08	1	0105-
386	CLIP; CONT CABLE & TUBE ZF M/T<X9E> (A) L=250	5-09707-030-1	02	1	0105-0106
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=250	5-09707-030-1	02	1	0107-0308
386	CLIP; CONT CABLE & TUBE ZF M/T<X9E> (A) L=140	5-09707-031-1	01	1	0105-0106
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	01	1	0107-0308
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) L=140	5-09707-031-1	02	1	0309-
386	CLIP; CONT CABLE & TUBE ZF M/T<X9E> (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0105-0106
386	CLIP; CONT CABLE & TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) ID=8.3 & 8.3	8-94426-175-0	01	1	0107-0308
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (B)	1-09660-975-0	06	1	0105-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	0105-
441	CONNECTOR; NYLON TUBE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	0105-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B)	1-09660-466-0	01	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B)	1-09660-466-0	01	1	0107-
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0105-0106
441	CONNECTOR; NYLON TUBE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (A) DIN4 STRAIGHT	1-09660-512-0	02	1	0107-
444	BOLT; BRKT,NIPPLE FULLER M/T<X9B> M8X25 FLANGE	0-28680-825-0	01	1	0105-0512
444	BOLT; BRKT,NIPPLE FULLER M/T<X9B> M8X25 FLANGE	0-28650-825-0	01	1	0601-
445	NUT; BRKT,NIPPLE FULLER M/T<X9B> M8 FLANGE	0-91150-108-0	01	1	0105-0602
445	NUT; BRKT,NIPPLE FULLER M/T<X9B> M8 FLANGE	0-91180-108-0	01	1	0603-
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (H) L=50 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (D) L=150 SERVICED BY L=800	1-83129-031-1	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (D) L=150 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (E) L=600 SERVICED BY L=800	1-83129-031-1	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (E) L=600 SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> FULLER M/T<X9B> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (B) L=250 SERVICED BY L=800	1-83129-031-1	02	1	0105-
460	TUBE; CORRUGATE FULLER M/T<X9B> (F) L=750 SERVICED BY L=800	1-83129-031-1	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (F) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (G) L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) (G) L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0108-
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0105-0304
460	TUBE; CORRUGATE FULLER M/T<X9B> (A) L=1170 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0305-
460	TUBE; CORRUGATE FULLER M/T<X9B> EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0105-0107
460	TUBE; CORRUGATE TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R),TRANSMISSION-FULLER RTLO169 18(Y3S),TRANSMISSION-FULLER RTLO149 18(Y4C) EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (C) L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0108-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (B) L=250 SERVICED BY L=800	1-83129-031-1	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (I) L=900 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0105-0106
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (J) L=1300 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0107-0204
460	TUBE; CORRUGATE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) (J) L=1050 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	0205-

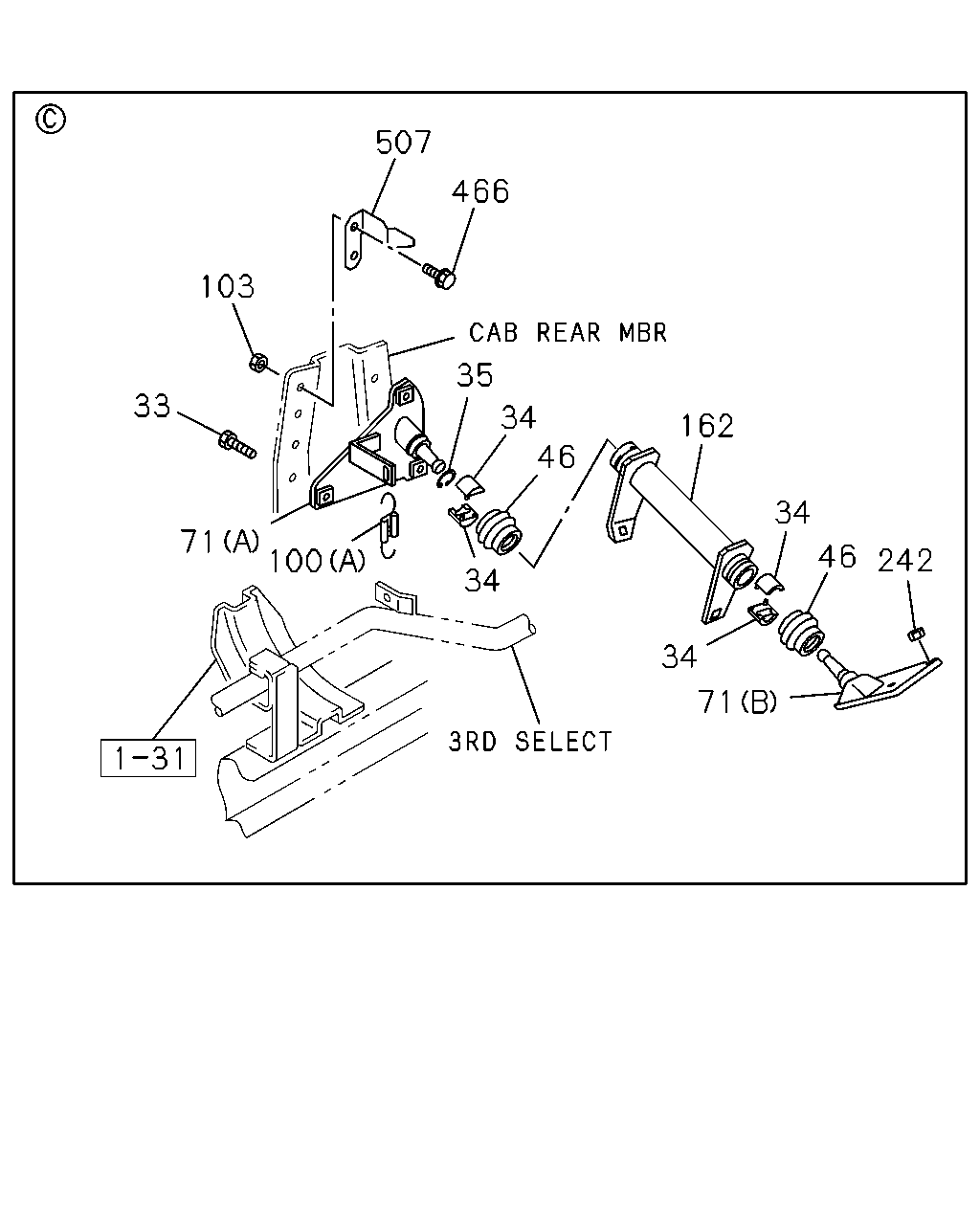

507 103 35 466 162 34 46 34 46 242 34 71 34 100 71 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	0105-0512
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28651-030-0	03	1	0601-
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	0105-
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	0105-
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	0105-0503
46	SEAL; DUST,RELAY LEVER	1-33659-248-0	02	1	0504-
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	0105-
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-657-1	01	1	0105-
100	SPRING (B)	1-09583-319-0	01	1	0105-
100	SPRING (A)	1-09583-351-0	01	1	0105-
103	NUT M8 FLANGE	0-91150-108-0	01	1	0105-0602
103	NUT M8 FLANGE	0-91180-108-0	01	1	0603-
162	LEVER; RELAY FULLER M/T<X9B>	1-33651-625-1	01	1	0105-0106
162	LEVER; RELAY ISUZU M/T<X9A>,FULLER M/T<X9B>	1-33651-625-1	01	1	0107-
162	LEVER; RELAY ZF M/T<X9E>	1-33651-679-1	01	1	0105-
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	0105-0602
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91180-212-0	03	1	0603-
466	BOLT; FIX M8X20 FLANGE	0-28680-820-0	02	1	0105-0512
466	BOLT; FIX M8X20 FLANGE	0-28650-820-0	02	1	0601-
507	PROTECTOR; HEAT	1-14181-315-0	01	1	0105-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
