Isuzu WW
▶
PICKUP
▶
TFR
▶
51421 - TFR/TFS(MALAYSIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#119645) — 22 parça
Tümü
A - 4JA1-T ENG
B - 4JK1-TCX ENG
◀

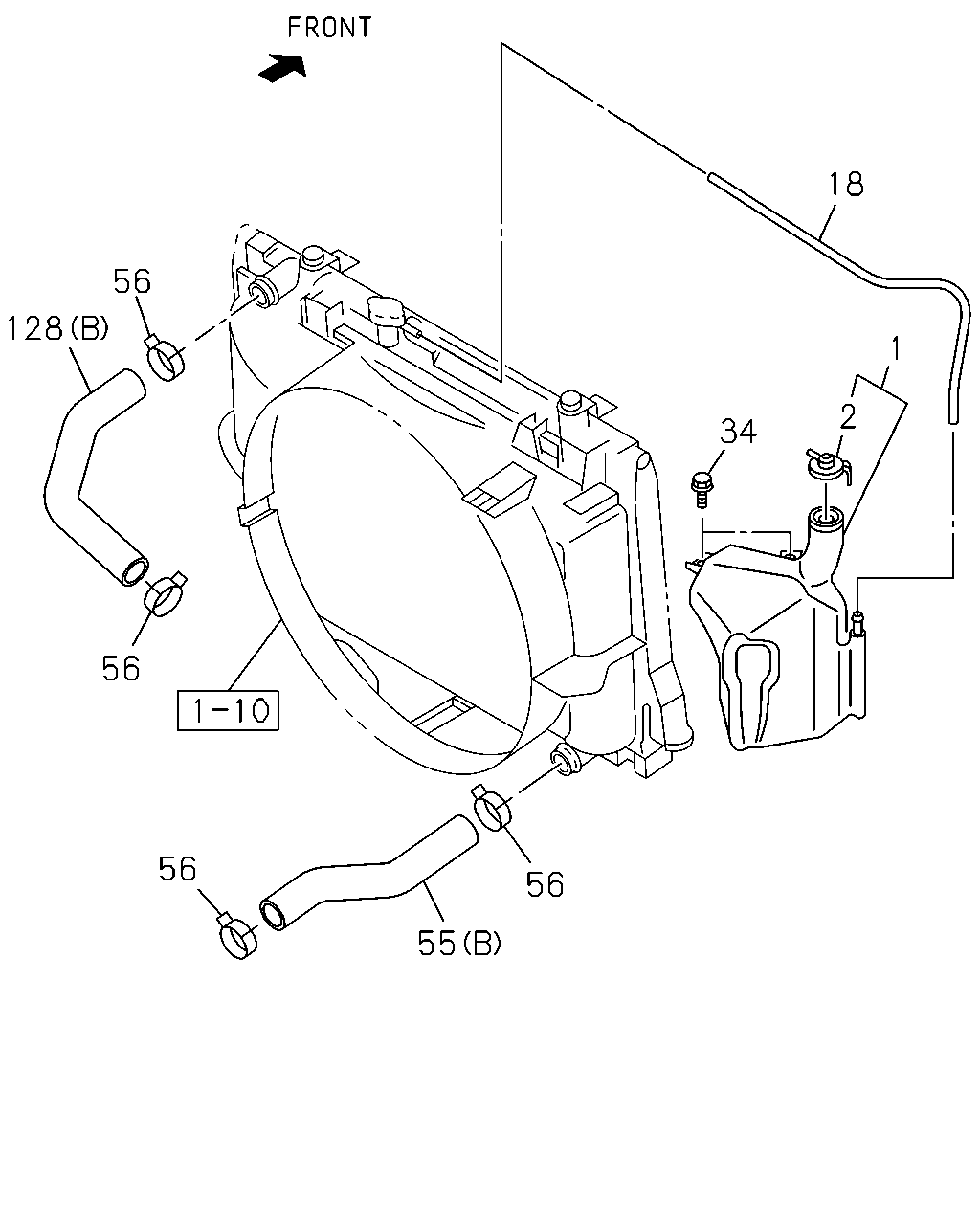

[111A] 4JK1 (11 parça)

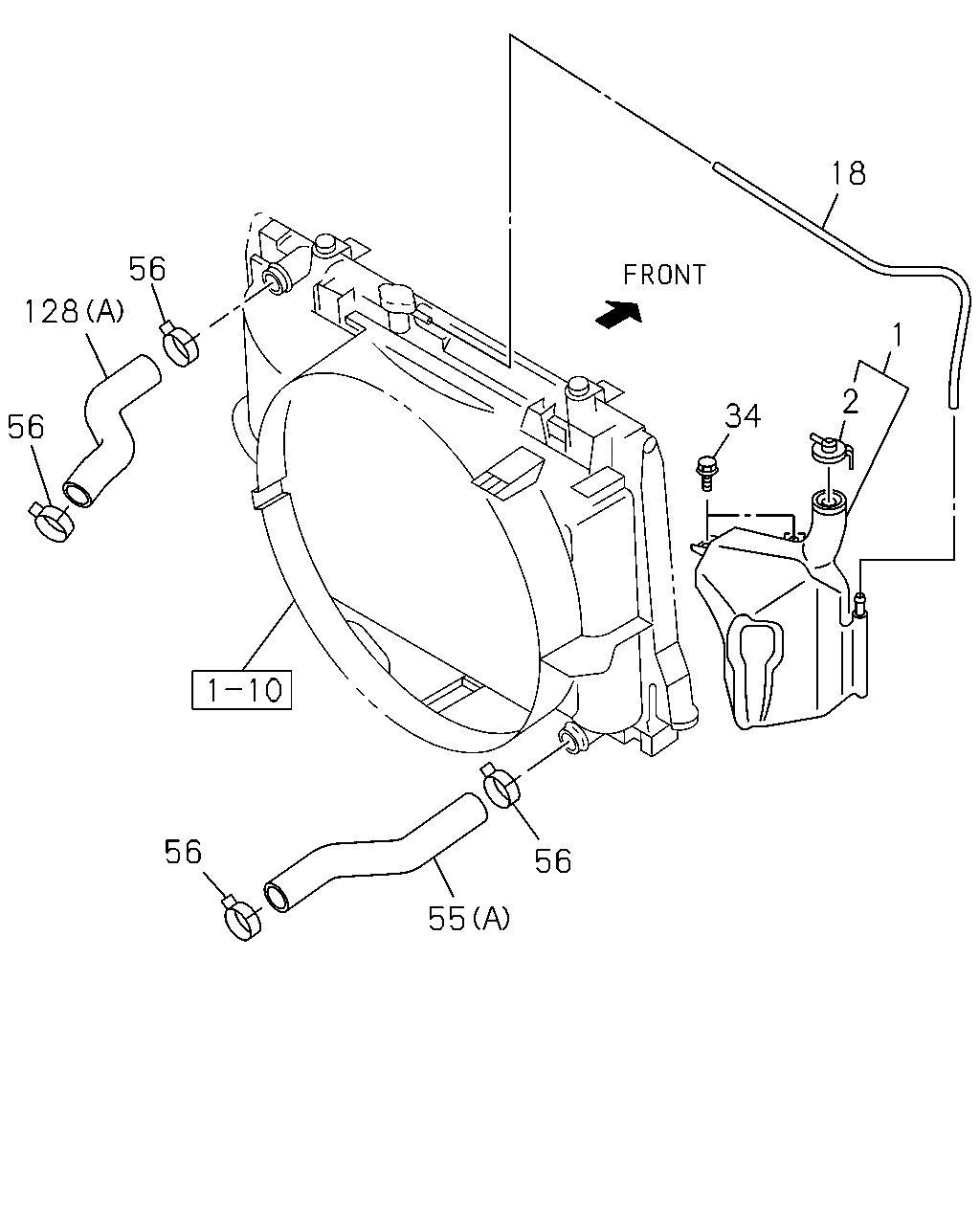

[111A] 4JA1 (11 parça)
▶
128
56
56
56
55
56
34
2
1
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
8-98095-701-2
01
1
1305-
●
●
2
CAP; SURGE TANK
8-98189-898-0
01
1
1305-
●
●
18
HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580
8-98102-344-2
01
1
1305-
●
●
34
BOLT; RESERVE TANK
M6X20 W/WASHER
8-98056-282-0
02
1
1305-
●
●
55
HOSE; WATER,RAD OUTLET
(B)
8-98093-327-1
01
1
1305-
●
55
HOSE; WATER,RAD OUTLET
(A)
8-98093-324-2
01
1
1305-
●
56
CLIP; WATER HOSE,RAD
ID=40.5
8-97313-472-0
04
1
1305-1409
●
●
56
CLIP; WATER HOSE,RAD
ID=40.5
8-97313-472-0
02
1
1410-
●
●
56
CLIP; WATER HOSE,RAD
ID=40.5
8-97313-472-0
02
1
1410-
●
●
128
HOSE; WATER,RAD INL
(B)
8-98093-326-0
01
1
1305-
●
128
HOSE; WATER,RAD INL
(A)
8-98090-629-2
01
1
1305-
●
18
34
2
1
56
55
56
56
128
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
8-98095-701-2
01
1
1305-
●
●
2
CAP; SURGE TANK
8-98189-898-0
01
1
1305-
●
●
18
HOSE; RAD TO SURGE TANK
ID=7 OD=12 L=580
8-98102-344-2
01
1
1305-
●
●
34
BOLT; RESERVE TANK
M6X20 W/WASHER
8-98056-282-0
02
1
1305-
●
●
55
HOSE; WATER,RAD OUTLET
(B)
8-98093-327-1
01
1
1305-
●
55
HOSE; WATER,RAD OUTLET
(A)
8-98093-324-2
01
1
1305-
●
56
CLIP; WATER HOSE,RAD
ID=40.5
8-97313-472-0
04
1
1305-1409
●
●
56
CLIP; WATER HOSE,RAD
ID=40.5
8-97313-472-0
02
1
1410-
●
●
56
CLIP; WATER HOSE,RAD
ID=40.5
8-97313-472-0
02
1
1410-
●
●
128
HOSE; WATER,RAD INL
(B)
8-98093-326-0
01
1
1305-
●
128
HOSE; WATER,RAD INL
(A)
8-98090-629-2
01
1
1305-
●
