0-25 — INLET MANIFOLD (#119644) — 22 parça

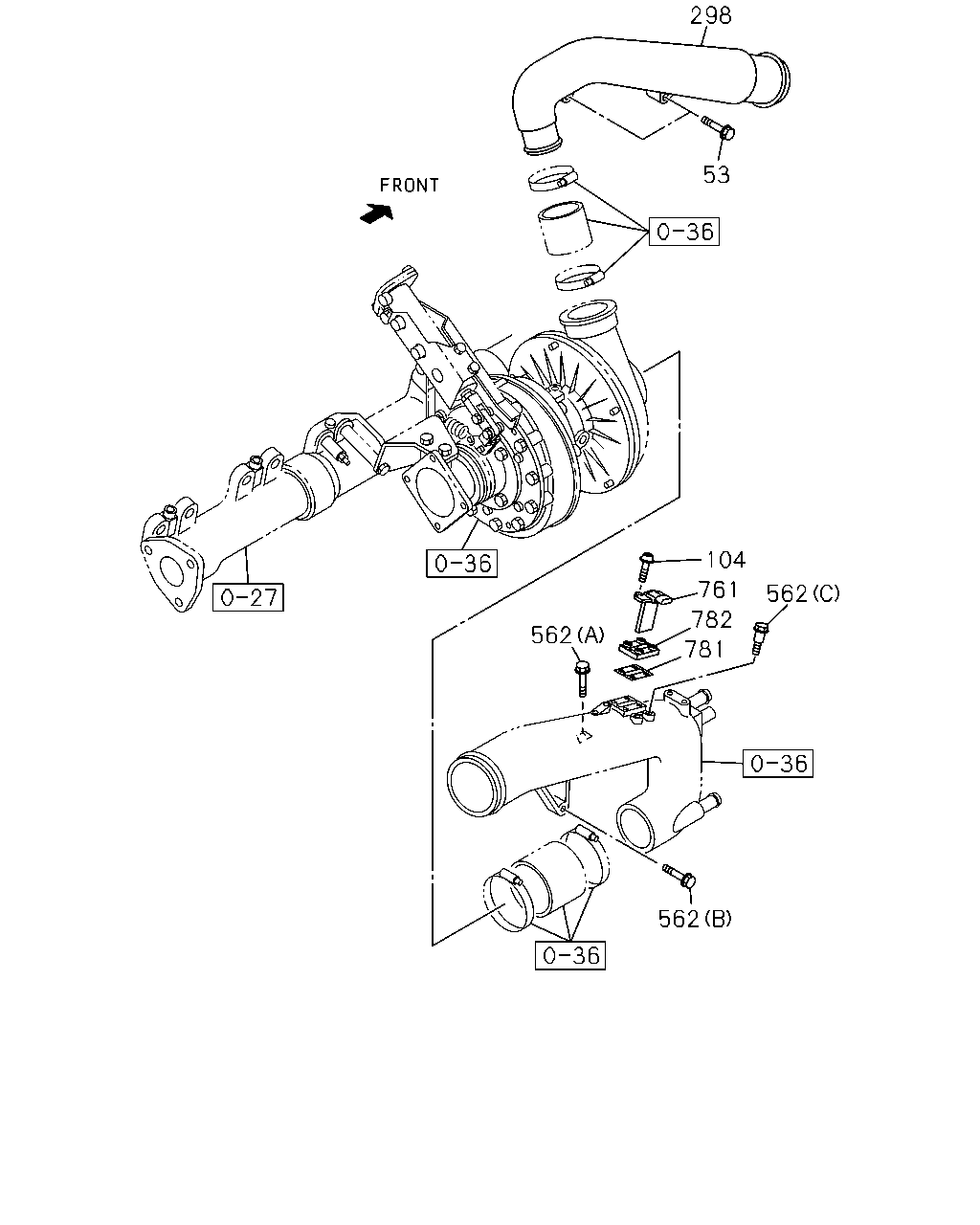

298 53 104 761 782 781 562 562 562

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
53	BOLT; INL PIPE M10X60 FLANGE	0-28151-060-0	02	1	1305-	●	●
104	SCREW M4X20 W/LK&PL WASHER	9-03920-420-0	04	1	1305-	●	●
298	PIPE; INL,TURBOCHARGER TO INL COVER	8-98189-461-2	01	1	1305-	●	●
562	BOLT; INL DUCT (A) M10X50 FLANGE	0-28151-050-0	02	1	1305-	●	●
562	BOLT; INL DUCT (B) M10X70 FLANGE	0-28151-070-0	01	1	1305-	●	●
562	BOLT; INL DUCT (C) M10X49.8	8-97039-586-0	02	1	1305-	●	●
761	SENSOR; MANIF	8-97601-967-0	01	1	1305-	●	●
781	GASKET; SENSOR	8-98212-728-0	01	1	1305-	●	●
782	ADAPTER; SENSOR	8-98169-371-0	01	1	1305-	●	●

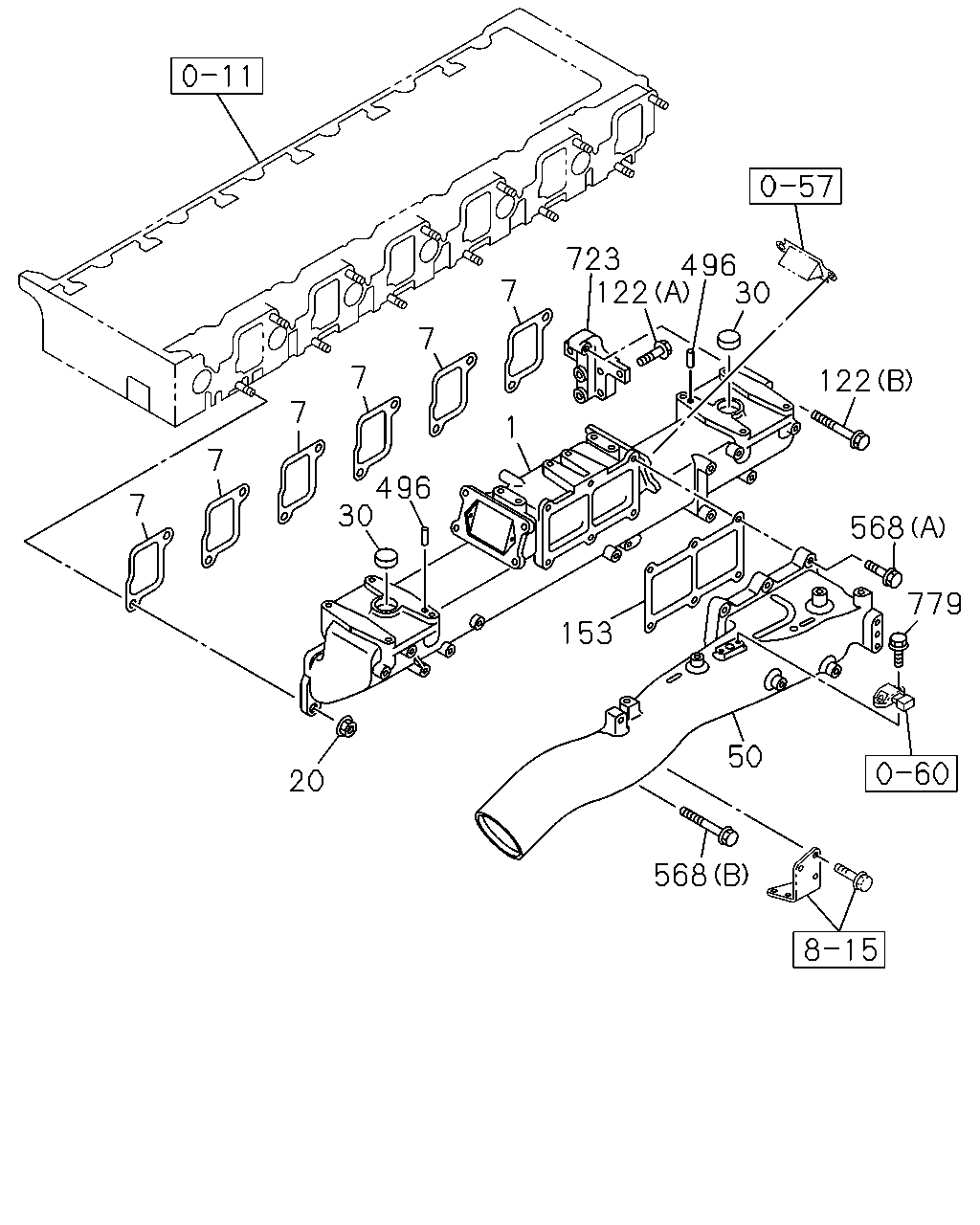

723 496 122 7 7 7 7 7 7 496 30 20 153 50 568 779 122 30 568 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	MANIFOLD; INL	8-98119-442-2	01	1	1305-	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97615-623-1	06	1	1305-	●	●
20	NUT; INL MANIF M10 FLANGE	0-91180-110-0	12	1	1305-	●	●
30	CUP; SEALING,INL MANIF OD=40	8-94241-637-0	02	1	1305-	●	●
50	PIPE; INL	8-98189-459-1	01	1	1305-	●	●
122	BOLT; BRKT (B) M10X110 FLANGE	0-28156-011-0	01	1	1305-	●	●
122	BOLT; BRKT (A) M12X60 FLANGE	0-28161-260-0	02	1	1305-	●	●
153	GASKET; PLUG,INT DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14115-094-1	01	1	1305-	●	●
496	PIN; INL MANIF OD=4 L=12	1-09740-032-0	02	1	1305-	●	●
568	BOLT; PIPE (A) M10X30 FLANGE	0-28151-030-0	06	1	1305-	●	●
568	BOLT; PIPE (B) M10X80 FLANGE	0-28151-080-0	01	1	1305-	●	●
723	BRACKET; INL MANIF	8-97618-557-0	01	1	1305-	●	●
779	BOLT; SENSOR M4X10 W/PL WASHER	8-97316-615-0	02	1	1305-	●	●
