2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#11964) — 135 parça

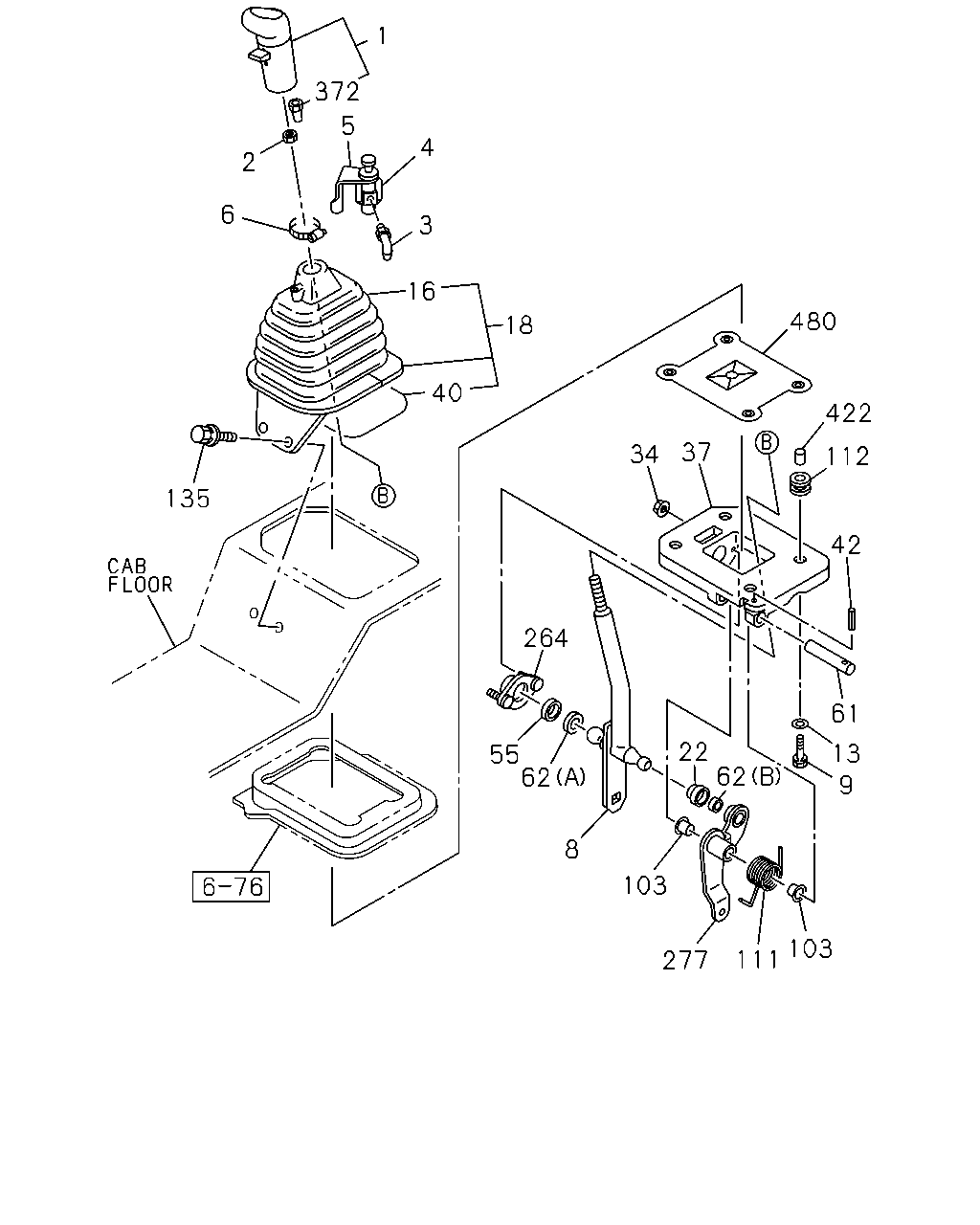

1 4 3 16 372 2 5 6 18 135 40 480 422 37 34 112 42 264 55 62 8 22 62 103 61 13 9 111 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R)	1-33611-111-0	01	1	0105-
1	KNOB; CHANGE LEVER MJD7S M/T(Y2Y)	1-33611-082-1	01	1	0107-
1	KNOB; CHANGE LEVER TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C)	1-33611-116-0	01	1	0105-
1	KNOB; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-33611-038-0	01	1	0105-0106
1	KNOB; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-33611-038-0	01	1	0107-
2	NUT; KNOB FULLER M/T<X9B> 1/2-13UNC	1-33619-033-0	01	1	0105-
2	NUT; KNOB ZF M/T<X9E> M10 FLANGE	0-91150-210-0	01	1	0105-0106
2	NUT; KNOB TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) M10 FLANGE	0-91150-210-0	01	1	0107-0602
2	NUT; KNOB TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) M10 FLANGE	0-91180-210-0	01	1	0603-
3	CONNECTOR; CONT TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-33619-533-0	02	1	0105-
4	VALVE; ACTUATOR COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-33712-003-0	01	1	0105-
5	BRACKET; ACTUATOR VLV COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-33719-078-0	01	1	0105-
6	CLAMP; BRKT COUNTER SHAFT BRAKE MULTI DISC<BCP>	1-33719-079-0	01	1	0105-
8	LEVER; CHANGE FULLER M/T<X9B>	1-33613-349-0	01	1	0105-
8	LEVER; CHANGE MJD7S M/T(Y2Y)	1-33613-344-0	01	1	0107-
8	LEVER; CHANGE ZF M/T<X9E>	1-33613-345-0	01	1	0105-0106
8	LEVER; CHANGE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-33613-345-0	01	1	0107-
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28680-825-0	04	1	0105-0512
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28650-825-0	04	1	0601-
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	9-09160-708-0	04	1	0105-0605
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	0-91610-708-0	04	1	0606-
16	BOOT; CHANGE LEVER FULLER M/T<X9B>	1-79996-367-0	01	1	0105-
16	BOOT; CHANGE LEVER MJD7S M/T(Y2Y)	1-79996-368-0	01	1	0107-
16	BOOT; CHANGE LEVER ZF M/T<X9E>	1-79996-369-0	01	1	0105-0106
16	BOOT; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-79996-369-0	01	1	0107-
18	BOOT; CHANGE LEVER FULLER M/T<X9B>	1-79996-435-1	01	1	0105-
18	BOOT; CHANGE LEVER MJD7S M/T(Y2Y)	1-79996-436-2	01	1	0107-
18	BOOT; CHANGE LEVER ZF M/T<X9E>	1-79996-401-0	01	1	0105-0106
18	BOOT; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-79996-401-0	01	1	0107-
22	COVER; DUST,CHANGE LEVER	1-33619-573-0	01	1	0105-
34	NUT M6 FLANGE	0-91150-106-0	02	1	0105-0602
34	NUT M6 FLANGE	0-91180-106-0	02	1	0603-
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-467-0	01	1	0105-
40	SEAL; BOOT HOLDER CHANGE LEVER	1-79996-345-0	01	1	0105-
42	PIN; SPRING,SELECT LEVER PIN D=5 L=28	8-94252-581-0	01	1	0105-
55	SEAT; RUBBER,SELECT SPRING	1-33619-429-0	01	1	0105-
61	PIN; SELECT LEVER	1-33619-470-0	01	1	0105-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	0105-
62	SEAT; BALL,CHANGE LEVER (B)	8-97011-900-0	01	1	0105-
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	0105-
111	SPRING FULLER M/T<X9B>	1-09585-133-1	01	1	0105-0106
111	SPRING FULLER M/T<X9B>	1-09585-133-1	01	1	0107-
111	SPRING MJD7S M/T(Y2Y)	1-09585-133-1	01	1	0107-
112	RUBBER; CUSHION	8-97091-426-0	04	1	0105-
135	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-
264	PLATE; COVER	1-33619-469-0	01	1	0105-
372	CONNECTOR; CHANGE LEVER FULLER M/T<X9B>	8-97500-148-0	04	1	0105-
422	BUSHING; CHANGE LEVER	8-97091-427-0	04	1	0105-
480	RUBBER; COVER	1-33619-554-0	01	1	0105-

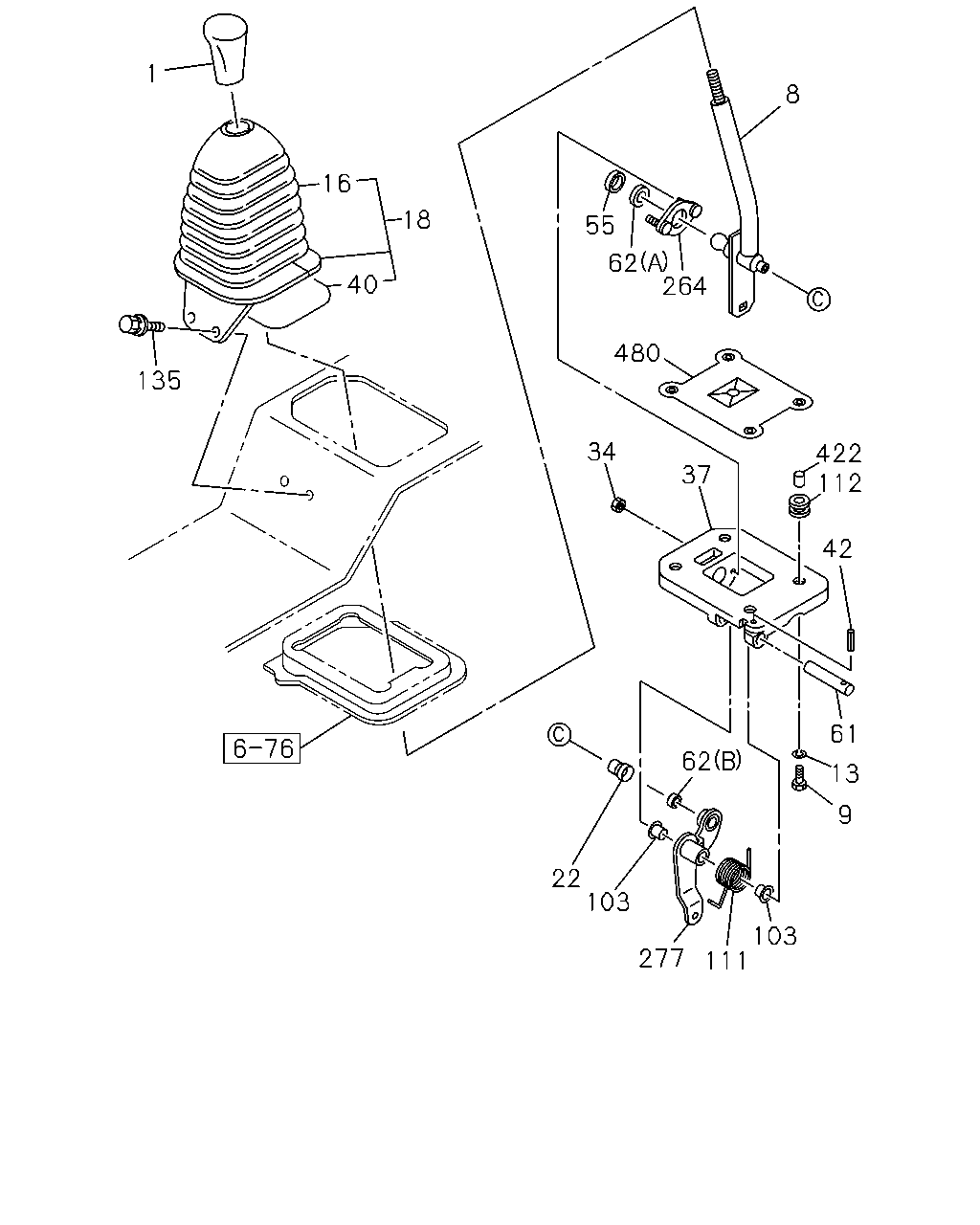

1 16 18 40 135 34 55 8 62 264 422 37 112 42 61 13 9 62 103 111 277 22 103 480

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R)	1-33611-111-0	01	1	0105-
1	KNOB; CHANGE LEVER MJD7S M/T(Y2Y)	1-33611-082-1	01	1	0107-
1	KNOB; CHANGE LEVER TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C)	1-33611-116-0	01	1	0105-
1	KNOB; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-33611-038-0	01	1	0105-0106
1	KNOB; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-33611-038-0	01	1	0107-
8	LEVER; CHANGE FULLER M/T<X9B>	1-33613-349-0	01	1	0105-
8	LEVER; CHANGE MJD7S M/T(Y2Y)	1-33613-344-0	01	1	0107-
8	LEVER; CHANGE ZF M/T<X9E>	1-33613-345-0	01	1	0105-0106
8	LEVER; CHANGE TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-33613-345-0	01	1	0107-
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28680-825-0	04	1	0105-0512
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28650-825-0	04	1	0601-
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	9-09160-708-0	04	1	0105-0605
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	0-91610-708-0	04	1	0606-
16	BOOT; CHANGE LEVER FULLER M/T<X9B>	1-79996-367-0	01	1	0105-
16	BOOT; CHANGE LEVER MJD7S M/T(Y2Y)	1-79996-368-0	01	1	0107-
16	BOOT; CHANGE LEVER ZF M/T<X9E>	1-79996-369-0	01	1	0105-0106
16	BOOT; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-79996-369-0	01	1	0107-
18	BOOT; CHANGE LEVER FULLER M/T<X9B>	1-79996-435-1	01	1	0105-
18	BOOT; CHANGE LEVER MJD7S M/T(Y2Y)	1-79996-436-2	01	1	0107-
18	BOOT; CHANGE LEVER ZF M/T<X9E>	1-79996-401-0	01	1	0105-0106
18	BOOT; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-79996-401-0	01	1	0107-
22	COVER; DUST,CHANGE LEVER	1-33619-573-0	01	1	0105-
34	NUT M6 FLANGE	0-91150-106-0	02	1	0105-0602
34	NUT M6 FLANGE	0-91180-106-0	02	1	0603-
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-467-0	01	1	0105-
40	SEAL; BOOT HOLDER CHANGE LEVER	1-79996-345-0	01	1	0105-
42	PIN; SPRING,SELECT LEVER PIN D=5 L=28	8-94252-581-0	01	1	0105-
55	SEAT; RUBBER,SELECT SPRING	1-33619-429-0	01	1	0105-
61	PIN; SELECT LEVER	1-33619-470-0	01	1	0105-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	0105-
62	SEAT; BALL,CHANGE LEVER (B)	8-97011-900-0	01	1	0105-
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	0105-
111	SPRING FULLER M/T<X9B>	1-09585-133-1	01	1	0105-0106
111	SPRING FULLER M/T<X9B>	1-09585-133-1	01	1	0107-
111	SPRING MJD7S M/T(Y2Y)	1-09585-133-1	01	1	0107-
112	RUBBER; CUSHION	8-97091-426-0	04	1	0105-
135	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-
264	PLATE; COVER	1-33619-469-0	01	1	0105-
277	LEVER; RELAY	1-33651-636-0	01	1	0105-
422	BUSHING; CHANGE LEVER	8-97091-427-0	04	1	0105-
480	RUBBER; COVER	1-33619-554-0	01	1	0105-

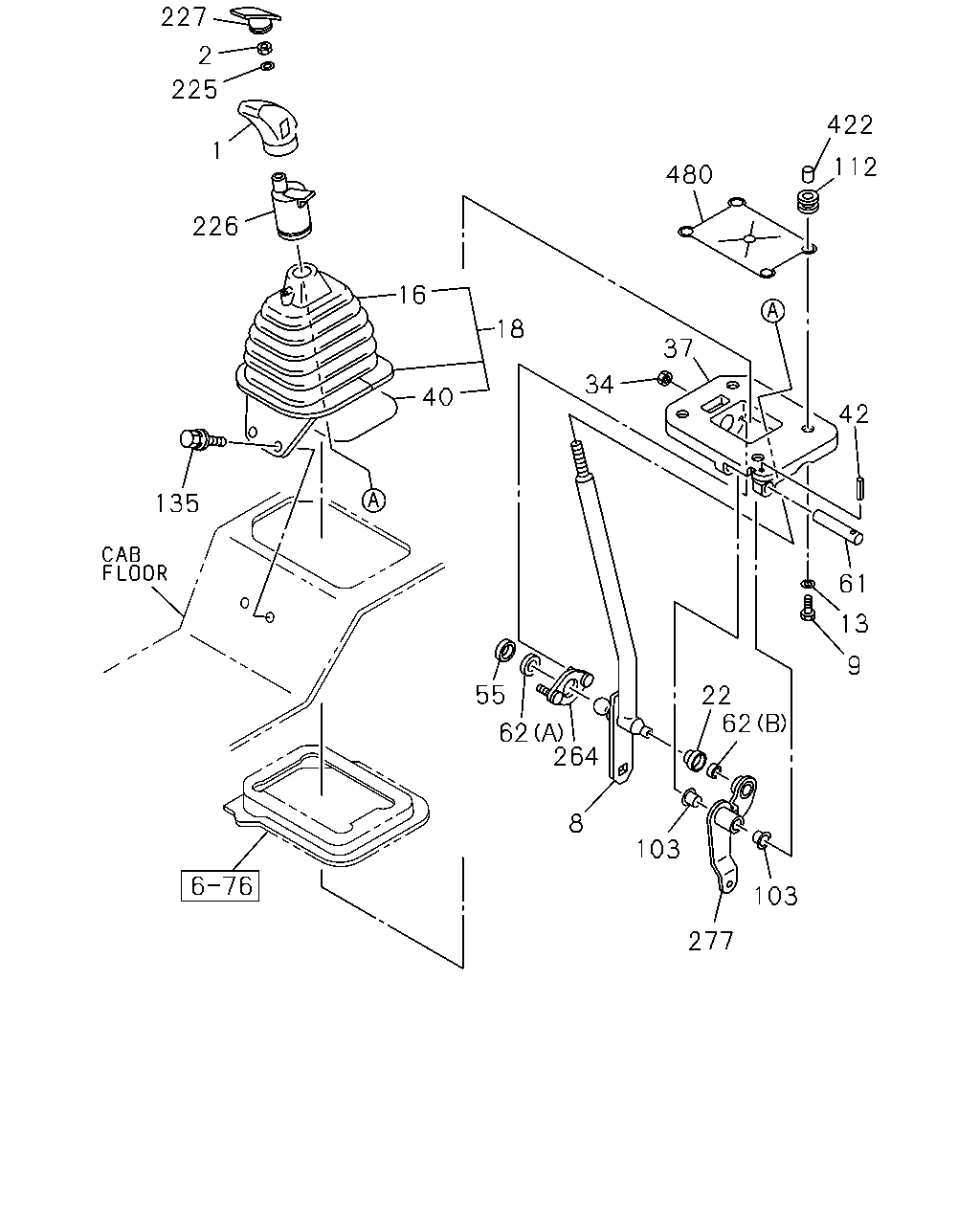

227 225 2 1 226 16 40 18 480 422 112 37 42 34 61 13 9 22 62 103 277 103 264 62 55 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	KNOB; CHANGE LEVER TRANSMISSION-FULLER RTLO149 13(Y3Q), TRANSMISSION-FULLER RTLO169 13(Y3R)	1-33611-111-0	01	1	0105-
1	KNOB; CHANGE LEVER MJD7S M/T(Y2Y)	1-33611-082-1	01	1	0107-
1	KNOB; CHANGE LEVER TRANSMISSION-FULLER RTLO169 18(Y3S), TRANSMISSION-FULLER RTLO149 18(Y4C)	1-33611-116-0	01	1	0105-
1	KNOB; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-33611-038-0	01	1	0105-0106
1	KNOB; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-33611-038-0	01	1	0107-
2	NUT; KNOB FULLER M/T<X9B> 1/2-13UNC	1-33619-033-0	01	1	0105-
2	NUT; KNOB ZF M/T<X9E> M10 FLANGE	0-91150-210-0	01	1	0105-0106
2	NUT; KNOB TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) M10 FLANGE	0-91150-210-0	01	1	0107-0602
2	NUT; KNOB TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) M10 FLANGE	0-91180-210-0	01	1	0603-
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28680-825-0	04	1	0105-0512
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28650-825-0	04	1	0601-
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	9-09160-708-0	04	1	0105-0605
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	0-91610-708-0	04	1	0606-
16	BOOT; CHANGE LEVER FULLER M/T<X9B>	1-79996-367-0	01	1	0105-
16	BOOT; CHANGE LEVER MJD7S M/T(Y2Y)	1-79996-368-0	01	1	0107-
16	BOOT; CHANGE LEVER ZF M/T<X9E>	1-79996-369-0	01	1	0105-0106
16	BOOT; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-79996-369-0	01	1	0107-
18	BOOT; CHANGE LEVER FULLER M/T<X9B>	1-79996-435-1	01	1	0105-
18	BOOT; CHANGE LEVER MJD7S M/T(Y2Y)	1-79996-436-2	01	1	0107-
18	BOOT; CHANGE LEVER ZF M/T<X9E>	1-79996-401-0	01	1	0105-0106
18	BOOT; CHANGE LEVER TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-79996-401-0	01	1	0107-
22	COVER; DUST,CHANGE LEVER	1-33619-573-0	01	1	0105-
34	NUT M6 FLANGE	0-91150-106-0	02	1	0105-0602
34	NUT M6 FLANGE	0-91180-106-0	02	1	0603-
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-467-0	01	1	0105-
40	SEAL; BOOT HOLDER CHANGE LEVER	1-79996-345-0	01	1	0105-
42	PIN; SPRING,SELECT LEVER PIN D=5 L=28	8-94252-581-0	01	1	0105-
55	SEAT; RUBBER,SELECT SPRING	1-33619-429-0	01	1	0105-
61	PIN; SELECT LEVER	1-33619-470-0	01	1	0105-
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	0105-
62	SEAT; BALL,CHANGE LEVER (B)	8-97011-900-0	01	1	0105-
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	0105-
112	RUBBER; CUSHION	8-97091-426-0	04	1	0105-
135	BOLT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0105-
225	WASHER; PL,KNOB ZF M/T<X9E> ID=10.5 OD=22	9-09160-610-0	01	1	0105-0106
225	WASHER; PL,KNOB TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=10.5 OD=22	9-09160-610-0	01	1	0107-0605
225	WASHER; PL,KNOB TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z) ID=10.5 OD=22 T=1.6	0-91610-610-0	01	1	0606-
226	VALVE; SELECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N)	1-33710-008-0	01	1	0105-0106
226	VALVE; SELECTOR TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-33710-008-0	01	1	0107-
227	COVER; KNOB ZF M/T<X9E>	1-33619-219-0	01	1	0105-0106
227	COVER; KNOB TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N),MJX16P M/T(Y3Z)	1-33619-219-0	01	1	0107-
264	PLATE; COVER	1-33619-469-0	01	1	0105-
277	LEVER; RELAY	1-33651-636-0	01	1	0105-
422	BUSHING; CHANGE LEVER	8-97091-427-0	04	1	0105-
480	RUBBER; COVER	1-33619-554-0	01	1	0105-
