◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#119638) — 28 parça
çizim 350514
329 70 58 271 1 2 36 70 58 329 271 1 2 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(B) MAL 		8-98205-429-2 01 1 1305- ●
1 PIPE; EXH
(A) MAL 		8-98140-583-1 01 1 1305- ●
2 GASKET; PIPE TO MANIF
(B) 		8-98017-270-0 01 1 1305- ●
2 GASKET; PIPE TO MANIF
(A) ID=65 		8-97263-052-0 01 1 1305- ●
36 NUT; EXH PIPE
M10 FLANGE 		8-97096-192-1 02 1 1305- ● ●
58 BRACKET; EXH PIPE,RR 8-97368-450-0 01 1 1305- ● ●
70 BOLT; BRKT
M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1305- ● ●
271 RUBBER; HANGER,RR PIPE 8-97289-169-0 01 1 1305- ● ●
329 NUT; EXH PIPE TO PIPE
M10 FLANGE 		0-91180-110-0 02 1 1305- ● ●
çizim 350522
428 115 59 115 337 84 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH
MAL 		8-98065-538-3 01 1 1305- ●
12 SILENCER ASM; EXH
MAL 		8-98213-724-1 01 1 1305- ●
59 BRACKET; EXH SILENCER,FRT 8-97365-312-0 01 1 1305- ● ●
84 GASKET; EXH PIPE
ID=65 		8-97263-052-0 01 1 1305- ● ●
115 RUBBER; MTG,SILENCER
(A) 		8-97289-169-0 01 1 1305- ● ●
115 RUBBER; MTG,SILENCER
(B) 		8-98124-470-0 02 1 1305- ● ●
337 BOLT; RUBBER,SUPPORT
M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1305- ● ●
428 RUBBER; MTG,CLAMP,EXH PIPE 8-98124-470-0 01 1 1305- ● ●

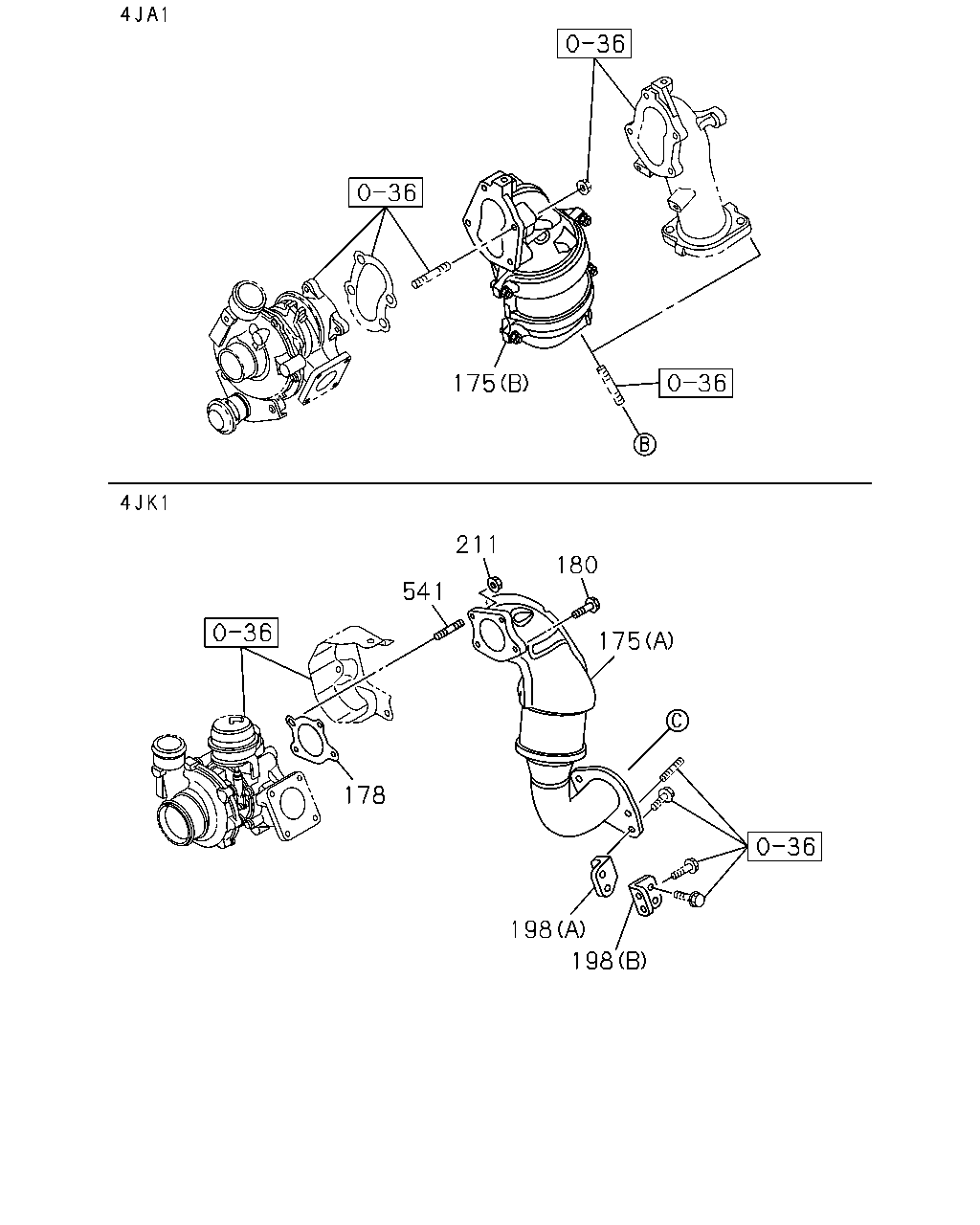

çizim 352089
175 211 180 175 198 198 541 178
BalonParca AdiParca NoAdetTipApplied Date A B
175 CONVERTER; CATALYST
(A) 		8-98140-595-2 01 1 1305-1305 ●
175 CONVERTER; CATALYST
(A) 		8-98228-310-0 01 1 1305- ●
175 CONVERTER; CATALYST
(B) 		8-98195-457-1 01 1 1305- ●
178 GASKET; CONV TO MANIF 8-98132-538-0 01 1 1305- ●
180 BOLT; CONV TO PIPE
M8X23 FLANGE 		8-97378-077-0 02 1 1305- ●
198 BRACKET; CONV MTG
(B) 		8-98132-077-0 01 1 1305-1305 ●
198 BRACKET; CONV MTG
(B) 		8-98196-696-1 01 1 1305- ●
198 BRACKET; CONV MTG
(A) 		8-98132-078-0 01 1 1305-1305 ●
198 BRACKET; CONV MTG
(A) 		8-98203-739-0 01 1 1305- ●
211 NUT; CONV
M8 FLANGE 		8-97161-607-0 02 1 1305- ●
541 STUD; CONV TO PIPE
M8X25 L=36 		8-97378-062-0 02 1 1305- ●
