6-05 — FRONT PANEL (#119636) — 147 parça

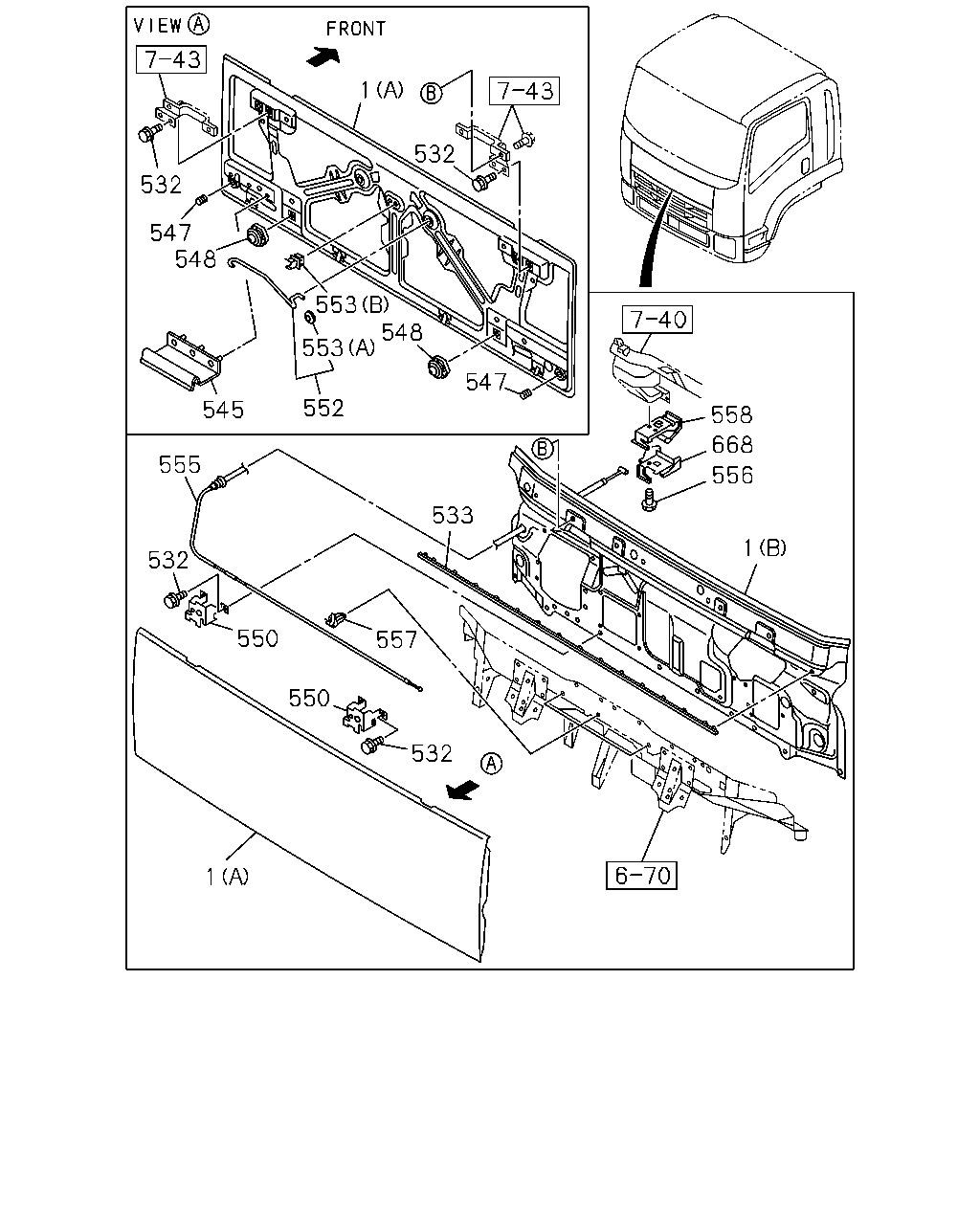

çizim 351253
1 556 668 558 547 548 553 553 552 545 548 547 532 1 532 533 557 550 532 550 532 555
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1305-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-936-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1305-
532 BOLT; FRT PANEL
M8X20 FLANGE THA 		0-28650-820-0 08 1 1305-
533 SEAL; FRT PANEL
THA 		8-97926-493-0 01 1 1305-
545 SEAL; FRT LID
THA 		8-97926-489-0 01 1 1305-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 1305-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 1305-
550 LOCK ASM; FRT LID 8-98036-569-2 02 1 1305-
552 STAY; FRT LID 8-98089-838-0 01 1 1305-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 1305-
553 CLIP; STAY
(A) 		8-98071-399-0 01 1 1305-
555 CABLE; FRT LID 8-98036-574-1 01 1 1305-
556 BOLT; CABLE
M6X16 FLANGE THA 		0-28650-616-0 01 1 1305-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 1305-
558 LEVER; FRT LID 1-79338-007-0 01 1 1305-
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 1305-

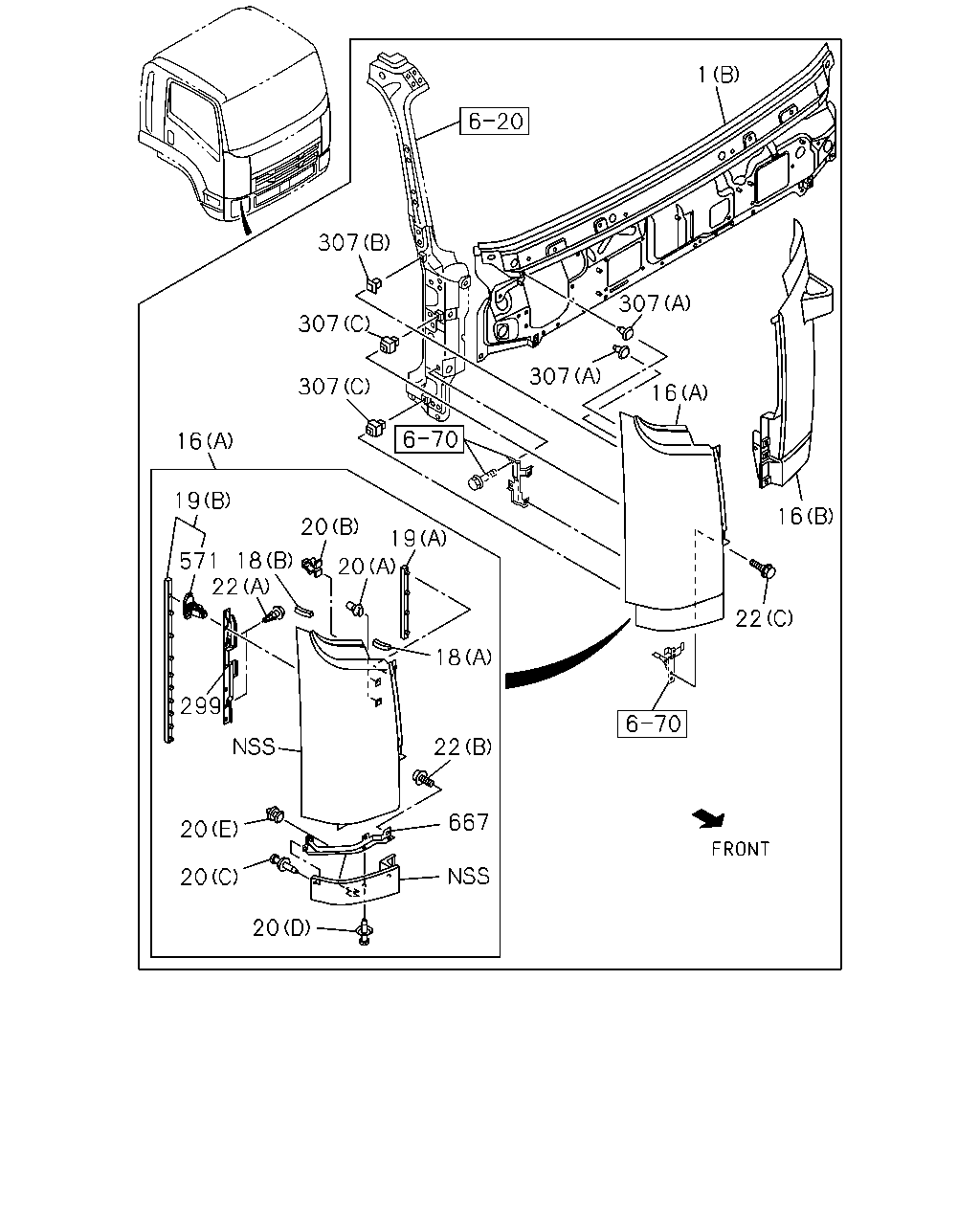

çizim 351257
307 307 307 307 307 1 16 16 22 20 20 20 667 22 18 19 20 20 18 22 571 19 299 16
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1305-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-936-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1305-
16 PANEL; FRONT,SIDE
(B) WHITE THA 		8-97421-744-2 01 1 1305-
16 PANEL; FRONT,SIDE
(A) WHITE THA 		8-97415-963-2 01 1 1305-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 1305-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 1305-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1305-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1305-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1305-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1305-
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 04 1 1305-
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 02 1 1305-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 1305-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 1305-
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 02 1 1305-
22 SCREW; FRT PANEL SIDE
(B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1305-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1305-
22 SCREW; FRT PANEL SIDE
(C) M6X16 FLANGE 		8-98061-108-0 06 1 1305-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1305-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1305-
307 GROMMET; FRT PANEL
(D) 		8-98028-743-0 01 1 1305-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1305-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1305-
307 GROMMET; FRT PANEL
(A) 		8-98034-363-1 04 1 1305-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1305-
667 STAY; EXT,SIDE PANEL 8-98054-092-1 01 1 1305-
667 STAY; EXT,SIDE PANEL 8-98054-091-1 01 1 1305-

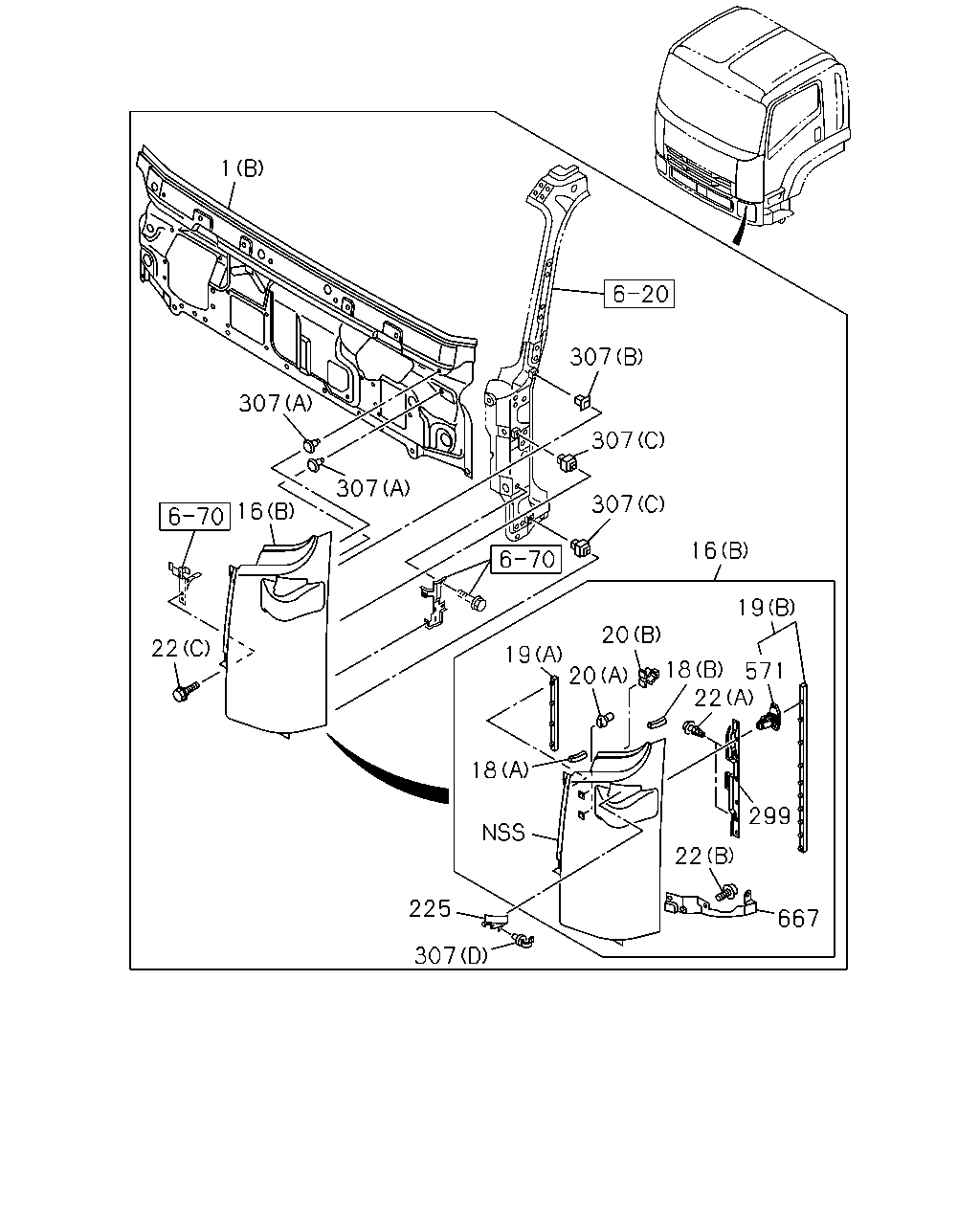

çizim 351258
1 307 307 16 22 307 307 307 16 19 20 20 19 18 18 571 22 299 22 667 225 307
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1305-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-936-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1305-
16 PANEL; FRONT,SIDE
(B) WHITE THA 		8-97421-744-2 01 1 1305-
16 PANEL; FRONT,SIDE
(A) WHITE THA 		8-97415-963-2 01 1 1305-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98038-608-0 02 1 1305-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98043-511-1 02 1 1305-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 1305-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 1305-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 1305-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 1305-
20 CLIP; FRT PANEL SIDE
(D) D8X13.5 		1-09987-248-1 04 1 1305-
20 CLIP; FRT PANEL SIDE
(C) 		8-97013-997-0 02 1 1305-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 1305-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 1305-
20 CLIP; FRT PANEL SIDE
(E) H=15.3 		8-97804-778-0 02 1 1305-
22 SCREW; FRT PANEL SIDE
(B) T25 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 1305-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 1305-
22 SCREW; FRT PANEL SIDE
(C) M6X16 FLANGE 		8-98061-108-0 06 1 1305-
225 COVER; SIDE,FRT 8-98041-431-1 01 1 1305-
225 COVER; SIDE,FRT 8-98041-431-1 01 1 1305-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 1305-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 1305-
307 GROMMET; FRT PANEL
(D) 		8-98028-743-0 01 1 1305-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 1305-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 1305-
307 GROMMET; FRT PANEL
(A) 		8-98034-363-1 04 1 1305-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 1305-
667 STAY; EXT,SIDE PANEL 8-98054-092-1 01 1 1305-
667 STAY; EXT,SIDE PANEL 8-98054-091-1 01 1 1305-

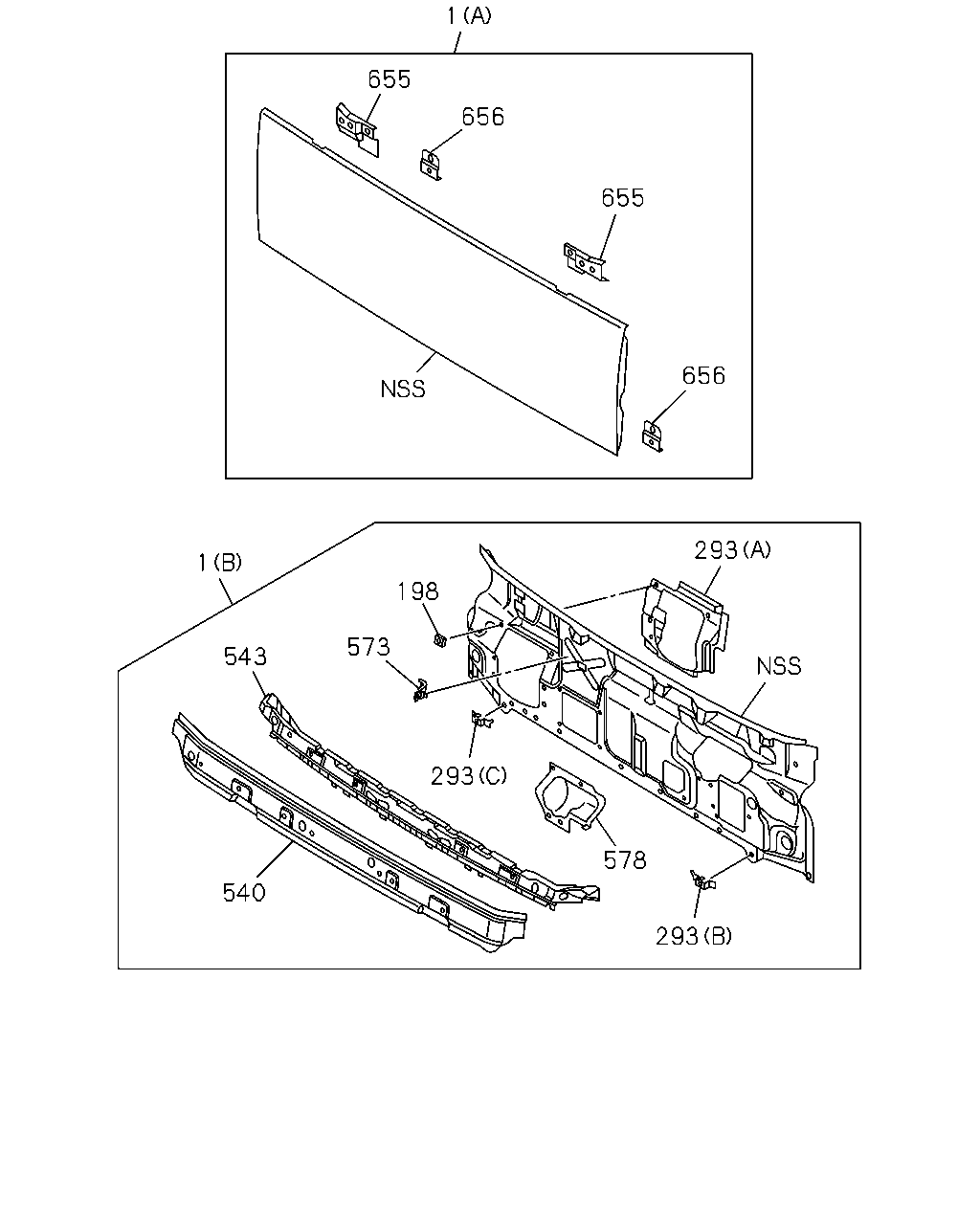

çizim 351265
656 655 655 656 293 293 578 293 573 198 1 543 540 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-960-9 01 1 1305-1408
1 PANEL ASM; FRT
(B) THA 		8-98283-936-0 01 1 1409-
1 PANEL ASM; FRT
(A) 		8-98030-234-4 01 1 1305-
198 NUT; PANEL
M6 THA 		9-09114-086-0 02 1 1305-
293 BRACKET; PANEL
(A) 		8-97586-007-3 01 1 1305-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 1305-
293 BRACKET; PANEL
(C) 		8-98008-126-1 01 1 1305-
540 PANEL; FRONT,OUTER 8-97585-966-2 01 1 1305-
543 CLOSING; FRT MTG RAIL 8-97585-990-4 01 1 1305-
573 BRACKET; SUPPORT 8-98017-700-2 01 1 1305-
578 COVER; WIPER MOTOR 8-97586-018-3 01 1 1305-
655 PATCH; HINGE 8-98031-263-0 01 1 1305-
655 PATCH; HINGE 8-98031-264-0 01 1 1305-
656 PATCH; STRIKER 8-98031-265-0 02 1 1305-

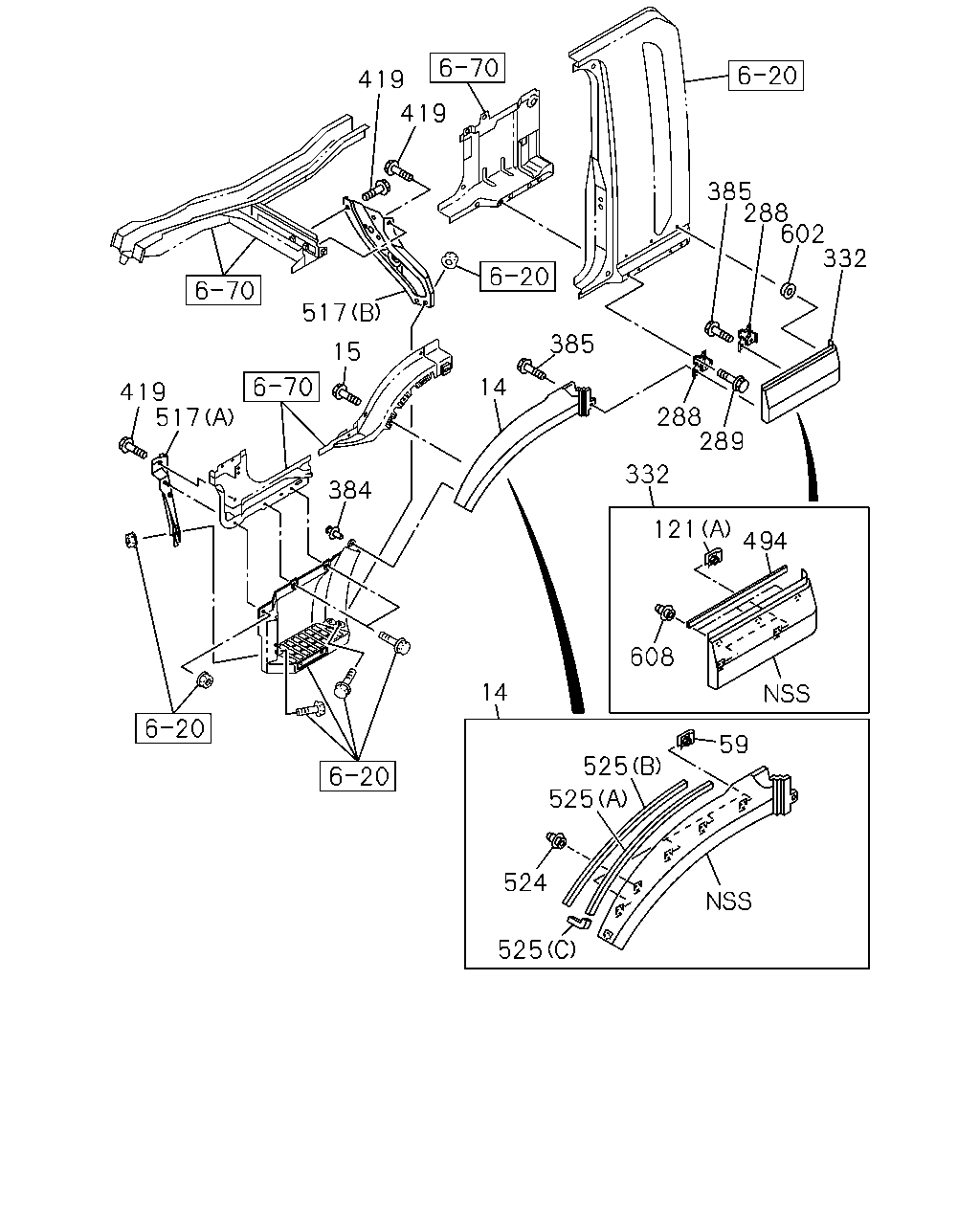

çizim 351278
385 332 602 288 288 289 332 121 494 608 59 525 525 524 525 14 14 385 419 419 517 384 517 419 15
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
THA 		8-98132-740-0 01 1 1305-
14 FENDER; FRT
THA 		8-98132-739-0 01 1 1305-
15 BOLT; FENDER
M6X20 W/PL WASHER 		8-98059-504-0 06 1 1305-
59 GROMMET; SCREW 8-94279-723-0 02 1 1305-
59 GROMMET; SCREW 8-94279-723-0 06 1 1305-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1305-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1305-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1305-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1305-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1305-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1305-
288 BRACKET; FENDER SKIRT
THA 		8-97926-505-0 04 1 1305-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE THA 		0-28650-616-0 08 1 1305-
332 FENDER; RR
WHITE THA 		8-97413-424-2 01 1 1305-
332 FENDER; RR
WHITE THA 		8-97413-423-2 01 1 1305-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 1305-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 1305-
419 BOLT; STEP
M8X20 FLANGE THA 		0-28650-820-0 08 1 1305-
494 FINISHER; FENDER 8-98072-723-0 01 1 1305-
494 FINISHER; FENDER 8-98041-172-1 01 1 1305-
517 SUPPORT; STEP PANEL
(A) 		8-98037-336-1 01 1 1305-
517 SUPPORT; STEP PANEL
(B) 		8-98037-351-2 01 1 1305-
517 SUPPORT; STEP PANEL
(A) 		8-98037-335-1 01 1 1305-
517 SUPPORT; STEP PANEL
(B) 		8-98037-350-2 01 1 1305-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 1305-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 1305-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 1305-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 1305-
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1305-
608 CLIP
D5.4X8 		1-09983-154-0 06 1 1305-

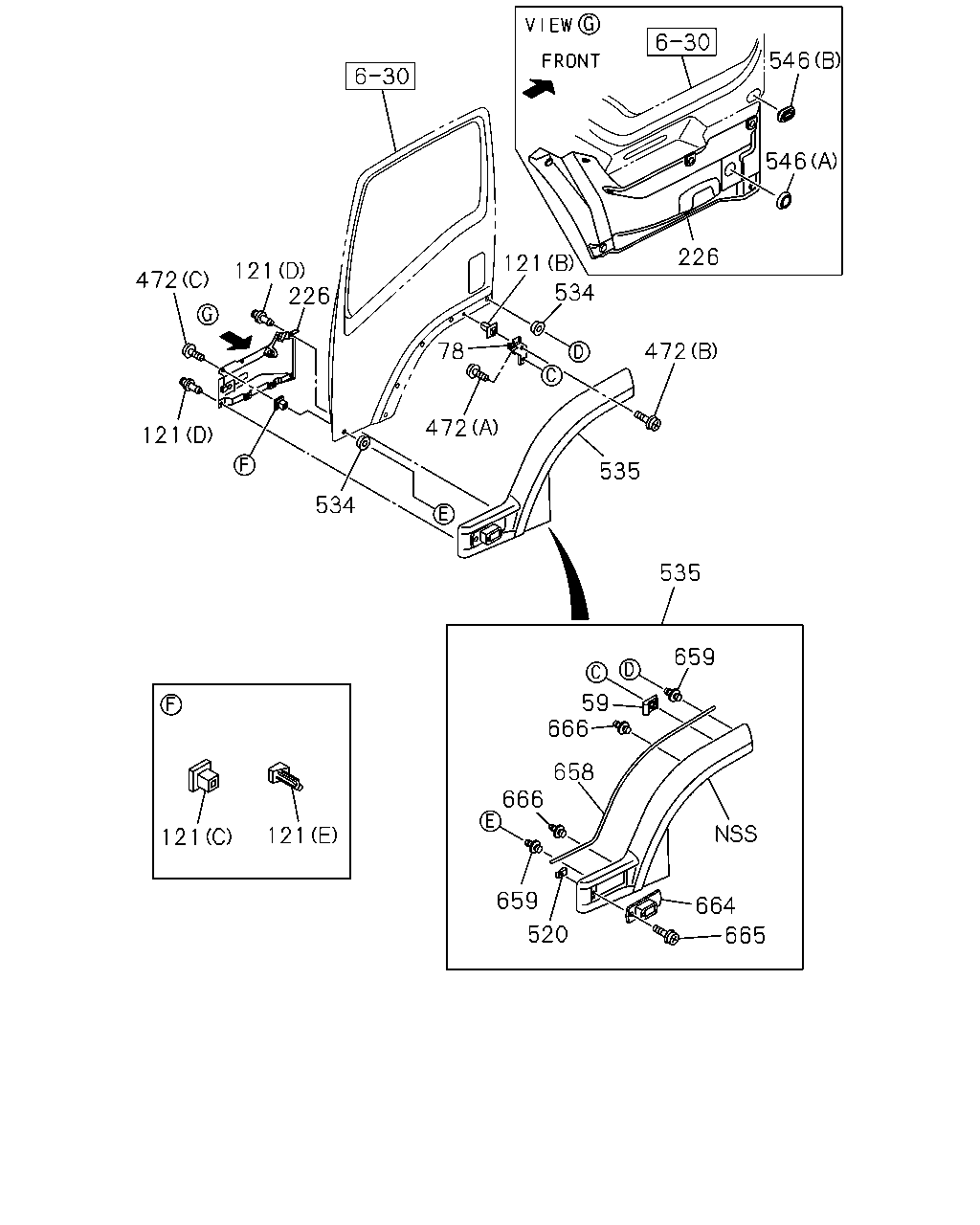

çizim 351279
546 546 226 121 121 472 121 534 472 535 535 472 534 78 121 121 666 659 520 658 666 664 665 659 59 226
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW 8-94279-723-0 02 1 1305-
59 GROMMET; SCREW 8-94279-723-0 06 1 1305-
78 BRACKET; FENDER 8-98041-166-1 01 1 1305-
78 BRACKET; FENDER 8-98041-165-1 01 1 1305-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 1305-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 1305-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 12 1 1305-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 1305-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 1305-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 1305-
226 PROTECTOR; FRT 8-98037-715-2 01 1 1305-
226 PROTECTOR; FRT 8-98037-714-2 01 1 1305-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 1305-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 1305-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 1305-
520 NUT; FENDER 8-94279-501-0 02 1 1305-
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1305-
535 FENDER; BLISTER
WHITE THA 		8-97415-968-1 01 1 1305-
535 FENDER; BLISTER
WHITE THA 		8-97415-967-1 01 1 1305-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 1305-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 1305-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 1305-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 1305-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 1305-
664 BASE; DOOR,SIDE TURN
WHITE THA 		8-97421-598-0 01 1 1305-
664 BASE; DOOR,SIDE TURN
WHITE THA 		8-97421-599-0 01 1 1305-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 1305-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 1305-
