5-01 — FRAME AND OTHER PARTS
(#119631) — 55 parça
◀

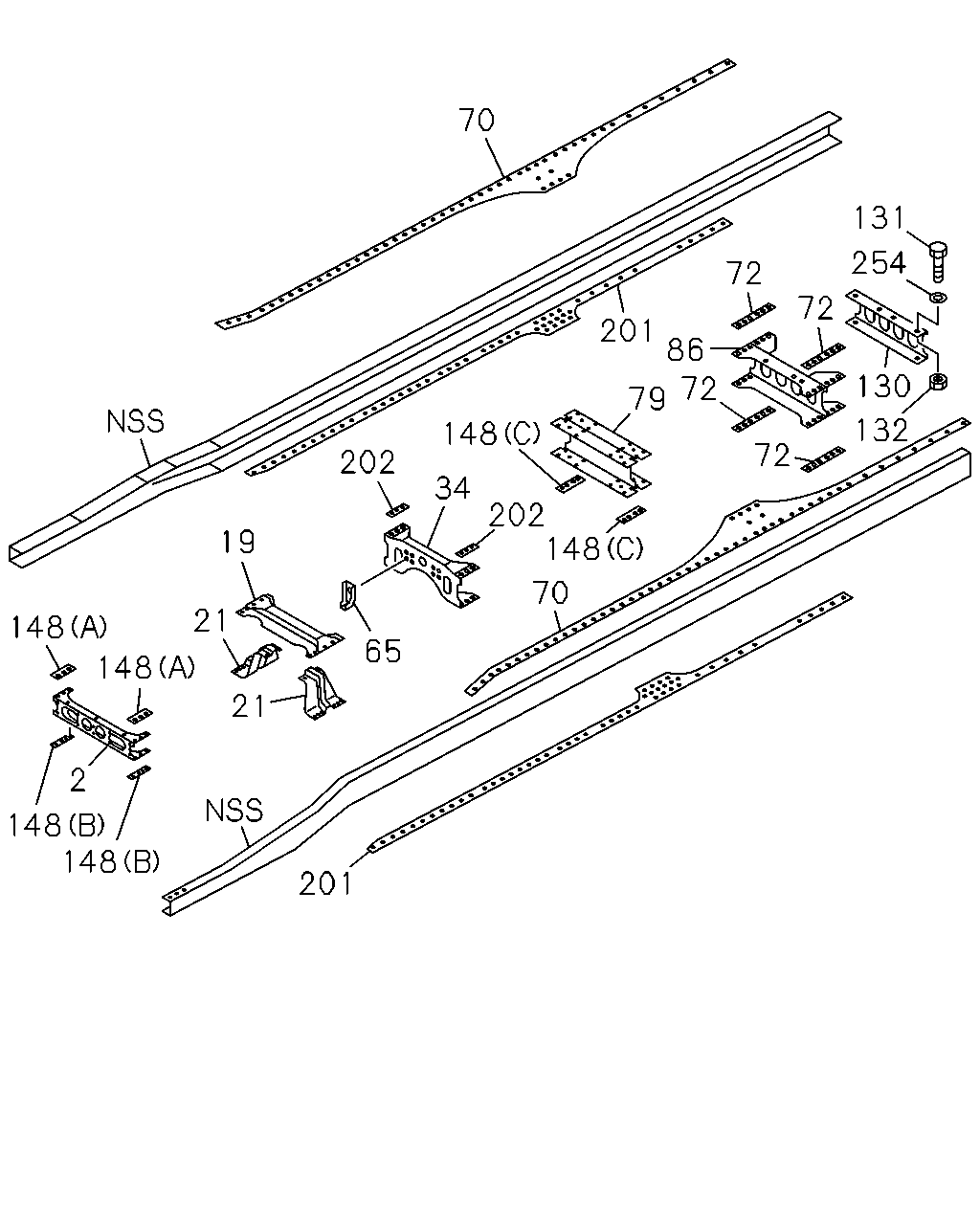

[501A] CROSS MEMBER (18 parça)

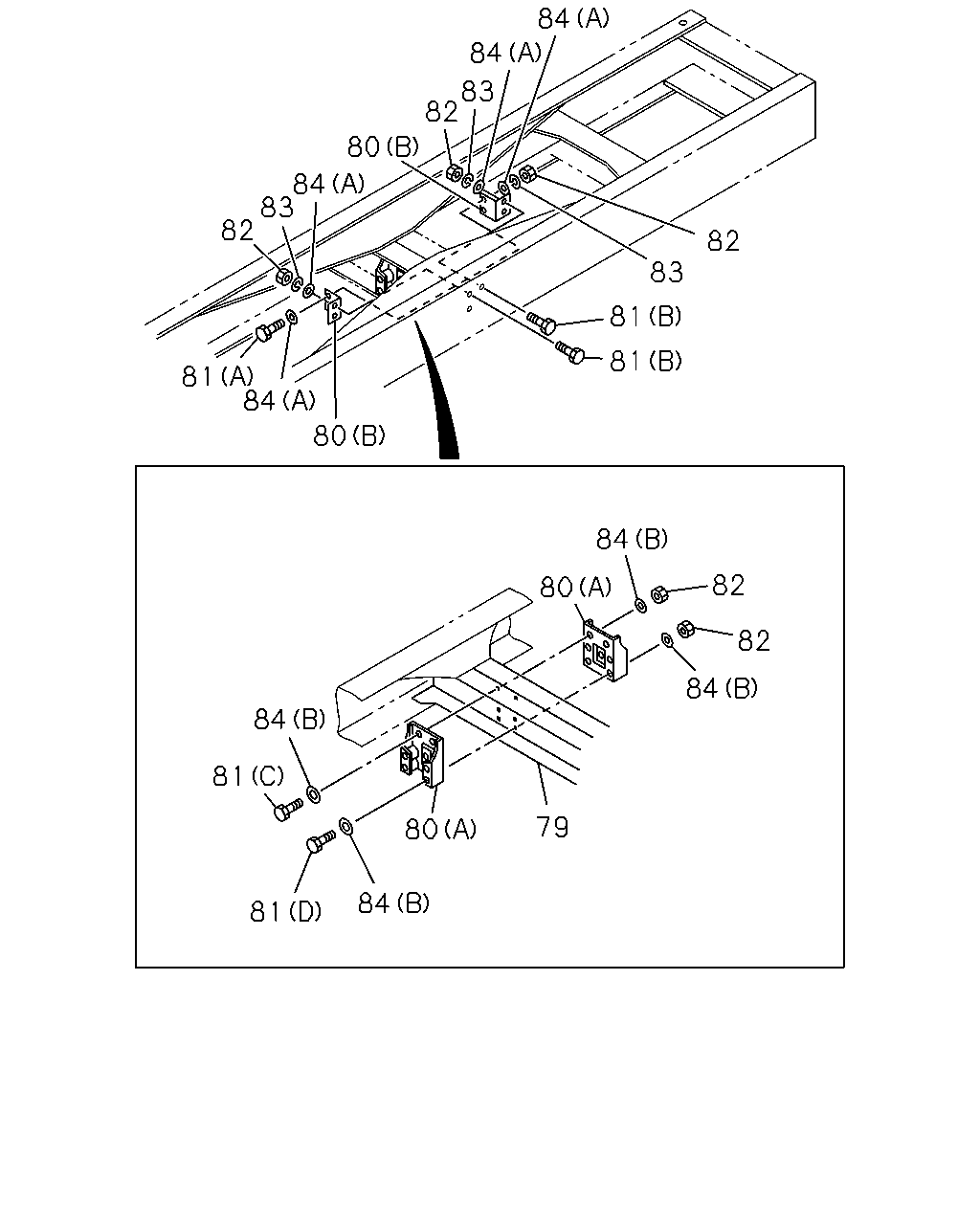

[501A] BRACKET;REAR (12 parça)

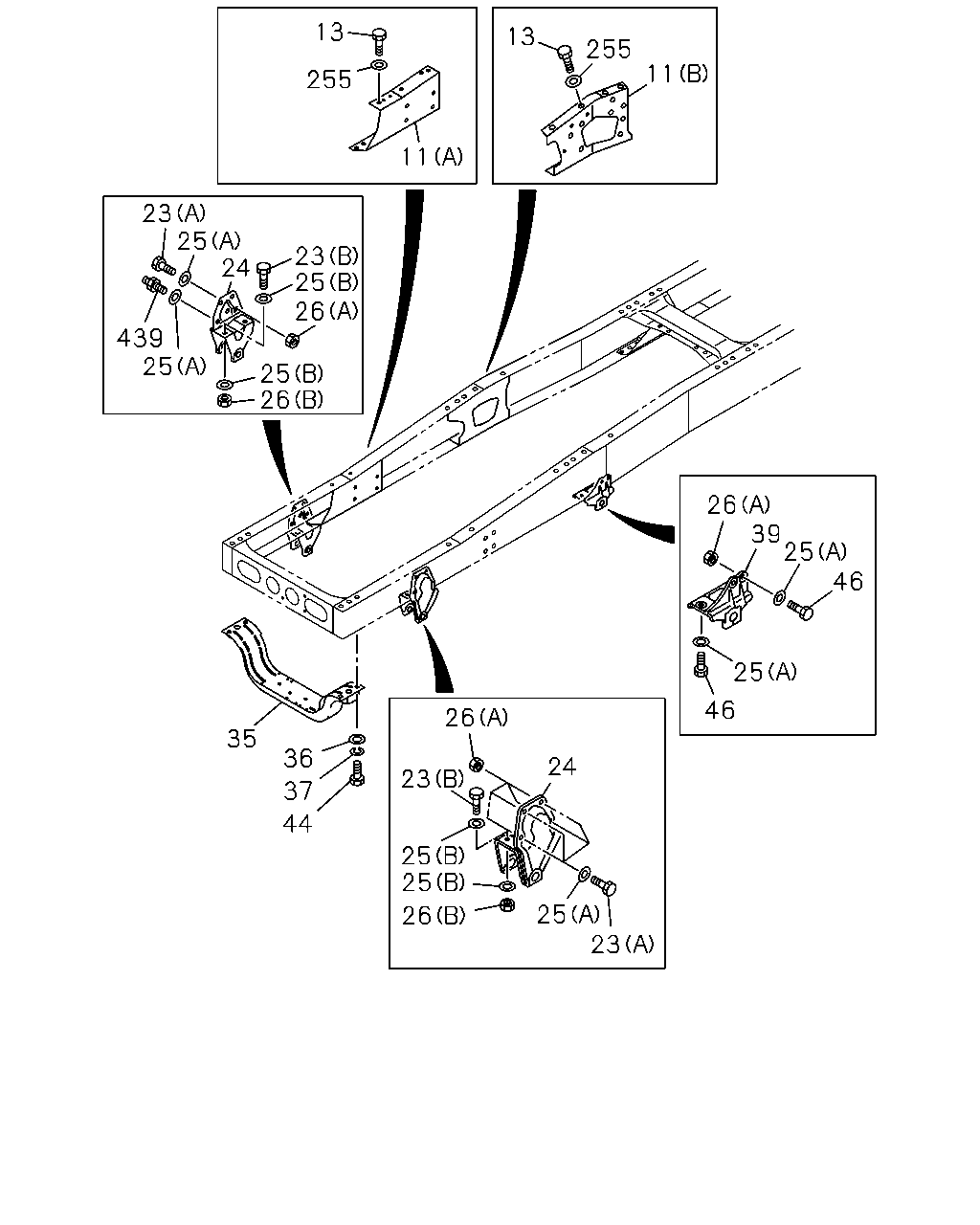

[501A] BRACKET;FRONT AND UNDER MEMBER (25 parça)
▶
131
70
72
130
72
254
132
72
72
86
79
201
148
202
148
70
34
202
65
21
21
19
201
148
148
148
148
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
8-98226-877-0
01
1
1305-
19
MEMBER; CROSS,2ND
8-98098-302-0
01
1
1305-
21
GUSSET; 2ND CROSS
8-98098-309-0
02
1
1305-
34
MEMBER; CROSS,3RD
8-98224-576-0
01
1
1305-
65
BRACKET; CENTER BRG
8-97614-134-0
02
1
1305-
70
GUSSET; TRUNNION,UPR
8-98203-937-0
02
1
1305-
72
SPACER; TRUNNION
8-98211-933-0
04
1
1305-
79
MEMBER; CROSS,TRUNNION ASM
8-98224-537-0
01
1
1305-
86
MEMBER; CROSS,RR SUSP RR
8-98224-542-0
01
1
1305-
130
MEMBER; CROSS,END
8-98103-326-1
01
1
1305-
131
BOLT; END C/MBR
M14X40
0-20951-440-0
04
1
1305-
132
NUT; END C/MBR
M14
0-91110-514-0
04
1
1305-
148
SPACER; C/MBR
(C)
8-97623-201-0
02
1
1305-
148
SPACER; C/MBR
(A)
8-98118-884-2
02
1
1305-
148
SPACER; C/MBR
(B)
8-98118-885-0
02
1
1305-
201
GUSSET; C/MBR
8-98203-936-0
02
1
1305-
202
SPACER; 3RD C/MBR
8-98203-934-0
02
1
1305-
254
WASHER; PL,C/MBR
ID=15
8-98010-627-1
04
1
1305-
84
84
83
82
80
84
83
82
81
84
80
81
81
83
82
84
82
82
84
80
79
80
84
81
81
84
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
79
MEMBER; CROSS,TRUNNION ASM
8-98224-537-0
01
1
1305-
80
BRACKET; C/MBR
(B)
1-53167-610-0
04
1
1305-
80
BRACKET; C/MBR
(A)
1-53363-031-2
02
1
1305-
81
BOLT; BRKT
(B) M14X40
0-20951-440-0
08
1
1305-
81
BOLT; BRKT
(C) M14X50
0-20951-450-0
02
1
1305-
81
BOLT; BRKT
(A) M14X60
0-20951-460-0
04
1
1305-
81
BOLT; BRKT
(D) M14X205
1-09000-147-0
02
1
1305-
82
NUT; BRKT
M14
0-91110-514-0
04
1
1305-
82
NUT; BRKT
M14
0-91110-514-0
12
1
1305-
83
WASHER; LK,BRKT
ID=14.2
0-91510-814-0
12
1
1305-
84
WASHER; PL,BRKT
(A) ID=15 OD=26
0-91614-514-0
16
1
1305-
84
WASHER; PL,BRKT
(B) ID=15
8-98010-627-1
08
1
1305-
13
13
11
255
11
255
23
26
25
24
25
23
439
25
26
26
24
23
36
35
37
44
25
25
26
25
23
26
25
39
26
46
25
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
(A)
1-53211-369-1
01
1
1305-
11
BRACKET; ENG MTG
(A)
1-53211-370-1
01
1
1305-
11
BRACKET; ENG MTG
(B)
8-98217-197-1
01
1
1305-
11
BRACKET; ENG MTG
(B)
8-98217-198-0
01
1
1305-
13
BOLT; BRKT,ENG MTG
M14X40
0-20951-440-0
02
1
1305-
13
BOLT; BRKT,ENG MTG
M14X50
0-20951-450-0
06
1
1305-
23
BOLT; BRKT,SPR
(A) M14X40
0-20951-440-0
03
1
1305-
23
BOLT; BRKT,SPR
(A) M14X50
0-20951-450-0
03
1
1305-
23
BOLT; BRKT,SPR
(B) M16X50
0-20951-650-0
04
1
1305-
24
BRACKET; FRT SPR,FRT
1-53351-237-1
01
1
1305-
24
BRACKET; FRT SPR,FRT
1-53351-238-1
01
1
1305-
25
WASHER; PL,BRKT
(B) ID=16.2
1-09503-316-0
08
1
1305-
25
WASHER; PL,BRKT
(A) ID=15
8-98010-627-1
16
1
1305-
26
NUT; BRKT,SPR
(A) M14
0-91110-514-0
12
1
1305-
26
NUT; BRKT,SPR
(B) M16
0-91110-516-0
04
1
1305-
35
MEMBER; UNDER
8-98242-237-0
01
1
1305-
36
WASHER; PL,UNDER MBR
ID=17
0-91614-516-0
04
1
1305-
37
WASHER; LK,UNDER MBR
ID=16.2
0-91510-816-0
04
1
1305-
39
BRACKET; FRT SPR,RR
1-53352-179-0
01
1
1305-
39
BRACKET; FRT SPR,RR
1-53352-180-0
01
1
1305-
44
BOLT; UNDER MBR
M16X60
0-20951-660-0
04
1
1305-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
04
1
1305-
46
BOLT; BRKT FIX
M14X60
0-20951-460-0
04
1
1305-
255
WASHER; PL,BRKT
ID=15
8-98010-627-1
08
1
1305-
439
STUD; BRKT,SPR
M12X25,M14X45 L=81
1-09029-103-0
02
1
1305-
