Sayfa 2-30C - Isuzu EPC

2-30C — GEAR SHIFTER AND QUADRANT BOX (#11963) — 398 parça

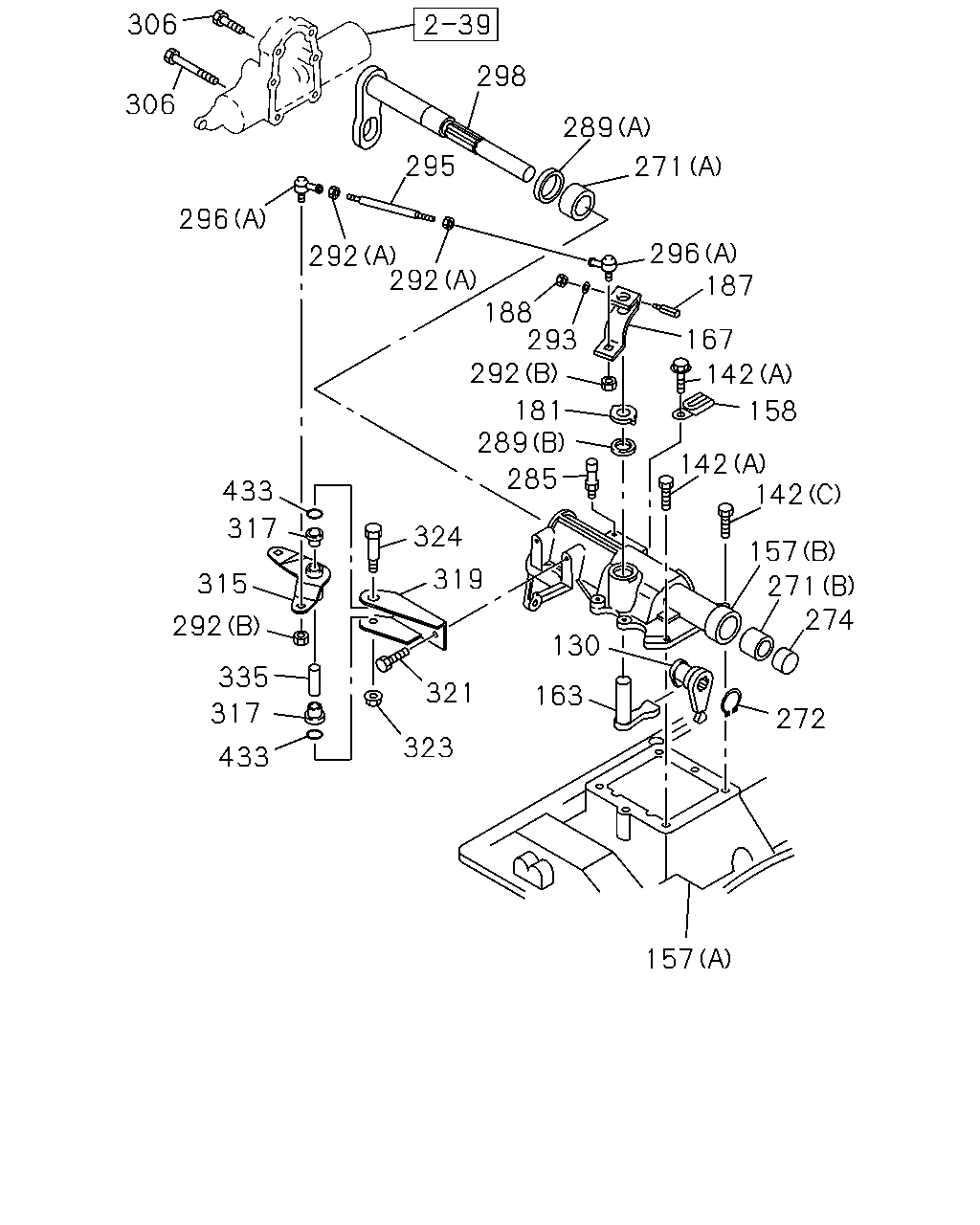

306 306 296 298 295 289 271 292 296 292 293 167 188 142 292 158 181 142 289 142 285 157 271 274 272 130 163 157 323 321 319 324 433 317 335 292 433 315 317 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	0107-	●
130	LEVER; SHIFT,INTERNAL	1-33521-183-0	01	1	0107-0210		●
130	LEVER; SHIFT,INTERNAL	1-33521-185-0	01	1	0211-0309		●
130	LEVER; SHIFT,INTERNAL	1-33521-189-0	01	1	0310-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0107-	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0107-	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	0107-	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0107-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0107-	●
142	BOLT; QUAD BOX (D) M10X30 FLANGE	0-28781-030-0	01	1	0107-0512		●
142	BOLT; QUAD BOX (D) M10X30 FLANGE	0-28751-030-0	01	1	0601-		●
157	BOX; QUAD,TRANS	1-33541-532-0	01	1	0107-0107		●
157	BOX; QUAD,TRANS	1-33541-534-0	01	1	0108-		●
157	BOX; QUAD,TRANS (A)	1-33541-466-0	01	1	0107-	●
157	BOX; QUAD,TRANS (B)	1-33541-507-3	01	1	0107-	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	0107-	●
158	CLIP; HARNESS L=140	5-09707-031-1	02	1	0107-		●
163	LEVER; SELECT,INTERNAL	1-33522-162-1	01	1	0107-	●
163	LEVER; SELECT,INTERNAL	1-33522-171-1	01	1	0107-		●
167	LEVER; SELECT,EXTERNAL	1-33521-163-0	01	1	0107-	●
167	LEVER; SELECT,EXTERNAL	1-33521-179-0	01	1	0107-0505		●
167	LEVER; SELECT,EXTERNAL	1-33521-190-0	01	1	0506-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0107-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0107-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0107-0201	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0202-	●	●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	0107-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	0107-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0107-	●
272	RING; SNAP,QUAD BOX	1-09588-213-0	01	1	0107-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0107-	●
274	COVER; SHAFT,QUAD BOX	1-33545-010-0	01	1	0107-		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0107-	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0107-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0107-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0107-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0107-0512	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0601-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0107-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0107-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER	1-33652-801-0	01	1	0107-0507	●
295	ROD; LINK,RELAY LEVER	9-08400-816-0	01	1	0508-	●
295	ROD; LINK,RELAY LEVER	1-33652-924-0	01	1	0107-		●
296	ROD END (A)	1-09760-108-0	02	1	0107-	●	●
298	SHAFT; SHIFT LEVER	1-33522-161-0	01	1	0107-0307	●
298	SHAFT; SHIFT LEVER	1-33522-180-0	01	1	0308-	●
298	SHAFT; SHIFT LEVER	1-33522-173-0	01	1	0107-0307		●
298	SHAFT; SHIFT LEVER	1-33522-191-0	01	1	0308-0310		●
298	SHAFT; SHIFT LEVER	1-33522-196-0	01	1	0311-		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	0107-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	0107-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28151-080-0	04	1	0601-	●	●
315	LEVER; SELECT	1-33651-754-0	01	1	0107-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0107-	●	●
319	BRACKET; SELECT LEVER	1-33657-753-0	01	1	0107-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0107-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0107-	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0107-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	0107-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	0107-	●	●

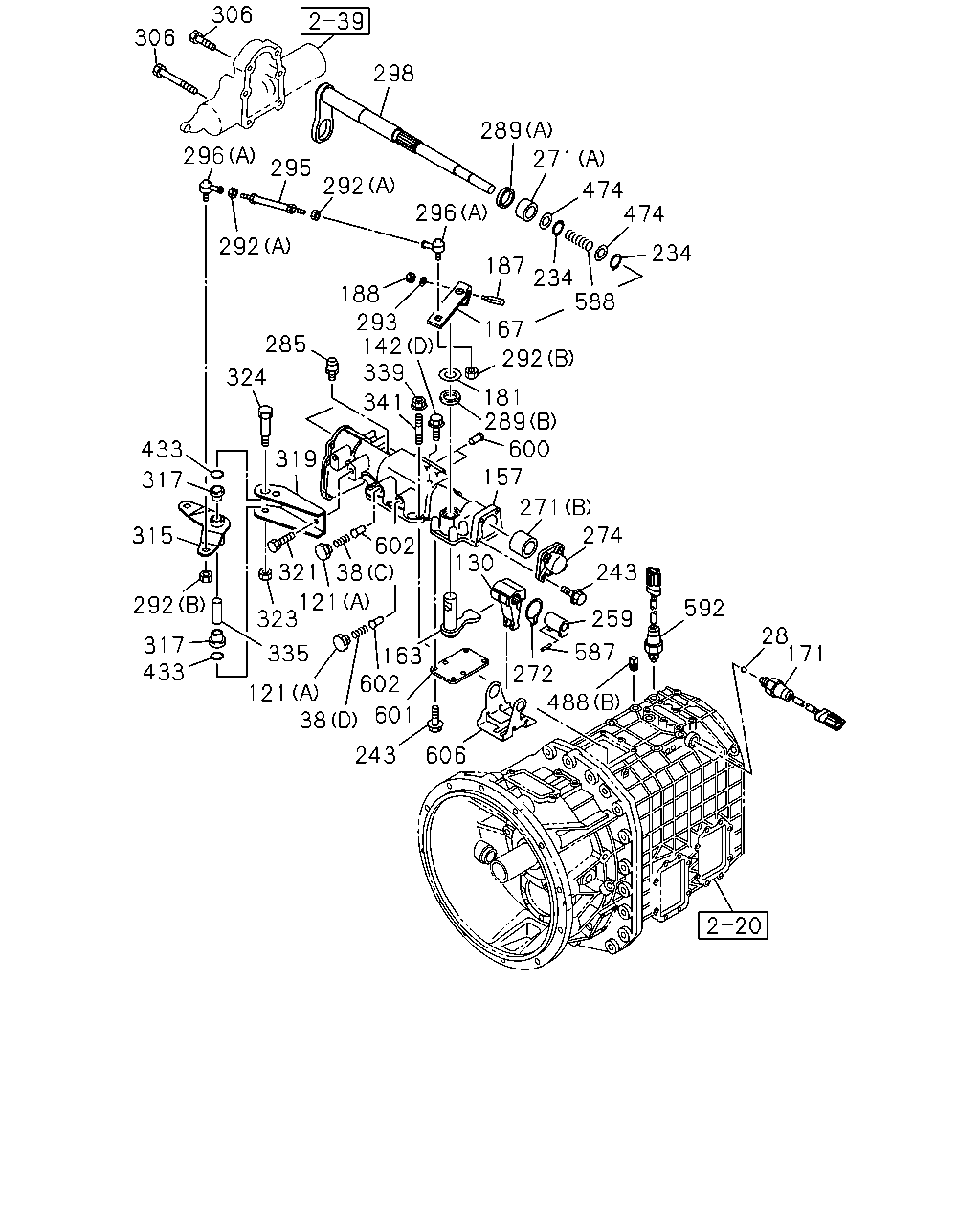

306 306 298 296 295 296 289 292 292 188 187 271 474 474 234 293 285 234 588 142 167 292 339 324 181 341 319 433 289 157 317 600 274 602 271 243 592 28 171 259 587 130 38 321 315 292 317 433 121 38 243 121 323 335 163 602 601 606 272 488

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	BALL; INTER LK	9-00097-501-0	04	1	0107-	●
28	BALL; INTER LK	9-00097-501-0	02	1	0107-		●
38	SPRING; DETENT	1-09580-379-0	04	1	0107-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0107-		●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	0107-		●
38	SPRING; DETENT (C)	1-09580-574-0	01	1	0107-		●
38	SPRING; DETENT (D)	1-09580-577-0	01	1	0107-0210		●
38	SPRING; DETENT (D)	1-09580-580-0	01	1	0211-		●
121	PLUG; DETENT SPR (A) M14X9	9-99202-314-0	02	1	0107-		●
121	PLUG; DETENT SPR (B) M16X12	9-99202-316-0	01	1	0107-0606		●
121	PLUG; DETENT SPR (B) M16X12	0-92002-416-0	01	1	0607-		●
130	LEVER; SHIFT,INTERNAL	1-33521-124-0	01	1	0107-	●
130	LEVER; SHIFT,INTERNAL	1-33521-183-0	01	1	0107-0210		●
130	LEVER; SHIFT,INTERNAL	1-33521-185-0	01	1	0211-0309		●
130	LEVER; SHIFT,INTERNAL	1-33521-189-0	01	1	0310-		●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0107-	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0107-	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	0107-	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0107-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0107-	●
142	BOLT; QUAD BOX (D) M10X30 FLANGE	0-28781-030-0	01	1	0107-0512		●
142	BOLT; QUAD BOX (D) M10X30 FLANGE	0-28751-030-0	01	1	0601-		●
157	BOX; QUAD,TRANS	1-33541-532-0	01	1	0107-0107		●
157	BOX; QUAD,TRANS	1-33541-534-0	01	1	0108-		●
157	BOX; QUAD,TRANS (A)	1-33541-466-0	01	1	0107-	●
157	BOX; QUAD,TRANS (B)	1-33541-507-3	01	1	0107-	●
163	LEVER; SELECT,INTERNAL	1-33522-162-1	01	1	0107-	●
163	LEVER; SELECT,INTERNAL	1-33522-171-1	01	1	0107-		●
167	LEVER; SELECT,EXTERNAL	1-33521-163-0	01	1	0107-	●
167	LEVER; SELECT,EXTERNAL	1-33521-179-0	01	1	0107-0505		●
167	LEVER; SELECT,EXTERNAL	1-33521-190-0	01	1	0506-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0107-	●	●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0107-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0107-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0107-0201	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0202-	●	●
234	RING; SNAP ID=14.7	9-09180-416-0	02	1	0107-0604		●
234	RING; SNAP ID=14.7	0-91800-616-0	02	1	0605-		●
243	BOLT; COVER M8X25 FLANGE	0-28680-825-0	06	1	0107-0107		●
243	BOLT; COVER M8X35 FLANGE	0-28680-835-0	04	1	0107-0107		●
243	BOLT; COVER M8X35 FLANGE	0-28680-835-0	10	1	0108-0512		●
243	BOLT; COVER M8X35 FLANGE	0-28650-835-0	10	1	0601-		●
259	GUIDE; SELECT,CONT BOX	1-33519-135-0	01	1	0107-		●
271	BUSHING; QUAD BOX (B) ID=20 OD=23	1-33549-016-0	01	1	0107-	●	●
271	BUSHING; QUAD BOX (A) ID=28 OD=32	1-33549-104-0	01	1	0107-	●	●
272	RING; SNAP,QUAD BOX	1-09588-175-0	01	1	0107-	●
272	RING; SNAP,QUAD BOX	1-09588-213-0	01	1	0107-		●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0107-	●
274	COVER; SHAFT,QUAD BOX	1-33545-010-0	01	1	0107-		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0107-	●
285	BREATHER; AIR,QUAD BOX	1-33149-003-0	01	1	0107-		●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0107-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0107-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0107-0512	●	●
292	NUT; LINK ROD (A) M8	0-91111-508-0	02	1	0601-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0107-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0107-0605	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	0-91610-708-0	01	1	0606-	●	●
295	ROD; LINK,RELAY LEVER	1-33652-801-0	01	1	0107-0507	●
295	ROD; LINK,RELAY LEVER	9-08400-816-0	01	1	0508-	●
295	ROD; LINK,RELAY LEVER	1-33652-924-0	01	1	0107-		●
296	ROD END (A)	1-09760-108-0	02	1	0107-	●	●
298	SHAFT; SHIFT LEVER	1-33522-161-0	01	1	0107-0307	●
298	SHAFT; SHIFT LEVER	1-33522-180-0	01	1	0308-	●
298	SHAFT; SHIFT LEVER	1-33522-173-0	01	1	0107-0307		●
298	SHAFT; SHIFT LEVER	1-33522-191-0	01	1	0308-0310		●
298	SHAFT; SHIFT LEVER	1-33522-196-0	01	1	0311-		●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28181-045-0	02	1	0107-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X45 FLANGE	0-28151-045-0	02	1	0601-	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28181-080-0	04	1	0107-0512	●	●
306	BOLT; SHIFT ASSISTOR M10X80 FLANGE	0-28151-080-0	04	1	0601-	●	●
315	LEVER; SELECT	1-33651-754-0	01	1	0107-	●	●
317	BUSHING; LEVER	1-09330-119-0	02	1	0107-	●	●
319	BRACKET; SELECT LEVER	1-33657-753-0	01	1	0107-	●	●
321	BOLT; BRKT,RELAY LEVER M10X22 FLANGE	0-28181-022-0	02	1	0107-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0107-	●	●
324	BOLT; SHAFT M10X60 FLANGE	0-28081-060-0	01	1	0107-	●	●
335	COLLAR; DIST,RELAY LEVER ASM	1-33659-220-0	01	1	0107-	●	●
339	NUT; QUAD BOX M10 FLANGE	0-91150-210-0	05	1	0107-0602		●
339	NUT; QUAD BOX M10 FLANGE	0-91180-210-0	05	1	0603-		●
341	STUD; QUAD BOX M10X25 L=40	9-04411-025-0	05	1	0107-0107		●
341	STUD; QUAD BOX M10X35 L=50	9-04411-035-0	05	1	0108-0604		●
341	STUD; QUAD BOX M10X35 L=50	0-44011-035-0	05	1	0605-		●
433	GASKET; BUSHING	1-09623-636-0	02	1	0107-	●	●
474	WASHER; SPRING STOPPER	9-09160-716-0	02	1	0107-		●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	0107-		●
488	PLUG; AIR CYL (B) M14X9	9-99202-314-0	02	1	0107-		●
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	0107-		●
587	PIN; SHIFT GUIDE	9-08160-420-0	01	1	0107-		●
588	SPRING; RETURN,QUADRANT BOX	1-09580-576-0	01	1	0107-		●
592	SWITCH; POSITION	1-82440-083-3	01	1	0107-0602		●
592	SWITCH; POSITION	8-98042-853-0	01	1	0603-		●
600	PLUNGER; VLV	1-33263-037-0	02	1	0107-		●
601	COVER; SHAFT,SELECT	1-33545-011-0	01	1	0107-		●
602	PLUNGER; DETENT	1-33263-037-0	02	1	0107-		●
606	INHIBITOR	1-33529-116-0	01	1	0107-		●

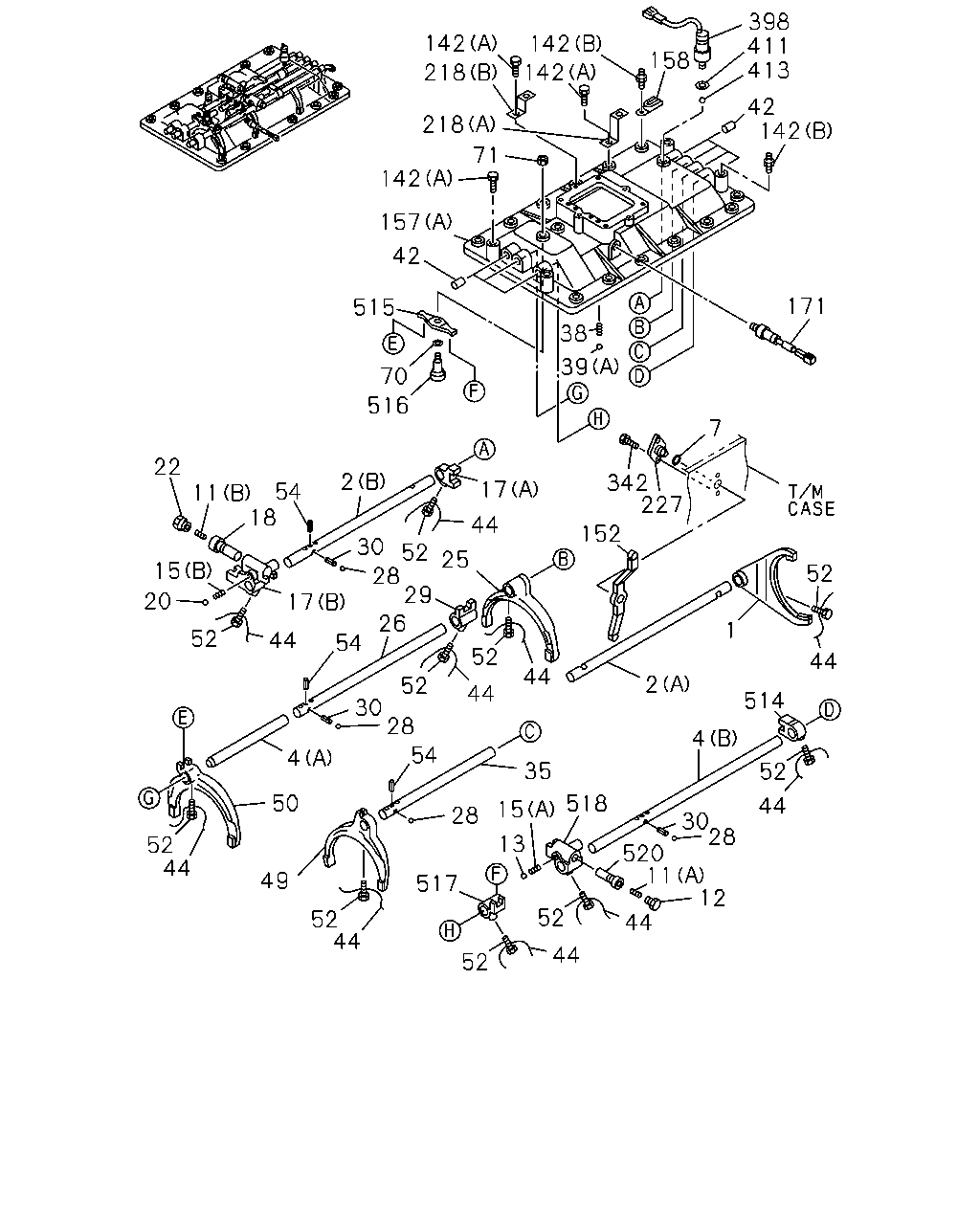

142 142 158 398 142 218 411 413 142 42 218 142 71 157 515 42 38 39 70 516 22 2 54 11 17 44 342 227 7 171 52 44 514 4 52 44 2 44 44 25 52 29 52 52 28 54 35 28 13 30 28 518 15 520 11 12 44 52 44 52 517 44 52 49 44 52 4 50 30 54 44 26 17 52 20 18 30 15 152 1 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV	1-33511-520-1	01	1	0107-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-418-1	01	1	0107-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-423-1	01	1	0107-	●
4	ROD; SHIFT,6TH (A)	1-33531-421-1	01	1	0107-	●
4	ROD; SHIFT,6TH (B)	1-33531-422-1	01	1	0107-	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0107-	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	02	1	0107-		●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	0107-	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0107-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	0107-	●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0107-	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-438-0	01	1	0107-	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	0107-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-603-0	01	1	0107-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-605-0	01	1	0107-	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0107-	●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0107-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-039-1	01	1	0107-	●
25	ARM; SHIFT,2ND & 3RD	1-33511-435-0	01	1	0107-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-419-1	01	1	0107-	●
28	BALL; INTER LK	9-00097-501-0	04	1	0107-	●
28	BALL; INTER LK	9-00097-501-0	02	1	0107-		●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-286-1	01	1	0107-0309	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0310-	●
30	PIN; INTER LK	9-33534-003-0	03	1	0107-	●	●
35	ROD; SHIFT,4TH & 5TH BLOCK	1-33531-420-1	01	1	0107-	●
38	SPRING; DETENT	1-09580-379-0	04	1	0107-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0107-		●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	0107-		●
38	SPRING; DETENT (C)	1-09580-574-0	01	1	0107-		●
38	SPRING; DETENT (D)	1-09580-577-0	01	1	0107-0210		●
38	SPRING; DETENT (D)	1-09580-580-0	01	1	0211-		●
39	BALL; DETENT (A)	1-09843-012-0	04	1	0107-	●	●
39	BALL; DETENT (B)	9-00097-013-0	01	1	0107-		●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	0107-	●
44	WIRE; LK L=180	1-09780-024-0	07	1	0107-	●
44	WIRE; LK L=200	9-08351-020-0	03	1	0107-	●
44	WIRE; LK L=200	9-08351-020-0	07	1	0107-		●
49	ARM; SHIFT,4TH & 5TH	1-33511-466-1	01	1	0107-	●
50	ARM; SHIFT,6TH	1-33511-437-0	01	1	0107-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	10	1	0107-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	07	1	0107-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0107-	●	●
70	WASHER; PL,SHIFT LEVER ID=16.5	9-09857-042-0	01	1	0107-	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91150-212-0	01	1	0107-0602	●
71	NUT; SHIFT LEVER M12 FLANGE	0-91180-212-0	01	1	0603-	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0107-	●
142	BOLT; QUAD BOX (C) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0107-	●
142	BOLT; QUAD BOX (B) M10X20,M10X26 L=56	1-09049-014-1	04	1	0107-	●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0107-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0107-	●
142	BOLT; QUAD BOX (D) M10X30 FLANGE	0-28781-030-0	01	1	0107-0512		●
142	BOLT; QUAD BOX (D) M10X30 FLANGE	0-28751-030-0	01	1	0601-		●
152	LEVER; RELAY,SELECT	1-33511-428-0	01	1	0107-	●
157	BOX; QUAD,TRANS	1-33541-532-0	01	1	0107-0107		●
157	BOX; QUAD,TRANS	1-33541-534-0	01	1	0108-		●
157	BOX; QUAD,TRANS (A)	1-33541-466-0	01	1	0107-	●
157	BOX; QUAD,TRANS (B)	1-33541-507-3	01	1	0107-	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	0107-	●
158	CLIP; HARNESS L=140	5-09707-031-1	02	1	0107-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0107-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0107-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0107-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82698-328-1	01	1	0107-0212		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82698-490-0	01	1	0301-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82698-350-0	01	1	0107-		●
227	SPINDLE; 1ST & REV	1-33519-008-1	01	1	0107-	●
342	BOLT M14X20	1-09044-078-0	02	1	0107-	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0107-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-	●	●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0107-	●
413	BALL; BACK SW	9-00097-013-0	01	1	0107-	●
514	BLOCK; 6-7 SETTING	1-33511-605-0	01	1	0107-	●
515	LEVER; SHIFT,6TH & 7TH	1-33511-082-0	01	1	0107-	●
516	SPINDLE; 6TH & 7TH	1-33519-012-0	01	1	0107-	●
517	BLOCK; SHIFT,6TH & 7TH	1-33511-395-1	01	1	0107-	●
518	BLOCK ASM; SHIFT,6TH & 7TH	1-33511-293-2	01	1	0107-	●
520	SLEEVE; 6TH & 7TH	1-33516-022-1	01	1	0107-	●

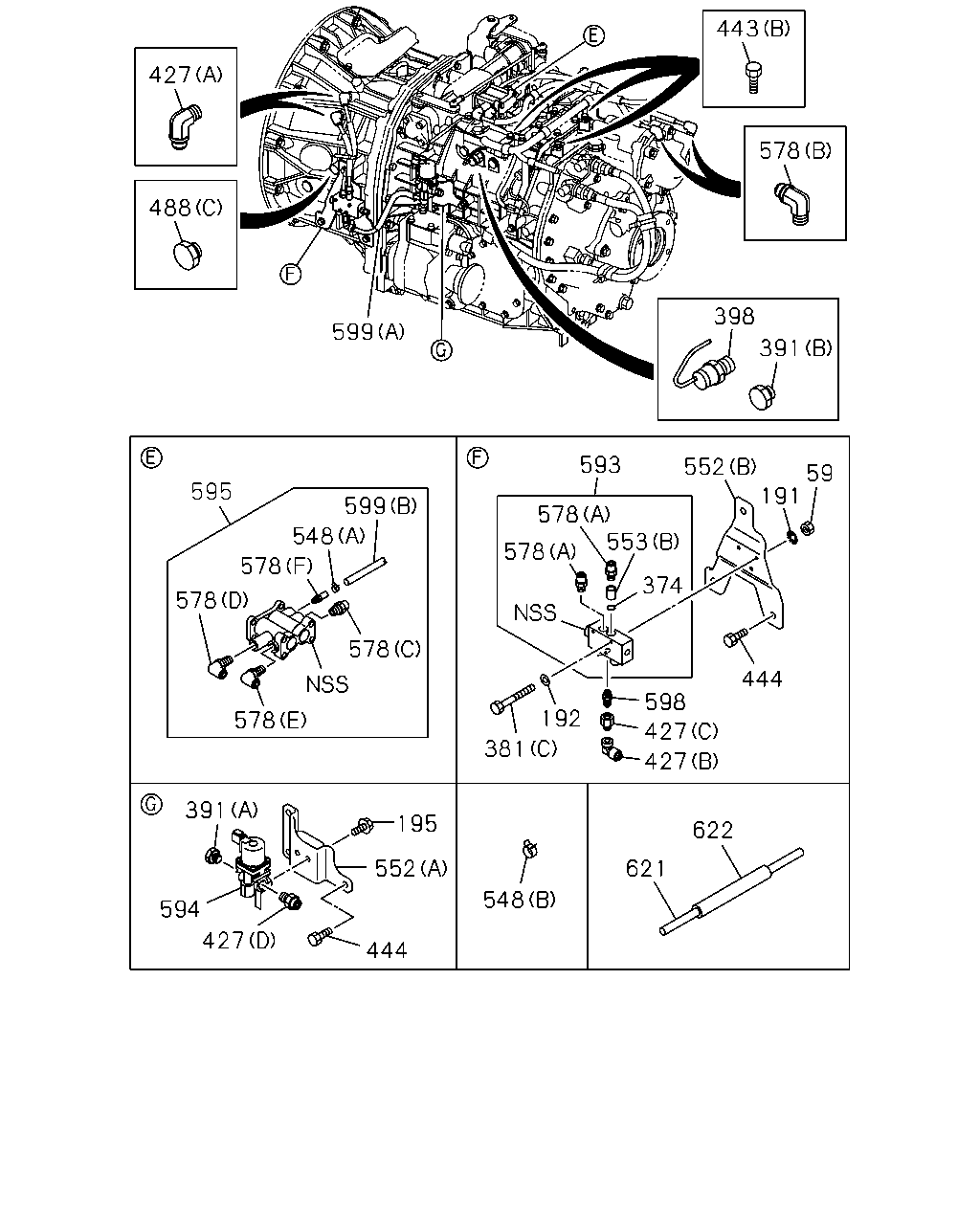

427 488 443 578 398 391 59 552 191 593 553 374 444 598 578 578 192 427 427 381 622 621 548 444 552 427 195 391 578 578 578 578 595 599 548 599 594

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
59	NUT	1-09440-068-0	04	1	0107-		●
191	WASHER; LK	1-09503-311-0	04	1	0107-		●
192	WASHER; PL	1-09503-310-0	04	1	0107-		●
195	BOLT M8X16 FLANGE	0-28080-816-0	02	1	0107-0512		●
195	BOLT M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
374	GASKET ALSO INCLUDED IN GASKET SET(M/T).	1-09661-390-0	01	1	0107-		●
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0107-0512		●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-		●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0107-		●
381	BOLT (C)	1-09044-111-0	04	1	0107-		●
391	PLUG; SW HOLE (A) M12X9	9-99202-312-0	01	1	0107-		●
391	PLUG; SW HOLE (B) M14X9	9-99202-314-0	02	1	0107-		●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0107-0602	●	●
398	SWITCH; REV LAMP	8-98042-853-0	01	1	0603-	●	●
427	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0107-		●
427	CONNECTOR; NYLON TUBE (B) DIN8 ELBOW	1-09660-924-1	01	1	0107-		●
427	CONNECTOR; NYLON TUBE (C) M12	1-09660-931-1	01	1	0107-		●
427	CONNECTOR; NYLON TUBE (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0107-		●
443	BOLT; CLIP (A) M8X16 FLANGE	0-28080-816-0	03	1	0107-0512		●
443	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
443	BOLT; CLIP (B) M8X90 FLANGE	0-28080-890-0	04	1	0107-0512		●
443	BOLT; CLIP (B) M8X90 FLANGE	0-28050-890-0	04	1	0601-		●
444	BOLT; CLIP M10X25 FLANGE	0-28781-025-0	06	1	0107-0512		●
444	BOLT; CLIP M10X25 FLANGE	0-28751-025-0	06	1	0601-		●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	0107-		●
488	PLUG; AIR CYL (B) M14X9	9-99202-314-0	02	1	0107-		●
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	0107-		●
548	CLIP; HOSE (A)	1-33712-028-0	01	1	0107-		●
548	CLIP; HOSE (B) ID=7.8	8-94246-958-0	11	1	0107-		●
552	BRACKET (A)	1-33719-082-0	01	1	0107-		●
552	BRACKET (B)	1-33719-083-0	01	1	0107-		●
553	ADAPTER; AIR (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0107-		●
553	ADAPTER; AIR (B)	1-09661-389-0	01	1	0107-		●
578	CONNECTOR (B) DIN8 & R1/4 ELBOW	1-09660-649-1	02	1	0107-		●
578	CONNECTOR (A)	1-09661-292-0	02	1	0107-		●
578	CONNECTOR (C)	1-33712-023-0	01	1	0107-		●
578	CONNECTOR (D)	1-33712-024-0	01	1	0107-		●
578	CONNECTOR (E)	1-33712-025-0	01	1	0107-		●
578	CONNECTOR (F)	1-33712-026-0	01	1	0107-		●
593	VALVE; SPLITTER	1-33712-009-0	01	1	0107-		●
594	VALVE; MAGNETIC,AIR	1-82564-069-0	01	1	0107-		●
595	VALVE; RANGE	1-33712-008-1	01	1	0107-		●
598	UNION M10 & M12 STRAIGHT	1-09664-235-0	01	1	0107-		●
599	TUBE; NYLON (A)	1-09377-036-1	01	1	0107-		●
599	TUBE; NYLON (B)	1-33712-027-0	01	1	0107-		●
621	TUBE; NYLON L=2000 OD=8	1-87410-073-0	05	1	0107-		●
622	TUBE; CORRUGATE L=2000 ID=10	1-87410-088-0	05	1	0107-		●

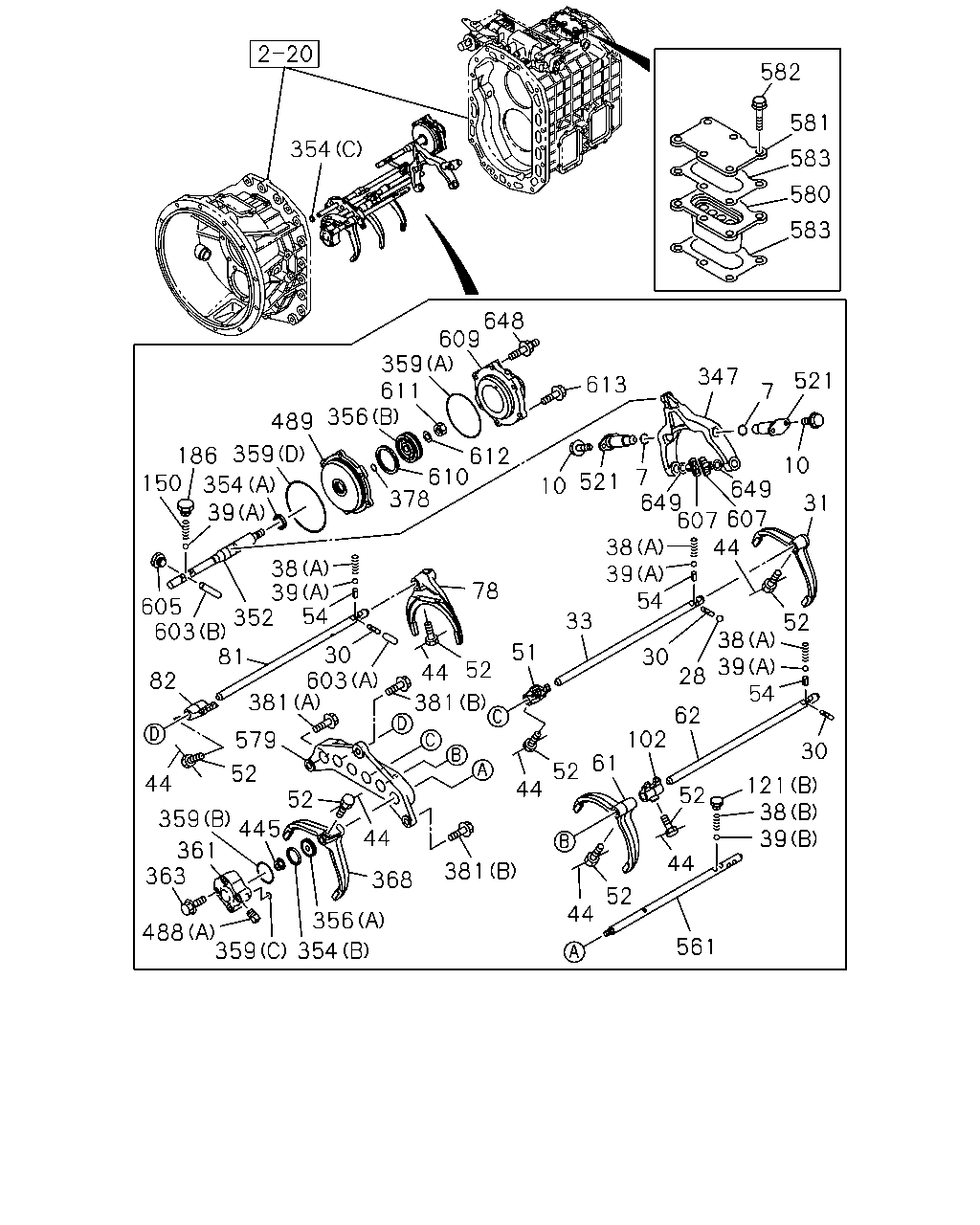

582 581 583 580 583 347 521 7 10 31 649 607 607 649 521 10 7 613 648 609 359 356 489 359 186 150 39 354 605 603 352 81 82 39 38 54 78 378 610 612 611 30 603 381 44 38 39 28 30 54 52 54 39 38 33 51 52 44 381 44 52 61 52 102 121 38 39 44 52 44 30 62 44 368 356 354 359 488 363 445 359 361 44 52 52 579 381 561 354

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0107-	●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	02	1	0107-		●
10	BOLT; SPINDLE M10X30 FLANGE	0-28781-030-0	04	1	0107-0512		●
10	BOLT; SPINDLE M10X30 FLANGE	0-28751-030-0	04	1	0601-		●
28	BALL; INTER LK	9-00097-501-0	04	1	0107-	●
28	BALL; INTER LK	9-00097-501-0	02	1	0107-		●
30	PIN; INTER LK	9-33534-003-0	03	1	0107-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-587-0	01	1	0107-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-458-0	01	1	0107-		●
38	SPRING; DETENT	1-09580-379-0	04	1	0107-	●
38	SPRING; DETENT (B)	1-09580-374-0	01	1	0107-		●
38	SPRING; DETENT (A)	1-09580-379-0	03	1	0107-		●
38	SPRING; DETENT (C)	1-09580-574-0	01	1	0107-		●
38	SPRING; DETENT (D)	1-09580-577-0	01	1	0107-0210		●
38	SPRING; DETENT (D)	1-09580-580-0	01	1	0211-		●
39	BALL; DETENT (A)	1-09843-012-0	04	1	0107-	●	●
39	BALL; DETENT (B)	9-00097-013-0	01	1	0107-		●
44	WIRE; LK L=180	1-09780-024-0	07	1	0107-	●
44	WIRE; LK L=200	9-08351-020-0	03	1	0107-	●
44	WIRE; LK L=200	9-08351-020-0	07	1	0107-		●
51	BLOCK; SHIFT,1ST & 2ND	1-33511-617-0	01	1	0107-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	10	1	0107-	●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	07	1	0107-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0107-	●	●
61	ARM; SHIFT,3RD & 4TH	1-33511-586-0	01	1	0107-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-459-0	01	1	0107-		●
78	ARM; SHIFT,REV	1-33511-589-0	01	1	0107-		●
81	ROD; SHIFT,REV BLOCK	1-33531-457-0	01	1	0107-		●
82	BLOCK; SHIFT,REV	1-33511-600-0	01	1	0107-		●
102	BLOCK; SHIFT,3RD & 4TH	1-33511-615-0	01	1	0107-		●
121	PLUG; DETENT SPR (A) M14X9	9-99202-314-0	02	1	0107-		●
121	PLUG; DETENT SPR (B) M16X12	9-99202-316-0	01	1	0107-0606		●
121	PLUG; DETENT SPR (B) M16X12	0-92002-416-0	01	1	0607-		●
150	SPRING; DETENT BALL	1-09580-379-0	01	1	0107-		●
186	PLUG; SHIFTER ROD M16X12	9-99202-316-0	01	1	0107-0606		●
186	PLUG; SHIFTER ROD M16X12	0-92002-416-0	01	1	0607-		●
347	ARM; SHIFT,RANGE CHANGE	1-33511-585-0	01	1	0107-		●
352	ROD; SHIFT,RANGE CHANGE	1-33531-461-0	01	1	0107-0304		●
352	ROD; SHIFT,RANGE CHANGE	1-33531-482-0	01	1	0305-		●
354	SEAL; AIR CYL (A)	1-19387-056-0	01	1	0107-		●
354	SEAL; AIR CYL (B)	1-33739-978-0	01	1	0107-		●
354	SEAL; AIR CYL (C)	1-33739-981-0	01	1	0107-		●
356	PISTON; AIR CYL (A)	1-33551-017-0	01	1	0107-		●
356	PISTON; AIR CYL (B)	1-33551-023-1	01	1	0107-0304		●
356	PISTON; AIR CYL (B)	1-33551-024-0	01	1	0305-0408		●
356	PISTON; AIR CYL (B)	1-33551-025-0	01	1	0409-		●
359	GASKET; AIR CYL (A) ID=124.6	1-09623-468-0	01	1	0107-		●
359	GASKET; AIR CYL (B) ID=55.6	1-09623-547-0	01	1	0107-		●
359	GASKET; AIR CYL (C) ID=6.8	9-09565-107-0	01	1	0107-		●
359	GASKET; AIR CYL (D) ID=144.4	9-09920-735-0	01	1	0107-		●
361	CYLINDER; AIR,SHIFT	1-33561-013-0	01	1	0107-		●
363	BOLT; AIR CYL M10X60 FLANGE	0-28181-060-0	04	1	0107-0512		●
363	BOLT; AIR CYL M10X60 FLANGE	0-28151-060-0	04	1	0601-		●
368	ARM; SHIFT,SPLITTER GEAR	1-33511-588-0	01	1	0107-		●
378	GASKET; PISTON ALSO INCLUDED IN GASKET SET(M/T).	9-09561-218-0	01	1	0107-0304		●
381	BOLT (A) M10X35 FLANGE	0-28781-035-0	01	1	0107-0512		●
381	BOLT (A) M10X35 FLANGE	0-28751-035-0	01	1	0601-		●
381	BOLT (B) M10X34 FLANGE REAMER	1-09040-091-1	02	1	0107-		●
381	BOLT (C)	1-09044-111-0	04	1	0107-		●
445	NUT; SHIFT CYL M12 LOCK NUT FLANGE	0-91303-612-0	01	1	0107-0604		●
445	NUT; SHIFT CYL M12 LOCK NUT FLANGE	0-91380-012-0	01	1	0605-		●
488	PLUG; AIR CYL (A)	9-09204-510-0	01	1	0107-		●
488	PLUG; AIR CYL (B) M14X9	9-99202-314-0	02	1	0107-		●
488	PLUG; AIR CYL (C) PT1/4	9-99204-513-0	01	1	0107-		●
489	COVER; AIR CYL	1-33569-049-1	01	1	0107-0304		●
489	COVER; AIR CYL	1-33569-052-0	01	1	0305-		●
521	SPINDLE; 6TH	1-33519-131-0	02	1	0107-		●
561	ROD; SHIFT	1-33531-466-0	01	1	0107-		●
579	BLOCK; SHIFT,ROD GUIDE	1-33539-066-0	01	1	0107-		●
580	BLOCK; INTERLOCK	1-33539-064-1	01	1	0107-		●
581	COVER; BLOCK	1-33141-056-0	01	1	0107-		●
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28781-035-0	06	1	0107-0404		●
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28181-035-0	06	1	0405-0512		●
582	BOLT; SPRING GUIDE M10X35 FLANGE	0-28151-035-0	06	1	0601-		●
583	GASKET; SPRING GUIDE	1-33142-047-0	02	1	0107-		●
603	ROD; INTER LK (A) L=49	1-33534-005-0	01	1	0107-		●
603	ROD; INTER LK (B) L=77	1-33534-010-0	01	1	0107-		●
605	PLUG; INTER LK M18X12	9-99202-318-0	01	1	0107-0606		●
605	PLUG; INTER LK M18X12	0-92002-418-0	01	1	0607-		●
607	PIECE; SHIFT	1-33518-008-1	02	1	0107-0308		●
607	PIECE; SHIFT	1-33518-010-0	02	1	0309-		●
609	BODY; AIR,CYL	1-33561-015-0	01	1	0107-0304		●
609	BODY; AIR,CYL	1-33561-018-0	01	1	0305-		●
610	SEAL; PISTON	1-33738-054-0	01	1	0107-		●
611	NUT; SHAFT M16 LOCK NUT	9-09131-516-0	01	1	0107-0304		●
611	NUT; SHAFT	8-97324-304-0	01	1	0305-		●
612	WASHER; PL ID=17	9-09160-516-0	01	1	0107-0304		●
613	BOLT; AIR CYL M10X45 FLANGE	0-28181-045-0	06	1	0107-0408		●
613	BOLT; AIR CYL M10X45 FLANGE	0-28181-045-0	04	1	0409-0512		●
613	BOLT; AIR CYL M10X45 FLANGE	0-28151-045-0	04	1	0601-		●
648	STUD; AIR CYL M10X20,M10X45 L=75	1-09049-015-0	02	1	0409-		●
649	SHIM; SHIFT PIECE T=1.00	8-94178-936-1	02	1	0304-0308		●

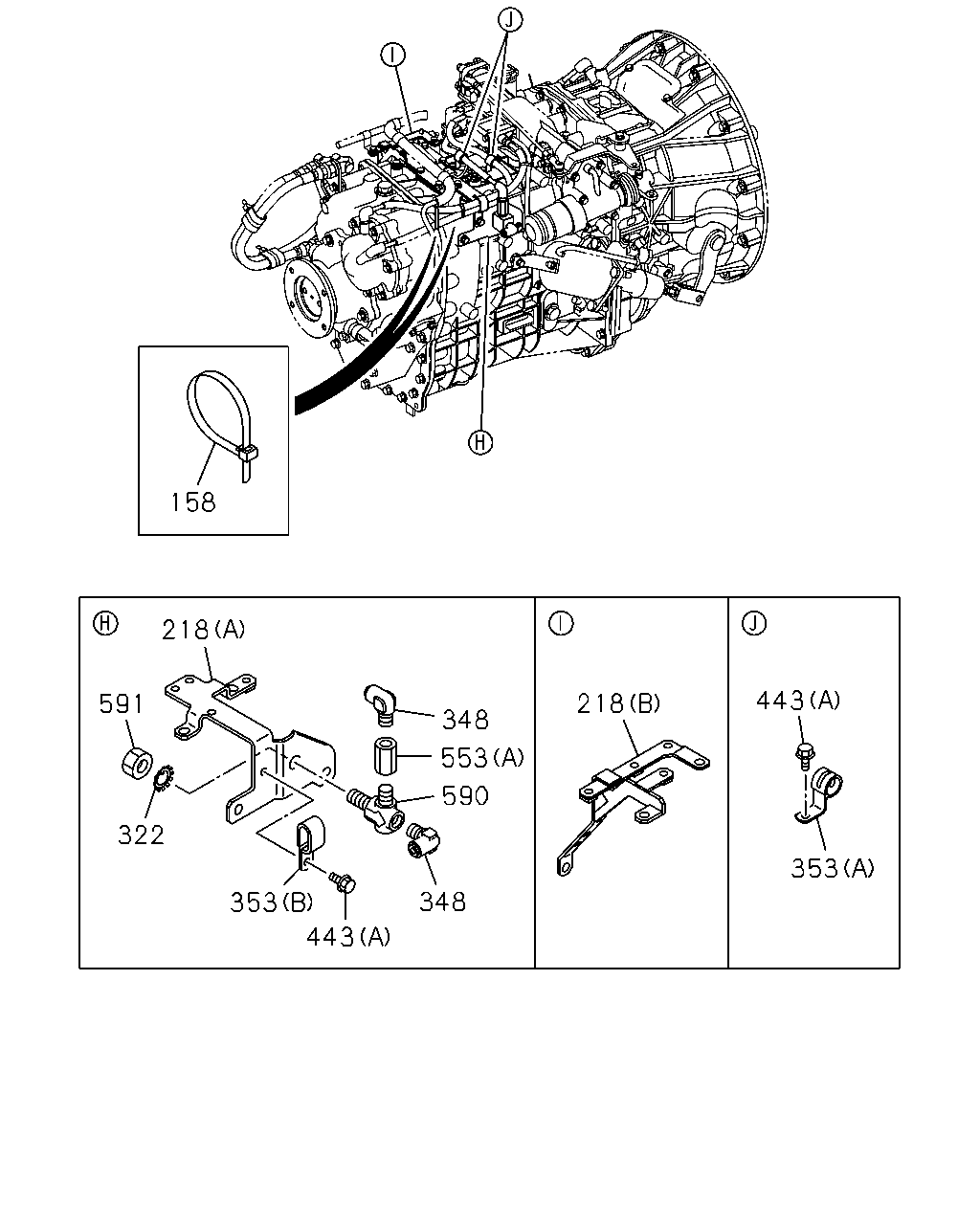

158 353 443 218 443 353 590 553 348 218 591 322 348

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	0107-	●
158	CLIP; HARNESS L=140	5-09707-031-1	02	1	0107-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0107-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0107-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82698-328-1	01	1	0107-0212		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-82698-490-0	01	1	0301-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82698-350-0	01	1	0107-		●
322	WASHER; LK ID=16.2	9-09150-516-0	01	1	0107-0603		●
322	WASHER; LK ID=16.2	0-91510-516-0	01	1	0604-		●
348	CONNECTOR; AIR HOSE DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0107-		●
353	CLIP; AIR HOSE (A) ID=20 H=23 L=27	1-09700-861-0	02	1	0107-		●
353	CLIP; AIR HOSE (B) ID=16X2 L=40	9-09535-576-0	01	1	0107-		●
443	BOLT; CLIP (A) M8X16 FLANGE	0-28080-816-0	03	1	0107-0512		●
443	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	03	1	0601-		●
443	BOLT; CLIP (B) M8X90 FLANGE	0-28080-890-0	04	1	0107-0512		●
443	BOLT; CLIP (B) M8X90 FLANGE	0-28050-890-0	04	1	0601-		●
553	ADAPTER; AIR (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0107-		●
553	ADAPTER; AIR (B)	1-09661-389-0	01	1	0107-		●
590	UNION; AIR M16 & PT3/8 2WAY	1-09654-239-1	01	1	0107-		●
591	NUT; UNION M16	9-99111-516-0	01	1	0107-0512		●
591	NUT; UNION M16	0-91111-516-0	01	1	0601-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
