Isuzu WW
▶
TRUCKS
▶
NLR
▶
51479 - NLR/NMR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

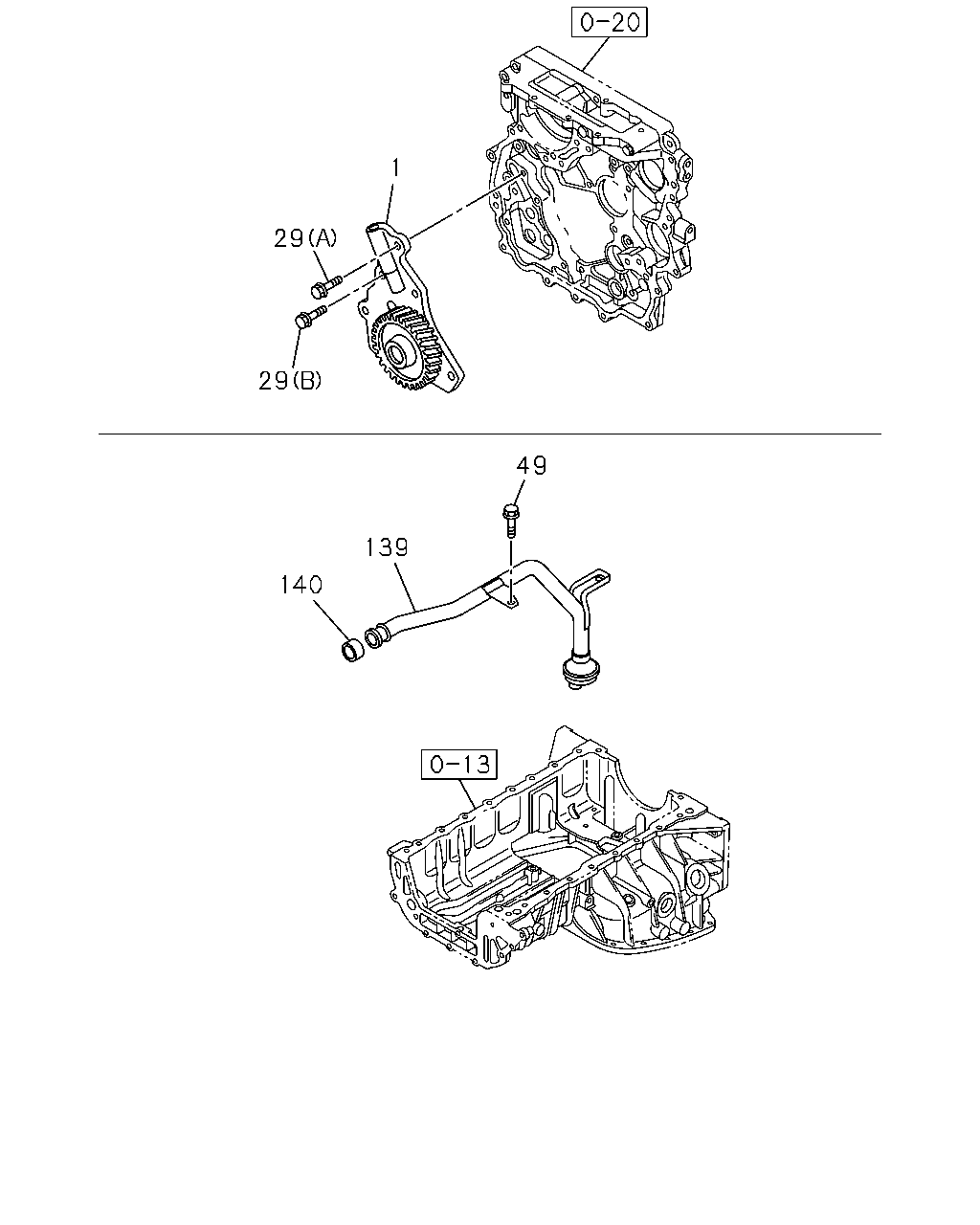

0-51 — OIL PUMP AND OIL STRAINER
(#119628) — 9 parça
1
29
29
49
139
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; OIL
THA
8-98232-624-1
01
1
1304-
29
BOLT; OIL PUMP
(B) M8X30 FLANGE THA
0-28050-830-0
04
1
1304-
29
BOLT; OIL PUMP
(A) M8X45 FLANGE THA
0-28050-845-0
02
1
1304-
49
BOLT; STRAINER,OIL PUMP
EXC. ENGINE MADE IN THAILAND<6ZP> M8X12 FLANGE THA
0-28050-812-0
02
1
1304-1403
49
BOLT; STRAINER,OIL PUMP
M8X16 FLANGE THA
0-28050-816-0
02
1
1404-
139
PIPE; OIL STRAINER
ENGINE MADE IN THAILAND<6ZP> THA
8-98127-247-0
01
1
1503-
139
PIPE; OIL STRAINER
IMA
8-98149-035-0
01
1
1304-1502
139
PIPE; OIL STRAINER
EXC. ENGINE MADE IN THAILAND<6ZP> IMA
8-98149-035-0
01
1
1503-
140
GASKET; OIL STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). THA
8-97356-150-0
01
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
