Isuzu WW
▶
TRUCKS
▶
CYH
▶
11539 - CYH CHINA EURO4
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

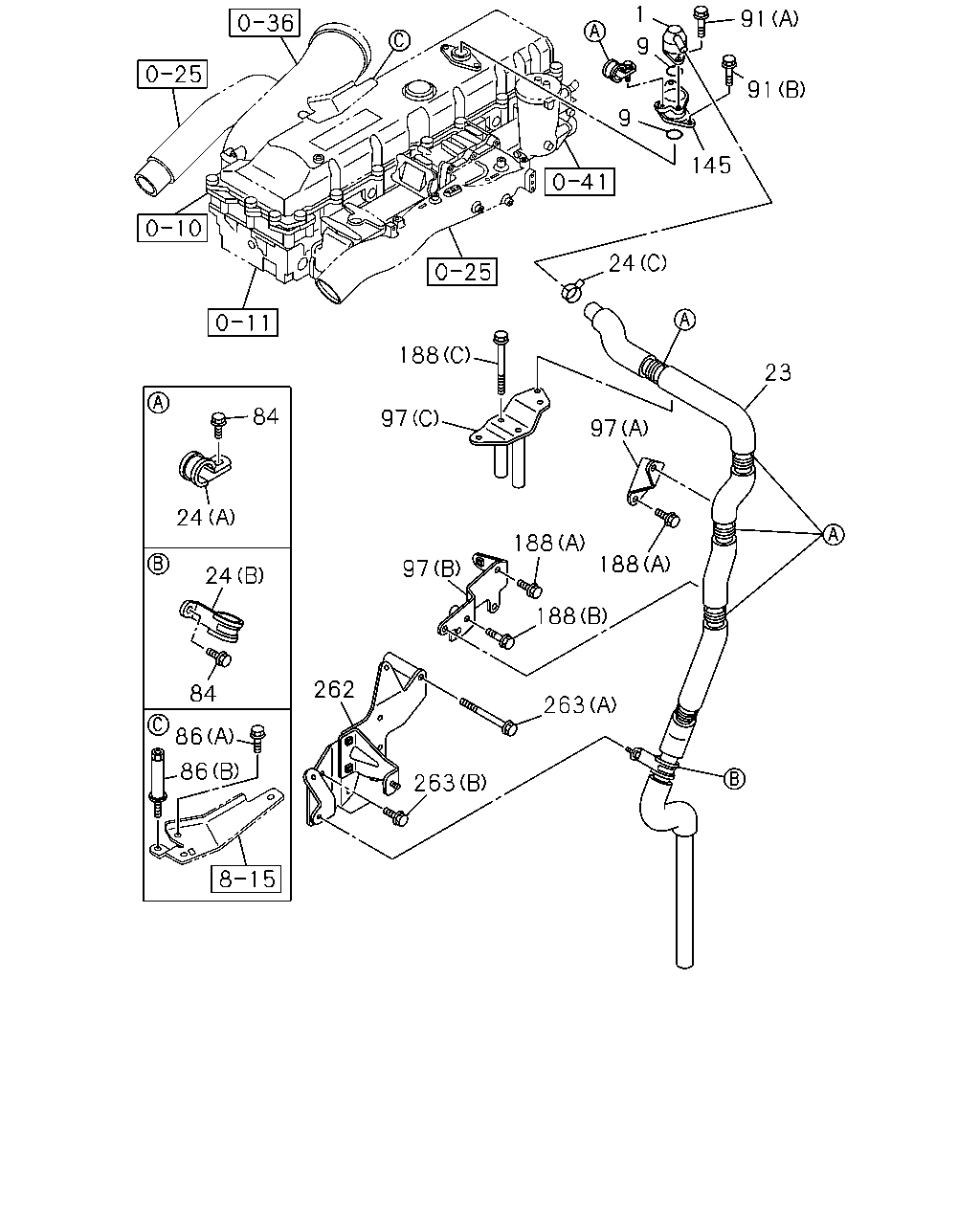

0-28 — VENTILATION SYSTEM
(#119627) — 21 parça
Tümü
A - 6WG1 TC-N
B - 6WG1 TC-R
1
9
9
91
145
91
84
24
24
84
86
86
188
97
97
188
188
188
97
262
263
263
23
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
BREATHER; AIR
1-11740-181-1
01
1
1305-
●
●
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-565-0
02
1
1305-
●
●
23
HOSE; RUBBER,VENTILATOR PIPE
8-98192-086-2
01
1
1305-
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
(B) ID=35 H=45 L=33
1-09700-947-0
01
1
1305-
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
(C) ID=28.5
1-09707-150-0
01
1
1305-
●
●
24
CLIP; RUBBER HOSE,VENTILATOR
(A) ID=33 L=30
8-97619-250-0
04
1
1305-
●
●
84
BOLT; PIPE CLIP,VENTILATOR
M8X16 FLANGE
0-28050-816-0
05
1
1305-
●
●
86
BOLT; BREATHER PIPE
(A) M8X20 FLANGE
0-28050-820-0
01
1
1305-
●
●
86
BOLT; BREATHER PIPE
(B)
8-97377-804-0
01
1
1305-
●
●
91
BOLT; AIR BREATHER
(A) M10X20 FLANGE
0-28151-020-0
02
1
1305-
●
●
91
BOLT; AIR BREATHER
(B) M10X25 FLANGE
0-28151-025-0
02
1
1305-
●
●
97
BRACKET; HOSE
(A)
8-97628-209-0
01
1
1305-
●
●
97
BRACKET; HOSE
(B)
8-98122-983-0
01
1
1305-
●
●
97
BRACKET; HOSE
(C)
8-98122-984-0
01
1
1305-
●
●
145
ADAPTER; AIR BREATHER
8-98073-548-0
01
1
1305-
●
●
188
BOLT; BRKT
(A) M8X20 FLANGE
0-28050-820-0
03
1
1305-
●
●
188
BOLT; BRKT
(B) M8X45 FLANGE
0-28050-845-0
01
1
1305-
●
●
188
BOLT; BRKT
(C) M10X130 FLANGE
0-28156-013-0
02
1
1305-
●
●
262
BRACKET; OIL SEPARETOR
1-13345-220-1
01
1
1305-
●
●
263
BOLT; BRKT,OIL SEPARETOR
(A) M10X90 FLANGE
0-28151-090-0
01
1
1305-
●
●
263
BOLT; BRKT,OIL SEPARETOR
(B) M14X25 FLANGE
0-28951-425-0
02
1
1305-
●
●
