Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11542 - FXZ/GXZ CNG(THAI)EU3
▶
0 - Engine, Emission, Engine Electrical
▶
0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING
▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#119622) — 52 parça
◀
[020A] FRONT COVER AND OTHER PARTS (8 parça)
[020A] CASE ASM;BEARING (12 parça)
[020A] FLYWHEEL HOUSING (26 parça)
[020A] STAY;FLYWHEEL HOUSHING (6 parça)
▶

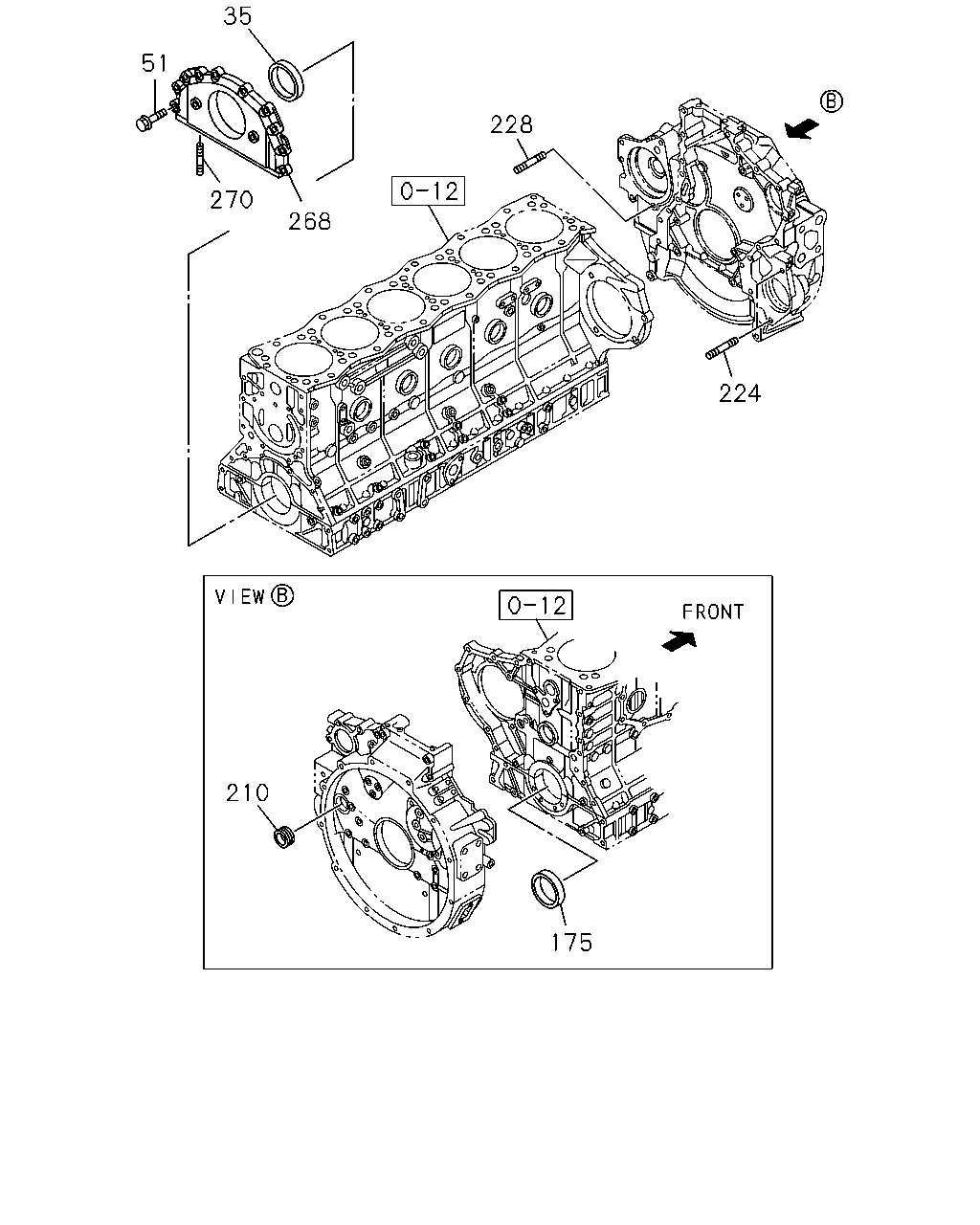

51
35
270
228
224
210
175
268
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
35
SEAL; OIL,CRANKSHAFT FRT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09625-540-3
01
1
1305-
51
BOLT; GEAR CASE COVER
M10X60 FLANGE
0-28151-060-0
11
1
1305-
175
SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09625-541-2
01
1
1305-
210
GROMMET; HSG
9-09575-799-0
01
1
1305-
224
STUD; STARTER
M14X40 L=61
0-44011-440-0
02
1
1305-
228
STUD; AIR CMPR
M12X40 L=58
9-94411-240-0
01
1
1305-
268
COVER; FRT
8-98224-092-0
01
1
1305-
270
STUD; FRT COVER
M8X35 L=49
8-98225-099-0
06
1
1305-

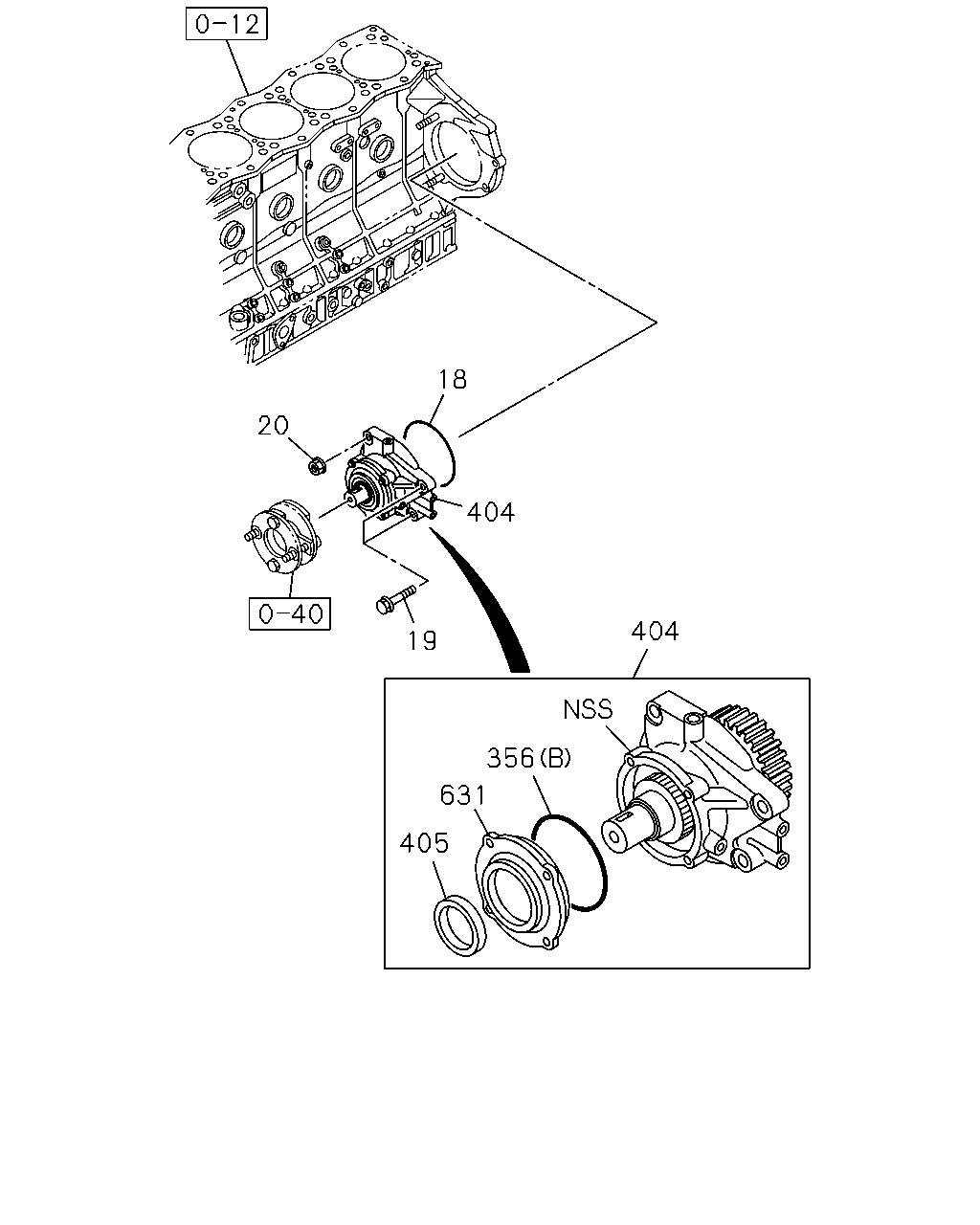

20
18
404
404
19
356
631
405
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
GASKET; BRG CASE,DRIVE SHAFT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-449-0
01
1
1305-
19
BOLT; BRG CASE
M12X40 FLANGE THA
0-28151-240-0
02
1
1305-
20
NUT; BRG CASE
M12 FLANGE THA
0-91180-112-0
02
1
1305-
356
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
1-09623-422-0
01
1
1305-
356
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=139.6
1-09623-464-0
01
1
1305-1405
356
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-98280-698-0
01
1
1406-
404
CASE ASM; BRG,INJ PUMP
8-98184-327-3
01
1
1305-1305
404
CASE ASM; BRG,INJ PUMP
8-98239-289-0
01
1
1306-1310
404
CASE ASM; BRG,INJ PUMP
8-98239-287-0
01
1
1311-
405
SEAL; OIL,BRG CASE
8-98156-970-0
01
1
1305-1305
405
SEAL; OIL,BRG CASE
8-98238-366-0
01
1
1306-
631
COVER; BEARING
8-98127-511-2
01
1
1305-

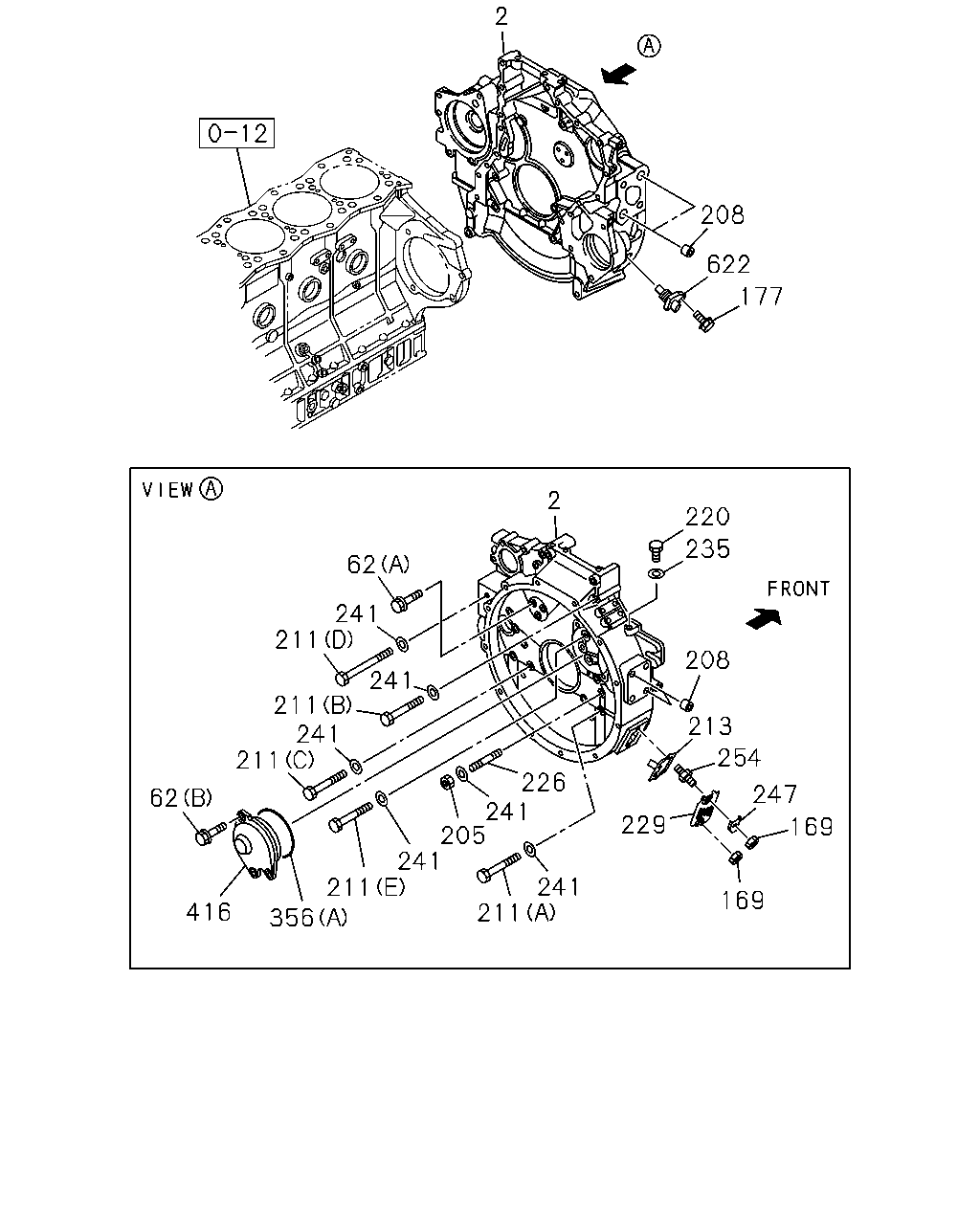

2
208
622
177
62
241
211
241
211
241
211
62
416
356
211
241
205
241
226
241
211
229
169
169
247
254
213
208
235
220
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOUSING; FLYWHEEL
8-98079-891-1
01
1
1305-1305
2
HOUSING; FLYWHEEL
8-98221-370-0
01
1
1306-
62
BOLT; COVER
(B) M8X16 FLANGE THA
0-28050-816-0
03
1
1305-
62
BOLT; COVER
(A) M8X14 FLANGE
0-28080-814-0
03
1
1305-
169
NUT; COVER
M8 FLANGE THA
0-91180-108-0
02
1
1305-
177
BOLT; SENSOR
M6X16 FLANGE THA
0-28650-616-0
01
1
1305-
205
NUT; HSG
M12
0-91110-512-0
01
1
1305-
208
DOWEL; ENG FOOT
OD=26 L=12
1-11229-016-0
04
1
1305-
211
BOLT; HSG
(A) M12X60
0-16856-260-0
09
1
1305-
211
BOLT; HSG
(B) M12X90
0-16856-290-0
01
1
1305-
211
BOLT; HSG
(E) M12X25
0-23801-225-0
02
1
1305-
211
BOLT; HSG
(D) M12X160
8-97388-159-0
01
1
1305-
211
BOLT; HSG
(C) M12X75
9-01666-275-0
05
1
1305-
213
POINTER; FLYWHEEL HSG
1-11327-045-1
01
1
1305-
220
PLUG; GEAR CHECK HOLE
M16X12
0-92002-416-0
01
1
1305-
226
STUD; HSG
M12X60 L=78
0-44011-260-0
01
1
1305-
229
COVER; TIMING CHECK HOLE
1-11349-131-0
01
1
1305-
235
GASKET; PLUG GEAR CHECK HOLE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2 OD=24 THA
9-09571-416-0
01
1
1305-
241
WASHER; PL,HSG
ID=12.2
9-09851-933-0
19
1
1305-
247
WASHER; LK,POINTER,FLYWHEEL HSG
1-11349-127-0
01
1
1305-
254
STUD; POINTER & COVER
M8X14,M8X14 L=33
1-09300-058-1
02
1
1305-
356
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B)
1-09623-422-0
01
1
1305-
356
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=139.6
1-09623-464-0
01
1
1305-1405
356
GASKET; COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-98280-698-0
01
1
1406-
416
COVER; IDLE GEAR
8-97603-341-0
01
1
1305-
622
SENSOR; ENG SPD & TDC
8-94390-279-0
01
1
1305-

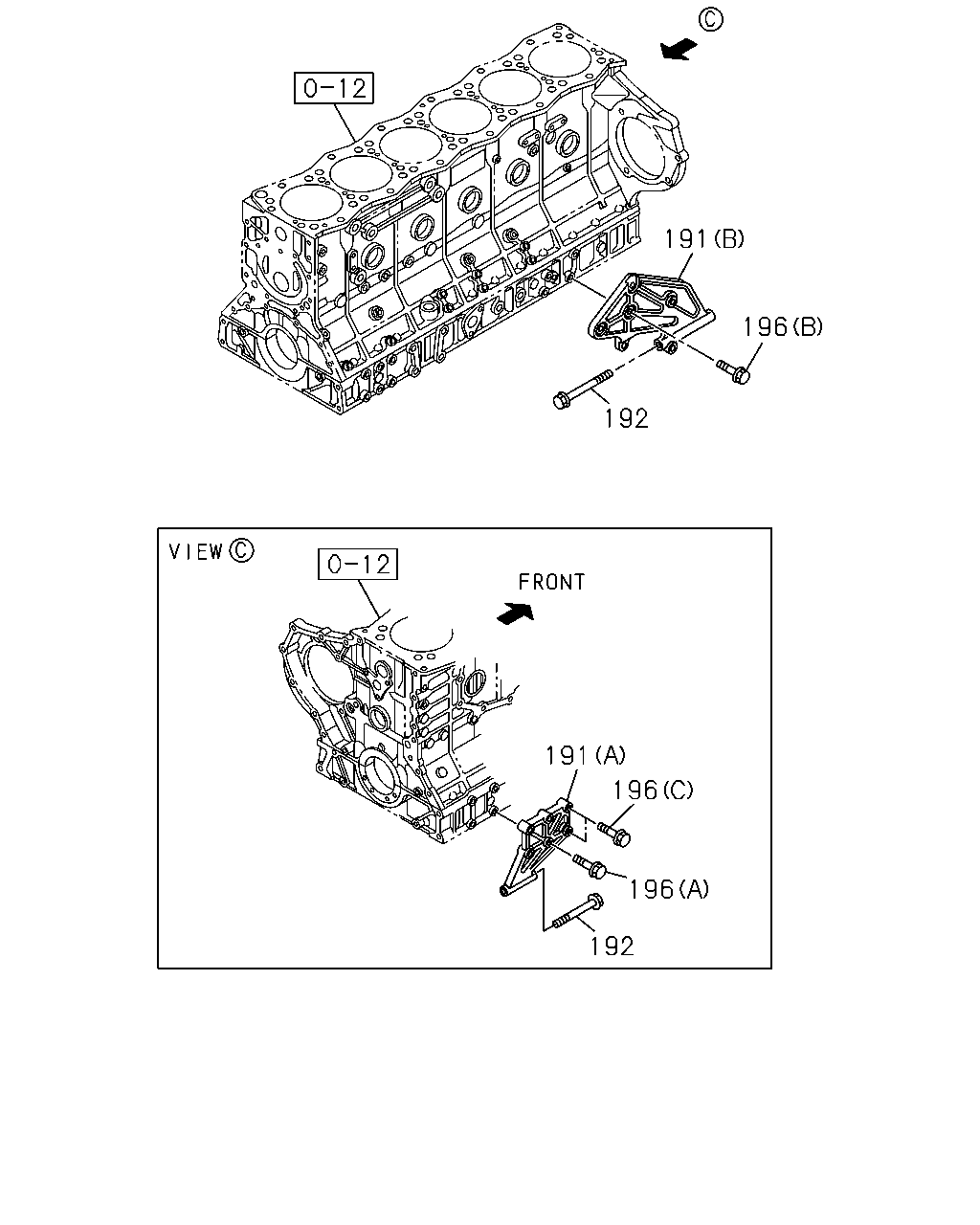

191
196
192
191
196
196
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
191
STAY; FLYWHEEL HSG
(A)
8-97606-941-1
01
1
1305-1305
191
STAY; FLYWHEEL HSG
(B)
8-97606-942-2
01
1
1305-1305
192
BOLT; STAY TO HSG
M14X150 FLANGE
0-28956-415-0
02
1
1305-1305
196
BOLT; STAY TO C/BL
(A) M10X70 FLANGE
0-28151-070-0
04
1
1305-1305
196
BOLT; STAY TO C/BL
(B) M10X30 FLANGE
0-28751-030-0
03
1
1305-1305
196
BOLT; STAY TO C/BL
(C) M10X40 FLANGE
0-28751-040-0
02
1
1305-1305
