4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#119619) — 235 parça

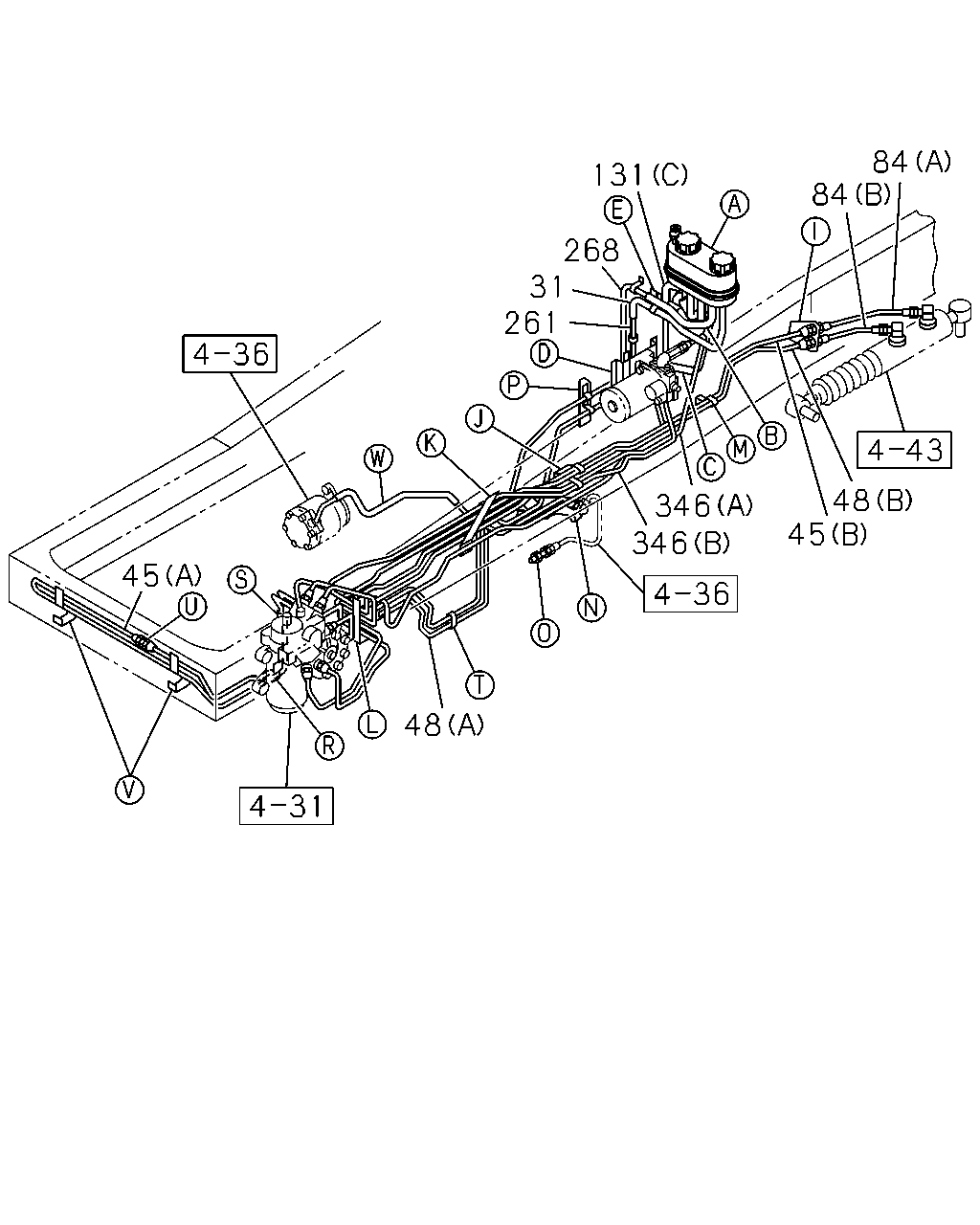

84 84 131 268 261 31 45 48 346 346 48 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL	8-98199-951-1	01	1	1305-
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98238-530-0	01	1	1305-1305
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98246-737-0	01	1	1306-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98199-962-0	01	1	1305-1305
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98246-080-0	01	1	1306-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98238-531-0	01	1	1305-1305
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98246-711-0	01	1	1306-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98239-446-0	01	1	1305-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1305-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1305-
131	HOSE; RUBBER,P/S (A)	8-98199-954-1	01	1	1305-
131	HOSE; RUBBER,P/S (B)	8-98199-955-0	01	1	1305-
131	HOSE; RUBBER,P/S (C)	8-98199-958-1	01	1	1305-
261	PIPE; OIL,UNION TO HOSE	8-98239-528-0	01	1	1305-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98228-055-0	01	1	1305-
346	PIPE; OIL,STRG UNIT (A)	8-98238-532-0	01	1	1305-1305
346	PIPE; OIL,STRG UNIT (A)	8-98246-712-0	01	1	1306-
346	PIPE; OIL,STRG UNIT (B)	8-98238-533-0	01	1	1305-1305
346	PIPE; OIL,STRG UNIT (B)	8-98246-713-0	01	1	1306-

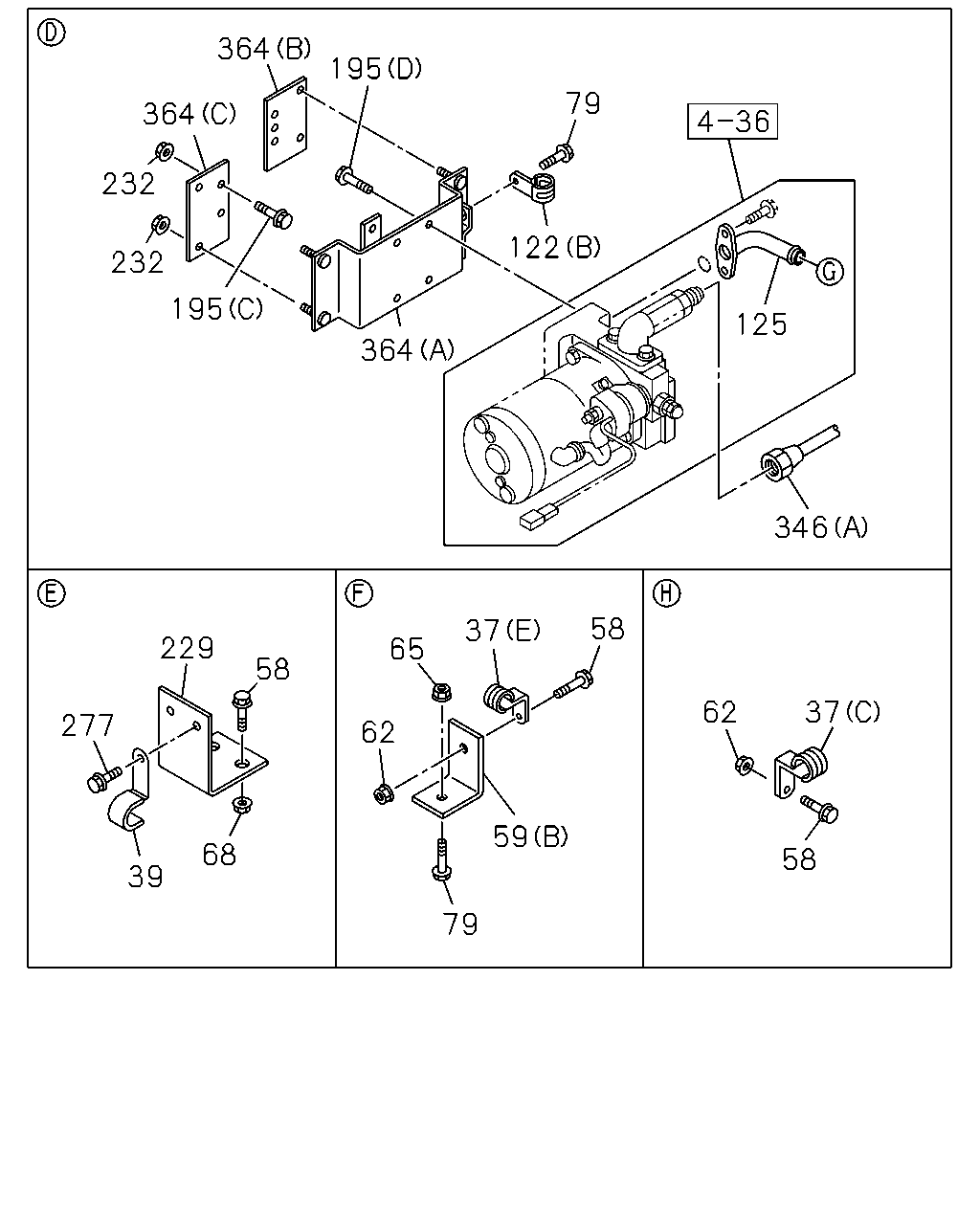

364 364 195 232 232 364 195 122 79 125 346 37 65 58 229 277 39 79 68 62 59 58 62 37 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	CLIP; HOSE,P/S (E) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1305-
37	CLIP; HOSE,P/S (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1305-
37	CLIP; HOSE,P/S (D) ID=28 L=32	1-09701-107-1	01	1	1305-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1305-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1305-
39	CLIP; FLEX HOSE ID=37 L=35	1-09701-109-0	01	1	1305-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1305-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	1305-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	08	1	1305-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1305-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	01	1	1305-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	1305-
59	BRACKET; CLIP,OIL PIPE (B)	1-47471-098-0	01	1	1305-
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	1305-
59	BRACKET; CLIP,OIL PIPE (D)	1-47479-521-0	02	1	1305-
59	BRACKET; CLIP,OIL PIPE (C)	8-98239-921-0	01	1	1305-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1305-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1305-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1305-1305
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
65	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	1306-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1305-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1305-
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91180-210-0	02	1	1305-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1305-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1305-
79	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1305-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1305-
122	CLIP; PIPE,P/S (B) ID=13 L=20	0-95235-235-0	01	1	1305-
122	CLIP; PIPE,P/S (C) ID=13X2 L=20	0-95325-235-0	02	1	1305-
122	CLIP; PIPE,P/S (A) ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	1305-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1305-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1305-
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1305-
195	BOLT; BRKT (D) M10X16 FLANGE	0-28051-016-0	04	1	1305-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	1305-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	12	1	1305-
195	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	04	1	1305-
229	BRACKET; HOSE,POWER STRG	1-21464-780-0	01	1	1305-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	1305-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1305-
346	PIPE; OIL,STRG UNIT (A)	8-98238-532-0	01	1	1305-1305
346	PIPE; OIL,STRG UNIT (A)	8-98246-712-0	01	1	1306-
346	PIPE; OIL,STRG UNIT (B)	8-98238-533-0	01	1	1305-1305
346	PIPE; OIL,STRG UNIT (B)	8-98246-713-0	01	1	1306-
364	BRACKET; PUMP (A)	1-47471-090-2	01	1	1305-
364	BRACKET; PUMP (B)	1-47471-270-0	01	1	1305-
364	BRACKET; PUMP (C)	1-47479-956-0	01	1	1305-

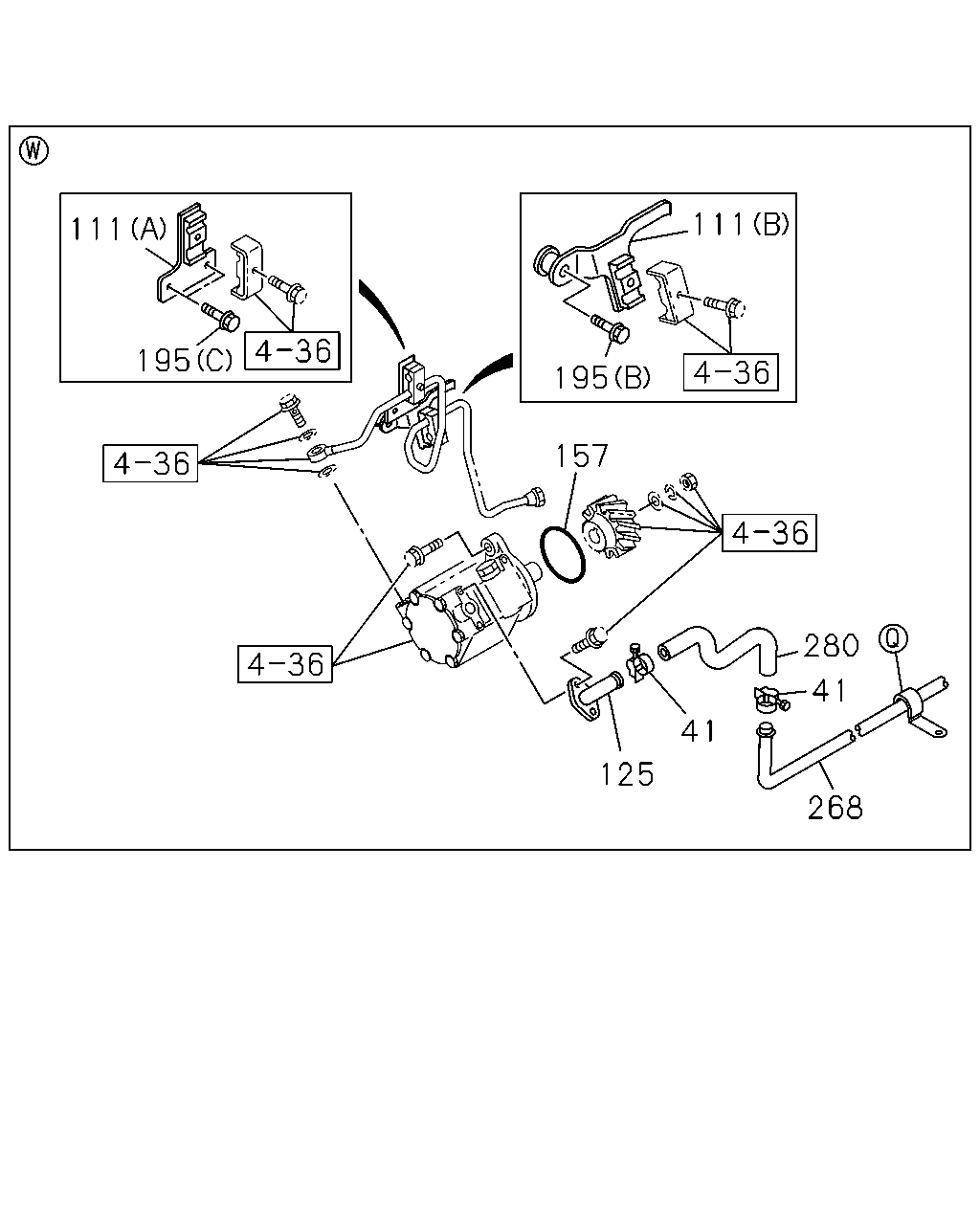

111 195 157 195 111 41 125 268 280 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	1305-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	1305-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	1305-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1305-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	1305-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	1305-
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1305-
195	BOLT; BRKT (D) M10X16 FLANGE	0-28051-016-0	04	1	1305-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	1305-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	12	1	1305-
195	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	04	1	1305-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98228-055-0	01	1	1305-
280	HOSE; P/S OIL PUMP,INL	8-98228-354-0	01	1	1305-

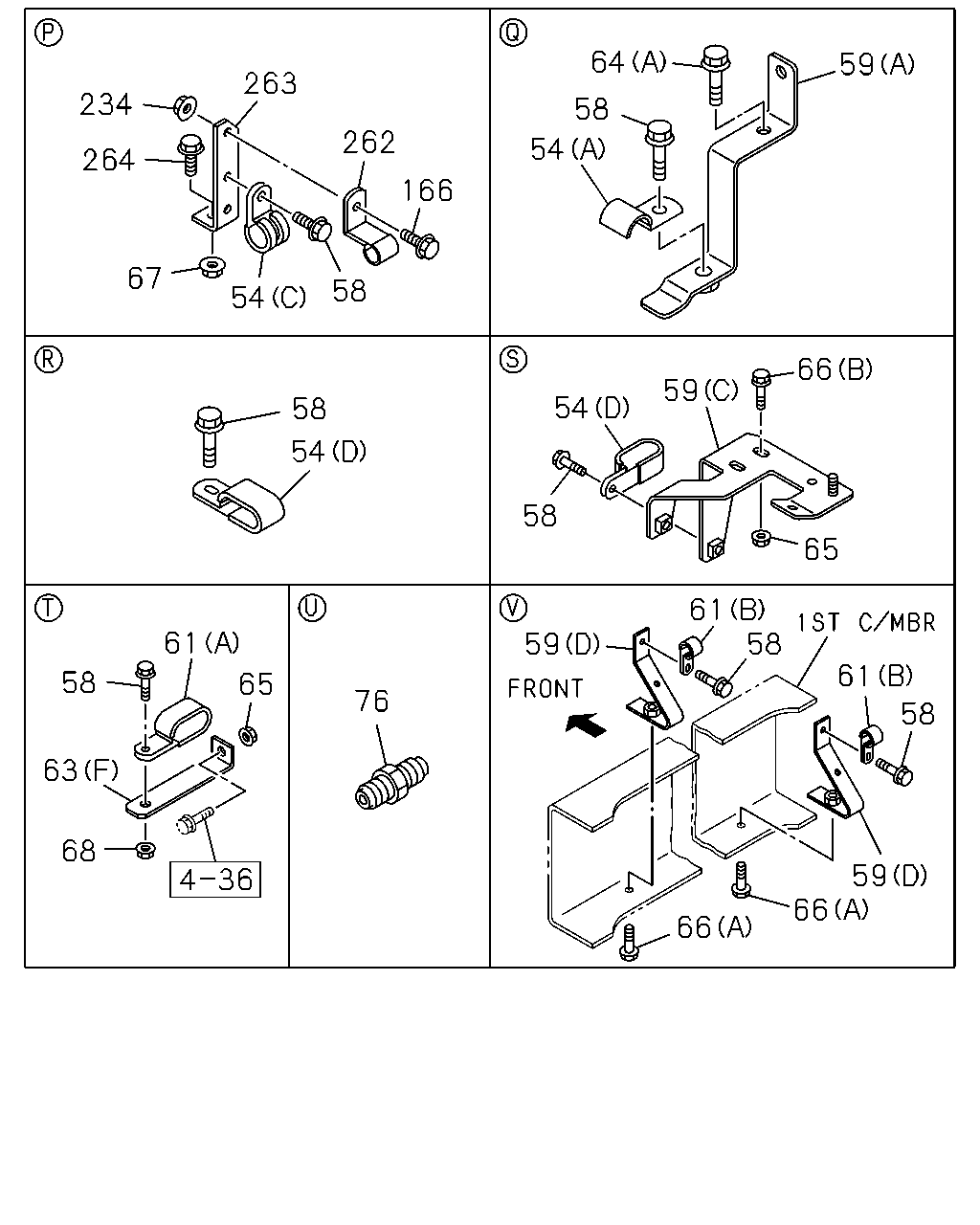

263 262 58 166 54 67 264 234 58 54 61 65 58 63 68 76 59 58 54 59 66 61 61 58 59 66 66 58 54 58 64 59 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (D) ID=13X2 L=20	0-95325-235-0	01	1	1305-
54	CLIP; OIL PIPE (D) ID=13X2 L=20	0-95325-235-0	02	1	1305-
54	CLIP; OIL PIPE (D) ID=16X2 L=20	0-95325-535-0	02	1	1305-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1305-
54	CLIP; OIL PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	1305-
54	CLIP; OIL PIPE (C) ID=26 L=27	1-09701-006-0	01	1	1305-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1305-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	1305-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	08	1	1305-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1305-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	01	1	1305-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	1305-
59	BRACKET; CLIP,OIL PIPE (B)	1-47471-098-0	01	1	1305-
59	BRACKET; CLIP,OIL PIPE (A)	1-47471-183-0	01	1	1305-
59	BRACKET; CLIP,OIL PIPE (D)	1-47479-521-0	02	1	1305-
59	BRACKET; CLIP,OIL PIPE (C)	8-98239-921-0	01	1	1305-
61	CLIP; OIL PIPE (B) ID=16 L=20	0-95235-535-0	03	1	1305-
61	CLIP; OIL PIPE (A) ID=16X2 L=20	0-95325-535-0	02	1	1305-
63	BRACKET; CLIP,P/S MJX16P M/T(Y3Z) (F) L=112	1-47475-694-1	01	1	1306-
63	BRACKET; CLIP,P/S (B)	8-98238-529-0	01	1	1305-
63	BRACKET; CLIP,P/S (C)	1-47471-364-1	01	1	1305-
63	BRACKET; CLIP,P/S (D) L=40	1-47478-410-0	01	1	1305-
63	BRACKET; CLIP,P/S (E)	8-98199-230-1	01	1	1305-
63	BRACKET; CLIP,P/S (A)	8-98199-774-0	01	1	1305-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1305-
64	BOLT; CLIP BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1305-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1305-1305
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
65	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	1306-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1305-
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28650-820-0	02	1	1305-
66	BOLT; BRKT,OIL PIPE (B) M8X30 FLANGE	0-28650-830-0	02	1	1305-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1305-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1305-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	1305-
68	NUT; CLIP,OIL PIPE M10 FLANGE	0-91180-210-0	02	1	1305-
76	UNION; OIL PIPE M22 L=51	0-92123-015-0	01	1	1305-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1305-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1305-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	1305-
262	CLIP; P/S PIPE ID=15 H=24 L=20	1-09700-606-0	01	1	1305-
263	BRACKET; P/S PIPE	1-47471-191-1	01	1	1305-
264	BOLT; PIPE BRKT M8X35 FLANGE	0-28650-835-0	01	1	1305-

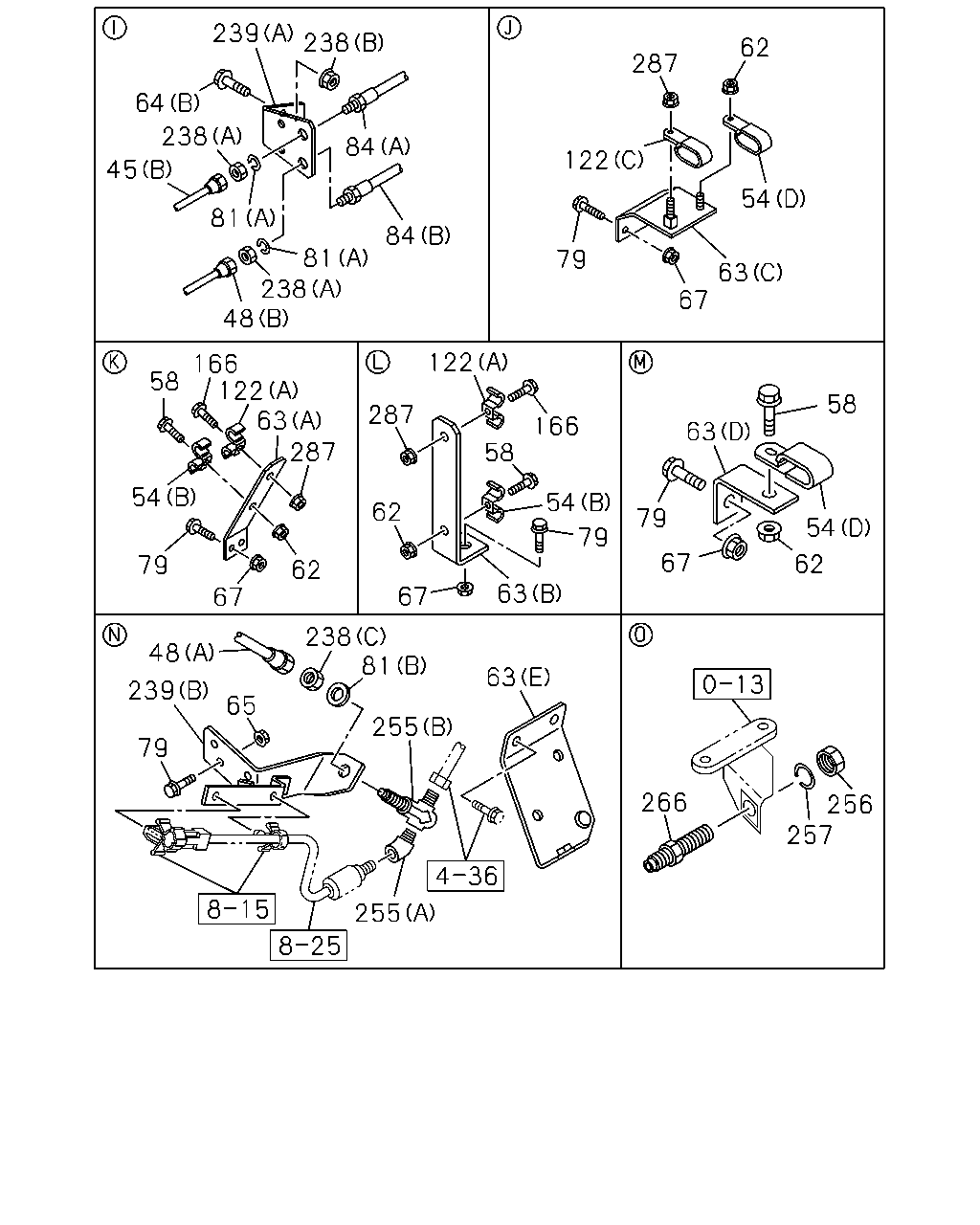

239 64 45 238 81 238 48 81 84 84 238 287 62 122 79 67 63 54 58 54 63 79 67 62 256 257 266 63 255 81 238 48 239 65 79 255 122 287 62 67 63 54 58 166 79 166 58 54 79 67 287 62 63 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98238-530-0	01	1	1305-1305
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98246-737-0	01	1	1306-
45	PIPE; OIL,P/S UNIT TO UNION (A)	8-98199-962-0	01	1	1305-1305
45	PIPE; OIL,P/S UNIT TO UNION (B)	8-98246-080-0	01	1	1306-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98238-531-0	01	1	1305-1305
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98246-711-0	01	1	1306-
48	PIPE; OIL,FLEX HOSE TO STRG UNIT (A)	8-98239-446-0	01	1	1305-
54	CLIP; OIL PIPE (D) ID=13X2 L=20	0-95325-235-0	01	1	1305-
54	CLIP; OIL PIPE (D) ID=13X2 L=20	0-95325-235-0	02	1	1305-
54	CLIP; OIL PIPE (D) ID=16X2 L=20	0-95325-535-0	02	1	1305-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	01	1	1305-
54	CLIP; OIL PIPE (B) ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	1305-
54	CLIP; OIL PIPE (C) ID=26 L=27	1-09701-006-0	01	1	1305-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1305-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	1305-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	08	1	1305-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1305-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	01	1	1305-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	1305-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1305-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1305-
63	BRACKET; CLIP,P/S MJX16P M/T(Y3Z) (F) L=112	1-47475-694-1	01	1	1306-
63	BRACKET; CLIP,P/S (B)	8-98238-529-0	01	1	1305-
63	BRACKET; CLIP,P/S (C)	1-47471-364-1	01	1	1305-
63	BRACKET; CLIP,P/S (D) L=40	1-47478-410-0	01	1	1305-
63	BRACKET; CLIP,P/S (E)	8-98199-230-1	01	1	1305-
63	BRACKET; CLIP,P/S (A)	8-98199-774-0	01	1	1305-
64	BOLT; CLIP BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1305-
64	BOLT; CLIP BRKT (B) M8X35 FLANGE	0-28650-835-0	02	1	1305-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1305-1305
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
65	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	1306-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1305-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1305-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1305-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1305-
79	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	03	1	1305-
79	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	02	1	1305-
79	BOLT; BRKT M8X35 FLANGE	0-28650-835-0	02	1	1305-
81	WASHER; LK,FLEX HOSE (A) ID=20.2	0-91510-520-0	02	1	1305-
81	WASHER; LK,FLEX HOSE (B) ID=22.5	0-91510-522-0	01	1	1305-
84	HOSE; FLEX,P/S (A) L=430	0-89538-430-0	01	1	1305-
84	HOSE; FLEX,P/S (B) L=320	1-09365-039-0	01	1	1305-
122	CLIP; PIPE,P/S (B) ID=13 L=20	0-95235-235-0	01	1	1305-
122	CLIP; PIPE,P/S (C) ID=13X2 L=20	0-95325-235-0	02	1	1305-
122	CLIP; PIPE,P/S (A) ID=13 & 13 L=18 & 18	1-09700-833-0	01	1	1305-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1305-
166	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1305-
238	NUT; FLEX HOSE (A) M20	0-91111-520-0	02	1	1305-
238	NUT; FLEX HOSE (C) M22	0-91111-522-0	01	1	1305-
238	NUT; FLEX HOSE (B) M8 FLANGE	0-91180-108-0	02	1	1305-
239	BRACKET; FLEX HOSE (A)	1-47479-146-0	01	1	1305-
239	BRACKET; FLEX HOSE (B)	8-98231-293-0	01	1	1305-
255	UNION; FLEX HOSE (B)	1-09656-769-0	01	1	1305-
255	UNION; FLEX HOSE (A) R1/4 & RC1/4	1-09664-211-0	01	1	1305-
256	NUT; UNION M22	0-91111-522-0	01	1	1305-
257	WASHER; LK,UNION ID=22.5	0-91510-522-0	01	1	1305-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	1305-
287	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1305-

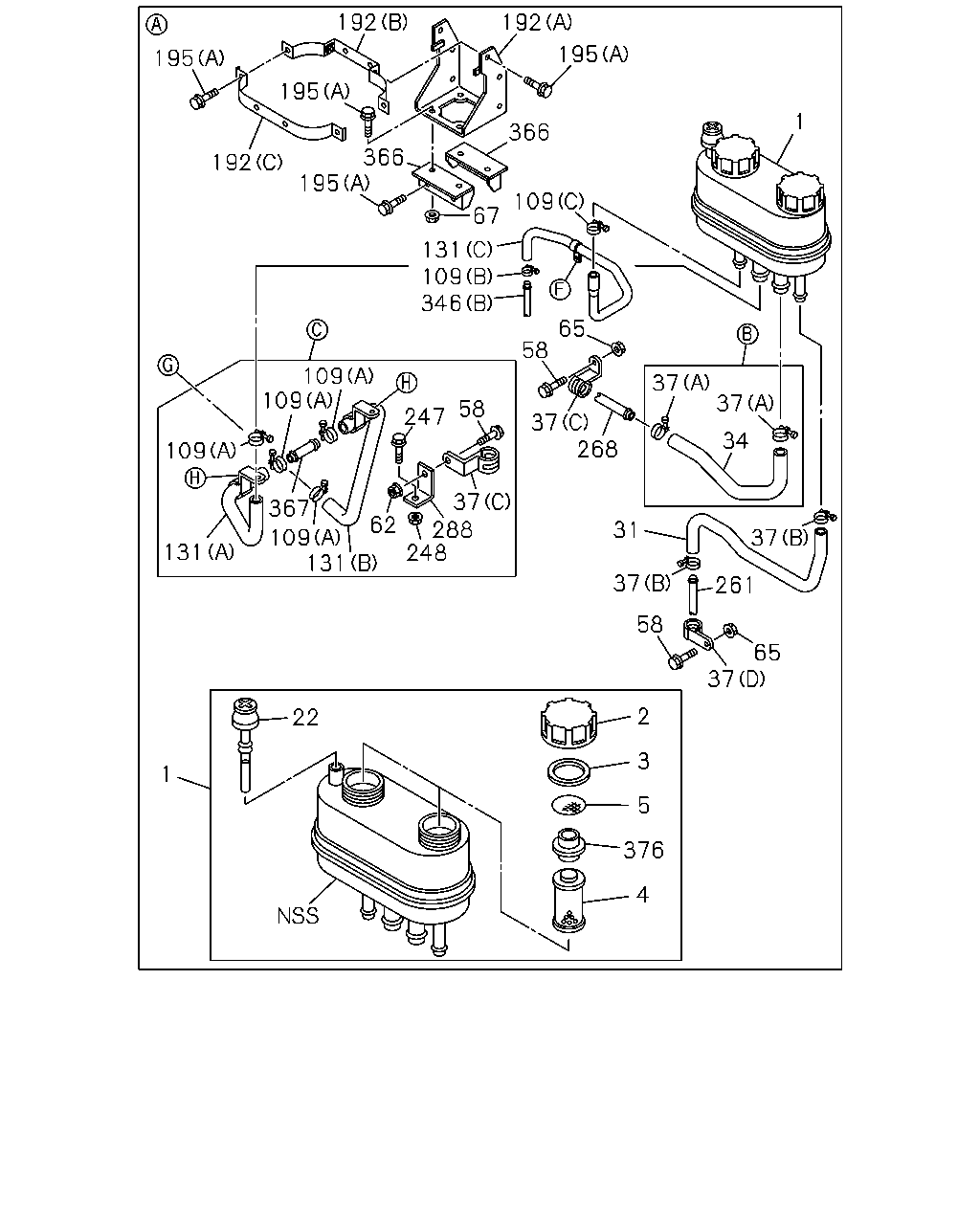

195 195 192 366 195 192 192 366 195 109 67 131 346 109 65 58 37 31 37 34 37 37 37 268 1 261 65 37 58 109 109 109 131 109 131 248 62 367 288 58 247 37 4 376 5 3 2 22 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98198-903-0	01	1	1305-
2	CAP; OIL TANK,P/S	8-98217-630-0	02	1	1305-
3	GASKET; OIL TANK,P/S	8-98217-631-0	02	1	1305-
4	FILTER; OIL TANK,P/S	8-98217-634-0	02	1	1305-
5	STRAINER; OIL TANK,P/S	8-98217-632-0	02	1	1305-
22	GAUGE; OIL TANK,P/S	8-98217-629-0	01	1	1305-
31	HOSE; P/S OIL TANK,INL	8-98199-951-1	01	1	1305-
34	HOSE; P/S OIL TANK,OUTLET	8-98199-952-1	01	1	1305-
37	CLIP; HOSE,P/S (E) ID=24.5 H=23 L=25	1-09700-862-0	02	1	1305-
37	CLIP; HOSE,P/S (C) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	1305-
37	CLIP; HOSE,P/S (D) ID=28 L=32	1-09701-107-1	01	1	1305-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	1305-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	1305-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	1305-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	04	1	1305-
58	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	08	1	1305-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	1305-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	01	1	1305-
58	BOLT; CLIP M10X25 FLANGE	0-28651-025-0	02	1	1305-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	1305-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	1305-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1305-1305
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1306-
65	NUT; BRKT MJX16P M/T(Y3Z) M8 FLANGE	0-91180-108-0	01	1	1306-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	1305-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	1305-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1305-
109	CLIP; RUBBER HOSE (B) ID=26	1-09707-108-0	01	1	1305-
109	CLIP; RUBBER HOSE (A) ID=38	9-09915-041-1	04	1	1305-
109	CLIP; RUBBER HOSE (C) ID=28	9-09915-672-1	01	1	1305-
131	HOSE; RUBBER,P/S (A)	8-98199-954-1	01	1	1305-
131	HOSE; RUBBER,P/S (B)	8-98199-955-0	01	1	1305-
131	HOSE; RUBBER,P/S (C)	8-98199-958-1	01	1	1305-
192	BRACKET; P/S OIL TANK (A)	8-98199-769-1	01	1	1305-
192	BRACKET; P/S OIL TANK (B)	8-98199-770-0	01	1	1305-
192	BRACKET; P/S OIL TANK (C)	8-98199-771-0	01	1	1305-
195	BOLT; BRKT (C) M8X12 FLANGE	0-28050-812-0	02	1	1305-
195	BOLT; BRKT (D) M10X16 FLANGE	0-28051-016-0	04	1	1305-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28151-035-0	01	1	1305-
195	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	12	1	1305-
195	BOLT; BRKT (C) M8X35 FLANGE	0-28650-835-0	04	1	1305-
247	BOLT; BRKT,CLIP M8X20 FLANGE	0-28650-820-0	01	1	1305-
248	NUT; BRKT,CLIP M8 FLANGE	0-91180-108-0	01	1	1305-
261	PIPE; OIL,UNION TO HOSE	8-98239-528-0	01	1	1305-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98228-055-0	01	1	1305-
288	BRACKET; CLIP,P/S	1-47471-098-0	01	1	1305-
346	PIPE; OIL,STRG UNIT (A)	8-98238-532-0	01	1	1305-1305
346	PIPE; OIL,STRG UNIT (A)	8-98246-712-0	01	1	1306-
346	PIPE; OIL,STRG UNIT (B)	8-98238-533-0	01	1	1305-1305
346	PIPE; OIL,STRG UNIT (B)	8-98246-713-0	01	1	1306-
366	SPACER; BRKT TO MEMBER	1-21489-196-1	02	1	1305-
367	NIPPLE; HOSE	1-21117-691-0	01	1	1305-
376	BOLT	8-98217-633-0	02	1	1305-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
