Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11542 - FXZ/GXZ CNG(THAI)EU3
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

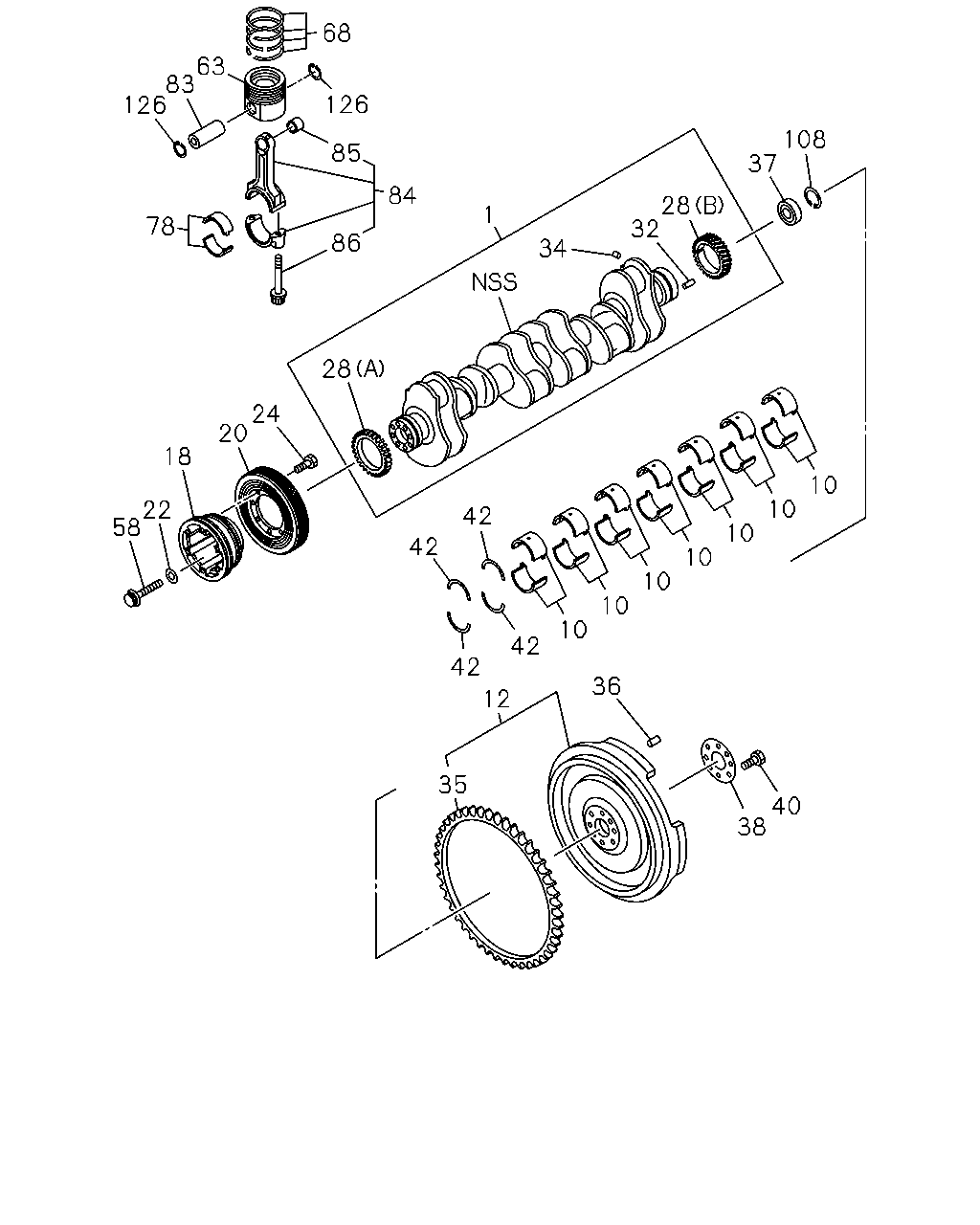

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#119613) — 30 parça
108
37
28
32
34
1
84
86
85
126
68
63
83
126
78
28
24
20
18
22
58
42
42
42
42
10
10
10
10
10
10
10
36
12
35
38
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
THA
8-97603-046-5
01
1
1305-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97609-768-0
07
1
1305-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97609-769-0
07
1
1305-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97609-770-0
07
1
1305-
12
FLYWHEEL
1-12330-553-0
01
1
1305-
18
PULLEY; CR/SHF
1-GROOVE
8-97603-953-0
01
1
1305-
20
DAMPER; CR/SHF
1-12375-195-0
01
1
1305-
22
PLATE; PULLEY
ID=17 OD=30
9-09851-935-0
04
1
1305-
24
BOLT; DAMPER
M12X25 FLANGE
0-28161-225-0
08
1
1305-
28
GEAR; CR/SHF
(A)
8-97607-583-1
01
1
1305-
28
GEAR; CR/SHF
(B)
8-98002-332-1
01
1
1305-
32
PIN; FLYWHEEL
OD=8 L=16
9-08150-816-0
01
1
1305-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1305-
35
GEAR; RING
Z=139
1-12333-013-1
01
1
1305-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
1305-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-257-0
01
1
1305-
38
WASHER; FLYWHEEL
1-12336-006-0
01
1
1305-
40
BOLT; FLYWHEEL
1-09070-146-1
08
1
1305-
42
WASHER; THRUST,CR/SHF
8-98106-007-0
04
1
1305-
58
BOLT; CR/SHF PULLEY
M16X70 FLANGE
0-28861-670-0
04
1
1305-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=AX
8-98206-358-0
06
1
1305-
63
PISTON
ALSO INCLUDED IN LINER SET. GRADE=CX
8-98206-359-0
06
1
1305-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. THA
8-98056-464-1
06
1
1305-
78
METAL; CONNROD
THA
8-97605-484-0
06
1
1305-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-97603-263-0
06
1
1305-
84
ROD ASM; CONN
8-98044-950-0
06
1
1305-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-051-0
06
1
1305-
86
BOLT; CONNROD
1-12235-046-0
12
1
1305-
108
RING; SNAP,BRG SET
OD=67.2
9-09180-163-0
01
1
1305-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-075-1
12
1
1305-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
