9-01 — TOOLS (#119612) — 25 parça

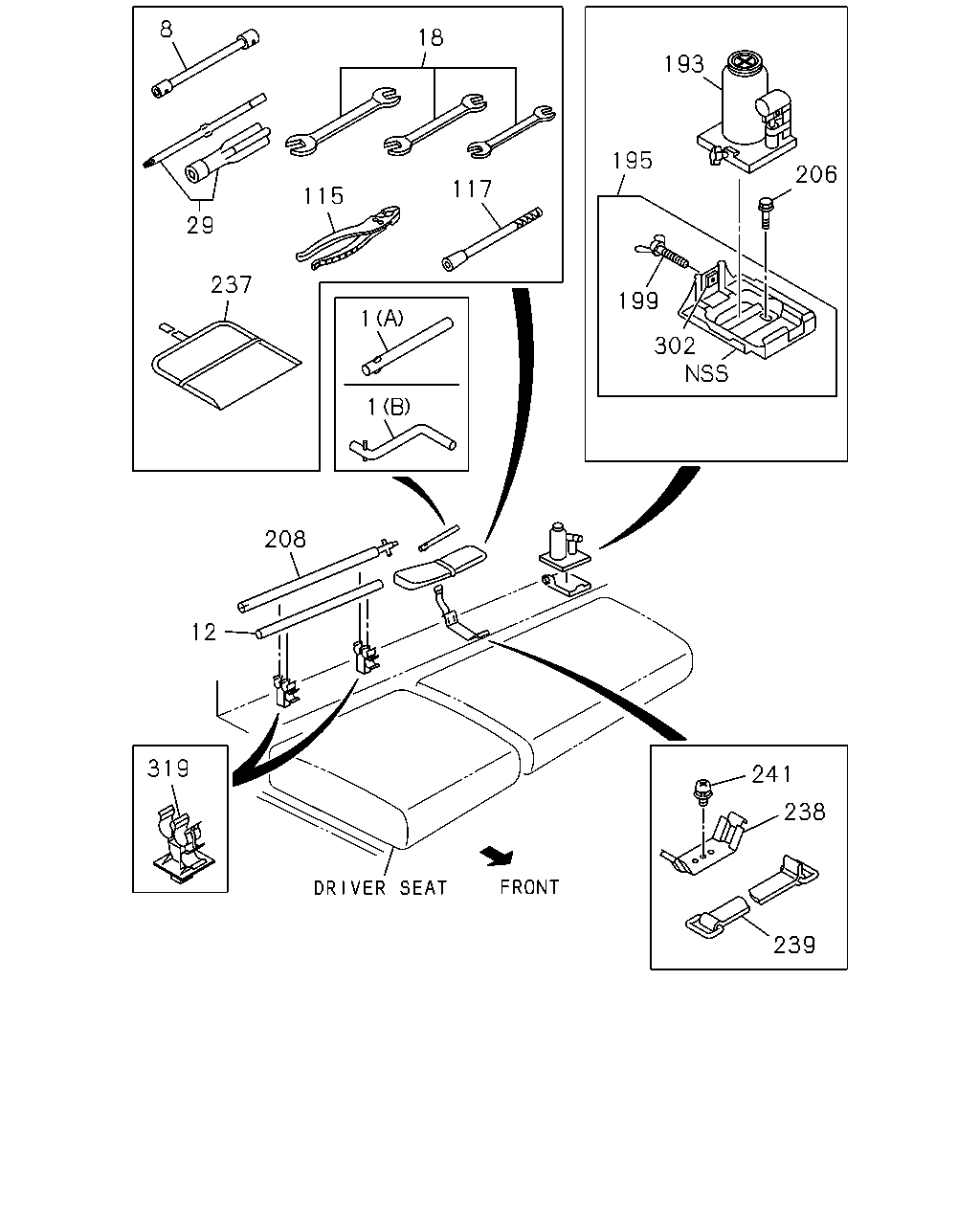

çizim 351815
241 238 239 208 12 319 1 1 237 29 115 117 195 199 302 206 193 18 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> (A) L=280 IMA 		8-98181-251-0 01 1 1304- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 3400MM<34W> (A) L=280 IMA 		8-98181-251-0 01 1 1304- ●
1 HANDLE; SPARE TIRE CARRIER
WHEEL BASE 4100MM<41W> (B) IMA 		8-97218-985-0 01 1 1304- ●
8 WRENCH; WHEEL
B=41X21 L=440 IMA 		1-85113-015-1 01 1 1304- ● ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM<41W> OD=25 L=480 IMA 		1-85116-011-0 01 1 1304-1407 ●
12 HANDLE; WRENCH,WHEEL PIN
WHEEL BASE 4100MM<41W> OD=25 L=480 IMA 		8-98257-407-0 01 1 1408- ●
18 WRENCH KIT
IMA 		9-85161-902-0 01 1 1304- ● ●
29 DRIVER; SCREW
<+>,<-> L=160 IMA 		8-94242-798-1 01 1 1304- ● ●
115 PLIER
IMA 		5-85171-002-0 01 1 1304-1410 ● ●
115 PLIER 8-98282-845-0 01 1 1411- ● ●
117 WRENCH; VALVE CAP
IMA 		9-85163-906-1 01 1 1304- ● ●
193 JACK ASM
5TON IMA 		8-98114-047-0 01 1 1304- ●
193 JACK ASM
5TON IMA 		8-98114-045-0 01 1 1304- ●
195 BRACKET; JACK
IMA 		8-97589-376-2 01 1 1304- ● ●
199 BOLT; JACK
M8X30 WING IMA 		8-98005-536-0 01 1 1304- ● ●
206 SCREW; OIL JACK BRKT
BOLT M8X25 FLANGE THA 		0-28650-825-0 01 1 1304- ● ●
208 HANDLE; JACK
WHEEL BASE 3400MM<34W>,WHEEL BASE 3800MM<38W> L=580 IMA 		8-98181-249-0 01 1 1304- ●
208 HANDLE; JACK
WHEEL BASE 3400MM<34W> L=580 IMA 		8-98181-249-0 01 1 1304- ●
208 HANDLE; JACK
WHEEL BASE 4100MM<41W> FRAME STRAIGHT TYPE<7KJ> L=642 IMA 		8-98181-477-0 01 1 1304- ●
237 BAG; TOOL
IMA 		8-97130-903-1 01 1 1304- ● ●
238 SUPPORT; TOOL BAG
IMA 		8-97994-977-0 01 1 1304- ● ●
239 BAND; TOOL BAG
L=100 IMA 		5-73997-026-1 01 1 1304- ● ●
241 SCREW; TOOL BAG SUPPORT
M6X16 IMA 		0-38050-616-0 01 1 1304- ● ●
302 NUT; JACK BRKT
IMA 		8-98021-556-0 01 1 1304- ● ●
319 CLIP; TOOL BAR
IMA 		8-97853-077-2 02 1 1304- ● ●
