Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#119611) — 285 parça

118 115 508 506 423 527 528 300 529 268 510 93 511 507 135 314 132 108 507 325 480 408 408 408

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9 IMA	8-97254-734-0	01	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1 IMA	8-97254-740-0	01	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3 IMA	8-97254-742-0	01	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9 IMA	8-97254-735-0	01	1	1304-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1 IMA	8-97254-738-0	01	1	1304-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3 IMA	8-97254-741-0	01	1	1304-		●
108	SHAFT; COUNTER Z=47-39-33-20 IMA	8-97380-627-1	01	1	1304-	●
108	SHAFT; COUNTER Z=46-38-29-21	8-98113-224-0	01	1	1304-1308		●
108	SHAFT; COUNTER Z=46-38-29-21 IMA	8-98249-489-0	01	1	1309-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-	●	●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75 IMA	8-97253-113-0	01	1	1304-	●	●
118	GEAR; 6TH,COUNTER Z=50 IMA	8-97386-580-0	01	1	1304-	●
118	GEAR; 6TH,COUNTER Z=47 IMA	8-97241-246-0	01	1	1304-		●
132	SHAFT; REV IMA	8-97252-655-0	01	1	1304-	●	●
135	GEAR; REV IDLER Z=25 IMA	8-98031-869-1	01	1	1304-	●
135	GEAR; REV IDLER Z=26 IMA	8-97241-292-2	01	1	1304-		●
268	PLATE; ANTI LASH,COUNTER IMA	8-97252-684-1	01	1	1304-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7 IMA	8-97254-727-0	01	1	1304-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.8 IMA	8-97254-728-0	01	1	1304-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9 IMA	8-97254-734-0	01	1	1304-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6 IMA	8-97365-617-0	01	1	1304-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7 IMA	8-97288-618-0	01	1	1304-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8 IMA	8-97288-619-0	01	1	1304-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9 IMA	8-97288-620-0	01	1	1304-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6 IMA	8-97365-616-0	01	1	1304-		●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-97253-114-0	01	1	1304-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29 IMA	8-97252-666-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35 IMA	8-97252-667-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41 IMA	8-97252-668-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47 IMA	8-97252-669-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53 IMA	8-97252-670-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59 IMA	8-97252-671-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65 IMA	8-97252-672-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71 IMA	8-97252-673-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77 IMA	8-97252-674-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83 IMA	8-97252-675-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89 IMA	8-97257-622-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11 IMA	8-97306-188-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17 IMA	8-97306-189-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23 IMA	8-97306-190-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38 IMA	8-97252-656-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44 IMA	8-97252-657-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50 IMA	8-97252-658-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56 IMA	8-97252-659-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62 IMA	8-97252-660-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68 IMA	8-97252-661-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74 IMA	8-97252-662-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80 IMA	8-97252-663-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86 IMA	8-97252-664-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92 IMA	8-97252-665-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98 IMA	8-97257-621-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20 IMA	8-97306-185-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26 IMA	8-97306-186-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32 IMA	8-97306-187-0	01	1	1304-		●
408	SPRING (B) IMA	8-94148-196-0	03	1	1304-	●
408	SPRING (A) IMA	8-97366-040-1	04	1	1304-	●
423	SLEEVE & HUB ASM; 6TH IMA	8-97367-022-0	01	1	1304-	●
480	WASHER; THRUST,6TH IMA	8-97253-123-1	01	1	1304-	●
480	WASHER; THRUST,6TH IMA	8-97253-122-1	01	1	1304-		●
506	COLLAR; 6TH,COUNTER IMA	8-97253-121-1	01	1	1304-	●
506	COLLAR; 6TH,COUNTER IMA	8-97253-120-1	01	1	1304-		●
507	BEARING; COUNTER SHAFT,FRT & RR IMA	8-97253-107-0	02	1	1304-	●
507	BEARING; COUNTER SHAFT,FRT & RR IMA	8-97253-106-0	02	1	1304-		●
508	RING; BLOCK,6TH Z=45 IMA	8-97309-532-0	01	1	1304-	●
508	RING; BLOCK,6TH Z=45 IMA	8-97241-306-1	01	1	1304-		●
510	PIN; STRAIGHT,ANTI LASH IMA	9-08160-825-0	03	1	1304-	●
511	RING; SNAP,ANTI LASH PLATE IMA	8-97254-767-0	01	1	1304-	●
527	INSERT; 6TH IMA	8-94448-202-2	03	1	1304-	●
528	SLEEVE; 6TH Z=45 IMA	8-94421-871-1	01	1	1304-	●
529	PLATE; STOPPER,6TH IMA	8-97248-952-0	01	1	1304-	●

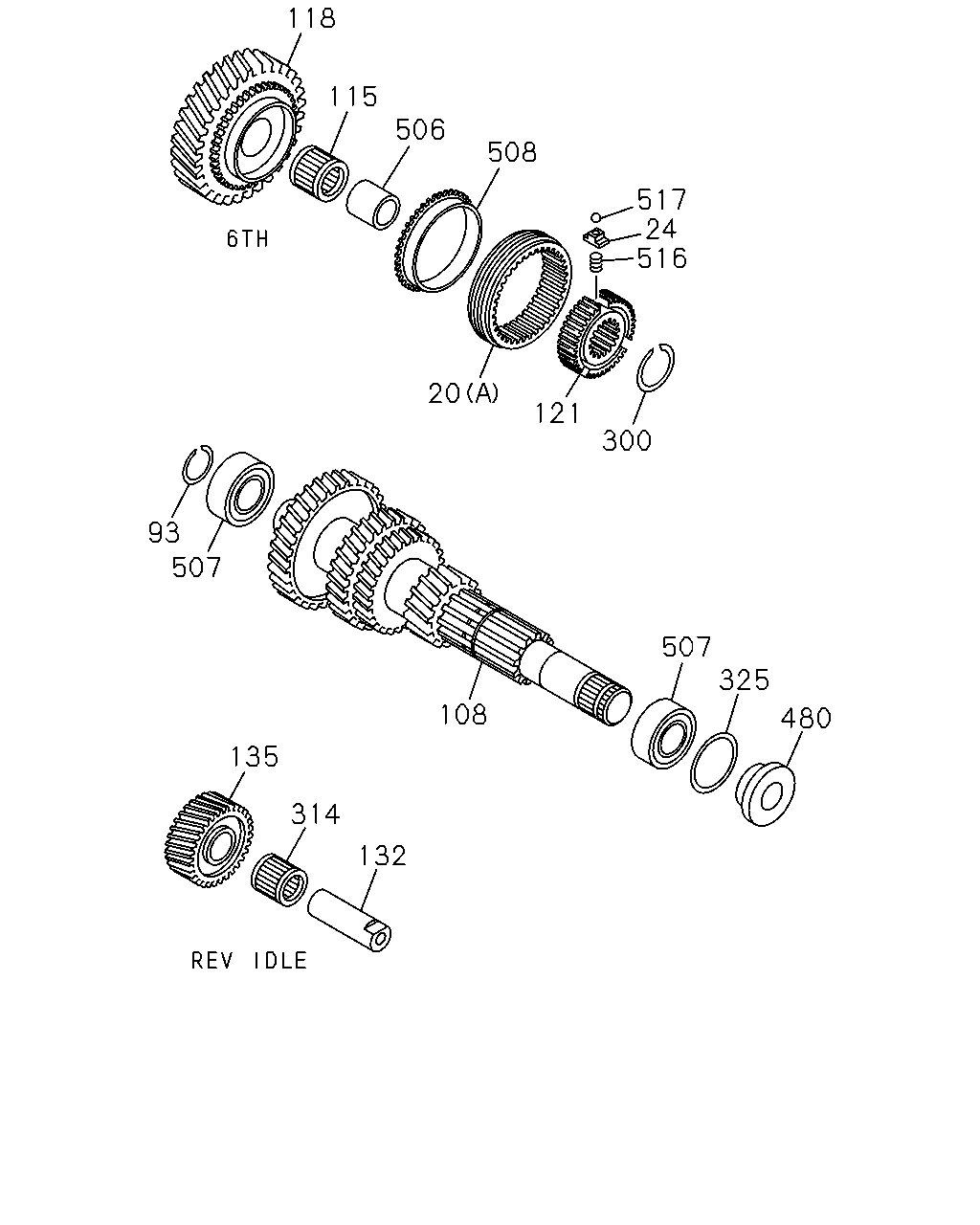

118 115 508 506 517 516 24 300 121 93 108 507 507 325 480 135 314 132 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	SLEEVE (B) Z=54 IMA	8-97241-295-2	02	1	1304-		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1304-1311		●
20	SLEEVE (A) Z=45 IMA	8-98258-279-0	02	1	1312-		●
24	BLOCK; INDEX,SYN IMA	8-97241-313-1	06	1	1304-	●
24	BLOCK; INDEX,SYN IMA	8-97241-313-1	12	1	1304-		●
24	BLOCK; INDEX,SYN IMA	8-97241-313-1	06	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=1.9 IMA	8-97254-734-0	01	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.1 IMA	8-97254-740-0	01	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG ID=30.7 T=2.3 IMA	8-97254-742-0	01	1	1304-	●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=1.9 IMA	8-97254-735-0	01	1	1304-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.1 IMA	8-97254-738-0	01	1	1304-		●
93	RING; SNAP,COUNTER FRT BRG ID=34.4 T=2.3 IMA	8-97254-741-0	01	1	1304-		●
108	SHAFT; COUNTER Z=47-39-33-20 IMA	8-97380-627-1	01	1	1304-	●
108	SHAFT; COUNTER Z=46-38-29-21	8-98113-224-0	01	1	1304-1308		●
108	SHAFT; COUNTER Z=46-38-29-21 IMA	8-98249-489-0	01	1	1309-		●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.8	8-98286-084-0	01	1	1411-	●	●
115	BEARING; NEEDLE,6TH,COUNTER OD=49.75 IMA	8-97253-113-0	01	1	1304-	●	●
118	GEAR; 6TH,COUNTER Z=50 IMA	8-97386-580-0	01	1	1304-	●
118	GEAR; 6TH,COUNTER Z=47 IMA	8-97241-246-0	01	1	1304-		●
121	HUB; CLU,6TH IMA	8-97241-301-2	01	1	1304-		●
132	SHAFT; REV IMA	8-97252-655-0	01	1	1304-	●	●
135	GEAR; REV IDLER Z=25 IMA	8-98031-869-1	01	1	1304-	●
135	GEAR; REV IDLER Z=26 IMA	8-97241-292-2	01	1	1304-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.7 IMA	8-97254-727-0	01	1	1304-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.8 IMA	8-97254-728-0	01	1	1304-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.9 IMA	8-97254-734-0	01	1	1304-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=30.7 T=1.6 IMA	8-97365-617-0	01	1	1304-	●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.7 IMA	8-97288-618-0	01	1	1304-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.8 IMA	8-97288-619-0	01	1	1304-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.9 IMA	8-97288-620-0	01	1	1304-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=33.2 T=1.6 IMA	8-97365-616-0	01	1	1304-		●
314	BEARING; NEEDLE,REV GEAR NSK IMA	8-97253-114-0	01	1	1304-	●	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.29 IMA	8-97252-666-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.35 IMA	8-97252-667-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.41 IMA	8-97252-668-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.47 IMA	8-97252-669-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.53 IMA	8-97252-670-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.59 IMA	8-97252-671-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.65 IMA	8-97252-672-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.71 IMA	8-97252-673-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.77 IMA	8-97252-674-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.83 IMA	8-97252-675-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.89 IMA	8-97257-622-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.11 IMA	8-97306-188-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.17 IMA	8-97306-189-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=62.7 T=2.23 IMA	8-97306-190-0	01	1	1304-	●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.38 IMA	8-97252-656-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.44 IMA	8-97252-657-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.50 IMA	8-97252-658-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.56 IMA	8-97252-659-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.62 IMA	8-97252-660-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.68 IMA	8-97252-661-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.74 IMA	8-97252-662-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.80 IMA	8-97252-663-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.86 IMA	8-97252-664-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.92 IMA	8-97252-665-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.98 IMA	8-97257-621-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.20 IMA	8-97306-185-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.26 IMA	8-97306-186-0	01	1	1304-		●
325	SHIM; COUNTER SHAFT BRG ID=70 T=1.32 IMA	8-97306-187-0	01	1	1304-		●
480	WASHER; THRUST,6TH IMA	8-97253-123-1	01	1	1304-	●
480	WASHER; THRUST,6TH IMA	8-97253-122-1	01	1	1304-		●
506	COLLAR; 6TH,COUNTER IMA	8-97253-121-1	01	1	1304-	●
506	COLLAR; 6TH,COUNTER IMA	8-97253-120-1	01	1	1304-		●
507	BEARING; COUNTER SHAFT,FRT & RR IMA	8-97253-107-0	02	1	1304-	●
507	BEARING; COUNTER SHAFT,FRT & RR IMA	8-97253-106-0	02	1	1304-		●
508	RING; BLOCK,6TH Z=45 IMA	8-97309-532-0	01	1	1304-	●
508	RING; BLOCK,6TH Z=45 IMA	8-97241-306-1	01	1	1304-		●
516	SPRING; SYNCHRO,INDEX IMA	8-97254-835-0	06	1	1304-	●
516	SPRING; SYNCHRO,INDEX IMA	8-97305-803-1	12	1	1304-		●
517	BALL; SYNCHRO,INDEX IMA	8-97252-935-0	06	1	1304-	●
517	BALL; SYNCHRO,INDEX IMA	8-97252-935-0	12	1	1304-		●

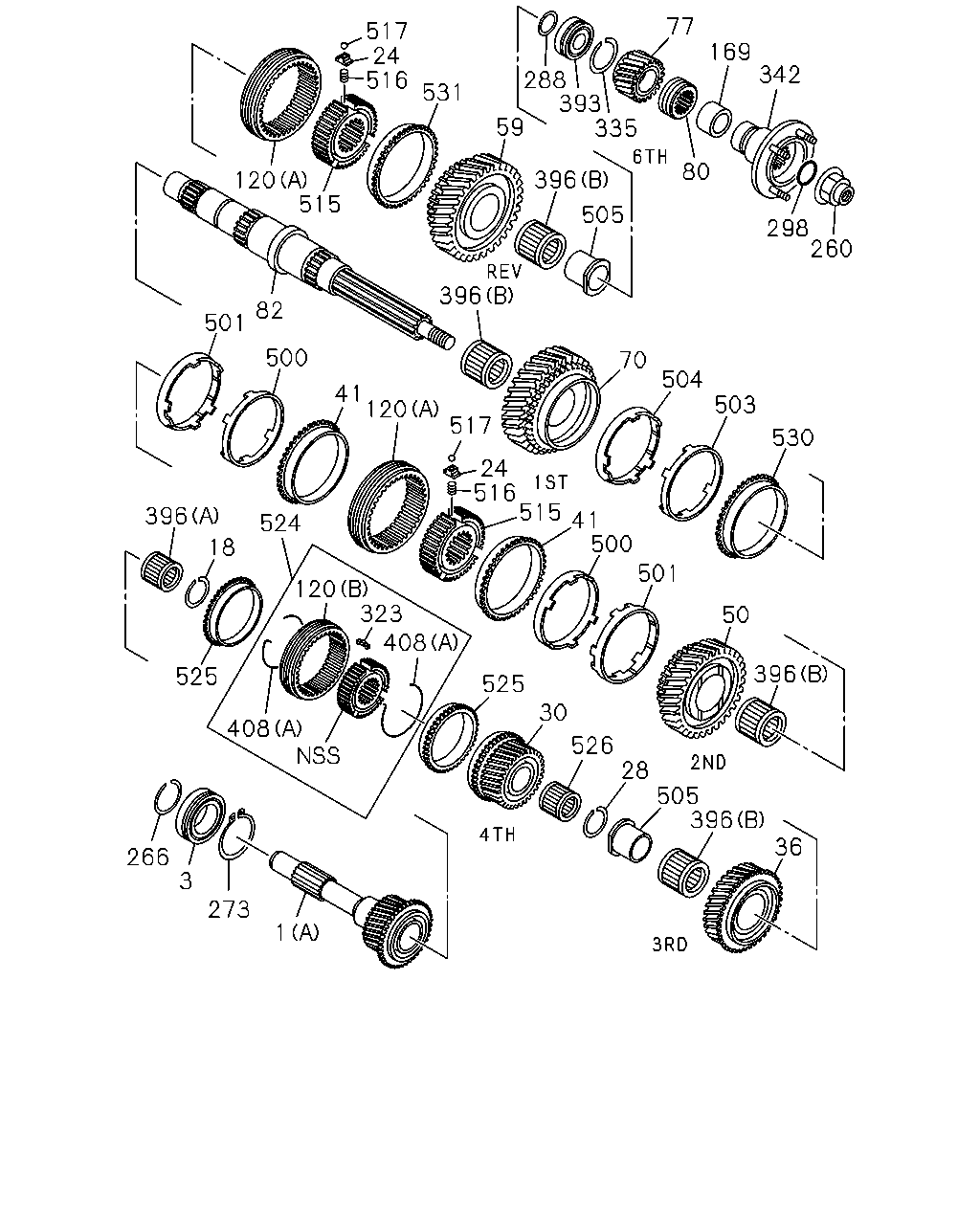

517 77 342 169 260 298 80 335 393 288 59 396 505 396 70 530 503 504 515 531 516 24 120 501 82 41 500 120 396 50 501 500 41 515 516 24 517 36 396 505 28 526 30 525 408 323 120 524 18 396 525 408 273 1 3 266

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS (A) Z=26 IMA	8-98021-266-0	01	1	1304-	●
1	SHAFT; TOP GEAR,TRANS (B) Z=25 IMA	8-97371-090-0	01	1	1304-		●
3	BEARING; TOP GEAR SHAFT NSK IMA	8-97253-098-1	01	1	1304-	●
3	BEARING; TOP GEAR SHAFT NSK IMA	8-97253-097-1	01	1	1304-		●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8 IMA	8-97254-728-0	01	1	1304-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8 IMA	8-97256-855-0	01	1	1304-		●
24	BLOCK; INDEX,SYN IMA	8-97241-313-1	06	1	1304-	●
24	BLOCK; INDEX,SYN IMA	8-97241-313-1	12	1	1304-		●
24	BLOCK; INDEX,SYN IMA	8-97241-313-1	06	1	1304-	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8 IMA	8-97254-743-0	01	1	1304-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28 IMA	8-97241-230-0	01	1	1304-	●
30	GEAR; 4TH,MAINSHAFT Z=28 IMA	8-97252-628-0	01	1	1304-		●
36	GEAR; 3RD,MAINSHAFT Z=34 IMA	8-97241-234-0	01	1	1304-	●
36	GEAR; 3RD,MAINSHAFT Z=31 IMA	8-97252-630-1	01	1	1304-		●
41	RING; BLOCK,2ND & 3RD Z=45 IMA	8-97241-306-1	02	1	1304-	●
41	RING; BLOCK,2ND & 3RD Z=54 IMA	8-97241-305-2	02	1	1304-		●
50	GEAR; 2ND,MAINSHAFT Z=38 IMA	8-97241-237-1	01	1	1304-	●
50	GEAR; 2ND,MAINSHAFT Z=43 IMA	8-97241-236-1	01	1	1304-		●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-97241-244-0	01	1	1304-	●
59	GEAR; REV MAINSHAFT Z=45 IMA	8-97241-243-0	01	1	1304-		●
70	GEAR; 1ST,MAINSHAFT Z=43 IMA	8-97350-010-0	01	1	1304-	●
70	GEAR; 1ST,MAINSHAFT Z=45 IMA	8-97241-241-0	01	1	1304-		●
77	GEAR; 6TH,MAINSHAFT Z=21 IMA	8-97386-582-0	01	1	1304-	●
77	GEAR; 6TH,MAINSHAFT Z=20 IMA	8-97252-634-0	01	1	1304-		●
80	GEAR; SPD DRIVE Z=4 IMA	8-97253-556-0	01	1	1304-	●
80	GEAR; SPD DRIVE Z=4 IMA	8-97253-555-0	01	1	1304-		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21 IMA	8-97253-116-3	01	1	1304-	●
82	SHAFT; MAIN,TRANS Z=26-42-23 IMA	8-97253-115-3	01	1	1304-		●
120	SLEEVE (A) Z=45	8-97241-296-1	02	1	1304-1311	●
120	SLEEVE (A) Z=45 IMA	8-98258-279-0	02	1	1312-	●
120	SLEEVE (B) Z=45 IMA	8-94421-871-1	01	1	1304-	●
169	COLLAR; MAINSHAFT IMA	8-97252-937-1	01	1	1304-	●
260	NUT; MAINSHAFT END M27 H=25 IMA	8-97360-410-0	01	1	1304-	●	●
266	RING; SNAP,BRG INNER IMA	8-97286-916-0	01	1	1304-	●
266	RING; SNAP,BRG INNER IMA	8-97286-915-0	01	1	1304-		●
273	RING; SNAP,BRG OUTER IMA	8-97254-610-0	01	1	1304-	●
273	RING; SNAP,BRG OUTER IMA	8-97254-609-0	01	1	1304-		●
288	SPACER; BRG,MAINSHAFT IMA	8-97252-942-0	01	1	1304-	●
288	SPACER; BRG,MAINSHAFT IMA	8-97252-941-0	01	1	1304-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 IMA	8-98028-226-0	01	1	1304-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 IMA	1-09623-379-0	01	1	1304-		●
323	INSERT IMA	8-94448-202-2	03	1	1304-	●
335	RING; SNAP,BEARING IMA	8-97254-722-0	01	1	1304-	●
335	RING; SNAP,BEARING IMA	8-97254-720-0	01	1	1304-		●
342	FLANGE; OUTPUT IMA	8-98031-862-0	01	1	1304-	●
393	BEARING; MAINSHAFT END IMA	8-97253-105-1	01	1	1304-	●
393	BEARING; MAINSHAFT END IMA	8-97253-104-0	01	1	1304-		●
396	BEARING; NEEDLE,MAINSHAFT (A) IMA	8-97253-102-1	01	1	1304-	●
396	BEARING; NEEDLE,MAINSHAFT (B) IMA	8-97253-110-0	04	1	1304-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A) IMA	8-97253-099-1	01	1	1304-		●
408	SPRING (B) IMA	8-94148-196-0	03	1	1304-	●
408	SPRING (A) IMA	8-97366-040-1	04	1	1304-	●
500	RING; OUTSIDE,3RD & 2ND IMA	8-97241-309-1	02	1	1304-	●
500	RING; OUTSIDE,3RD & 2ND IMA	8-97241-307-1	02	1	1304-		●
501	RING; INSIDE,3RD & 2ND IMA	8-97241-312-1	02	1	1304-	●
501	RING; INSIDE,3RD & 2ND IMA	8-97241-311-1	02	1	1304-		●
503	RING; OUTSIDE,LOW & REV IMA	8-97241-309-1	01	1	1304-	●
503	RING; OUTSIDE,LOW & REV IMA	8-97241-307-1	02	1	1304-		●
504	RING; INSIDE,LOW & REV IMA	8-97241-312-1	01	1	1304-	●
504	RING; INSIDE,LOW & REV IMA	8-97241-311-1	02	1	1304-		●
505	COLLAR; 3RD & REV IMA	8-97253-119-2	02	1	1304-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD IMA	8-97241-298-3	02	1	1304-	●
515	HUB; CLU,1ST & REV,2ND & 3RD IMA	8-97239-155-2	02	1	1304-		●
516	SPRING; SYNCHRO,INDEX IMA	8-97254-835-0	06	1	1304-	●
516	SPRING; SYNCHRO,INDEX IMA	8-97305-803-1	12	1	1304-		●
517	BALL; SYNCHRO,INDEX IMA	8-97252-935-0	06	1	1304-	●
517	BALL; SYNCHRO,INDEX IMA	8-97252-935-0	12	1	1304-		●
524	SLEEVE & HUB ASM; TOP-4TH,OD IMA	8-97366-526-0	01	1	1304-	●
525	RING; BLOCK,TOP & 4TH,OD Z=45 IMA	8-97309-532-0	02	1	1304-	●
526	BEARING; NEEDLE,4TH & 5TH IMA	8-97253-112-0	01	1	1304-	●
530	RING; BLOCK,LOW Z=45 IMA	8-97241-306-1	01	1	1304-	●
530	RING; BLOCK,LOW Z=54 IMA	8-97241-305-2	01	1	1304-		●
531	RING; BLOCK,REV Z=45 IMA	8-97368-343-0	01	1	1304-	●
531	RING; BLOCK,REV Z=54 IMA	8-97241-305-2	01	1	1304-		●

517 516 24 503 531 504 335 393 288 80 260 298 59 82 515 70 530 503 504 501 41 500 517 516 24 41 501 500 50 505 36 28 432 30 19 516 517 515 24 21 273 3 266 19 18 505 77 396 20 396 1 396 396 20 396 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS (A) Z=26 IMA	8-98021-266-0	01	1	1304-	●
1	SHAFT; TOP GEAR,TRANS (B) Z=25 IMA	8-97371-090-0	01	1	1304-		●
3	BEARING; TOP GEAR SHAFT NSK IMA	8-97253-098-1	01	1	1304-	●
3	BEARING; TOP GEAR SHAFT NSK IMA	8-97253-097-1	01	1	1304-		●
18	RING; SNAP,CLU HUB ID=30.7 T=1.8 IMA	8-97254-728-0	01	1	1304-	●
18	RING; SNAP,CLU HUB ID=35.7 T=1.8 IMA	8-97256-855-0	01	1	1304-		●
19	RING; BLOCK,4TH & 5TH Z=45 IMA	8-97241-306-1	02	1	1304-		●
20	SLEEVE (B) Z=54 IMA	8-97241-295-2	02	1	1304-		●
20	SLEEVE (A) Z=45	8-97241-296-1	02	1	1304-1311		●
20	SLEEVE (A) Z=45 IMA	8-98258-279-0	02	1	1312-		●
21	HUB; CLU,4TH & 5TH IMA	8-97241-299-3	01	1	1304-		●
24	BLOCK; INDEX,SYN IMA	8-97241-313-1	06	1	1304-	●
24	BLOCK; INDEX,SYN IMA	8-97241-313-1	12	1	1304-		●
24	BLOCK; INDEX,SYN IMA	8-97241-313-1	06	1	1304-	●
28	RING; SNAP,3RD GEAR ID=46.5 T=1.8 IMA	8-97254-743-0	01	1	1304-	●	●
30	GEAR; 4TH,MAINSHAFT Z=28 IMA	8-97241-230-0	01	1	1304-	●
30	GEAR; 4TH,MAINSHAFT Z=28 IMA	8-97252-628-0	01	1	1304-		●
36	GEAR; 3RD,MAINSHAFT Z=34 IMA	8-97241-234-0	01	1	1304-	●
36	GEAR; 3RD,MAINSHAFT Z=31 IMA	8-97252-630-1	01	1	1304-		●
41	RING; BLOCK,2ND & 3RD Z=45 IMA	8-97241-306-1	02	1	1304-	●
41	RING; BLOCK,2ND & 3RD Z=54 IMA	8-97241-305-2	02	1	1304-		●
50	GEAR; 2ND,MAINSHAFT Z=38 IMA	8-97241-237-1	01	1	1304-	●
50	GEAR; 2ND,MAINSHAFT Z=43 IMA	8-97241-236-1	01	1	1304-		●
59	GEAR; REV MAINSHAFT Z=41 IMA	8-97241-244-0	01	1	1304-	●
59	GEAR; REV MAINSHAFT Z=45 IMA	8-97241-243-0	01	1	1304-		●
70	GEAR; 1ST,MAINSHAFT Z=43 IMA	8-97350-010-0	01	1	1304-	●
70	GEAR; 1ST,MAINSHAFT Z=45 IMA	8-97241-241-0	01	1	1304-		●
77	GEAR; 6TH,MAINSHAFT Z=21 IMA	8-97386-582-0	01	1	1304-	●
77	GEAR; 6TH,MAINSHAFT Z=20 IMA	8-97252-634-0	01	1	1304-		●
80	GEAR; SPD DRIVE Z=4 IMA	8-97253-556-0	01	1	1304-	●
80	GEAR; SPD DRIVE Z=4 IMA	8-97253-555-0	01	1	1304-		●
82	SHAFT; MAIN,TRANS Z=28-42-42-21 IMA	8-97253-116-3	01	1	1304-	●
82	SHAFT; MAIN,TRANS Z=26-42-23 IMA	8-97253-115-3	01	1	1304-		●
260	NUT; MAINSHAFT END M27 H=25 IMA	8-97360-410-0	01	1	1304-	●	●
266	RING; SNAP,BRG INNER IMA	8-97286-916-0	01	1	1304-	●
266	RING; SNAP,BRG INNER IMA	8-97286-915-0	01	1	1304-		●
273	RING; SNAP,BRG OUTER IMA	8-97254-610-0	01	1	1304-	●
273	RING; SNAP,BRG OUTER IMA	8-97254-609-0	01	1	1304-		●
288	SPACER; BRG,MAINSHAFT IMA	8-97252-942-0	01	1	1304-	●
288	SPACER; BRG,MAINSHAFT IMA	8-97252-941-0	01	1	1304-		●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=30.6 T=5.7 IMA	8-98028-226-0	01	1	1304-	●
298	GASKET; MAINSHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 IMA	1-09623-379-0	01	1	1304-		●
335	RING; SNAP,BEARING IMA	8-97254-722-0	01	1	1304-	●
335	RING; SNAP,BEARING IMA	8-97254-720-0	01	1	1304-		●
393	BEARING; MAINSHAFT END IMA	8-97253-105-1	01	1	1304-	●
393	BEARING; MAINSHAFT END IMA	8-97253-104-0	01	1	1304-		●
396	BEARING; NEEDLE,MAINSHAFT (A) IMA	8-97253-102-1	01	1	1304-	●
396	BEARING; NEEDLE,MAINSHAFT (B) IMA	8-97253-110-0	04	1	1304-	●	●
396	BEARING; NEEDLE,MAINSHAFT (A) IMA	8-97253-099-1	01	1	1304-		●
432	BEARING; NEEDLE,4TH NSK IMA	8-97253-111-0	01	1	1304-		●
500	RING; OUTSIDE,3RD & 2ND IMA	8-97241-309-1	02	1	1304-	●
500	RING; OUTSIDE,3RD & 2ND IMA	8-97241-307-1	02	1	1304-		●
501	RING; INSIDE,3RD & 2ND IMA	8-97241-312-1	02	1	1304-	●
501	RING; INSIDE,3RD & 2ND IMA	8-97241-311-1	02	1	1304-		●
503	RING; OUTSIDE,LOW & REV IMA	8-97241-309-1	01	1	1304-	●
503	RING; OUTSIDE,LOW & REV IMA	8-97241-307-1	02	1	1304-		●
504	RING; INSIDE,LOW & REV IMA	8-97241-312-1	01	1	1304-	●
504	RING; INSIDE,LOW & REV IMA	8-97241-311-1	02	1	1304-		●
505	COLLAR; 3RD & REV IMA	8-97253-119-2	02	1	1304-	●	●
515	HUB; CLU,1ST & REV,2ND & 3RD IMA	8-97241-298-3	02	1	1304-	●
515	HUB; CLU,1ST & REV,2ND & 3RD IMA	8-97239-155-2	02	1	1304-		●
516	SPRING; SYNCHRO,INDEX IMA	8-97254-835-0	06	1	1304-	●
516	SPRING; SYNCHRO,INDEX IMA	8-97305-803-1	12	1	1304-		●
517	BALL; SYNCHRO,INDEX IMA	8-97252-935-0	06	1	1304-	●
517	BALL; SYNCHRO,INDEX IMA	8-97252-935-0	12	1	1304-		●
530	RING; BLOCK,LOW Z=45 IMA	8-97241-306-1	01	1	1304-	●
530	RING; BLOCK,LOW Z=54 IMA	8-97241-305-2	01	1	1304-		●
531	RING; BLOCK,REV Z=45 IMA	8-97368-343-0	01	1	1304-	●
531	RING; BLOCK,REV Z=54 IMA	8-97241-305-2	01	1	1304-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
