◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#119600) — 7 parça

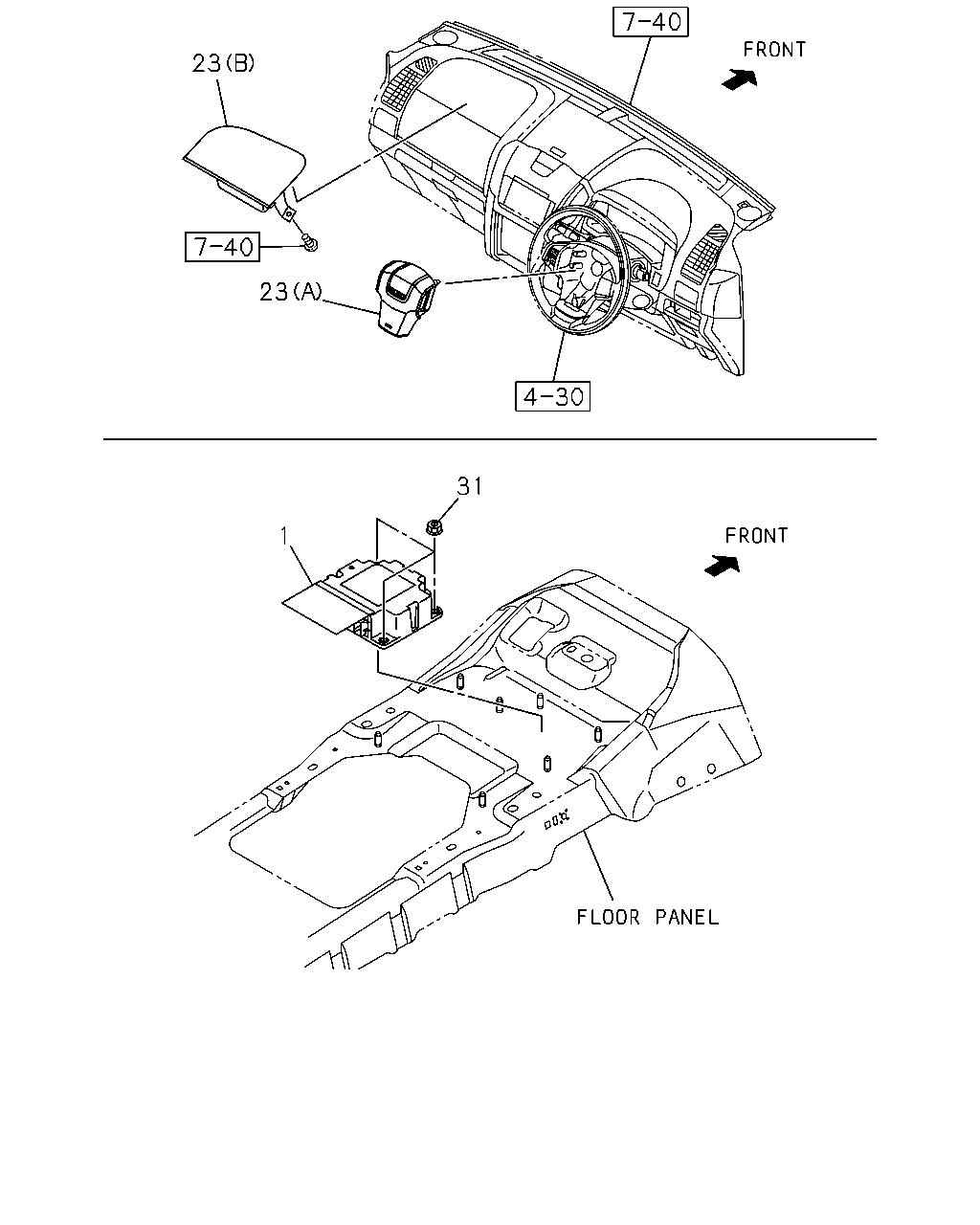

çizim 352425
23 23 31 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CONTROL UNIT; SIR
AIR BAG DRIVER & PASSENGER(AK5) 		8-98127-250-2 01 1 1305- ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) EQUIPMENT IMPACT<EPS> (A) BLACK 		8-97424-332-0 01 1 1410- ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (A) BLACK 		8-97416-641-6 01 1 1305-1409 ● ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (A) BLACK 		8-97416-641-6 01 1 1410- ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) EXC. EQUIPMENT IMPACT<EPS> (A) BLACK 		8-97416-641-6 01 1 1410- ● ● ●
23 AIR BAG UNIT
AIR BAG DRIVER & PASSENGER(AK5) (B) BLACK 		8-97416-642-7 01 1 1305- ● ● ● ●
31 NUT
AIR BAG DRIVER & PASSENGER(AK5) M6 FLANGE 		0-91180-206-0 03 1 1305- ● ● ● ●
