Isuzu WW
▶
PICKUP
▶
TFR
▶
51421 - TFR/TFS(MALAYSIA)
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#119591) — 34 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5SF
D - TFS5WF
◀

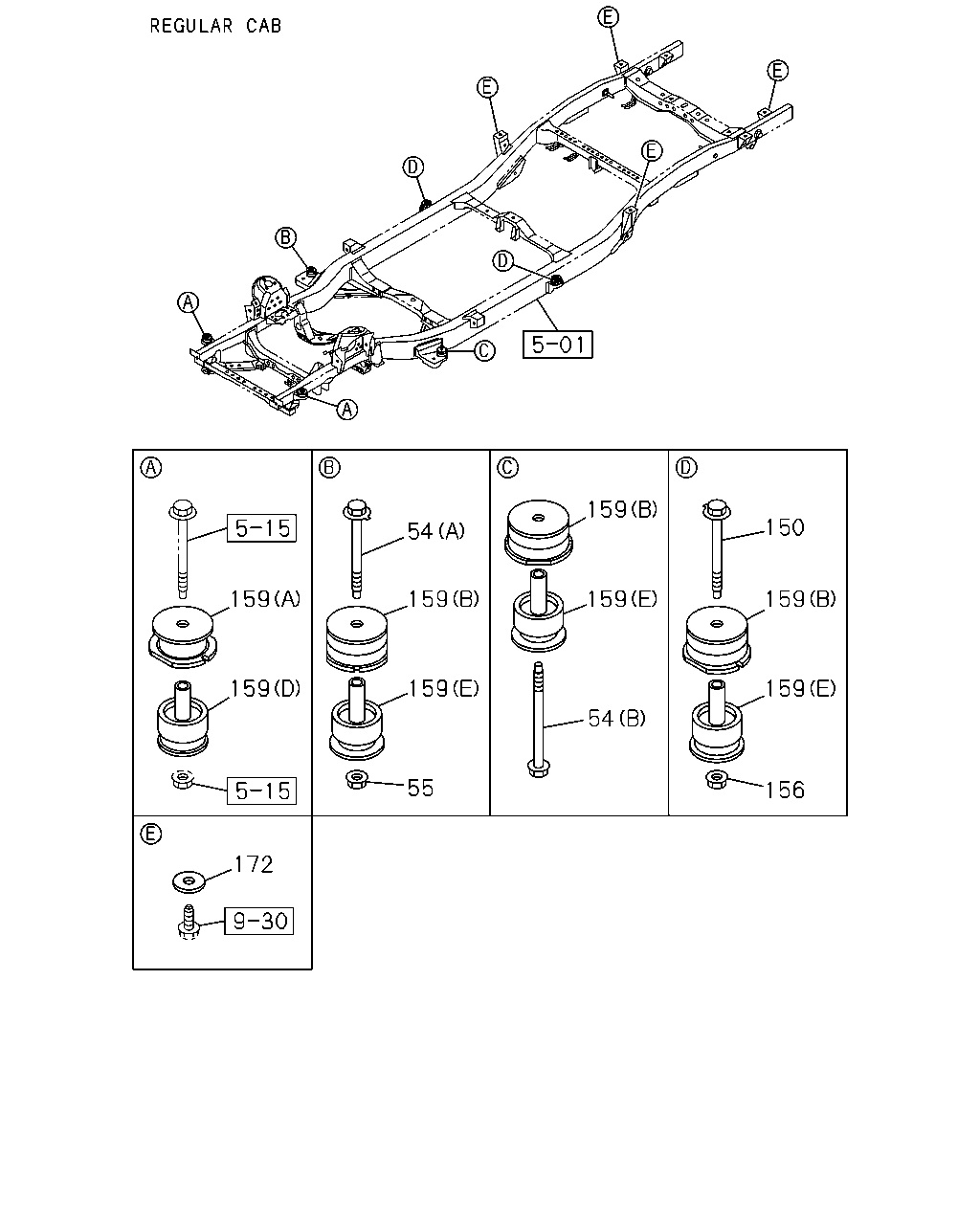

[510A] NO.1 (17 parça)

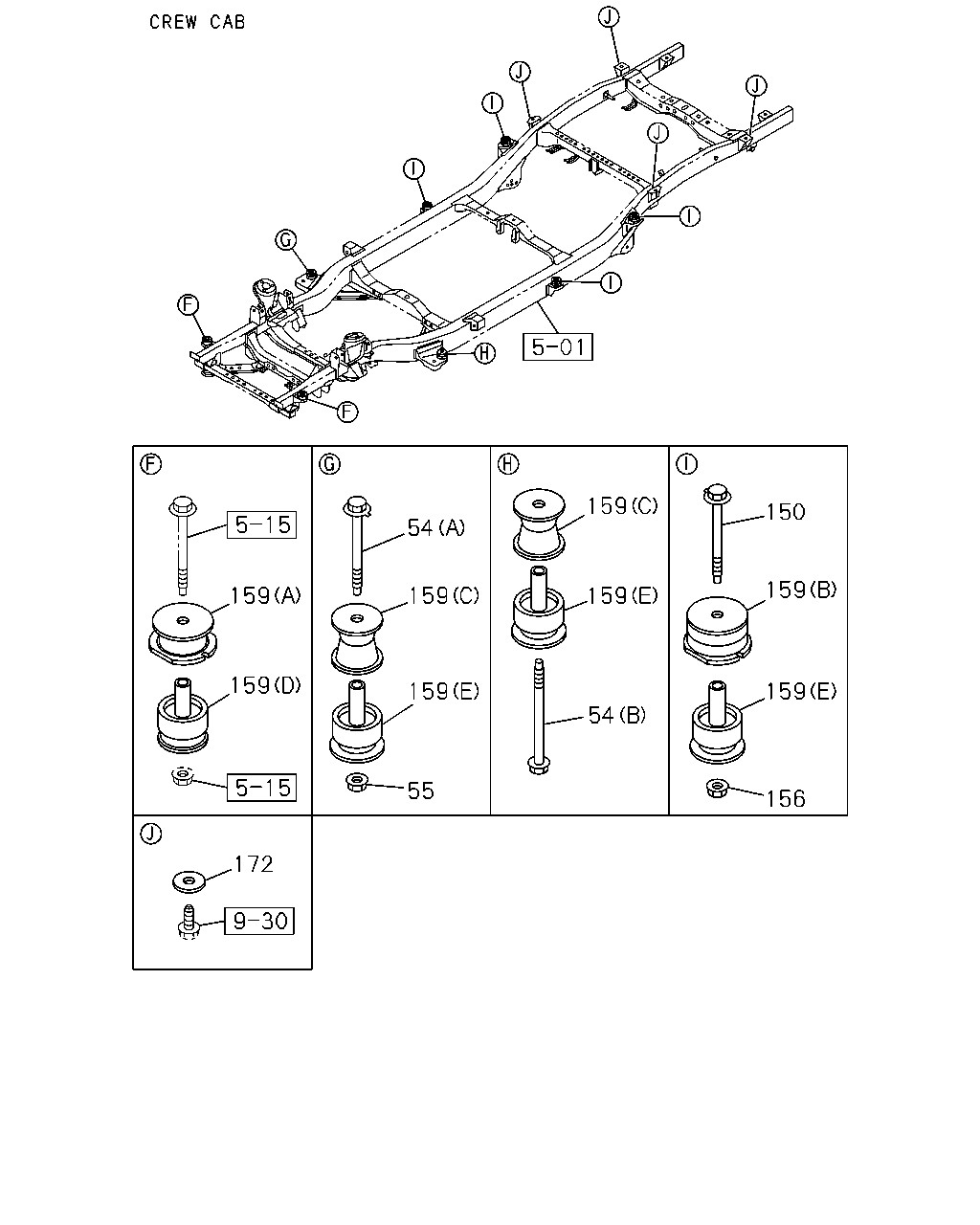

[510A] NO.2 (17 parça)
▶
159
159
172
54
159
159
55
159
159
54
150
159
159
156
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
54
BOLT; RUBBER
(A) M10X130 FLANGE
8-98102-202-3
01
1
1305-
●
●
●
●
54
BOLT; RUBBER
(B) M10X141 FLANGE
8-98169-670-0
01
1
1305-
●
●
●
●
55
NUT; RUBBER
M10 FLANGE
0-91280-210-0
01
1
1305-
●
●
●
●
150
BOLT; CAB MTG RR
M10X130 FLANGE
8-98102-202-3
02
1
1305-
●
●
●
●
150
BOLT; CAB MTG RR
M10X130 FLANGE
8-98102-202-3
02
1
1305-
●
●
156
NUT; CAB MTG RR
M10 FLANGE
0-91280-210-0
02
1
1305-
●
●
●
●
156
NUT; CAB MTG RR
M10 FLANGE
0-91280-210-0
02
1
1305-
●
●
159
RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1305-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1305-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1305-
●
●
159
RUBBER; CUSHION,CAB MTG
(B)
8-98174-970-0
02
1
1305-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
(B)
8-98174-970-0
02
1
1305-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
(A)
8-97367-285-0
02
1
1305-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
(D)
8-98051-326-0
02
1
1305-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
(C)
8-98075-381-0
02
1
1305-
●
●
172
WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) ID=13 OD=40 T=6
8-98098-458-0
08
1
1305-
●
●
172
WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) ID=13 OD=40 T=6
8-98098-458-0
04
1
1305-
●
●
150
159
159
156
54
159
159
54
159
159
55
172
159
159
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
54
BOLT; RUBBER
(A) M10X130 FLANGE
8-98102-202-3
01
1
1305-
●
●
●
●
54
BOLT; RUBBER
(B) M10X141 FLANGE
8-98169-670-0
01
1
1305-
●
●
●
●
55
NUT; RUBBER
M10 FLANGE
0-91280-210-0
01
1
1305-
●
●
●
●
150
BOLT; CAB MTG RR
M10X130 FLANGE
8-98102-202-3
02
1
1305-
●
●
●
●
150
BOLT; CAB MTG RR
M10X130 FLANGE
8-98102-202-3
02
1
1305-
●
●
156
NUT; CAB MTG RR
M10 FLANGE
0-91280-210-0
02
1
1305-
●
●
●
●
156
NUT; CAB MTG RR
M10 FLANGE
0-91280-210-0
02
1
1305-
●
●
159
RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1305-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1305-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
(E)
8-98075-385-1
02
1
1305-
●
●
159
RUBBER; CUSHION,CAB MTG
(B)
8-98174-970-0
02
1
1305-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
(B)
8-98174-970-0
02
1
1305-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
(A)
8-97367-285-0
02
1
1305-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
(D)
8-98051-326-0
02
1
1305-
●
●
●
●
159
RUBBER; CUSHION,CAB MTG
(C)
8-98075-381-0
02
1
1305-
●
●
172
WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) ID=13 OD=40 T=6
8-98098-458-0
08
1
1305-
●
●
172
WASHER; BODY MTG RUBBER
REAR BODY DBL WALL CTR PULL(E63) ID=13 OD=40 T=6
8-98098-458-0
04
1
1305-
●
●
