7-40 — INSTRUMENT PANEL AND BOX (#119586) — 93 parça

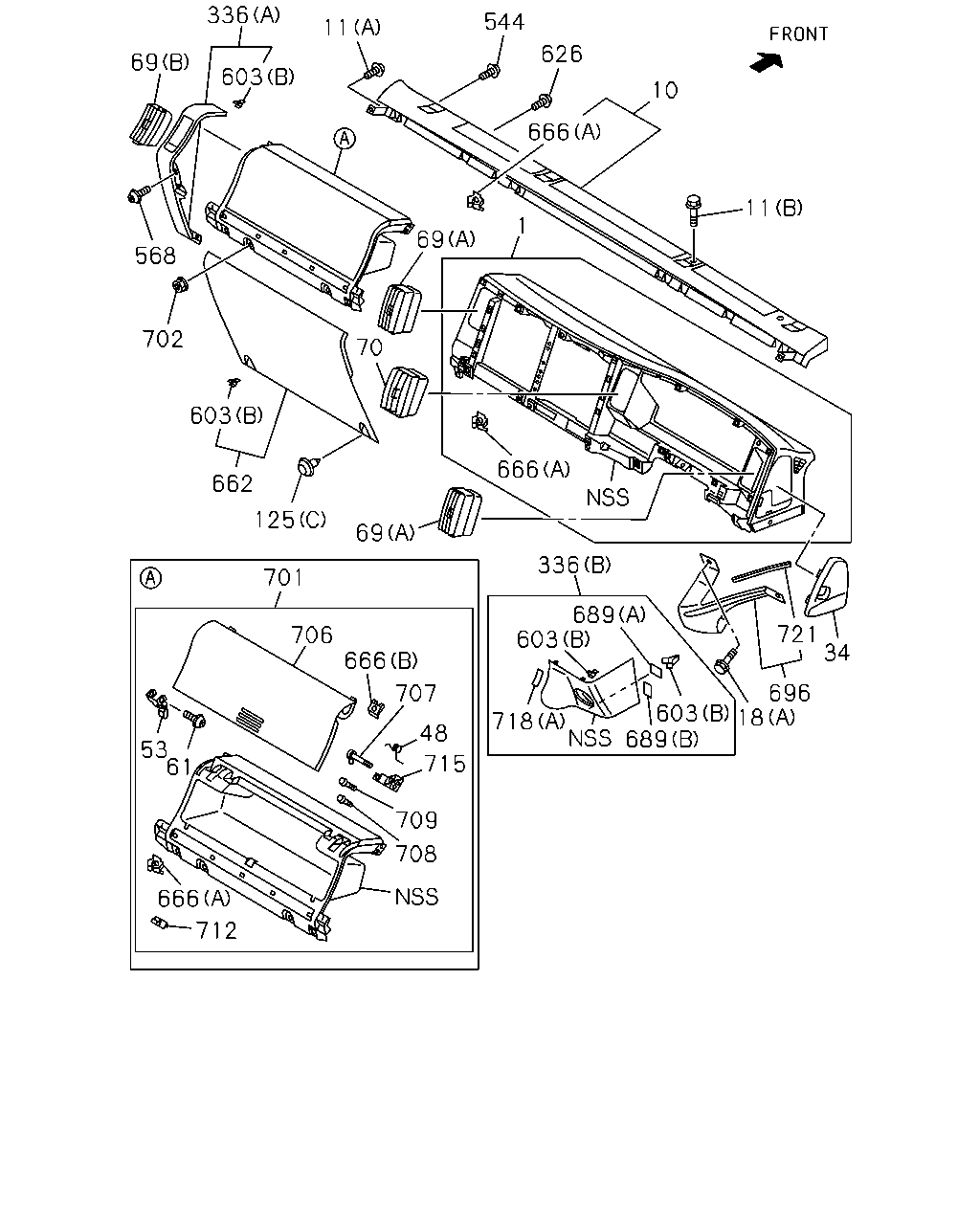

çizim 352485
721 34 696 18 603 689 718 603 336 666 11 10 626 544 666 69 11 603 336 69 568 702 603 662 701 706 69 125 70 666 707 48 715 709 708 712 666 61 53 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; INST
THA 		8-97926-375-1 01 1 1304-
10 PANEL ASM; GARNISH
GRAY IMA 		8-97419-683-5 01 1 1304-
11 BOLT; INST PNL
(A) T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 08 1 1304-
11 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER IMA 		8-98018-440-0 04 1 1304-
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1304-
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1304-
34 LID; OIL TANK
GRAY IMA 		8-97405-260-1 01 1 1304-
48 SPRING; GLOVE BOX LID
THA 		8-97926-410-0 01 1 1304-
48 SPRING; GLOVE BOX LID
THA 		8-97926-411-0 01 1 1304-
53 STRIKER; GLOVE BOX
THA 		8-97926-403-1 01 1 1304-
61 SCREW; GLOVE BOX
M4X85 THA 		8-97926-404-0 01 1 1304-
69 GRILLE; SIDE,AIR OUTLET
(A) IMA 		8-98028-561-2 02 1 1304-
69 GRILLE; SIDE,AIR OUTLET
(B) IMA 		8-98028-562-2 01 1 1304-
70 GRILLE; CENTER,AIR OUTLET
IMA 		8-98028-563-2 01 1 1304-
125 CLIP; INST PANEL
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 1304-
125 CLIP; INST PANEL
(E) GRAY 		8-97405-205-0 01 1 1304-
125 CLIP; INST PANEL
(B) GRAY IMA 		8-97408-063-0 02 1 1304-
125 CLIP; INST PANEL
(D) GRAY IMA 		8-97408-817-0 02 1 1304-
125 CLIP; INST PANEL
(C) GRAY IMA 		8-97419-968-1 01 1 1304-
336 COVER; INST PANEL SIDE
(A) GRAY IMA 		8-97405-259-4 01 1 1304-
336 COVER; INST PANEL SIDE
(B) GRAY IMA 		8-97414-688-1 01 1 1304-
544 SCREW; TRAY
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 03 1 1304-
568 BOLT; COVER
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 01 1 1304-
603 CLIP; COVER
(A) IMA 		8-98004-025-0 01 1 1304-
603 CLIP; COVER
(B) IMA 		8-98021-271-0 10 1 1304-
626 RETAINER
OD=15 BLACK IMA 		8-94279-804-0 02 1 1304-
662 COVER; LWR,INST PANEL
GRAY IMA 		8-97414-904-2 01 1 1304-
666 INSERT; INST PANEL
(A) THA 		8-97926-385-0 30 1 1304-
666 INSERT; INST PANEL
(A) THA 		8-97926-385-0 02 1 1304-
666 INSERT; INST PANEL
(B) M5 THA 		8-97926-400-0 04 1 1304-
689 SEAL; INST
(A) 7X31 IMA 		8-98061-777-0 01 1 1304-
689 SEAL; INST
(B) 18X170 IMA 		8-98061-778-1 01 1 1304-
696 BRACKET; KNEE
IMA 		8-98199-366-0 01 1 1304-
701 TRAY; INST
THA 		8-97926-382-1 01 1 1304-
702 NUT; TRAY
M6 FLANGE THA 		0-91180-106-0 02 1 1304-
706 LID; TRAY INST
THA 		8-97926-402-1 01 1 1304-
707 SHAFT; TRAY INST LID
THA 		8-97926-393-0 02 1 1304-
708 STOPPER; TRAY INST LID
THA 		8-97926-394-0 02 1 1304-
709 SCREW; TRAY INST
M5X16 TAPPING THA 		0-71040-516-0 04 1 1304-
712 LOCK; TRAY INST LID
THA 		8-97926-395-0 01 1 1304-
715 SUPPORT; TRAY,HINGE
THA 		8-97926-396-0 01 1 1304-
715 SUPPORT; TRAY,HINGE
THA 		8-97926-397-0 01 1 1304-
718 SEAL; COVER
(A) 30X15 IMA 		8-98097-696-0 01 1 1304-
718 SEAL; COVER
(B) 5X30 IMA 		8-98176-199-0 01 1 1304-
718 SEAL; COVER
(B) 8X80 IMA 		8-98200-040-0 01 1 1304-
718 SEAL; COVER
(B) 4X35 IMA 		8-98200-041-0 01 1 1304-
721 FINISHER; BRKT,KNEE
L=75 IMA 		8-98176-240-0 01 1 1304-

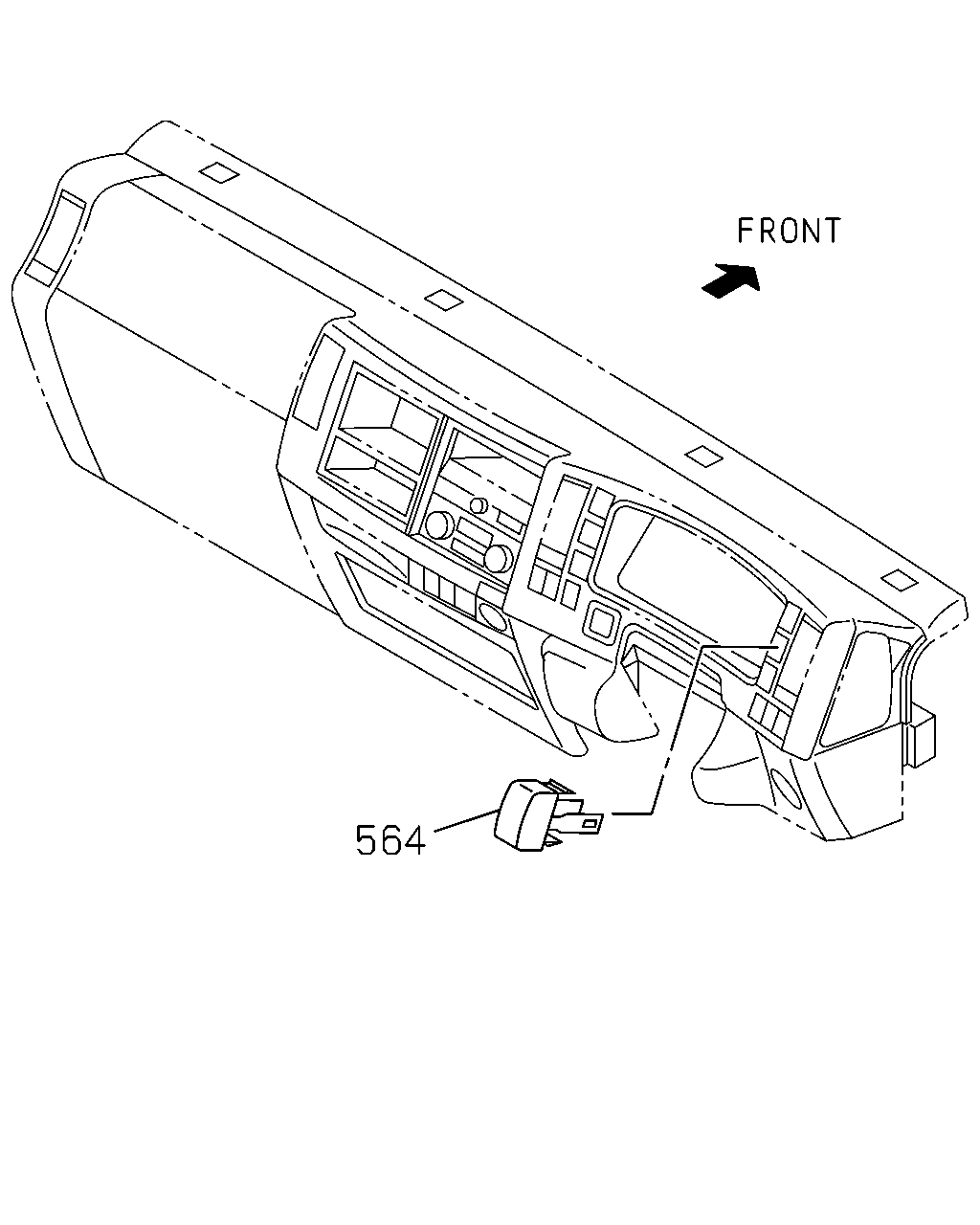

çizim 352552
564
BalonParca AdiParca NoAdetTipApplied Date
564 COVER; SW
IMA 		8-98025-954-1 03 1 1304-

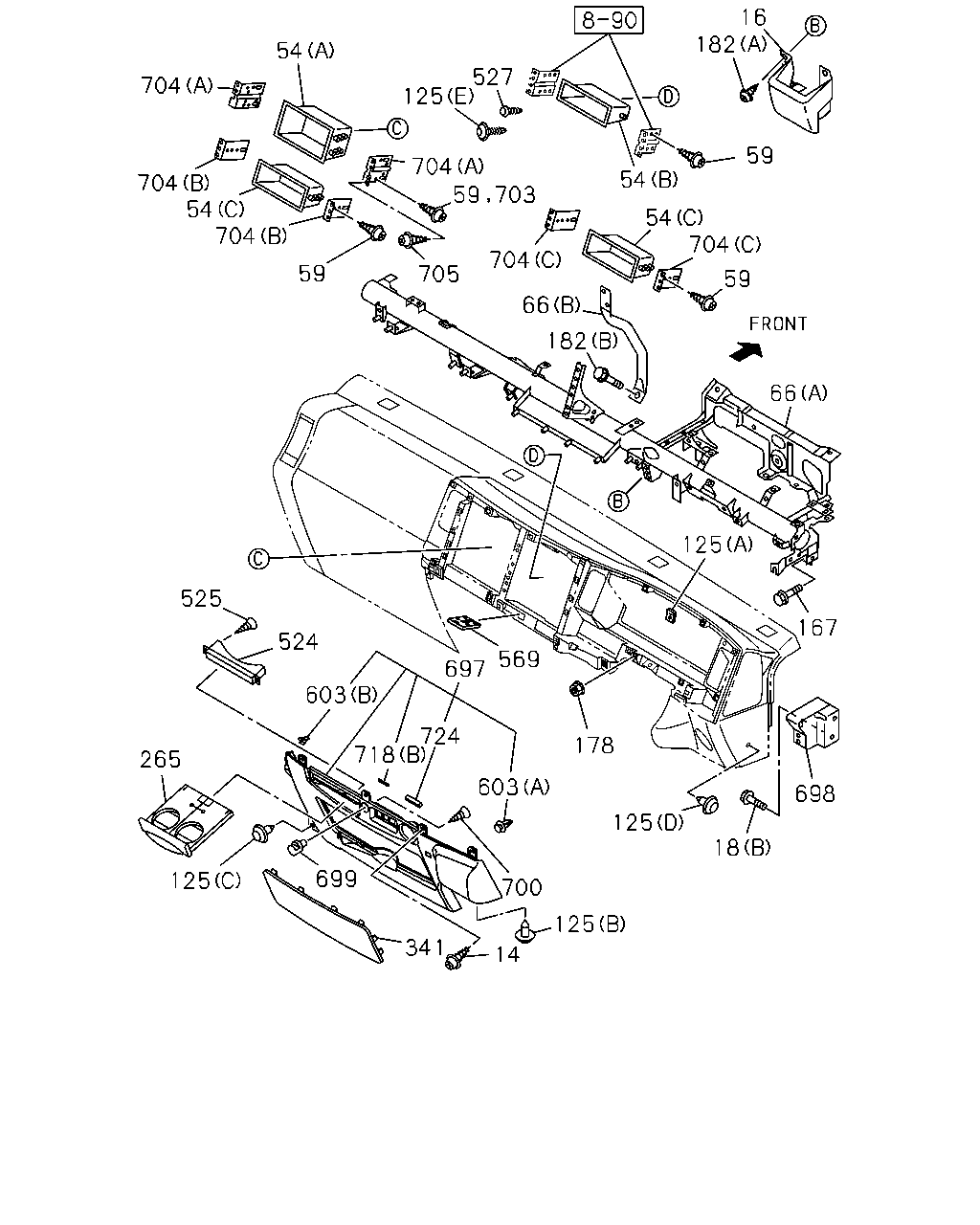

çizim 352764
167 125 66 59 704 54 54 59 182 16 182 66 704 703 59 704 125 527 54 704 704 524 525 603 697 178 569 125 18 698 125 700 603 724 718 699 341 14 125 265 54 59 704 705
BalonParca AdiParca NoAdetTipApplied Date
14 SCREW; INST PNL
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 04 1 1304-
16 BRACKET; INST PNL
IMA 		8-98053-711-0 01 1 1304-
18 BOLT; BRKT
(B) M8X16 FLANGE THA 		0-28050-816-0 04 1 1304-
18 BOLT; BRKT
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 02 1 1304-
54 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK 		8-97407-129-3 01 1 1304-
54 POCKET; CENTER CLUSTER
(B) THA 		8-97926-414-0 01 1 1304-
54 POCKET; CENTER CLUSTER
(C) THA 		8-97926-412-0 01 1 1304-
54 POCKET; CENTER CLUSTER
(C) THA 		8-97926-412-0 01 1 1304-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR IMA 		8-98058-632-0 02 1 1304-
59 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR IMA 		8-98058-632-0 04 1 1304-
66 REINFORCEMENT; INST PANEL
(B) IMA 		8-97585-578-1 01 1 1304-
66 REINFORCEMENT; INST PANEL
(A) IMA 		8-98199-358-1 01 1 1304-
125 CLIP; INST PANEL
(A) M6 SPIRE NUT 		8-97210-973-1 01 1 1304-
125 CLIP; INST PANEL
(E) GRAY 		8-97405-205-0 01 1 1304-
125 CLIP; INST PANEL
(B) GRAY IMA 		8-97408-063-0 02 1 1304-
125 CLIP; INST PANEL
(D) GRAY IMA 		8-97408-817-0 02 1 1304-
125 CLIP; INST PANEL
(C) GRAY IMA 		8-97419-968-1 01 1 1304-
167 BOLT; REINF TO INST
M8X23 FLANGE IMA 		8-97264-766-0 04 1 1304-
178 NUT; INST PANEL
M6 FLANGE THA 		0-91180-106-0 03 1 1304-
182 BOLT; BRKT,INST PANEL
(A) T25 M6X12 HEXALOBULAR SOCKET THA 		0-38050-612-0 03 1 1304-
182 BOLT; BRKT,INST PANEL
(B) M8X20 W/LK&PL WASHER IMA 		8-97359-709-0 01 1 1304-
265 HOLDER; CUP
GRAY IMA 		8-97418-528-0 01 1 1304-
341 LID; FUSE BOX
GRAY IMA 		8-97423-658-0 01 1 1304-
524 STAND ASM; CUP,INST
IMA 		8-98054-414-0 01 1 1304-
525 SCREW; CUP STAND
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 03 1 1304-
527 CLIP; INST CLUSTER
DARK GRAY IMA 		8-97098-326-0 01 1 1304-
569 HOLDER; CARD 8-97410-276-1 01 1 1304-
603 CLIP; COVER
(A) IMA 		8-98004-025-0 01 1 1304-
603 CLIP; COVER
(B) IMA 		8-98021-271-0 10 1 1304-
697 PANEL; INST CENTER
GRAY IMA 		8-97423-656-1 01 1 1304-
698 BRACKET; INST BAR SIDE
IMA 		8-98089-256-1 01 1 1304-
698 BRACKET; INST BAR SIDE
IMA 		8-98089-257-1 01 1 1304-
699 HOOK; INST PANEL
GRAY IMA 		8-97408-927-0 01 1 1304-
700 BOLT; HOOK
T25 M5X16 TAPPING HEXALOBULAR IMA 		0-72180-516-0 01 1 1304-
703 SCREW; CENTER POCKET
T25 L=10 HEXALOBULAR IMA 		8-98058-632-0 04 1 1304-
704 BRACKET; CENTER POCKET
(B) IMA 		8-97585-616-2 02 1 1304-
704 BRACKET; CENTER POCKET
(A) IMA 		8-97585-618-2 02 1 1304-
704 BRACKET; CENTER POCKET
(C) 		8-98107-549-0 02 1 1304-
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR IMA 		0-72180-520-0 01 1 1304-
705 SCREW; BRACKET CENTER POCKET
T25 M5X20 TAPPING HEXALOBULAR IMA 		0-72180-520-0 08 1 1304-
718 SEAL; COVER
(A) 30X15 IMA 		8-98097-696-0 01 1 1304-
718 SEAL; COVER
(B) 5X30 IMA 		8-98176-199-0 01 1 1304-
718 SEAL; COVER
(B) 8X80 IMA 		8-98200-040-0 01 1 1304-
718 SEAL; COVER
(B) 4X35 IMA 		8-98200-041-0 01 1 1304-
724 INSULATOR; INST PANEL
IMA 		8-98200-042-0 01 1 1304-
