◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51479 - NLR/NMR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#119583) — 33 parça

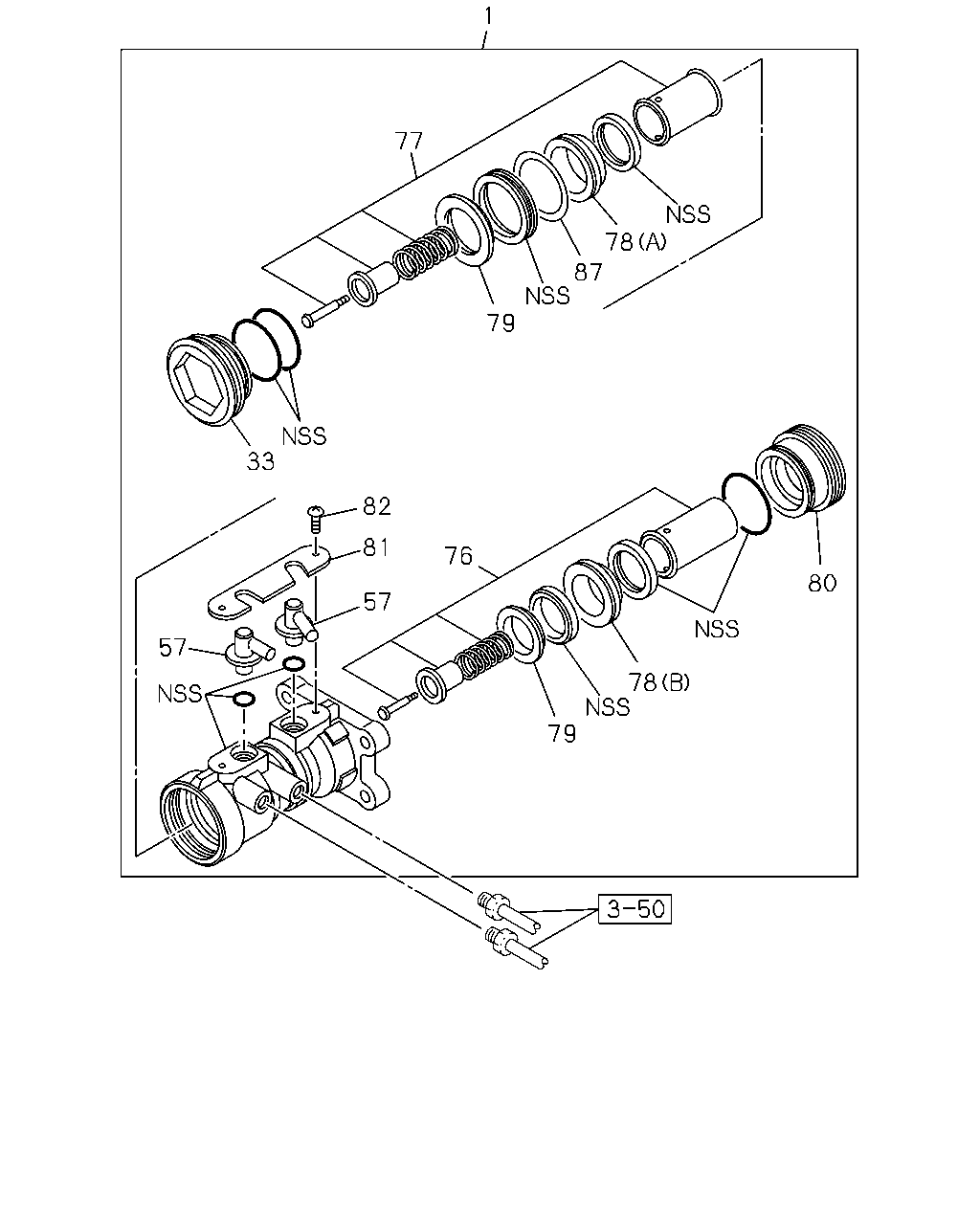

çizim 350836
78 80 79 76 82 57 81 33 79 87 78 57 77 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; BRK MASTER
IMA 		8-98032-599-0 01 1 1304- ●
1 CYLINDER ASM; BRK MASTER
G.V.W. 5.0-5.5TON<RPT> IMA 		8-98032-599-0 01 1 1304- ●
1 CYLINDER ASM; BRK MASTER
G.V.W. 6.5-7.0TON<RPW> IMA 		8-98032-600-0 01 1 1304- ●
33 PLUG; END,M/CYL
IMA 		8-97186-696-0 01 1 1304- ●
33 PLUG; END,M/CYL
G.V.W. 5.0-5.5TON<RPT> IMA 		8-97186-696-0 01 1 1304- ●
33 PLUG; END,M/CYL
G.V.W. 6.5-7.0TON<RPW> IMA 		8-97186-697-0 01 1 1304- ●
57 NIPPLE; BRK M/CYL
IMA 		8-97130-442-0 02 1 1304- ● ●
76 PISTON ASM; PRIMARY
IMA 		8-97224-636-0 01 1 1304- ●
76 PISTON ASM; PRIMARY
G.V.W. 5.0-5.5TON<RPT> IMA 		8-97224-636-0 01 1 1304- ●
76 PISTON ASM; PRIMARY
G.V.W. 6.5-7.0TON<RPW> IMA 		8-97224-643-0 01 1 1304- ●
77 PISTON ASM; SECONDARY
IMA 		8-97224-635-0 01 1 1304- ●
77 PISTON ASM; SECONDARY
G.V.W. 5.0-5.5TON<RPT> IMA 		8-97224-635-0 01 1 1304- ●
77 PISTON ASM; SECONDARY
G.V.W. 6.5-7.0TON<RPW> IMA 		8-97224-642-0 01 1 1304- ●
78 BUSHING; MASTER CYL
(A) IMA 		8-97130-454-0 01 1 1304- ●
78 BUSHING; MASTER CYL
G.V.W. 5.0-5.5TON<RPT> (A) IMA 		8-97130-454-0 01 1 1304- ●
78 BUSHING; MASTER CYL
(B) IMA 		8-97217-310-0 01 1 1304- ●
78 BUSHING; MASTER CYL
G.V.W. 5.0-5.5TON<RPT> (B) IMA 		8-97217-310-0 01 1 1304- ●
78 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON<RPW> (A) IMA 		8-97130-455-0 01 1 1304- ●
78 BUSHING; MASTER CYL
G.V.W. 6.5-7.0TON<RPW> (B) IMA 		8-97217-312-0 01 1 1304- ●
79 SUPPORTER; CUP
IMA 		8-97130-462-0 02 1 1304- ●
79 SUPPORTER; CUP
G.V.W. 5.0-5.5TON<RPT> IMA 		8-97130-462-0 02 1 1304- ●
79 SUPPORTER; CUP
G.V.W. 6.5-7.0TON<RPW> IMA 		8-97130-463-0 02 1 1304- ●
80 COVER; MASTER CYL
IMA 		8-97130-448-0 01 1 1304- ●
80 COVER; MASTER CYL
G.V.W. 5.0-5.5TON<RPT> IMA 		8-97130-448-0 01 1 1304- ●
80 COVER; MASTER CYL
G.V.W. 6.5-7.0TON<RPW> IMA 		8-97130-449-0 01 1 1304- ●
81 HOLDER; NIPPLE
IMA 		8-97130-445-0 01 1 1304- ● ●
82 SCREW; HOLDER
IMA 		8-97130-446-0 02 1 1304- ● ●
87 SPACER; CUP
IMA 		8-97130-458-0 01 1 1304- ●
87 SPACER; CUP
G.V.W. 5.0-5.5TON<RPT> IMA 		8-97130-458-0 01 1 1304- ●
87 SPACER; CUP
G.V.W. 6.5-7.0TON<RPW> IMA 		8-97130-459-0 01 1 1304- ●
çizim 352691
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; BRK,M/CYL
IMA 		8-97130-470-0 01 1 1304- ●
2 REPAIR KIT; BRK,M/CYL
G.V.W. 5.0-5.5TON<RPT> IMA 		8-97130-470-0 01 1 1304- ●
2 REPAIR KIT; BRK,M/CYL
G.V.W. 6.5-7.0TON<RPW> IMA 		8-97130-471-0 01 1 1304- ●
