0-36 — TURBOCHARGER SYSTEM (#119578) — 54 parça

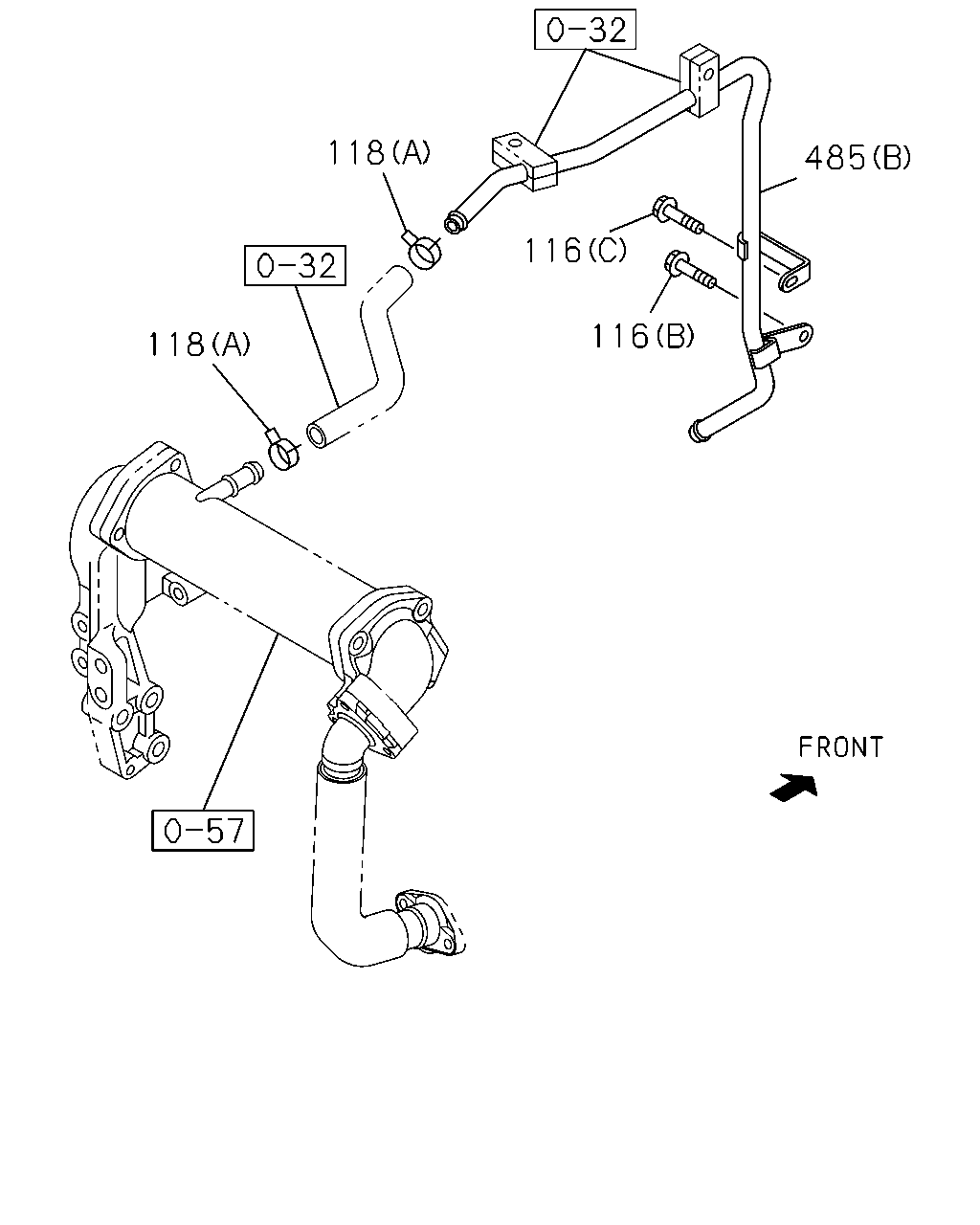

çizim 350238
118 116 116 485 118
BalonParca AdiParca NoAdetTipApplied Date A B
116 BOLT; WATER PIPE
(B) M8X16 FLANGE THA 		0-28050-816-0 01 1 1304- ● ●
116 BOLT; WATER PIPE
(C) M8X20 FLANGE THA 		0-28650-820-0 05 1 1304- ● ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT IMA 		8-94455-144-0 03 1 1304- ● ●
118 CLIP; WATER HOSE
(A) ID=20 IMA 		1-09707-084-1 06 1 1304- ● ●
118 CLIP; WATER HOSE
(B) ID=15.5 IMA 		8-94221-519-0 02 1 1304- ● ●
485 PIPE; WATER EGR
(A) IMA 		8-97376-773-0 01 1 1304- ● ●
485 PIPE; WATER EGR
(B) IMA 		8-98041-637-1 01 1 1304- ● ●
485 PIPE; WATER EGR
(C) IMA 		8-98064-164-0 01 1 1304- ● ●

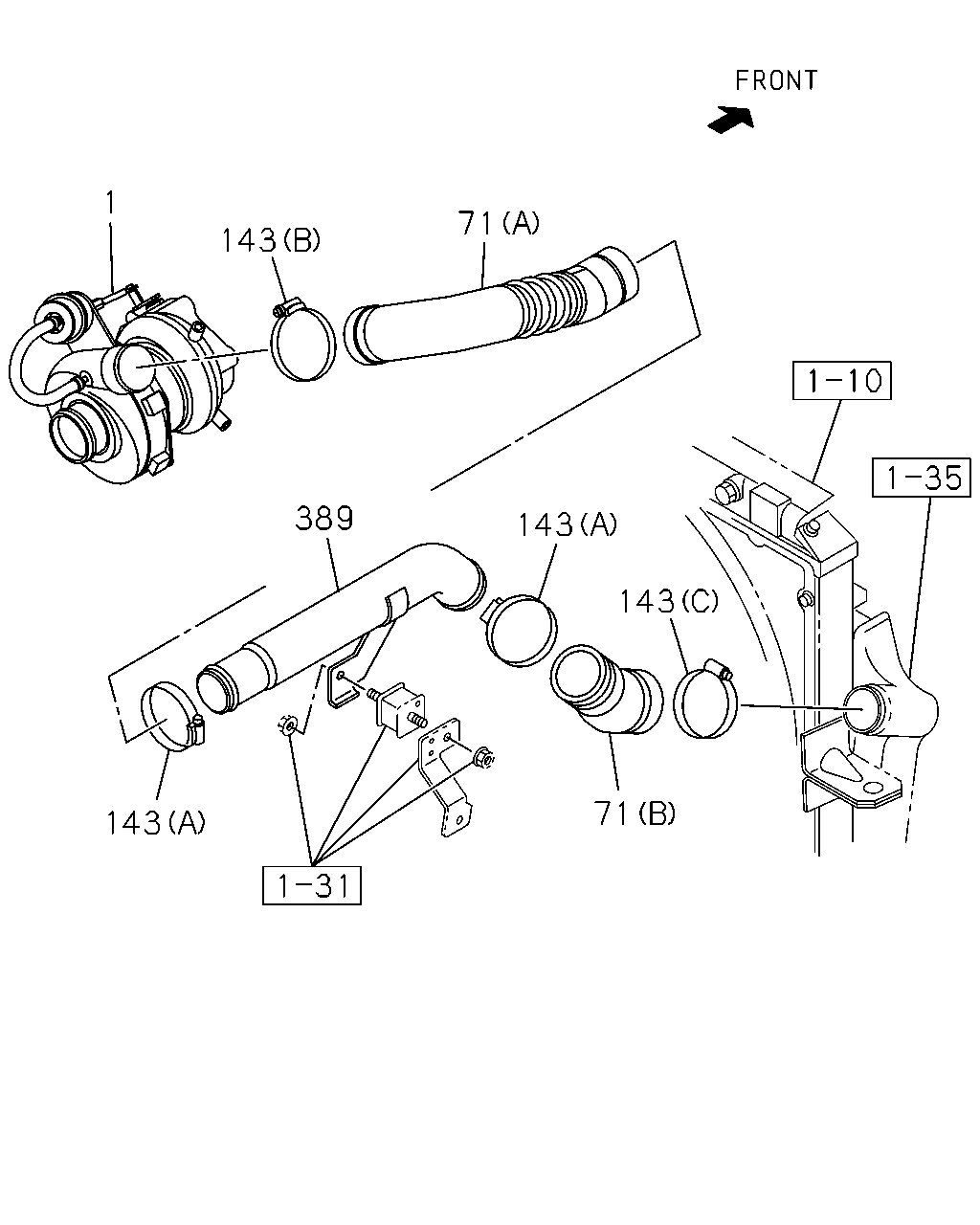

çizim 350252
1 143 71 389 143 143 71 143
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. IMA 		8-98000-031-2 01 1 1304- ● ●
71 HOSE; INLET PIPE TO TURBOCHARGER
(A) 		8-98059-964-1 01 1 1304- ● ●
71 HOSE; INLET PIPE TO TURBOCHARGER
(B) 		8-98067-806-0 01 1 1304- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(B) ID=60-65 IMA 		8-98096-418-0 01 1 1304- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(A) ID=45-65 IMA 		8-98133-348-0 02 1 1304- ● ●
143 CLIP; HOSE,TURBOCHARGER OUTLET
(C) ID=65-85 IMA 		8-98133-350-0 01 1 1304- ● ●
389 PIPE; INL,TURBOCHARGER TO CAC
THA 		8-98042-688-1 01 1 1304- ● ●

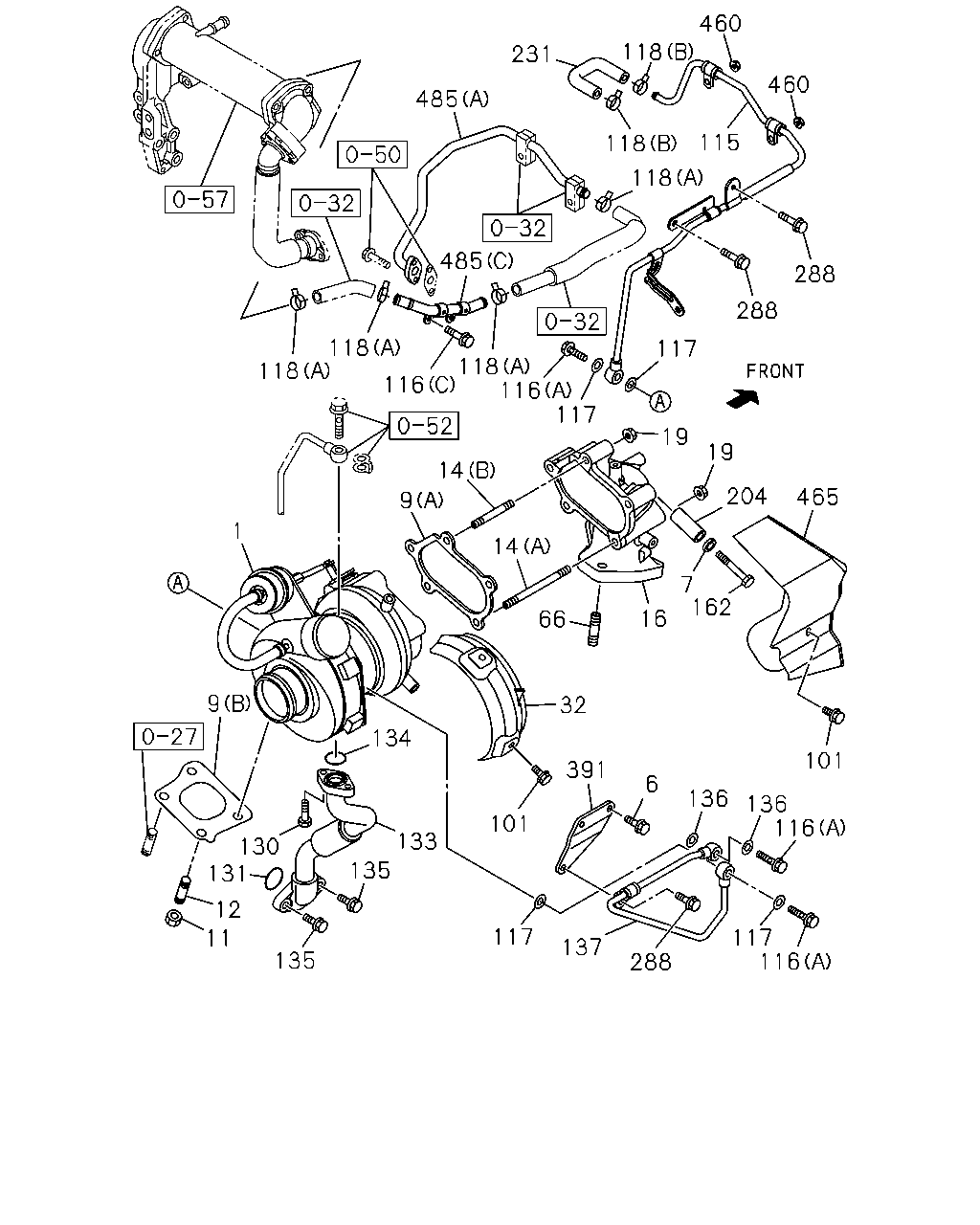

çizim 352441
135 11 12 131 130 9 1 135 133 134 9 14 116 118 118 118 485 485 231 118 460 460 115 118 118 288 288 117 116 117 19 19 204 465 162 7 16 66 14 32 391 6 136 136 101 116 117 116 288 137 117 101
BalonParca AdiParca NoAdetTipApplied Date A B
1 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. IMA 		8-98000-031-2 01 1 1304- ● ●
6 BOLT; BRKT TO C/BL
M8X16 FLANGE THA 		0-28050-816-0 02 1 1304- ● ●
7 WASHER; PL,BRKT
ID=8 OD=18 T=3 IMA 		8-94174-537-0 01 1 1304- ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) IMA 		8-97039-777-1 01 1 1304- ● ●
9 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) IMA 		8-97374-412-0 01 1 1304- ● ●
11 NUT; TURBOCHARGER
M10 P=1.5 H=8 IMA 		9-09842-007-0 04 1 1304- ● ●
12 STUD; TURBOCHARGER
M10X28 IMA 		9-04731-028-0 02 1 1304- ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
(A) M8X94 L=108 IMA 		8-97019-477-0 02 1 1304- ● ●
14 STUD; TURBOCHARGER TO EXH PIPE
(B) M8X49 L=63 IMA 		8-97019-478-0 03 1 1304- ● ●
16 ADAPTER; EXH PIPE
IMA 		8-97039-749-2 01 1 1304- ● ●
19 NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE IMA 		8-94170-486-0 05 1 1304- ● ●
32 PROTECTOR; HEAT,TURBOCHARGER
IMA 		8-97351-168-0 01 1 1304- ● ●
66 STUD; EXH PIPE
M10X25 L=40 THA 		0-44011-025-0 03 1 1304- ● ●
101 BOLT; HEAT PROTECTOR
M6X12 W/PL WASHER IMA 		8-98054-289-0 06 1 1304- ● ●
115 PIPE; WATER,TURBOCHARGER OUT
IMA 		8-98096-928-0 01 1 1304- ● ●
116 BOLT; WATER PIPE
(B) M8X16 FLANGE THA 		0-28050-816-0 01 1 1304- ● ●
116 BOLT; WATER PIPE
(C) M8X20 FLANGE THA 		0-28650-820-0 05 1 1304- ● ●
116 BOLT; WATER PIPE
(A) M14X30 EYE-BOLT IMA 		8-94455-144-0 03 1 1304- ● ●
117 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0 THA 		9-09571-414-0 04 1 1304- ● ●
118 CLIP; WATER HOSE
(A) ID=20 IMA 		1-09707-084-1 06 1 1304- ● ●
118 CLIP; WATER HOSE
(B) ID=15.5 IMA 		8-94221-519-0 02 1 1304- ● ●
130 BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER IMA 		0-50540-620-0 02 1 1304- ● ●
131 GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30 IMA 		8-94394-671-0 01 1 1304- ● ●
133 PIPE; OIL DRAIN,TURBOCHARGER
IMA 		8-98172-658-0 01 1 1304- ● ●
134 GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8 IMA 		1-09623-462-0 01 1 1304- ● ●
135 BOLT; OIL PIPE TO C/BL
M8X20 FLANGE THA 		0-28050-820-0 02 1 1304- ● ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 IMA 		1-09630-085-0 02 1 1304-1312 ● ●
136 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2 IMA 		8-98251-345-0 02 1 1401- ● ●
137 PIPE; WATER,TURBOCHARGER IN
IMA 		8-98063-840-0 01 1 1304- ● ●
162 BOLT; ADAPTER
M8X57 IMA 		5-09000-275-0 01 1 1304- ● ●
204 COLLAR; PIPE ADAPTER
IMA 		8-97214-384-1 01 1 1304- ● ●
231 HOSE; RUBBER,TURBOCHARGER OUT
IMA 		8-97209-950-0 01 1 1304- ● ●
288 BOLT; WATER PIPE CLIP
M8X12 FLANGE THA 		0-28050-812-0 03 1 1304- ● ●
391 BRACKET; WATER PIPE
IMA 		8-97371-730-0 01 1 1304- ● ●
460 NUT; PIPE
M8 FLANGE THA 		0-91180-108-0 02 1 1304- ● ●
465 PROTECTOR; HEAT,EXH ADAPTER
IMA 		8-98176-248-0 01 1 1304- ● ●
485 PIPE; WATER EGR
(A) IMA 		8-97376-773-0 01 1 1304- ● ●
485 PIPE; WATER EGR
(B) IMA 		8-98041-637-1 01 1 1304- ● ●
485 PIPE; WATER EGR
(C) IMA 		8-98064-164-0 01 1 1304- ● ●
