◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51479 - NLR/NMR(THAILAND) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#119577) — 13 parça

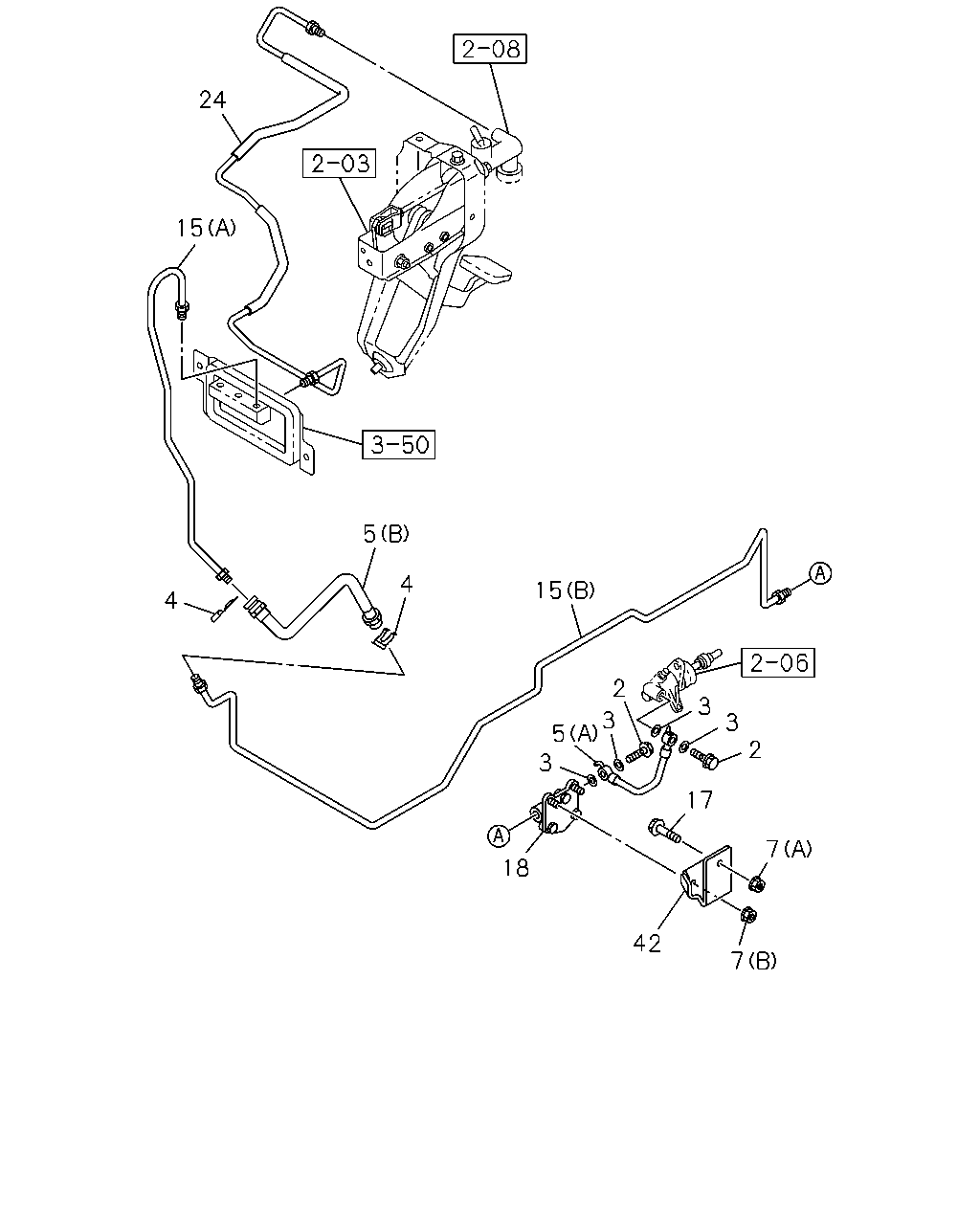

çizim 350569
24 15 5 4 15 2 3 5 3 18 3 3 2 17 42 7 7 4
BalonParca AdiParca NoAdetTipApplied Date A B
2 BOLT; EYE,SLAVE CYL
M10X22 THA 		8-98014-005-0 02 1 1304- ● ●
3 GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0 THA 		9-09571-410-0 04 1 1304- ● ●
4 CLIP; FLEX HOSE,CLU CONT
IMA 		8-97365-304-0 02 1 1304- ● ●
5 HOSE; FLEX,CLU PIPE
(A) IMA 		8-98077-611-2 01 1 1304- ● ●
5 HOSE; FLEX,CLU PIPE
(B) IMA 		8-98083-907-0 01 1 1304- ● ●
7 NUT; FLEX HOSE,CLU CONT
(B) M8 FLANGE THA 		0-91180-108-0 02 1 1304- ● ●
7 NUT; FLEX HOSE,CLU CONT
(A) M10 FLANGE THA 		0-91180-110-0 01 1 1304- ● ●
15 PIPE; CLU,FLEX HOSE
(A) THA 		8-97389-642-1 01 1 1304- ● ●
15 PIPE; CLU,FLEX HOSE
(B) THA 		8-98051-538-0 01 1 1304- ● ●
17 BOLT; BRKT
M10X30 FLANGE THA 		0-28651-030-0 01 1 1304- ● ●
18 DAMPER ASM; CLU OIL
IMA 		8-98077-610-1 01 1 1304- ● ●
24 PIPE ASM; CLU,M/CYL TO UNION
THA 		8-98077-617-0 01 1 1304- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
IMA 		8-98041-335-1 01 1 1304- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
