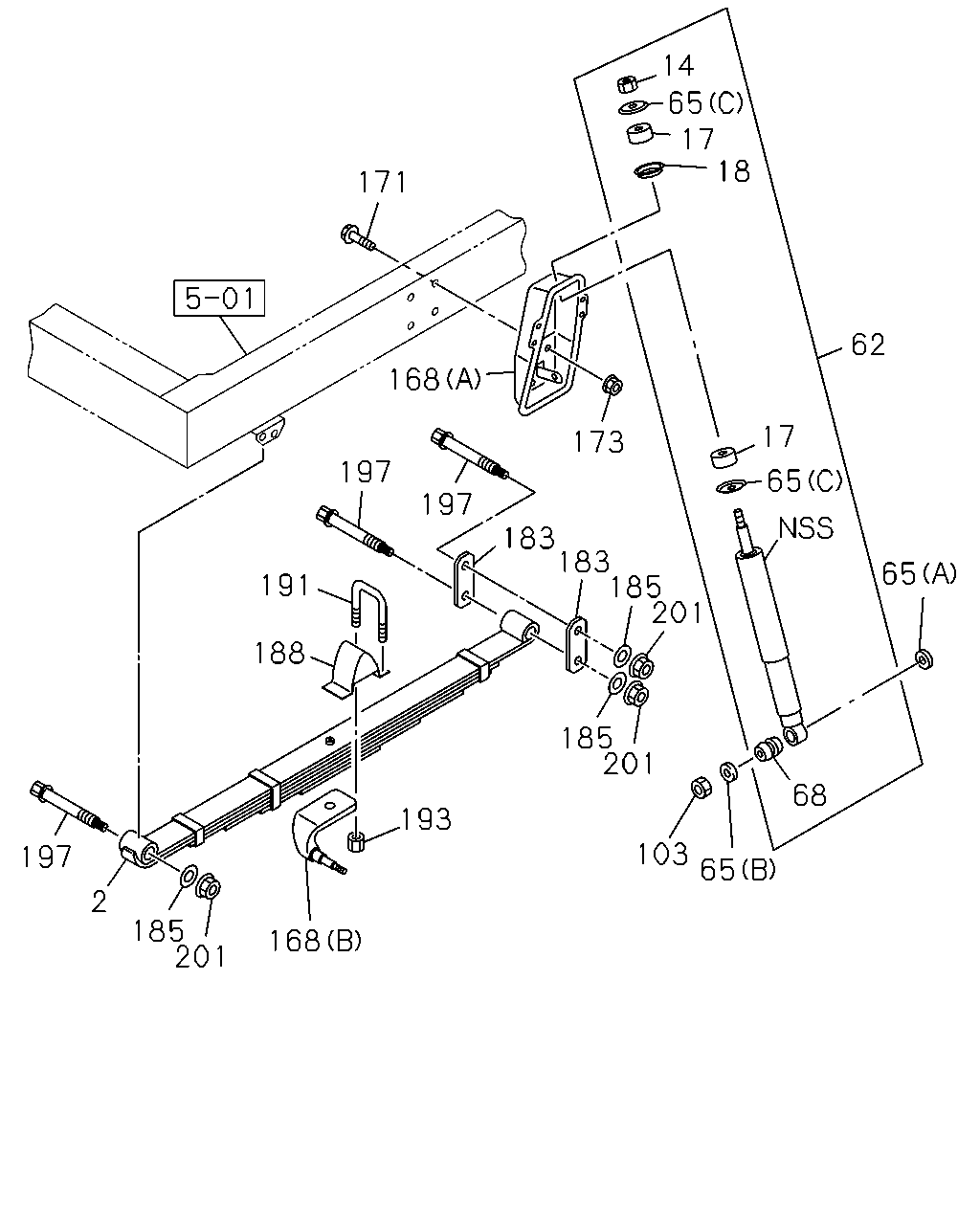

2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98190-545-0 |
01 |
1 |
1304- |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT WIDE TREAD<7GV>
FRAME STRAIGHT TYPE<7KJ>
6-LEAF
|
8-98190-546-0 |
01 |
1 |
1304- |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT WIDE TREAD<7GV>
6-LEAF
IMA
|
8-98190-541-0 |
01 |
1 |
1304- |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME STRAIGHT TYPE<7KJ>
EXC. FRONT WIDE TREAD<7GV>
6-LEAF
IMA
|
8-98190-542-0 |
01 |
1 |
1304- |
| |
14 |
NUT; S/ABS,UPR
M10 T=8
THA
|
9-09640-020-0 |
02 |
1 |
1304- |
| |
17 |
BUSHING; RUBBER,S/ABS
TOKICO
THA
|
9-51631-603-0 |
04 |
1 |
1304- |
| |
18 |
WASHER; CENTERING,S/ABS
TOKICO
THA
|
8-94412-791-0 |
02 |
1 |
1304- |
| |
62 |
ABSORBER ASM; SHOCK,FRT
FRONT WIDE TREAD<7GV>
|
8-98154-636-0 |
02 |
1 |
1304- |
| |
62 |
ABSORBER ASM; SHOCK,FRT
EXC. FRONT WIDE TREAD<7GV>
THA
|
8-97924-227-0 |
02 |
1 |
1304- |
| |
65 |
WASHER; S/ABS
(A)
ID=21 OD=40
IMA
|
0-91614-620-0 |
02 |
1 |
1304- |
| |
65 |
WASHER; S/ABS
(B)
ID=15
IMA
|
8-97360-056-0 |
02 |
1 |
1304- |
| |
65 |
WASHER; S/ABS
(C)
OD=40
THA
|
9-51631-614-0 |
04 |
1 |
1304- |
| |
68 |
BUSHING; S/ABS
TOKICO
THA
|
8-94382-149-0 |
02 |
1 |
1304- |
| |
103 |
NUT; S/ABS TO LWR LINK
M14
THA
|
0-91110-514-0 |
02 |
1 |
1304- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV>
(B)
|
8-98139-556-0 |
01 |
1 |
1304- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV>
(B)
|
8-98139-557-0 |
01 |
1 |
1304- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV>
(A)
|
8-98150-406-1 |
01 |
1 |
1304- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
FRONT WIDE TREAD<7GV>
(A)
|
8-98150-407-1 |
01 |
1 |
1304- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV>
(A)
IMA
|
8-98015-001-0 |
01 |
1 |
1304- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
EXC. FRONT WIDE TREAD<7GV>
(A)
IMA
|
8-98015-002-0 |
01 |
1 |
1304- |
| |
171 |
BOLT; S/ABS BRKT
M12X35 FLANGE
THA
|
0-28651-235-0 |
08 |
1 |
1304- |
| |
173 |
NUT; S/ABS
M12
IMA
|
8-97360-126-0 |
08 |
1 |
1304- |
| |
183 |
SHACKLE; FRT SUSP
THA
|
8-94110-399-3 |
04 |
1 |
1304- |
| |
185 |
WASHER; LK,PIN
KD PREPARATORY PACK<6HF>
ID=16.5
IMA
|
8-98011-489-0 |
06 |
1 |
1304- |
| |
188 |
RUBBER; CLAMP,U-BOLT,FRT SPR
FRAME STRAIGHT TYPE<7KJ>
THA
|
8-97925-249-0 |
02 |
1 |
1304- |
| |
191 |
U-BOLT; FRT SPR
FRAME STRAIGHT TYPE<7KJ>
L=135
|
5-51171-015-4 |
04 |
1 |
1304- |
| |
193 |
NUT; U BOLT
FRAME STRAIGHT TYPE<7KJ>
M14 FLANGE
IMA
|
8-97360-124-0 |
08 |
1 |
1304- |
| |
197 |
PIN; FRT SPR,FRT
KD PREPARATORY PACK<6HF>
M16X122
IMA
|
8-98011-487-0 |
06 |
1 |
1304- |
| |
197 |
PIN; FRT SPR,FRT
EXC. KD PREPARATORY PACK<6HF>
M16X122 FLANGE
|
8-97360-110-0 |
06 |
1 |
1304- |
| |
201 |
NUT; PIN LK
KD PREPARATORY PACK<6HF>
M16
THA
|
0-91110-516-0 |
06 |
1 |
1304- |
| |
201 |
NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF>
M16 FLANGE
IMA
|
8-97360-125-0 |
06 |
1 |
1304- |
