Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11542 - FXZ/GXZ CNG(THAI)EU3
▶
0 - Engine, Emission, Engine Electrical
▶
0-28 - VENTILATION SYSTEM
▶

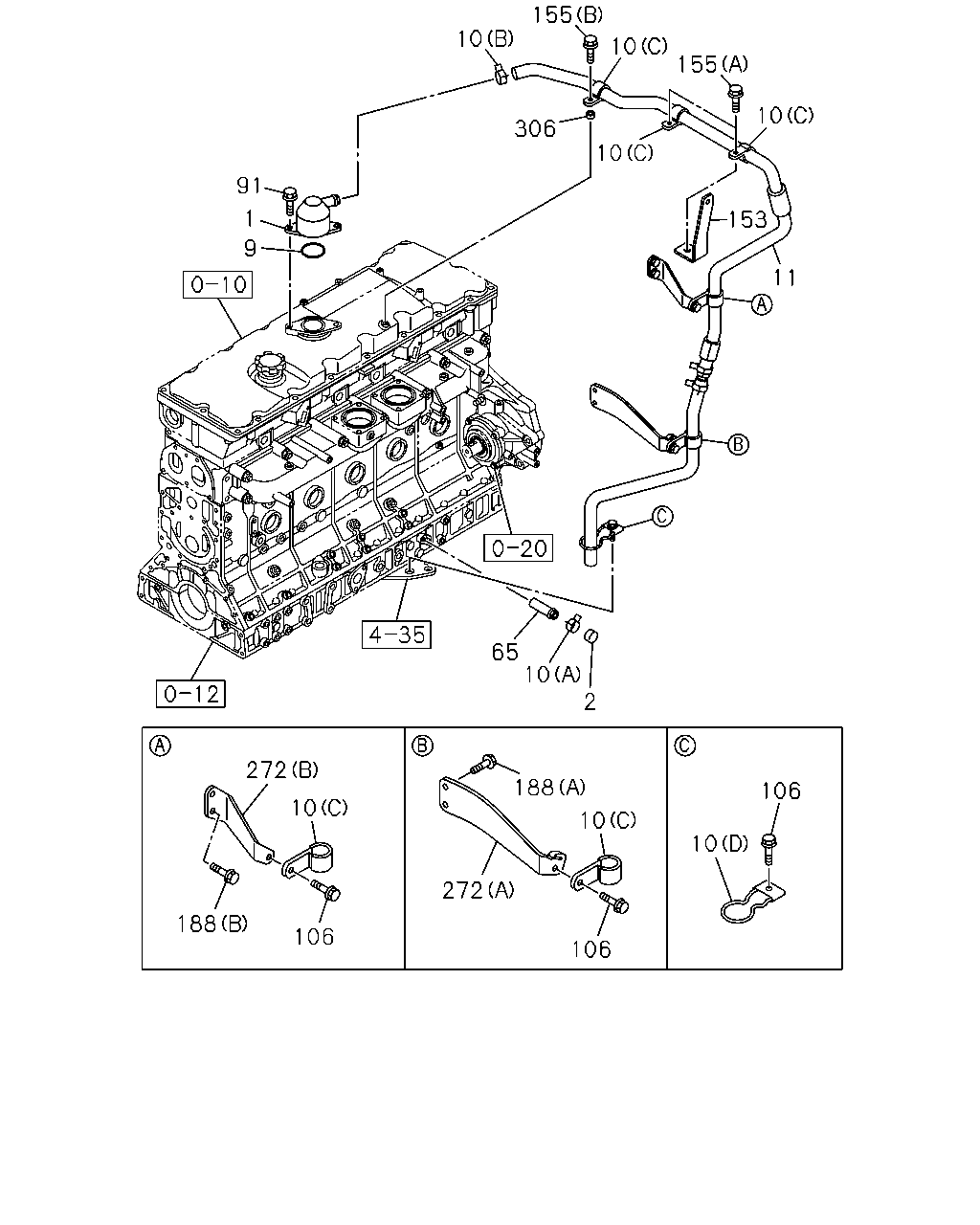

0-28 — VENTILATION SYSTEM
(#119573) — 19 parça
272
10
188
106
188
10
272
106
10
106
65
10
2
9
1
91
306
153
10
10
155
155
10
10
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BREATHER; AIR
1-11740-181-1
01
1
1305-
2
CAP; AIR BREATHER BODY
ID=9.0
8-94207-303-0
01
1
1305-
9
GASKET; AIR BREATHER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6
1-09623-565-0
01
1
1305-
10
CLIP; AIR BREATHER
(C) ID=31 L=30
1-09700-969-0
05
1
1305-
10
CLIP; AIR BREATHER
(A) ID=14
1-09704-102-0
01
1
1305-
10
CLIP; AIR BREATHER
(B) ID=28.5
1-09707-150-0
01
1
1305-
10
CLIP; AIR BREATHER
(D)
1-11369-115-0
01
1
1305-
11
HOSE; RUBBER,AIR
8-98212-983-0
01
1
1305-
65
PIPE; BREATHER
8-94176-713-0
01
1
1305-
91
BOLT; AIR BREATHER
M10X20 FLANGE THA
0-28151-020-0
02
1
1305-
106
BOLT; DRAIN PIPE
M8X20 FLANGE THA
0-28050-820-0
03
1
1305-
153
STAY; HOSE,AIR BREATHER
8-98216-511-0
01
1
1305-
155
BOLT; CLIP
(A)
8-98216-409-0
02
1
1305-
155
BOLT; CLIP
(B)
8-98216-421-0
01
1
1305-
188
BOLT; BRKT
(A) M8X16 FLANGE THA
0-28050-816-0
02
1
1305-
188
BOLT; BRKT
(B) M10X20 FLANGE THA
0-28151-020-0
02
1
1305-
272
BRACKET; PIPE
(B)
8-97620-047-0
01
1
1305-
272
BRACKET; PIPE
(A)
8-98090-631-1
01
1
1305-
306
SPACER; CLIP
8-98216-513-0
01
1
1305-
