◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51421 - TFR/TFS(MALAYSIA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-73 - BLOWER UNIT ▶
8-73 — BLOWER UNIT (#119572) — 95 parça

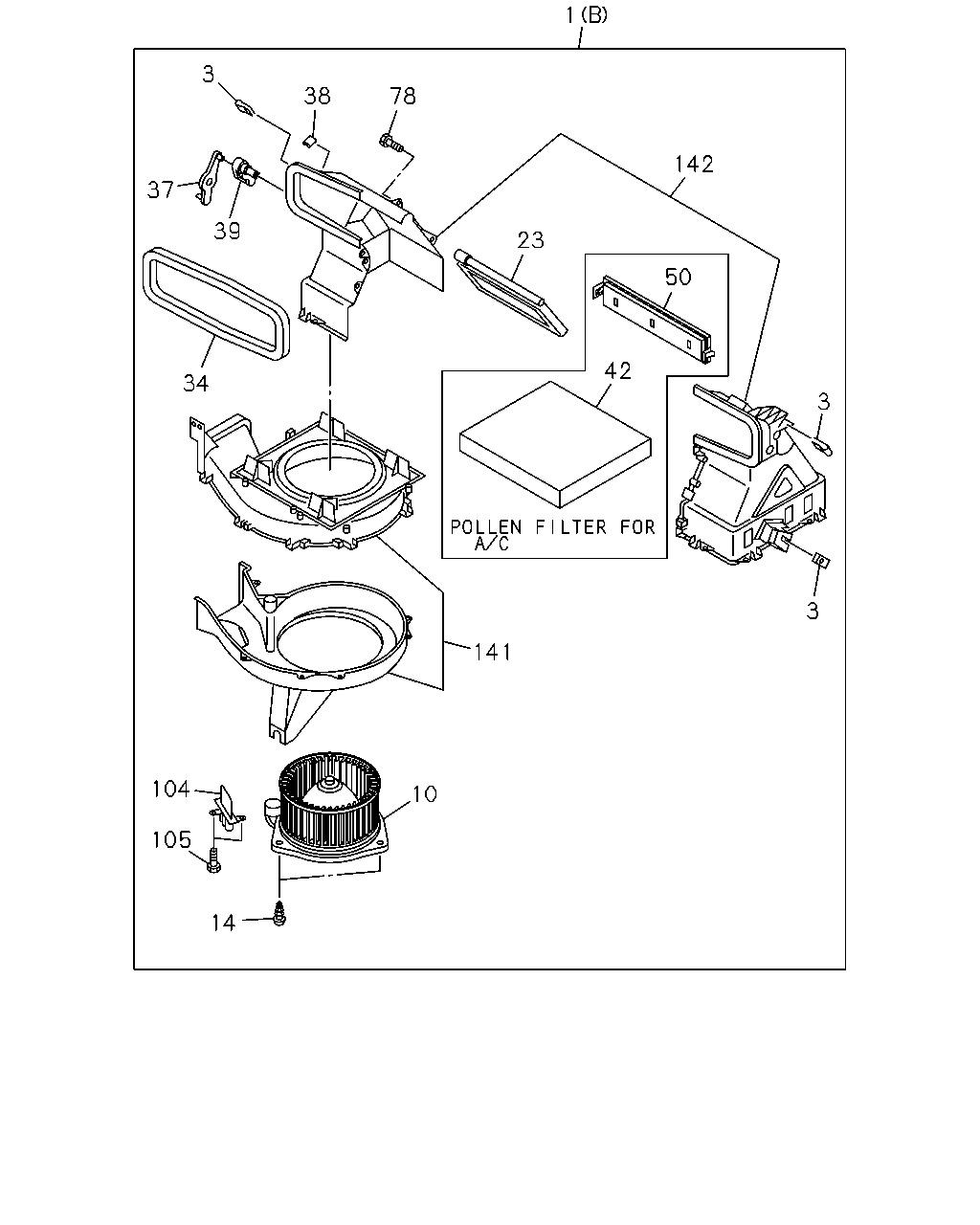

çizim 351782
78 38 3 37 39 1 23 142 50 42 3 3 141 10 104 105 14 34
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-045-1 01 1 1305- ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-045-1 01 1 1305- ● ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1305- ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1305- ● ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1305- ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-041-1 01 1 1305- ● ●
1 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/HEATER FRESH AIR(8NF) (C) 		8-98233-049-0 01 1 1305- ●
1 BLOWER ASM
COOLER WO/HEATER FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C) 		8-98233-044-0 01 1 1305- ●
3 NUT; CASE 8-98139-394-1 03 1 1305- ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98139-427-0 01 1 1305- ● ● ● ●
14 SCREW; COVER TO CASE 8-98139-395-1 03 1 1305- ● ● ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98139-413-0 01 1 1305-1410 ● ● ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98294-586-0 01 1 1411- ● ● ● ●
34 LINING; BLOWER UNIT 8-98139-426-1 01 1 1305- ● ● ● ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98139-417-0 01 1 1305- ● ● ● ●
37 LEVER; MODE LEVER
AUTO COOLER SYSTEM(CJ2) 		8-98195-045-0 01 1 1305- ● ●
38 CLIP; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98139-422-1 01 1 1305- ● ● ● ●
39 LEVER; SHUTTER,BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98139-416-0 01 1 1305- ● ● ● ●
42 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1305- ● ● ● ●
50 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1305- ● ● ● ●
78 SCREW; CASE TO CASE 8-98139-395-1 01 1 1305- ● ● ● ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98183-234-0 01 1 1305- ● ● ● ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98139-395-1 02 1 1305- ● ● ● ●
141 CASE ASM; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-640-0 01 1 1305- ● ● ● ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98233-641-0 01 1 1305- ● ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-645-0 01 1 1305- ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-645-0 01 1 1305- ● ● ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1305- ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1305- ● ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1305- ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-643-0 01 1 1305- ● ●
142 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-647-0 01 1 1305- ●
142 CASE ASM
COOLER WO/HEATER FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-644-0 01 1 1305- ●

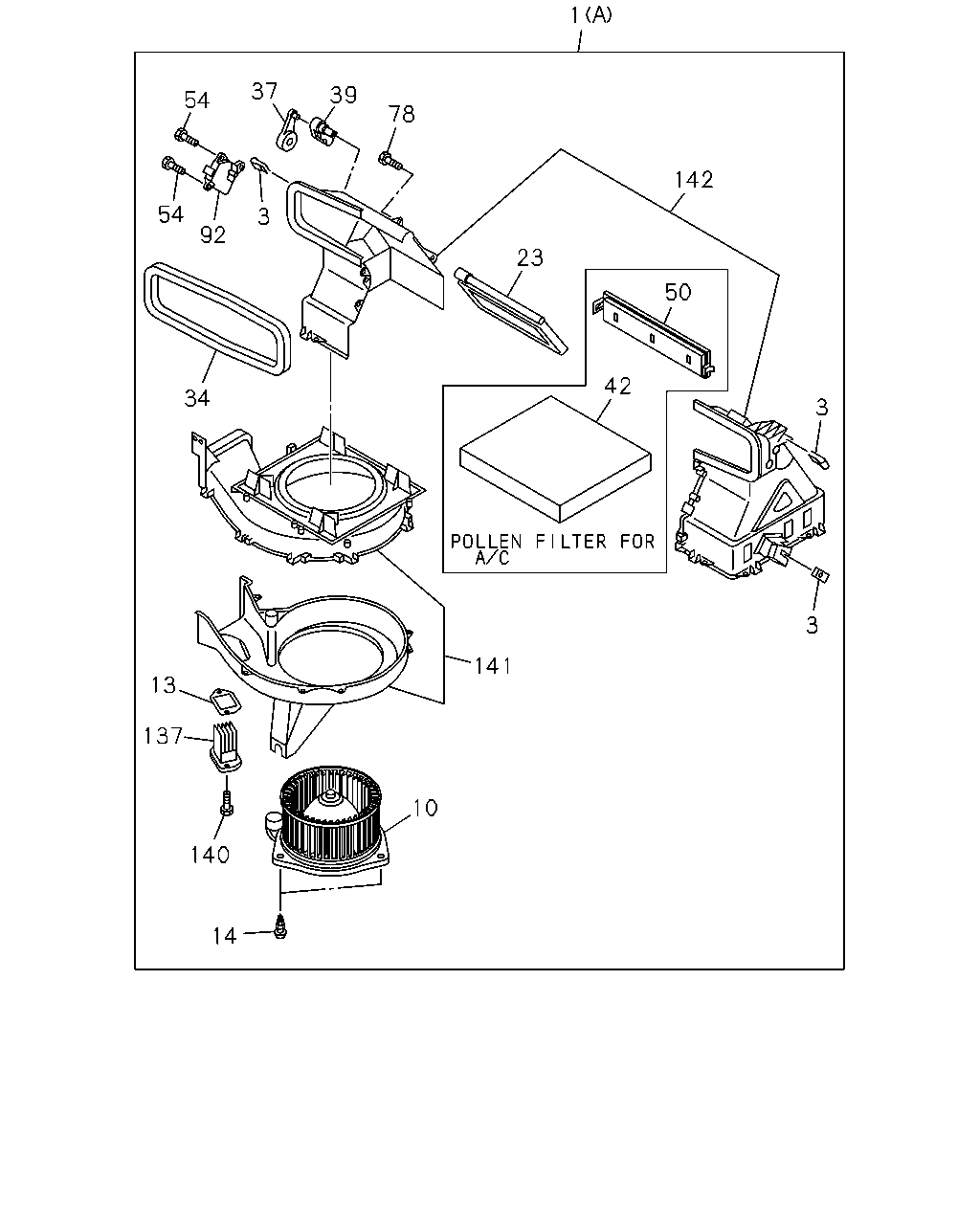

çizim 351793
1 78 39 37 54 54 3 92 34 141 10 14 140 137 13 42 23 142 50 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-045-1 01 1 1305- ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-045-1 01 1 1305- ● ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1305- ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1305- ● ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1305- ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-041-1 01 1 1305- ● ●
1 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/HEATER FRESH AIR(8NF) (C) 		8-98233-049-0 01 1 1305- ●
1 BLOWER ASM
COOLER WO/HEATER FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C) 		8-98233-044-0 01 1 1305- ●
3 NUT; CASE 8-98139-394-1 03 1 1305- ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98139-427-0 01 1 1305- ● ● ● ●
13 LINING; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98157-116-1 01 1 1305- ● ●
14 SCREW; COVER TO CASE 8-98139-395-1 03 1 1305- ● ● ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98139-413-0 01 1 1305-1410 ● ● ● ●
23 SHUTTER; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98294-586-0 01 1 1411- ● ● ● ●
34 LINING; BLOWER UNIT 8-98139-426-1 01 1 1305- ● ● ● ●
37 LEVER; MODE LEVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98139-417-0 01 1 1305- ● ● ● ●
37 LEVER; MODE LEVER
AUTO COOLER SYSTEM(CJ2) 		8-98195-045-0 01 1 1305- ● ●
39 LEVER; SHUTTER,BLOWER UNIT
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98139-416-0 01 1 1305- ● ● ● ●
42 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1305- ● ● ● ●
50 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1305- ● ● ● ●
54 SCREW; ACTUATOR TO CASE
AUTO COOLER SYSTEM(CJ2) 		8-98139-395-1 02 1 1305- ● ●
78 SCREW; CASE TO CASE 8-98139-395-1 01 1 1305- ● ● ● ●
92 ACTUATOR; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98139-424-0 01 1 1305- ● ●
137 MODULE ASM; BLOWER
AUTO COOLER SYSTEM(CJ2) 		8-98139-431-1 01 1 1305- ● ●
140 SCREW; MODULE
AUTO COOLER SYSTEM(CJ2) 		8-98139-421-0 02 1 1305- ● ●
141 CASE ASM; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-640-0 01 1 1305- ● ● ● ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98233-641-0 01 1 1305- ● ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-645-0 01 1 1305- ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-645-0 01 1 1305- ● ● ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1305- ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1305- ● ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1305- ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-643-0 01 1 1305- ● ●
142 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-647-0 01 1 1305- ●
142 CASE ASM
COOLER WO/HEATER FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-644-0 01 1 1305- ●

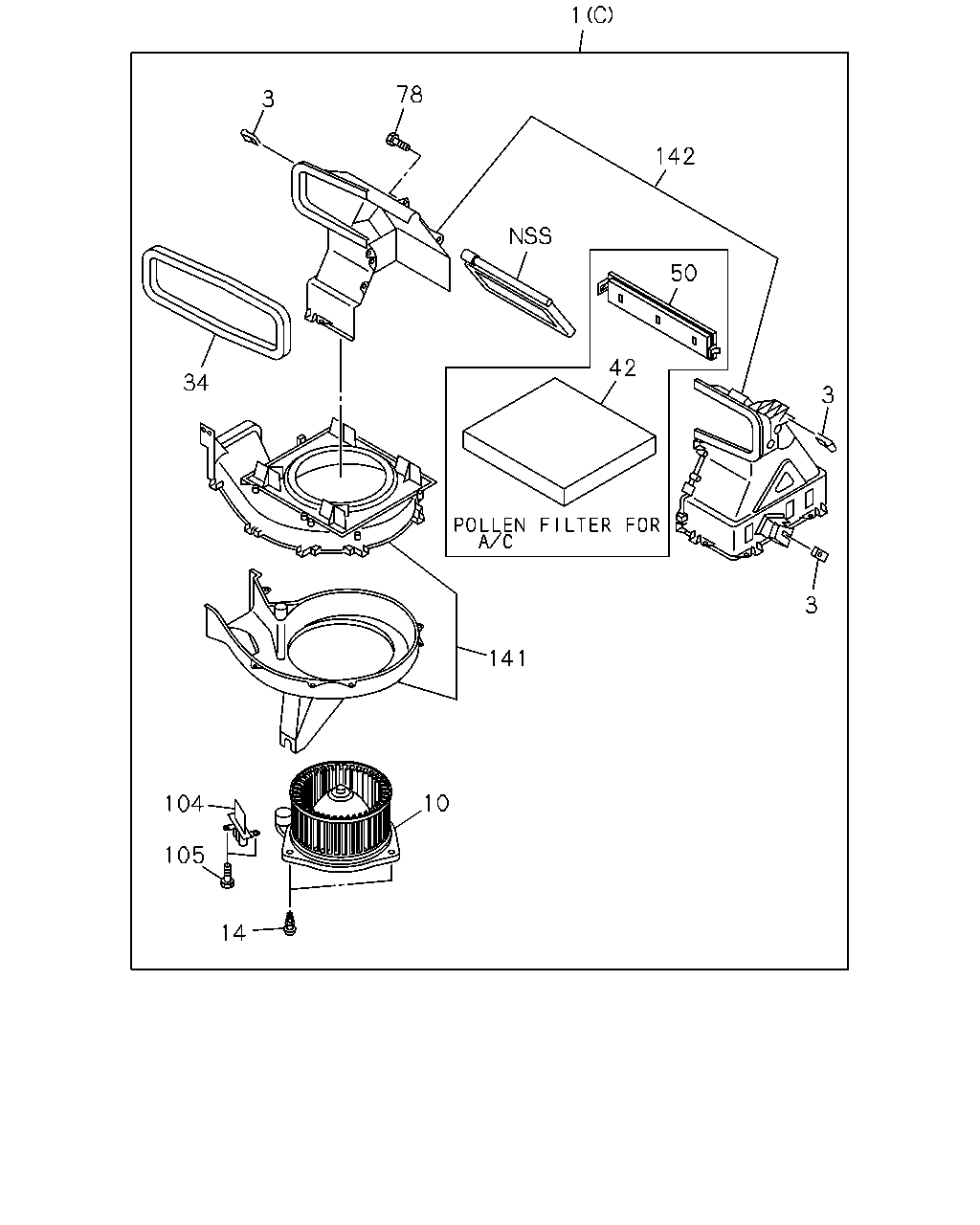

çizim 351797
50 142 1 78 3 34 104 105 14 10 141 3 3 42
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-045-1 01 1 1305- ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-045-1 01 1 1305- ● ● ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1305- ●
1 BLOWER ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (B) 		8-98233-040-1 01 1 1305- ● ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2) POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-046-1 01 1 1305- ● ●
1 BLOWER ASM
AUTO COOLER SYSTEM(CJ2) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (A) 		8-98233-041-1 01 1 1305- ● ●
1 BLOWER ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/HEATER FRESH AIR(8NF) (C) 		8-98233-049-0 01 1 1305- ●
1 BLOWER ASM
COOLER WO/HEATER FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> (C) 		8-98233-044-0 01 1 1305- ●
3 NUT; CASE 8-98139-394-1 03 1 1305- ● ● ● ●
10 MOTOR ASM; FAN,BLOWER UNIT 8-98139-427-0 01 1 1305- ● ● ● ●
14 SCREW; COVER TO CASE 8-98139-395-1 03 1 1305- ● ● ● ●
34 LINING; BLOWER UNIT 8-98139-426-1 01 1 1305- ● ● ● ●
42 FILTER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98139-428-0 01 1 1305- ● ● ● ●
50 COVER; BLOWER UNIT
POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-650-0 01 1 1305- ● ● ● ●
78 SCREW; CASE TO CASE 8-98139-395-1 01 1 1305- ● ● ● ●
104 RESISTOR; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98183-234-0 01 1 1305- ● ● ● ●
105 SCREW; RESISTOR
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98139-395-1 02 1 1305- ● ● ● ●
141 CASE ASM; BLOWER UNIT
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-640-0 01 1 1305- ● ● ● ●
141 CASE ASM; BLOWER UNIT
AUTO COOLER SYSTEM(CJ2) 		8-98233-641-0 01 1 1305- ● ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-645-0 01 1 1305- ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-645-0 01 1 1305- ● ● ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1305- ●
142 CASE ASM
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-642-0 01 1 1305- ● ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2) POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-646-0 01 1 1305- ● ●
142 CASE ASM
AUTO COOLER SYSTEM(CJ2) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-643-0 01 1 1305- ● ●
142 CASE ASM
POLLEN FILTER FOR AIR CONDITIONER<8CM> COOLER WO/HEATER FRESH AIR(8NF) 		8-98233-647-0 01 1 1305- ●
142 CASE ASM
COOLER WO/HEATER FRESH AIR(8NF) EXC. POLLEN FILTER FOR AIR CONDITIONER<8CM> 		8-98233-644-0 01 1 1305- ●
