Isuzu WW
▶
TRUCKS
▶
NPR
▶
51492 - NPR BUS CHAS(THAI)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶

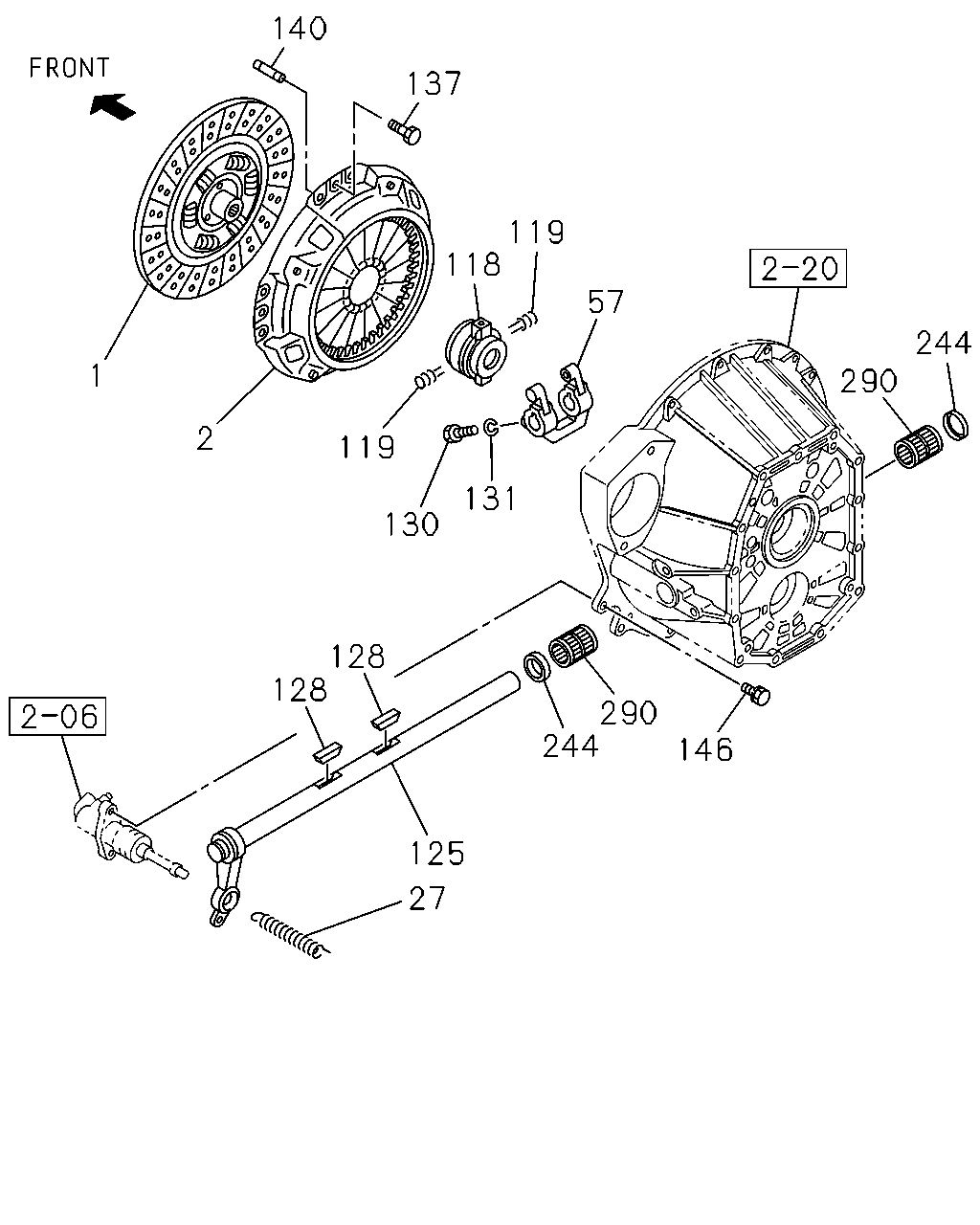

2-01 — CLUTCH
(#119568) — 20 parça
140
137
119
118
57
244
119
1
2
130
290
131
128
128
125
27
290
244
146
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
8-98164-917-1
01
1
1304-
1
DISC; CLUTCH
BEST VALUE PARTS THA
5-87610-092-0
01
1
1304-1501
2
PLATE ASM; PRESSURE,CLU
8-97351-794-0
01
1
1304-1405
2
PLATE ASM; PRESSURE,CLU
IMA
8-97038-831-2
01
1
1406-
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS
5-87610-081-0
01
1
1304-1405
2
PLATE ASM; PRESSURE,CLU
BEST VALUE PARTS IMA
5-87610-104-0
01
1
1406-
27
SPRING; RETURN,SHIFT FORK
IMA
8-98025-314-0
01
1
1304-
57
FORK; SHIFT,CLU
IMA
8-97310-456-1
01
1
1304-
118
BEARING; CLU RELEASE
IMA
1-31310-012-0
01
1
1304-
118
BEARING; CLU RELEASE
BEST VALUE PARTS IMA
1-87610-110-0
01
1
1304-
119
SPRING; SHIFT FORK
IMA
1-31329-024-0
02
1
1304-
125
SHAFT; CLU
IMA
8-97310-435-0
01
1
1304-
128
KEY; FEATHER,CLU SHAFT
IMA
9-09867-008-0
02
1
1304-
130
SCREW; SHIFT FORK
M8X14 IMA
0-61200-814-0
01
1
1304-
131
WASHER; LK,SHIFT FORK
ID=8.2 IMA
0-91510-508-0
01
1
1304-
137
BOLT; CLU COVER
M10X16 FLANGE THA
0-28051-016-0
10
1
1304-
140
PIN; STRAIGHT
L=25 IMA
8-94410-361-0
02
1
1304-
146
BOLT; SLAVE CYL TO TRANS CASE
M8X30 FLANGE THA
0-28650-830-0
02
1
1304-
244
SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). IMA
1-09625-002-0
02
1
1304-
290
BEARING; NEEDLE
NTN IMA
1-09811-002-1
02
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
