0-52 — OIL AND VACUUM PIPING; ENGINE (#119563) — 42 parça

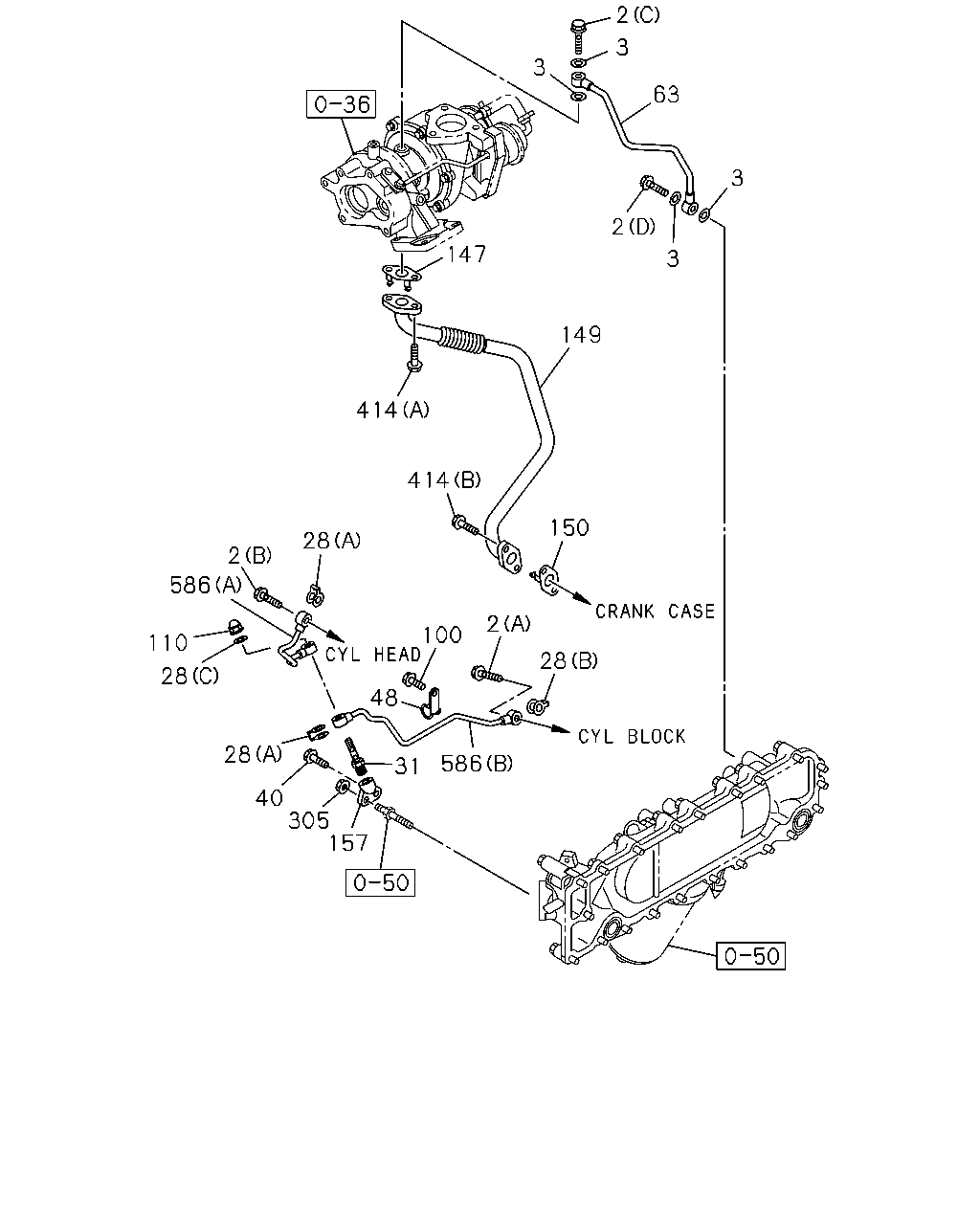

3 63 3 2 3 149 3 147 414 2 414 2 28 150 28 100 31 157 305 48 28 110 28 40 586 586 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (A) M14X27 FLANGE IMA	1-09675-086-0	01	1	1304-
2	BOLT; EYE,OIL PIPE (B) M8X20 EYE-BOLT IMA	5-09675-018-1	01	1	1304-
2	BOLT; EYE,OIL PIPE (C) M10X27 IMA	8-94443-535-0	01	1	1304-
2	BOLT; EYE,OIL PIPE ENGINE MADE IN THAILAND<6ZP> (D) M10X24 THA	8-97944-505-1	01	1	1304-
2	BOLT; EYE,OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> (D) M10X24 IMA	9-09906-205-1	01	1	1304-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=16.0 THA	9-09571-410-0	04	1	1304-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=8.2 OD=13.2 IMA	1-09630-082-0	01	1	1304-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=8.2 IMA	8-97251-046-0	02	1	1304-
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0 IMA	8-98113-762-0	01	1	1304-
31	NIPPLE; OIL PIPE THA	8-98044-067-1	01	1	1304-
40	BOLT; OIL PIPE M6X12 FLANGE THA	0-28050-612-0	01	1	1304-
48	CLIP; OIL PIPE ID=7 L=28 IMA	8-98121-233-0	01	1	1304-
63	PIPE; OIL,TURBOCHARGER FEED IMA	8-97381-488-0	01	1	1304-
100	BOLT; CLIP M8X12 FLANGE THA	0-28050-812-0	01	1	1304-
110	NUT; CAP OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> M8 CAP NUT FLANGE IMA	8-97372-242-0	01	1	1304-1309
110	NUT; CAP OIL PIPE M8 CAP NUT FLANGE IMA	8-98251-964-0	01	1	1310-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> THA	8-98132-017-0	01	1	1304-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> ID=16	8-98029-475-0	01	1	1304-
149	PIPE; OIL RETURN,TURBOCHARGER IMA	8-97381-489-2	01	1	1304-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). IMA	8-98029-476-0	01	1	1304-
157	BRACKET; OIL PIPE IMA	8-98043-093-0	01	1	1304-
305	NUT; BRKT,OIL PIPE M6 FLANGE THA	0-91180-106-0	01	1	1304-
414	BOLT; OIL PIPE (A) M6X16 HEX SOCKET THA	0-58330-616-0	02	1	1304-
414	BOLT; OIL PIPE (B) M8X20 HEX SOCKET IMA	0-58330-820-0	02	1	1304-
586	PIPE; OIL,TENSIONER (A) IMA	8-98039-566-0	01	1	1304-
586	PIPE; OIL,TENSIONER (B) IMA	8-98039-567-0	01	1	1304-

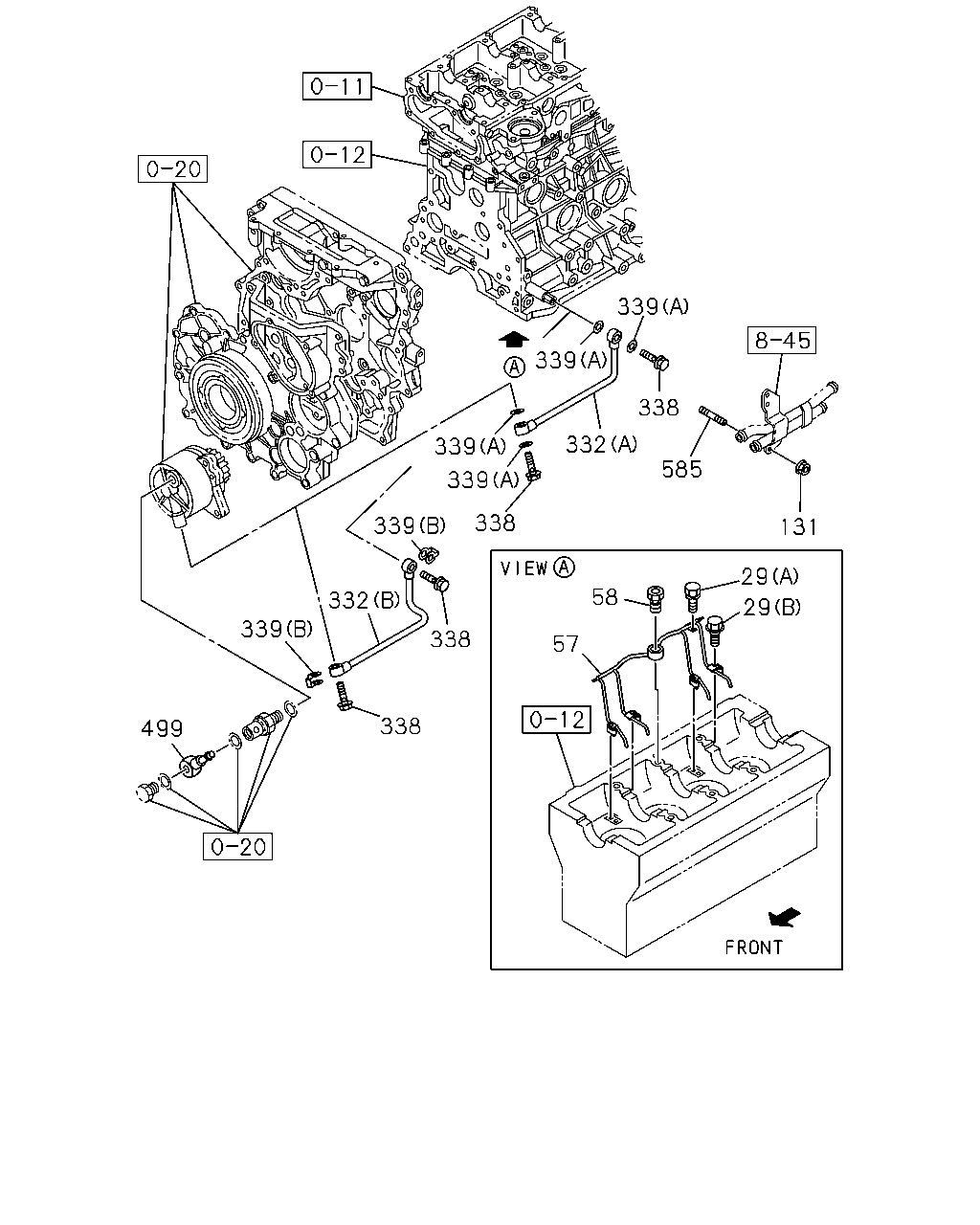

339 339 338 332 339 339 585 131 338 339 332 339 338 338 499 57 58 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	BOLT; OIL PIPE,OIL JET (A) M8X10 FLANGE THA	0-28050-810-0	01	1	1304-
29	BOLT; OIL PIPE,OIL JET ENGINE MADE IN THAILAND<6ZP> (B) M6X20 FLANGE THA	8-97380-673-1	04	1	1304-
29	BOLT; OIL PIPE,OIL JET EXC. ENGINE MADE IN THAILAND<6ZP> (B) M6X20	8-97117-298-1	04	1	1304-
57	PIPE; OIL,OIL JET THA	8-97312-132-3	01	1	1304-
58	VALVE; RELIEF,OIL JET,PISTON COOLING ENGINE MADE IN THAILAND<6ZP> THA	8-97379-464-0	01	1	1304-
58	VALVE; RELIEF,OIL JET,PISTON COOLING EXC. ENGINE MADE IN THAILAND<6ZP>	8-97239-048-1	01	1	1304-1407
58	VALVE; RELIEF,OIL JET,PISTON COOLING EXC. ENGINE MADE IN THAILAND<6ZP>	8-98285-334-0	01	1	1408-
131	NUT; UNION M8 FLANGE THA	5-09440-010-0	01	1	1304-
332	PIPE; OIL,C/BL TO VAC PUMP ENGINE MADE IN THAILAND<6ZP> (A) THA	8-98038-929-0	01	1	1304-
332	PIPE; OIL,C/BL TO VAC PUMP EXC. ENGINE MADE IN THAILAND<6ZP> (B)	8-98201-785-0	01	1	1304-
338	BOLT; JOINT,OIL PIPE ENGINE MADE IN THAILAND<6ZP> M8X20 EYE-BOLT THA	8-97910-296-1	02	1	1304-
338	BOLT; JOINT,OIL PIPE EXC. ENGINE MADE IN THAILAND<6ZP> M8X20 EYE-BOLT IMA	5-09675-018-1	02	1	1304-
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE MADE IN THAILAND<6ZP> (A) ID=8.2 OD=14.0 T=1.0 THA	9-09571-408-0	04	1	1304-
339	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ENGINE MADE IN THAILAND<6ZP> (B) ID=8.3 IMA	8-98065-992-0	02	1	1304-
499	PIPE; VACUUM IMA	8-98027-553-0	01	1	1304-
585	STUD; CLIP M8X18 L=30 THA	0-41010-818-0	01	1	1304-
