4-10 — FRONT AXLE (#119555) — 59 parça

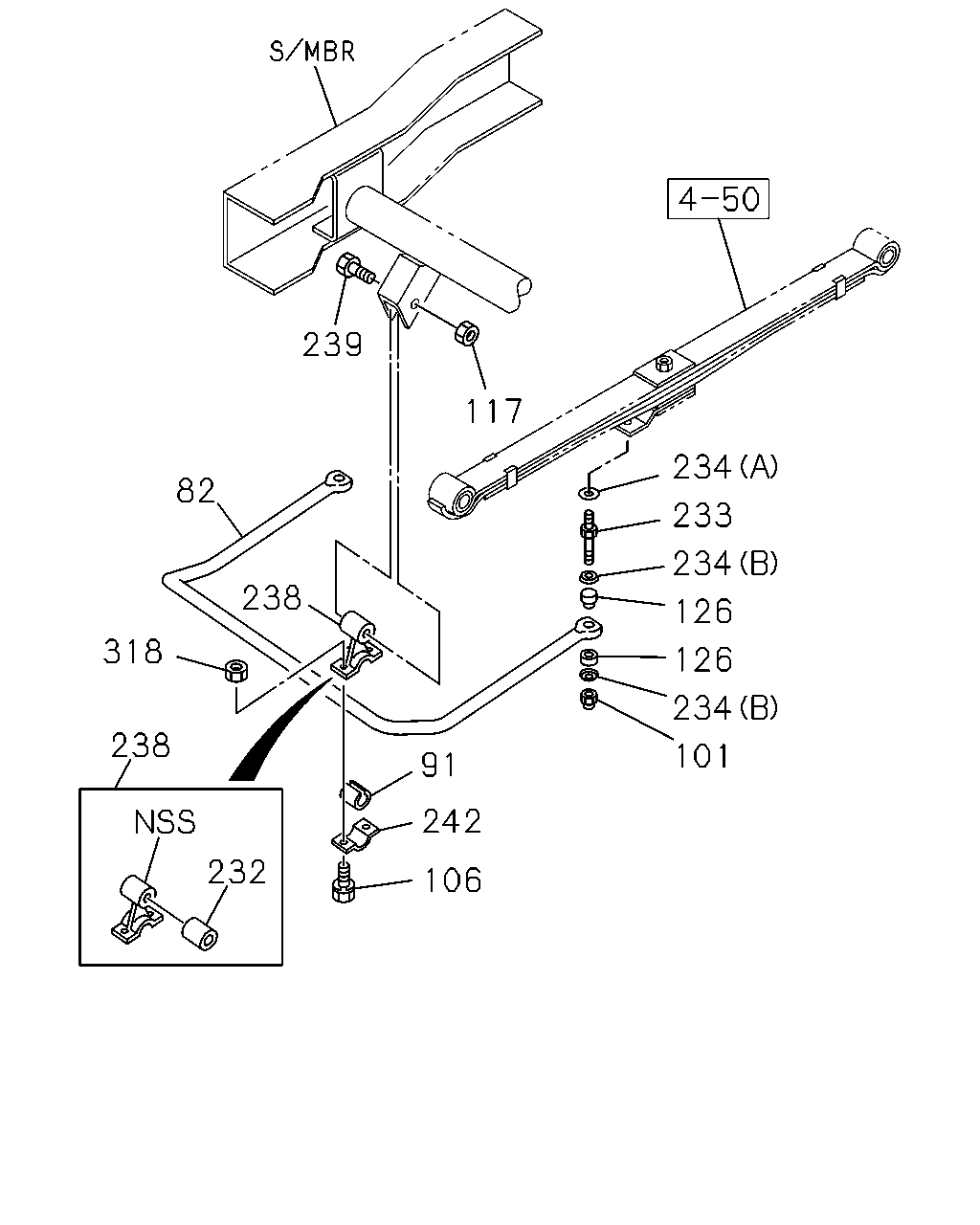

239 117 82 238 318 238 232 91 242 106 101 234 126 126 234 233 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	BAR; STAB,FRT SUSP	8-98006-957-0	01	1	1304-
91	BUSHING; RUBBER,STAB BAR	8-94342-187-0	02	1	1304-
101	NUT; STAB BAR M12 LOCK NUT	0-91370-012-0	02	1	1304-
106	BOLT; CAP FIX M10X25 FLANGE THA	0-28651-025-0	04	1	1304-
117	NUT; STAB BAR BUSHING M14 FLANGE IMA	8-97360-124-0	02	1	1304-
126	RUBBER; MTG,STAB BAR	8-94342-083-0	04	1	1304-
232	BUSHING; LINK ROD IMA	8-97239-911-0	02	1	1304-
233	STUD; STABILIZER	8-97360-120-0	02	1	1304-
234	WASHER; STAB (A) ID=14.2 IMA	0-91510-514-0	02	1	1304-
234	WASHER; STAB (B)	8-97360-055-0	04	1	1304-
238	ROD LINK ASM; STABILIZER,FRT	8-97239-907-0	02	1	1304-
239	BOLT; LINK ROD M14X70 FLANGE IMA	0-28851-470-0	02	1	1304-
242	CAP; LINK ROD IMA	8-94178-430-2	02	1	1304-
318	NUT; CAP FIX M10 FLANGE THA	0-91180-210-0	04	1	1304-

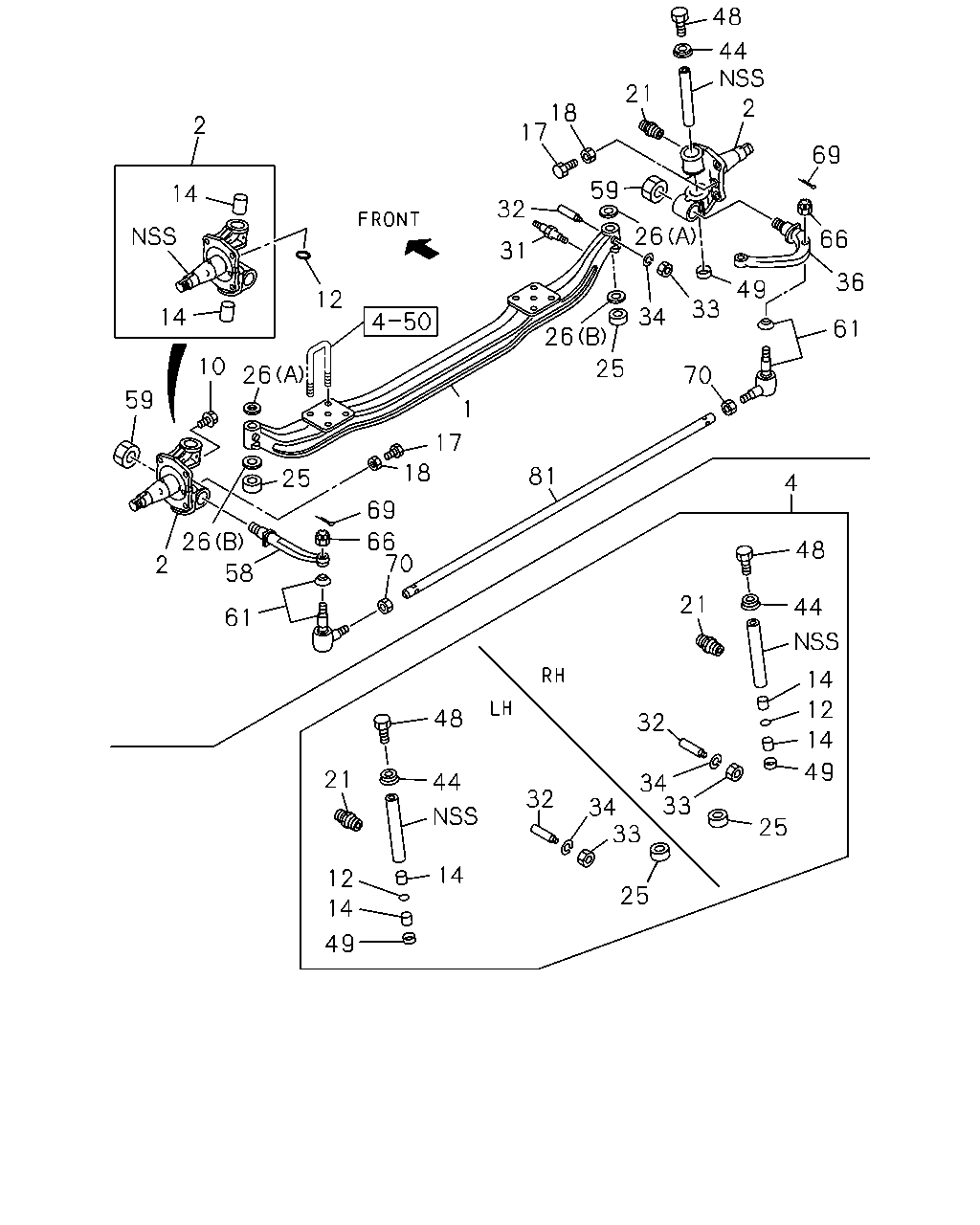

48 44 2 69 66 36 61 49 33 70 25 34 26 59 21 18 17 26 31 32 12 2 14 14 81 4 48 44 21 14 12 14 49 25 33 34 32 32 34 33 14 44 48 21 12 14 49 25 66 69 18 17 61 58 26 2 59 10 26 25 1 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT FRONT WIDE TREAD<7GV>	8-98141-521-1	01	1	1304-
1	AXLE; FRT EXC. FRONT WIDE TREAD<7GV> IMA	8-98038-384-3	01	1	1304-
2	KNUCKLE; FRT AXLE	8-97261-549-2	01	1	1304-
2	KNUCKLE; FRT AXLE	8-97261-550-2	01	1	1304-
4	KING PIN KIT	5-87832-219-2	01	1	1304-1402
4	KING PIN KIT IMA	5-87832-220-2	01	1	1403-
10	PLUG; PLATE,KNUCKLE IMA	8-97360-117-0	01	1	1304-
12	GASKET; KNUCKLE IMA	8-98084-500-0	02	1	1304-
14	BUSHING; KING PIN DAIDO WO/NOTCH IMA	8-94107-672-3	04	1	1304-
17	BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT IMA	8-97360-059-0	03	1	1304-
18	NUT; STOPPER BOLT,KNUCKLE M12 IMA	0-91111-512-0	03	1	1304-
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT THA	0-90301-406-0	04	1	1304-
25	BEARING; THRUST,KING PIN IMA	8-94248-883-2	02	1	1304-1402
25	BEARING; THRUST,KING PIN	8-94248-883-3	01	1	1403-
25	BEARING; THRUST,KING PIN	8-97141-943-1	01	1	1403-
26	SHIM; KING PIN,BRG (A) T=0.50 IMA	8-94162-574-0	AR	1	1304-
26	SHIM; KING PIN,BRG (A) T=0.55 IMA	8-94162-575-0	AR	1	1304-
26	SHIM; KING PIN,BRG (A) T=0.60 IMA	8-94162-576-0	AR	1	1304-
26	SHIM; KING PIN,BRG (A) T=0.65 IMA	8-94162-577-0	AR	1	1304-
26	SHIM; KING PIN,BRG (B) T=1.95 IMA	8-94168-490-0	02	1	1304-1402
26	SHIM; KING PIN,BRG (B) T=1.95 IMA	8-94168-490-0	01	1	1403-
26	SHIM; KING PIN,BRG (A) T=0.70 IMA	8-94174-352-0	AR	1	1304-
26	SHIM; KING PIN,BRG (A) T=0.80 IMA	8-94174-354-0	AR	1	1304-
26	SHIM; KING PIN,BRG (A) T=0.90 IMA	8-94174-356-0	AR	1	1304-
31	PIN; S/ABS,LWR EXC. FRONT WIDE TREAD<7GV> IMA	8-97145-460-0	02	1	1304-
32	BOLT; KEY,KING PIN	8-97141-945-2	02	1	1304-
33	NUT; KEY BOLT M10 THA	0-91110-510-0	02	1	1304-
34	WASHER; LK,KEY BOLT ID=10.2 IMA	0-91510-510-0	02	1	1304-
36	ARM; KNUCKLE FRONT WIDE TREAD<7GV>	8-98135-281-1	01	1	1304-
36	ARM; KNUCKLE EXC. FRONT WIDE TREAD<7GV> IMA	8-97202-776-4	01	1	1304-
44	COVER; KING PIN OD=36 IMA	8-97360-023-0	02	1	1304-
48	BOLT; COVER M10X12 FLANGE IMA	0-28051-012-0	02	1	1304-
49	CAP; KNUCKLE IMA	8-97360-024-0	02	1	1304-
58	ARM; TIE ROD IMA	8-97138-304-1	01	1	1304-
59	NUT; TIE ROD ARM IMA	8-97360-123-0	02	1	1304-
61	ROD END; TIE ROD	8-97142-100-1	01	1	1304-1310
61	ROD END; TIE ROD IMA	8-97107-348-2	01	1	1311-
61	ROD END; TIE ROD	8-97142-101-1	01	1	1304-1310
61	ROD END; TIE ROD IMA	8-97107-349-2	01	1	1311-
66	NUT; TIE ROD END M16 SLOTTED IMA	8-98049-689-0	02	1	1304-
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20 IMA	0-81124-020-0	02	1	1304-
70	NUT; TIE ROD END M20 LH THREAD IMA	8-94254-726-0	01	1	1304-
70	NUT; TIE ROD END M20 IMA	8-98043-530-0	01	1	1304-
81	ROD; TIE FRONT WIDE TREAD<7GV>	8-98137-615-0	01	1	1304-
81	ROD; TIE EXC. FRONT WIDE TREAD<7GV> IMA	8-97061-869-0	01	1	1304-
