Isuzu WW
▶
TRUCKS
▶
FXZ
▶
11542 - FXZ/GXZ CNG(THAI)EU3
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶

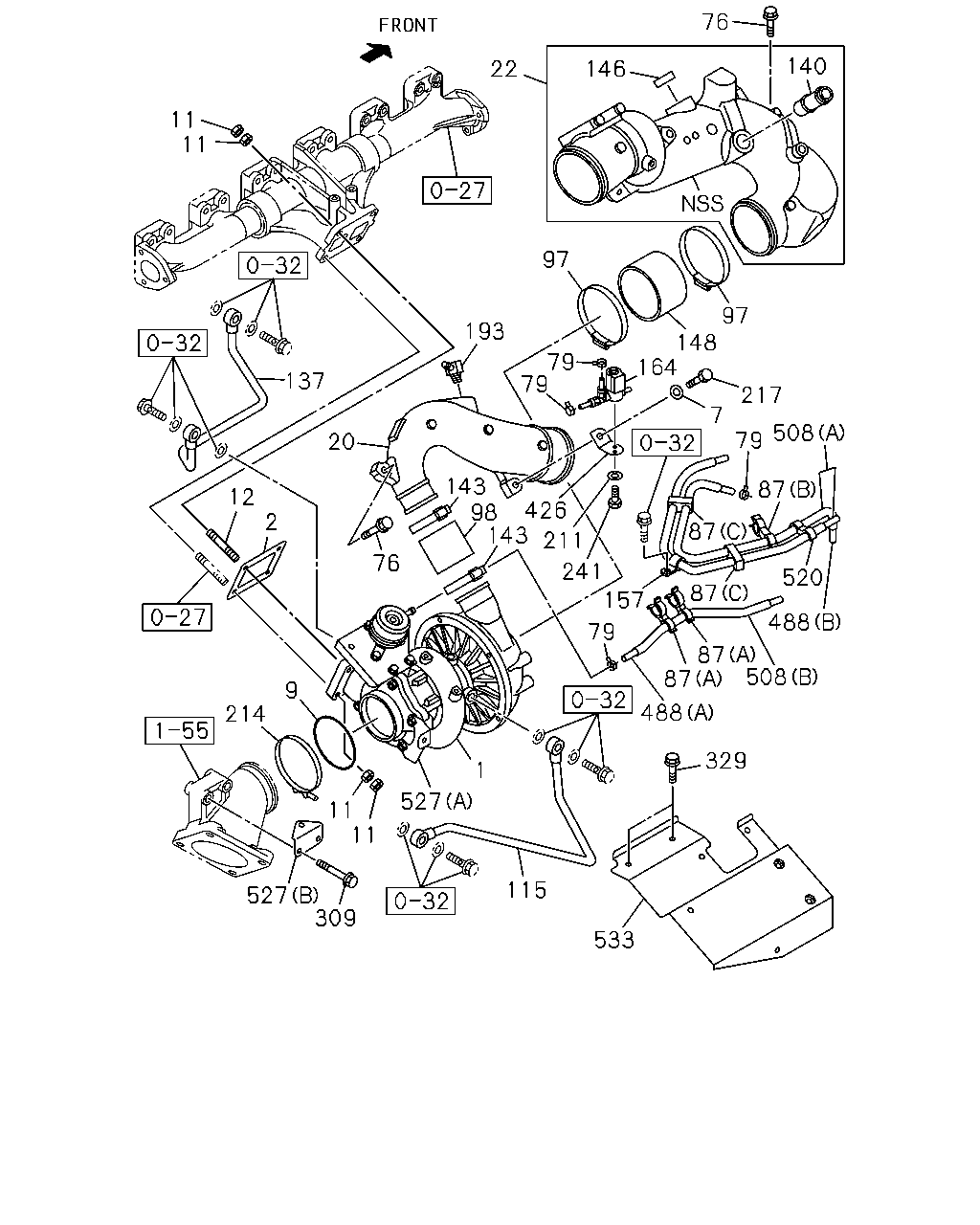

0-36 — TURBOCHARGER SYSTEM
(#119548) — 39 parça
76
140
146
22
11
11
137
20
12
2
9
214
76
143
193
97
97
148
164
79
79
508
217
7
87
79
87
520
488
508
329
488
87
87
157
79
87
527
309
11
11
1
527
115
533
241
211
426
143
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
8-98216-463-0
01
1
1305-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98216-464-0
01
1
1305-
7
WASHER; PL,BRKT
8-98216-412-0
01
1
1305-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97618-761-1
01
1
1305-
11
NUT; TURBOCHARGER
M10
1-09420-005-0
08
1
1305-
12
STUD; TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
1305-
20
PIPE; INL,TURBOCHARGER OUT
8-98216-530-0
01
1
1305-
22
DUCT; INL,ACL TO TURBOCHARGER
8-97614-187-1
01
1
1305-
76
BOLT; AIR DUCT
M10X45 FLANGE THA
0-28151-045-0
03
1
1305-
79
CLIP; RUBBER HOSE
8-98216-477-0
04
1
1305-
87
CLIP; RUBBER HOSE FIX
(A)
8-98217-281-0
02
1
1305-
87
CLIP; RUBBER HOSE FIX
(B)
8-98217-282-0
01
1
1305-
87
CLIP; RUBBER HOSE FIX
(C)
8-98217-283-0
02
1
1305-
97
CLIP; HOSE,TURBOCHARGER,INL
ID=87-116
1-09707-138-0
02
1
1305-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
8-98169-677-0
01
1
1305-
115
PIPE; WATER,TURBOCHARGER OUT
8-97605-217-0
01
1
1305-
137
PIPE; WATER,TURBOCHARGER IN
8-97607-435-0
01
1
1305-
140
PIPE; AIR PIPE
8-97603-427-1
01
1
1305-
143
CLIP; HOSE,TURBOCHARGER OUTLET
ID=68-85
8-98096-592-0
02
1
1305-
146
PLUG; INL PIPE
OD=40
8-94241-637-0
01
1
1305-
148
HOSE; TURBOCHARGER,INL
1-09360-913-0
01
1
1305-
157
CLIP; HOSE,INL
ID=19 L=25
1-09700-515-1
01
1
1305-
164
VALVE; WASTE GATE
8-98216-536-0
01
1
1305-
193
NIPPLE; UNION
8-98217-285-0
01
1
1305-
211
WASHER; PL
8-98216-474-0
02
1
1305-
214
BAND; "V",TURBOCHARGER TO EXH PIPE
8-98006-007-1
01
1
1305-
217
BOLT; BRKT
8-98216-471-0
01
1
1305-
241
BOLT
8-98216-473-0
02
1
1305-
309
BOLT; TURBOCHARGER
8-98216-469-0
02
1
1305-
329
BOLT; INSULATOR
8-98216-409-0
06
1
1305-
426
BRACKET; VLV
8-98216-470-0
01
1
1305-
488
HOSE; RUBBER
(A)
8-98216-475-0
01
1
1305-
488
HOSE; RUBBER
(B)
8-98216-476-0
01
1
1305-
508
TUBE; CORRUGATE
(A)
8-98216-519-0
01
1
1305-
508
TUBE; CORRUGATE
(B)
8-98216-520-0
01
1
1305-
520
CLIP; BAND
8-98217-284-0
01
1
1305-
527
BRACKET; TURBOCHARGER
(A)
8-98216-465-0
01
1
1305-
527
BRACKET; TURBOCHARGER
(B)
8-98216-466-0
01
1
1305-
533
INSULATOR; HEAT
8-98216-467-0
01
1
1305-
