Isuzu WW
▶
PICKUP
▶
TFR
▶
51421 - TFR/TFS(MALAYSIA)
▶
3 - Brakes, Brake System
▶

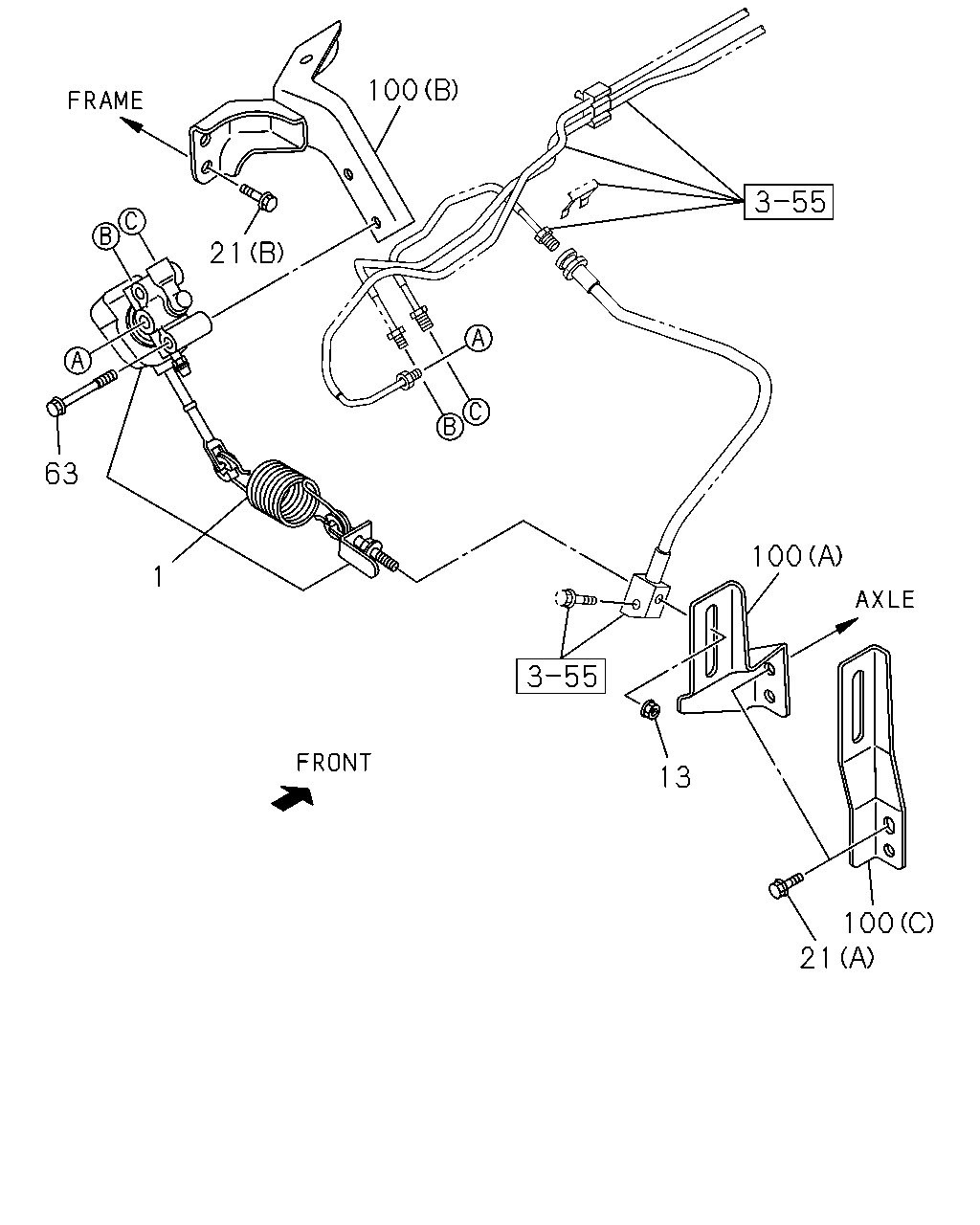

3-45 - LOAD SENSING PROPORTIONING VALVE
▶
3-45 — LOAD SENSING PROPORTIONING VALVE
(#119544) — 18 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5SF
D - TFS5WF
100
21
63
1
100
13
21
100
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
VALVE ASM; LOAD SENSING PROPORTIONING
8-97947-813-0
01
1
1305-
●
1
VALVE ASM; LOAD SENSING PROPORTIONING
BRK WHL LK CONT LSPV<JR9>
8-97947-813-0
01
1
1305-
●
●
●
13
NUT; LSPV TO BRKT
M8 FLANGE
0-91180-108-0
01
1
1305-
●
13
NUT; LSPV TO BRKT
BRK WHL LK CONT LSPV<JR9> M8 FLANGE
0-91180-108-0
01
1
1305-
●
●
●
21
BOLT; BRKT
(A) M8X20 FLANGE
0-28650-820-0
02
1
1305-
●
21
BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> (A) M8X20 FLANGE
0-28650-820-0
02
1
1305-
●
●
●
21
BOLT; BRKT
(B) M8X25 FLANGE
0-28650-825-0
03
1
1305-
●
21
BOLT; BRKT
BRK WHL LK CONT LSPV<JR9> (B) M8X25 FLANGE
0-28650-825-0
03
1
1305-
●
●
●
63
BOLT; LSPV
M8X60 FLANGE
0-28050-860-0
02
1
1305-
●
63
BOLT; LSPV
BRK WHL LK CONT LSPV<JR9> M8X60 FLANGE
0-28050-860-0
02
1
1305-
●
●
●
100
BRACKET; LSPV
(A)
8-97947-818-0
01
1
1305-
●
100
BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (A)
8-97947-818-0
01
1
1305-
●
100
BRACKET; LSPV
(B)
8-98192-002-0
01
1
1305-
●
100
BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> EXC. HIGH RIDE SUSPENSION(7YC) (B)
8-98192-002-0
01
1
1305-
●
100
BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (C)
8-97947-819-0
01
1
1305-
●
100
BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (C)
8-97947-819-0
01
1
1305-
●
●
100
BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> HIGH RIDE SUSPENSION(7YC) (B)
8-98192-003-0
01
1
1305-
●
100
BRACKET; LSPV
BRK WHL LK CONT LSPV<JR9> (B)
8-98192-003-0
01
1
1305-
●
●
