Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#119541) — 38 parça

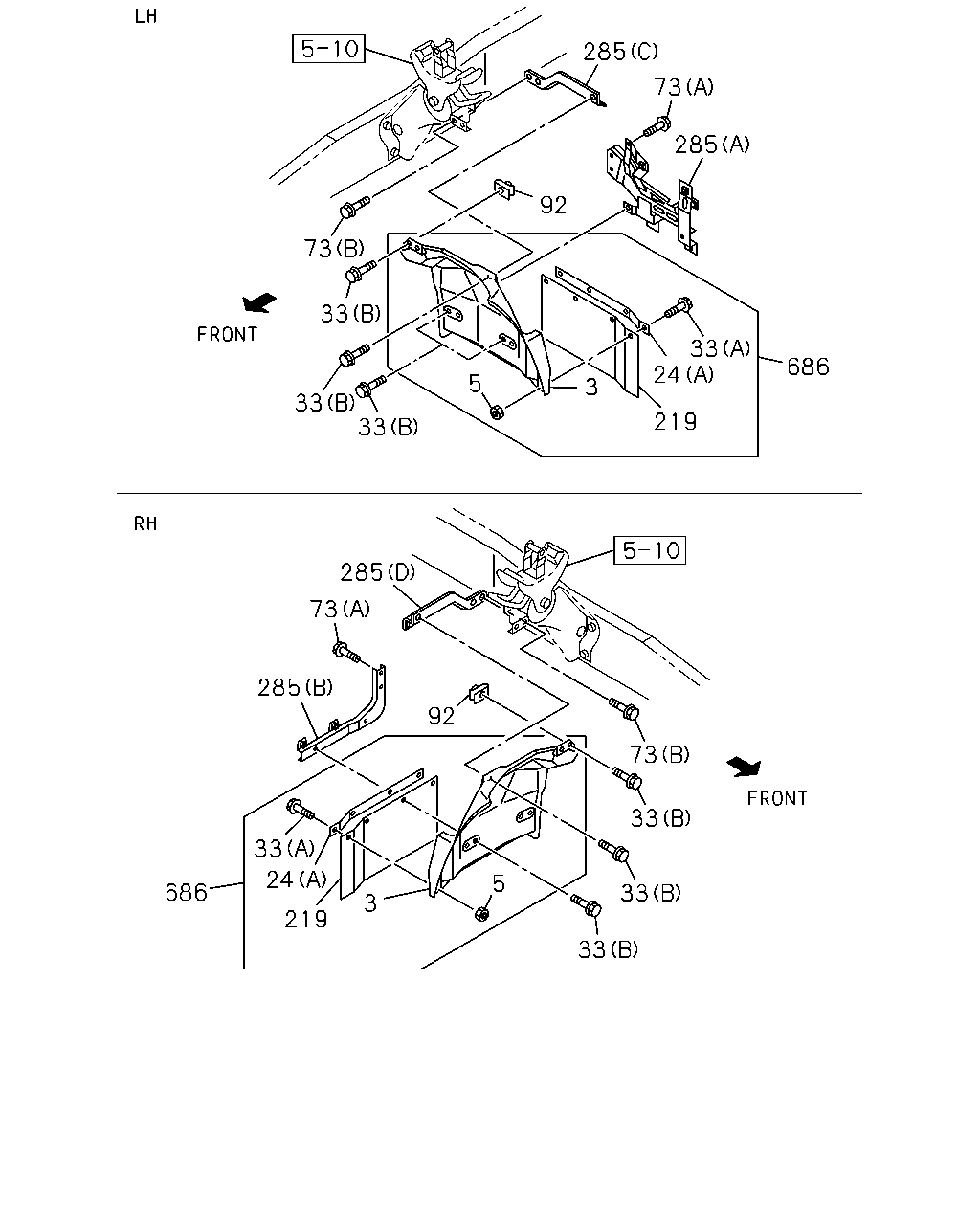

73 33 33 3 33 5 24 219 33 686 285 73 285 92 285 73 285 92 73 33 33 33 5 3 219 24 33 686

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	GUARD; MUD,RR IMA	8-98004-029-5	01	1	1304-	●	●
3	GUARD; MUD,RR IMA	8-98004-030-4	01	1	1304-	●	●
5	NUT; FLAP RUBBER M6 IMA	8-98227-380-0	08	1	1304-	●	●
24	PLATE; MUD COVER (A) IMA	8-98004-031-1	02	1	1304-	●	●
24	PLATE; MUD COVER (B) IMA	8-98154-258-0	02	1	1304-	●	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER IMA	1-09030-093-0	08	1	1304-	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE IMA	8-98061-108-0	04	1	1304-	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE IMA	8-98227-381-0	08	1	1304-	●	●
73	BOLT; MUD COVER BRKT (B) M8X25 FLANGE THA	0-28650-825-0	04	1	1304-	●	●
73	BOLT; MUD COVER BRKT (A) M10X25 FLANGE THA	0-28651-025-0	04	1	1304-	●	●
92	NUT; MUD COVER M8 SPIRE NUT IMA	8-98039-860-2	02	1	1304-	●	●
219	FLAP; MUD GUARD IMA	8-98004-033-1	02	1	1304-	●	●
285	BRACKET; MUD COVER (B) IMA	8-98001-314-2	01	1	1304-	●	●
285	BRACKET; MUD COVER (D) IMA	8-98001-315-2	01	1	1304-	●	●
285	BRACKET; MUD COVER (C) IMA	8-98001-319-2	01	1	1304-	●	●
285	BRACKET; MUD COVER (A) IMA	8-98001-320-3	01	1	1304-	●	●
686	FLAP ASM; MUD IMA	8-97387-750-7	01	1	1304-	●	●
686	FLAP ASM; MUD IMA	8-97387-751-6	01	1	1304-	●	●

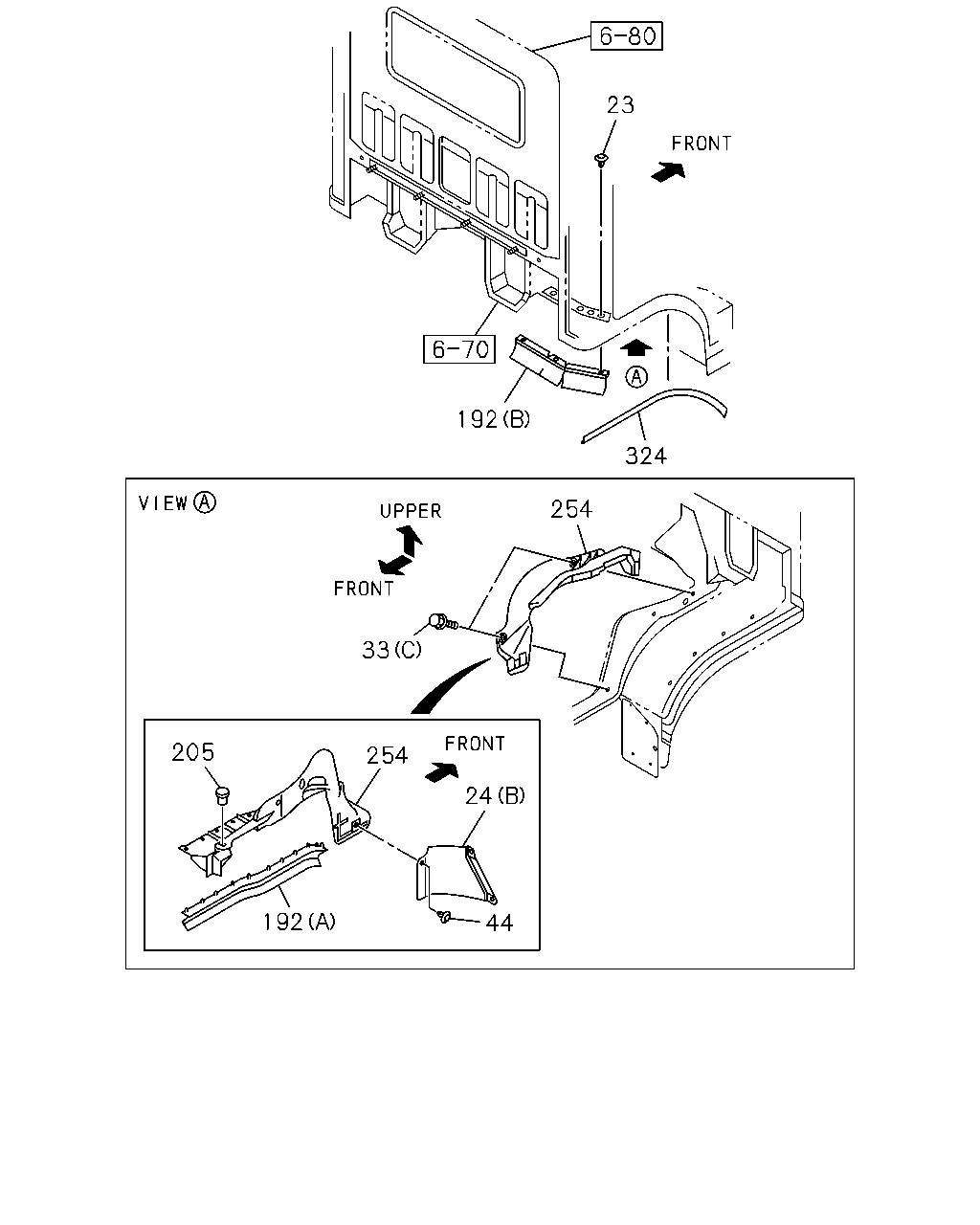

23 192 324 254 33 205 192 254 24 44

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
23	FASTENER; MUD COVER OD=8.3 IMA	8-97997-832-0	06	1	1304-	●	●
24	PLATE; MUD COVER (A) IMA	8-98004-031-1	02	1	1304-	●	●
24	PLATE; MUD COVER (B) IMA	8-98154-258-0	02	1	1304-	●	●
33	BOLT; MUD COVER (B) M8X25 W/LK&PL WASHER IMA	1-09030-093-0	08	1	1304-	●	●
33	BOLT; MUD COVER (C) M6X16 FLANGE IMA	8-98061-108-0	04	1	1304-	●	●
33	BOLT; MUD COVER (A) M6X16 FLANGE IMA	8-98227-381-0	08	1	1304-	●	●
44	CLIP; ANCHOR OD=16 L=11 IMA	1-76378-155-0	06	1	1304-	●	●
192	SEAL; MUD COVER (A) IMA	8-98022-755-1	01	1	1304-	●	●
192	SEAL; MUD COVER (A) IMA	8-98022-756-1	01	1	1304-	●	●
192	SEAL; MUD COVER (B) THA	8-98022-782-3	02	1	1304-	●	●
205	FASTENER; MUD COVER D=5.8 SCREW & GROMMET NYLON IMA	8-94242-150-0	02	1	1304-	●	●
254	COVER; MUD,VALANCE IMA	8-98022-750-3	01	1	1304-	●	●
254	COVER; MUD,VALANCE IMA	8-98022-751-3	01	1	1304-	●	●
324	PROTECTOR; FRT FENDER	8-98022-786-2	02	1	1304-	●	●

140 139 90 61 140 140 139 90 140 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	BRACKET; COVER IMA	8-98040-465-1	01	1	1304-	●	●
61	BRACKET; COVER IMA	8-98040-466-1	01	1	1304-	●	●
90	BOLT; COVER M8X25 FLANGE THA	0-28650-825-0	04	1	1304-	●	●
139	PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B) IMA	8-98043-920-2	01	1	1304-	●	●
139	PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (A) IMA	8-98115-458-0	01	1	1304-	●	●
140	BOLT; SIDE PANEL M8X35 W/LK&PL WASHER IMA	1-09030-094-0	06	1	1304-	●	●
