Isuzu WW
▶
TRUCKS
▶
NLR
▶
51479 - NLR/NMR(THAILAND)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#119533) — 25 parça
◀
[060A] STARTER,GENERATOR AND OTHER PARTS (8 parça)
[060A] RELAY (2 parça)
[060A] ENG CONTROL UNIT AND DRM (7 parça)
[060A] BATTERY CABLE BRACKET (5 parça)
[060A] SENSOR (3 parça)
▶

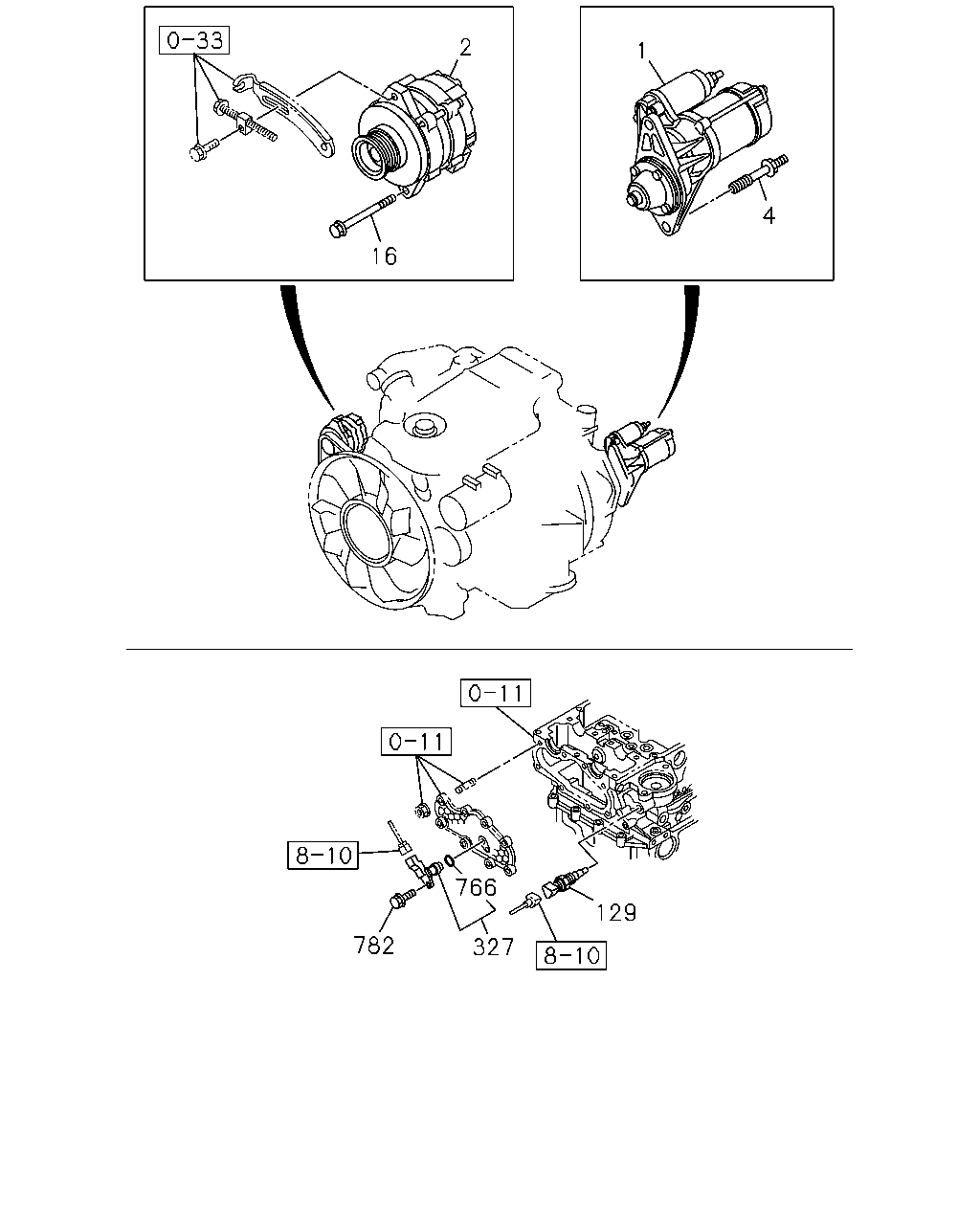

1
4
2
16
129
766
327
782
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98222-018-1
01
1
1304-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A
8-98029-887-2
01
1
1304-
4
BOLT; STARTER
M10X15,M14X75 L=103 IMA
8-97212-602-0
02
1
1304-
16
BOLT; GEN
M10X120 FLANGE
0-28056-012-0
01
1
1304-
129
SENSOR; GLOW PLUG,THERMO
NIPPON THERMOSTAT IMA
8-98023-717-0
01
1
1304-
327
SENSOR; CAMSHAFT POSITION
IMA
8-97312-108-1
01
1
1304-
766
GASKET; SENSOR
ID=14.2 OD=18.8 IMA
8-97369-404-0
01
1
1304-
782
BOLT; SENSOR
M6X16 FLANGE THA
0-28050-616-0
01
1
1304-
10
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
24V 50A IMA
8-97264-947-0
01
1
1304-
46
RELAY; GLOW PLUG
24V 50A IMA
8-97173-947-0
01
1
1304-

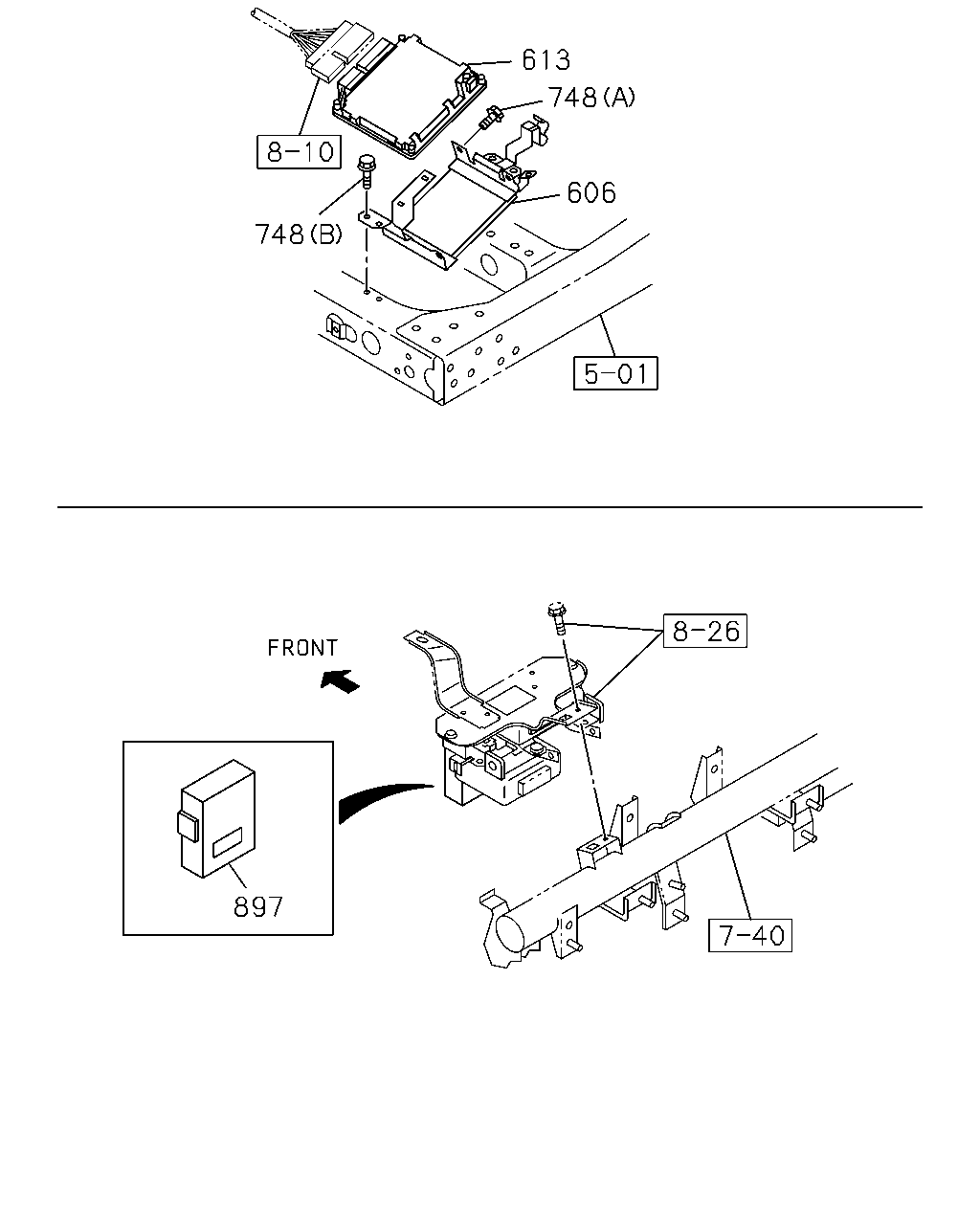

613
606
748
748
897
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
606
BRACKET; CONT UNIT
IMA
8-98011-948-3
01
1
1304-
613
CONTROL UNIT; ENG
KD PREPARATORY PACK<6HF> ENGINE MADE IN THAILAND<6ZP> THA
8-98194-120-0
01
1
1304-
613
CONTROL UNIT; ENG
VIN MODEL YEAR 2011<VZB>
8-98191-758-1
01
1
1304-
613
CONTROL UNIT; ENG
EXC. VIN MODEL YEAR 2011<VZB>
8-98066-046-6
01
1
1304-
748
BOLT; CONT UNIT
(A) M6X12 FLANGE THA
0-28050-612-0
04
1
1304-
748
BOLT; CONT UNIT
(B) M8X25 FLANGE THA
0-28650-825-0
04
1
1304-
897
DRM
THA
8-98082-814-6
01
1
1304-

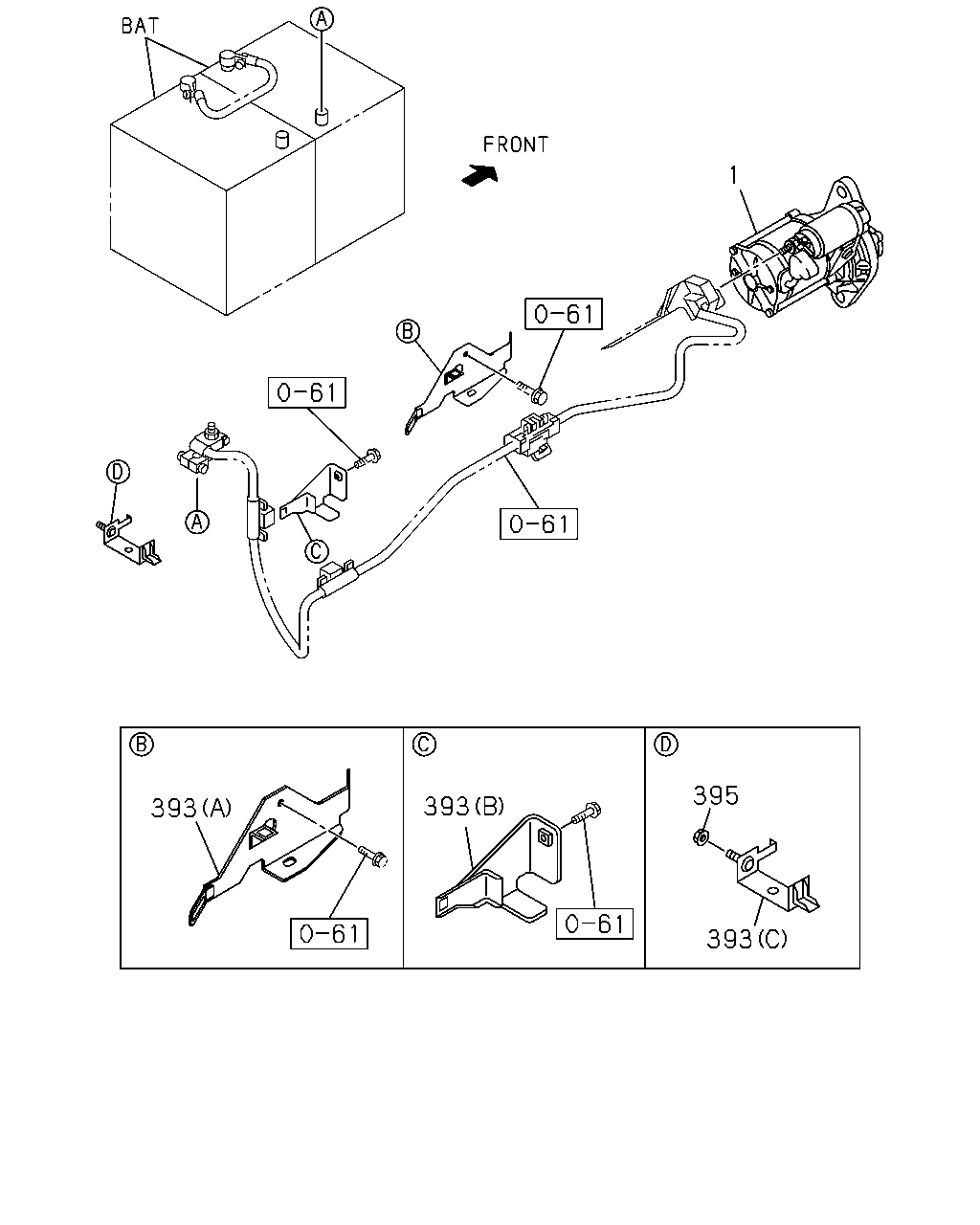

393
395
393
393
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.0KW HITACHI
8-98222-018-1
01
1
1304-
393
BRACKET; HARNESS TO BODY
(A) IMA
8-98028-601-3
01
1
1304-
393
BRACKET; HARNESS TO BODY
(B) IMA
8-98018-903-0
01
1
1304-
393
BRACKET; HARNESS TO BODY
WHEEL BASE 3300MM<33W> (C) IMA
8-98018-251-1
01
1
1304-
395
NUT; BRKT FIX
WHEEL BASE 3300MM<33W> M8 FLANGE THA
0-91180-108-0
01
1
1304-

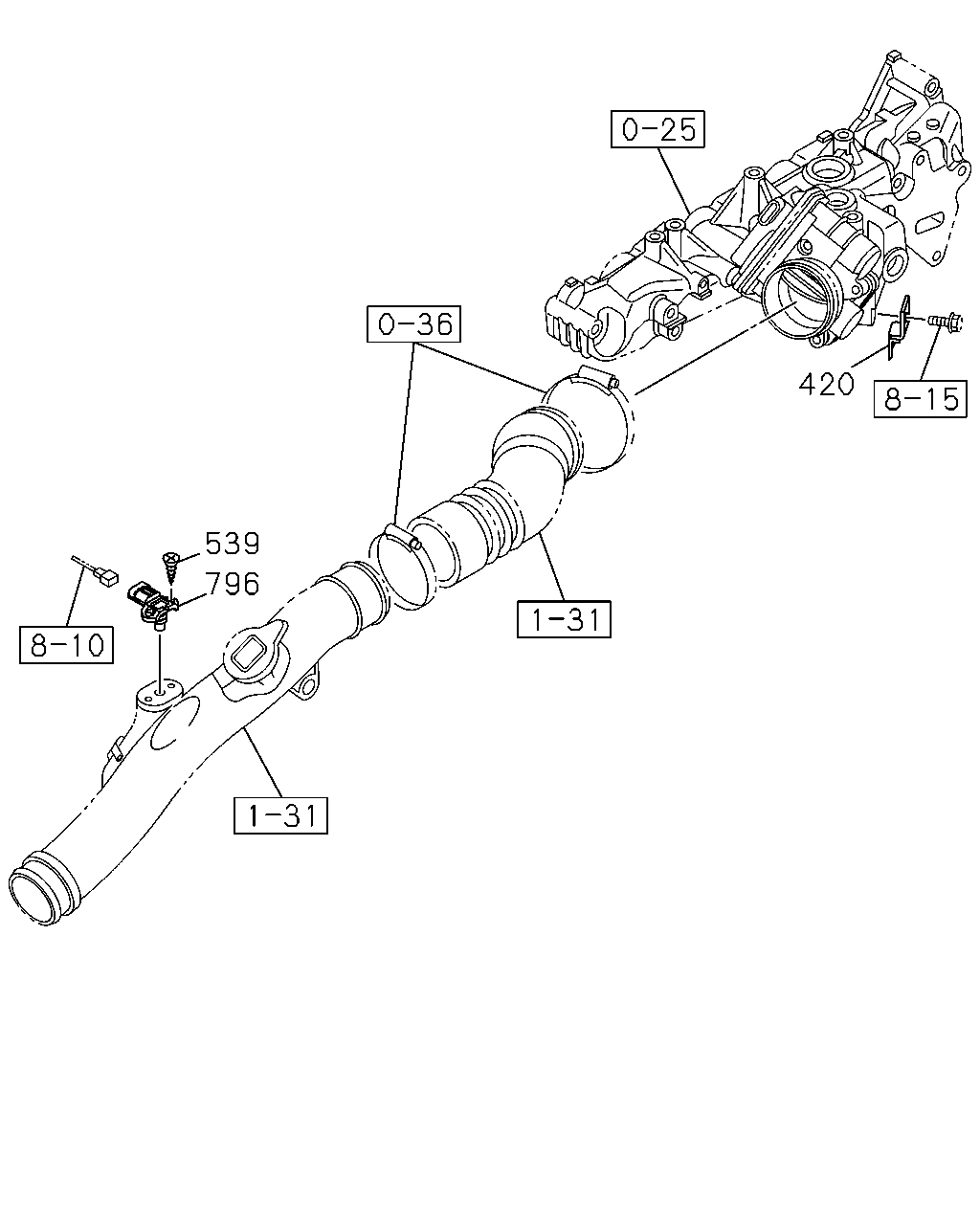

539
796
420
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
420
BRACKET; HARNESS
IMA
8-98009-094-0
01
1
1304-
539
SCREW; SENSOR
M4X12 W/LK&PL WASHER THA
0-36230-412-0
02
1
1304-
796
SENSOR; MAP
IMA
8-98009-418-0
01
1
1304-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
