7-40 — INSTRUMENT PANEL AND BOX (#119525) — 138 parça

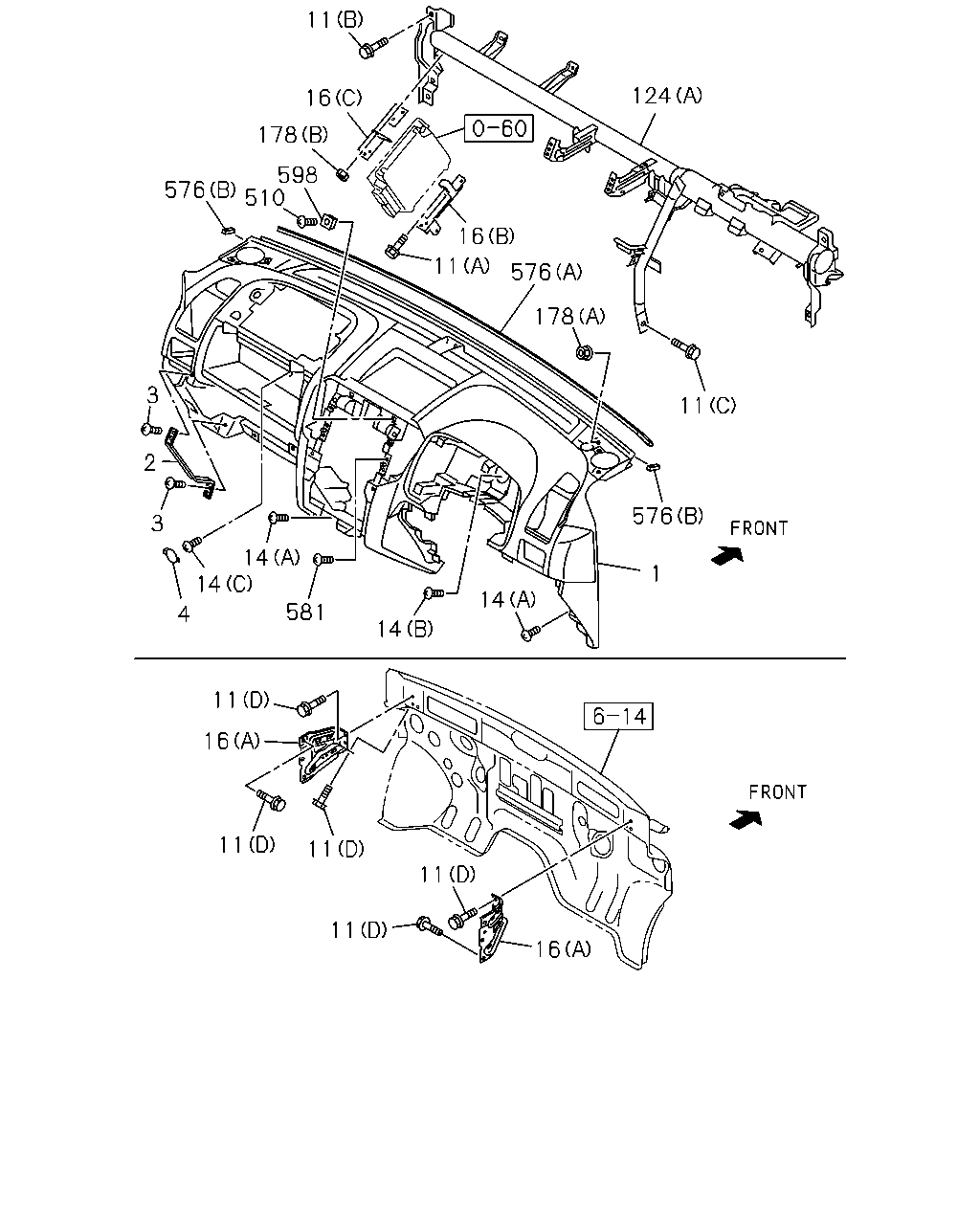

çizim 351493
576 11 16 11 11 11 11 16 11 581 14 14 1 14 4 14 3 2 2 11 16 178 576 124 16 11 178 576 598 510
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; INST
BLACK 		8-97423-070-0 01 1 1305- ● ● ● ●
2 REINFORCEMENT; INST PNL,LWR 8-98232-644-1 01 1 1305- ● ● ● ●
3 SCREW; BINDER HD
M5X16 		8-98197-847-0 02 1 1309- ● ● ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98197-847-0 33 1 1305-1308 ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98197-847-0 33 1 1305-1308 ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98246-739-0 31 1 1309- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98246-739-0 31 1 1309- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98197-847-0 37 1 1305-1308 ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98197-847-0 37 1 1305-1308 ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98246-739-0 35 1 1309- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98246-739-0 35 1 1309- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER WO/HEATER(C65) M5X16 		8-98197-847-0 34 1 1305-1308 ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M5X16 		8-98197-847-0 34 1 1305-1308 ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER WO/HEATER(C65) M5X16 		8-98246-739-0 32 1 1309- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M5X16 		8-98246-739-0 32 1 1309- ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER WO/HEATER(C65) M5X16 		8-98197-847-0 38 1 1305-1308 ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M5X16 		8-98197-847-0 38 1 1305-1308 ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER WO/HEATER(C65) M5X16 		8-98246-739-0 36 1 1309- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M5X16 		8-98246-739-0 36 1 1309- ●
4 COVER; INST PNL
BLACK 		8-97416-610-0 01 1 1305- ● ● ● ●
11 BOLT; INST PNL
(D) M8X32.5 W/PL WASHER 		8-98136-077-0 12 1 1305- ● ● ● ●
11 BOLT; INST PNL
(B) M8X25 FLANGE 		0-28450-825-0 04 1 1305- ● ● ● ●
11 BOLT; INST PNL
(C) M6X30 W/LK&PL WASHER 		8-98057-965-0 01 1 1305- ● ● ● ●
11 BOLT; INST PNL
4JK1-TCX ENG(LR0) (A) M6X20 FLANGE 		0-28650-620-0 01 1 1305- ● ● ●
14 SCREW; INST PNL
(A) M5X16 		8-98167-220-0 03 1 1305- ● ● ● ●
14 SCREW; INST PNL
(B) M5X16 TAPPING 		8-98167-449-0 06 1 1305- ● ● ● ●
14 SCREW; INST PNL
(C) M5X14 TAPPING 		8-98184-363-0 01 1 1305- ● ● ● ●
14 SCREW; INST PNL
(A) M5X16 		8-98167-220-0 04 1 1305- ● ● ● ●
16 BRACKET; INST PNL
(A) 		8-98104-144-3 01 1 1305- ● ● ● ●
16 BRACKET; INST PNL
(A) 		8-98108-670-2 01 1 1305- ● ● ● ●
16 BRACKET; INST PNL
4JK1-TCX ENG(LR0) (C) 		8-98119-428-2 01 1 1305- ● ● ●
16 BRACKET; INST PNL
4JK1-TCX ENG(LR0) (B) 		8-98119-431-2 01 1 1305- ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,C LOCK(U1C) (A) 		8-98064-644-4 01 1 1305- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98064-645-4 01 1 1305- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,C LOCK(U1C) (A) 		8-98064-646-4 01 1 1305- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98064-647-4 01 1 1305- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
(B) 		8-98232-645-0 01 1 1305- ● ● ● ●
178 NUT; INST PANEL
(A) M6 FLANGE 		8-98055-704-0 03 1 1305- ● ● ● ●
178 NUT; INST PANEL
4JK1-TCX ENG(LR0) (B) M6 FLANGE 		0-91180-106-0 02 1 1305- ● ● ●
510 SCREW; CENTER CLUSTER
M5X16 TAPPING 		8-98167-449-0 02 1 1305- ● ● ● ●
576 CUSHION
(A) 		8-98232-668-0 01 1 1305- ● ● ● ●
576 CUSHION
(B) 		8-98232-669-0 02 1 1305- ● ● ● ●
581 SCREW
RADIO DELETE(UL5) M5X16 TAPPING 		8-98167-449-0 02 1 1305- ● ● ● ●
581 SCREW
RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C) M5X16 TAPPING 		8-98167-449-0 02 1 1305- ● ● ●
581 SCREW
RADIO DELETE(UL5) M5X16 TAPPING 		8-98167-449-0 02 1 1305- ●
598 GROMMET; SCREW 8-98164-685-0 15 1 1305- ● ● ● ●

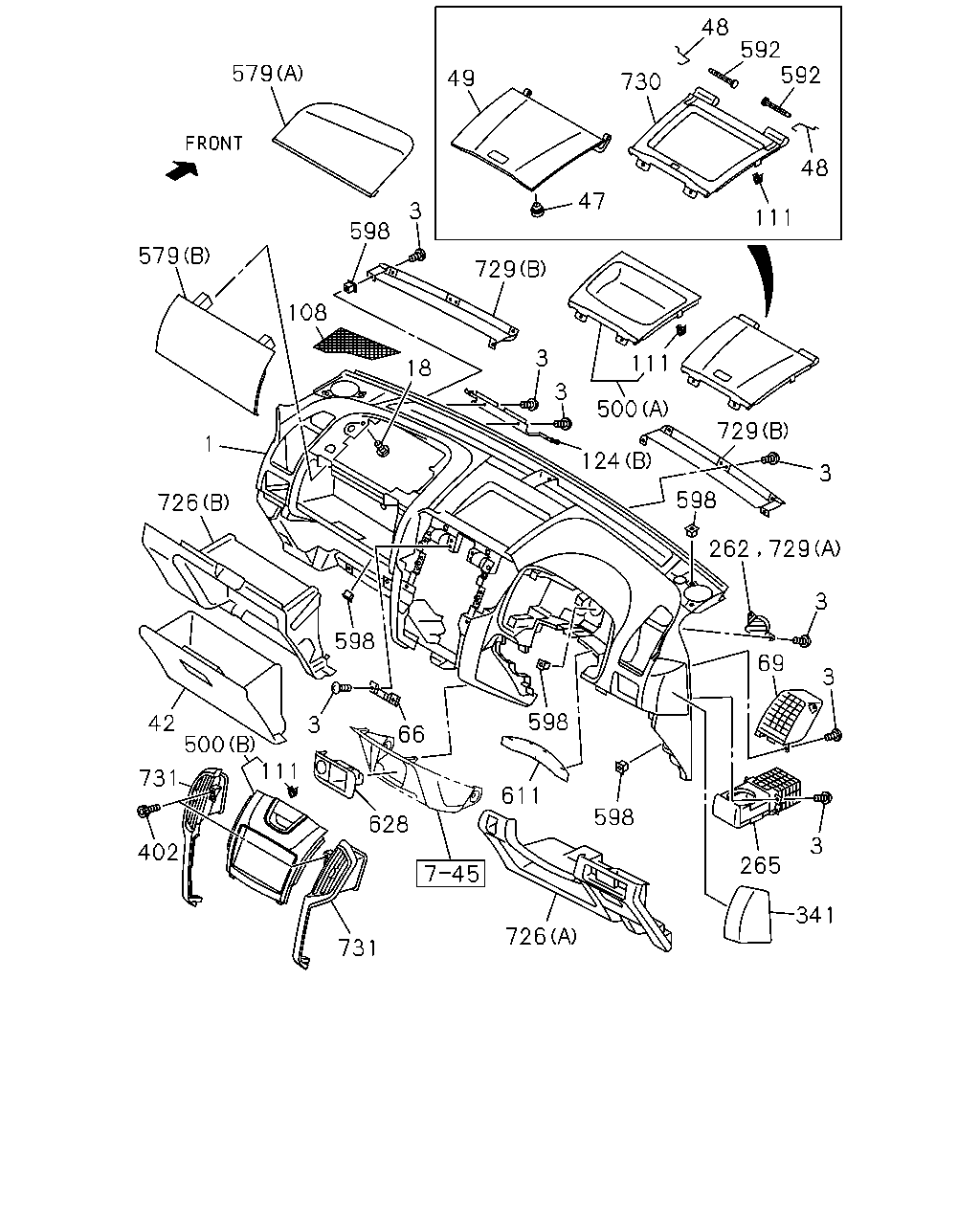

çizim 352495
49 47 730 48 592 592 48 111 579 579 1 108 598 18 726 729 3 3 500 111 124 598 729 262 729 3 69 3 3 341 265 726 598 611 598 628 731 402 731 111 500 42 3 598 66 3 3
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PANEL; INST
BLACK 		8-97423-070-0 01 1 1305- ● ● ● ●
3 SCREW; BINDER HD
M5X16 		8-98197-847-0 02 1 1309- ● ● ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98197-847-0 33 1 1305-1308 ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98197-847-0 33 1 1305-1308 ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98246-739-0 31 1 1309- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98246-739-0 31 1 1309- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98197-847-0 37 1 1305-1308 ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98197-847-0 37 1 1305-1308 ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98246-739-0 35 1 1309- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) M5X16 		8-98246-739-0 35 1 1309- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER WO/HEATER(C65) M5X16 		8-98197-847-0 34 1 1305-1308 ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M5X16 		8-98197-847-0 34 1 1305-1308 ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER WO/HEATER(C65) M5X16 		8-98246-739-0 32 1 1309- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER(AK5) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M5X16 		8-98246-739-0 32 1 1309- ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER WO/HEATER(C65) M5X16 		8-98197-847-0 38 1 1305-1308 ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M5X16 		8-98197-847-0 38 1 1305-1308 ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER WO/HEATER(C65) M5X16 		8-98246-739-0 36 1 1309- ● ●
3 SCREW; BINDER HD
AIR BAG DRIVER & PASSENGER DELETE(AK6) COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) M5X16 		8-98246-739-0 36 1 1309- ●
18 BOLT; BRKT
AIR BAG DRIVER & PASSENGER(AK5) M8X40 FLANGE 		0-28650-840-0 02 1 1305- ● ● ● ●
42 BOX; GLOVE,INST PNL
LOCK GLOVE BOX<A99> BLACK 		8-97416-629-2 01 1 1305- ● ● ●
42 BOX; GLOVE,INST PNL
BLACK 		8-97416-629-2 01 1 1305- ●
42 BOX; GLOVE,INST PNL
EXC. LOCK GLOVE BOX<A99> BLACK 		8-97416-631-2 01 1 1305- ● ● ●
47 STOPPER; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98194-179-1 03 1 1305- ●
47 STOPPER; GLOVE BOX LID 8-98194-179-1 03 1 1305- ●
48 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98194-177-1 01 1 1305-1411 ●
48 SPRING; GLOVE BOX LID 8-98194-177-1 01 1 1305-1411 ●
48 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98298-678-0 01 1 1412- ●
48 SPRING; GLOVE BOX LID 8-98298-678-0 01 1 1412- ●
48 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98194-178-1 01 1 1305-1411 ●
48 SPRING; GLOVE BOX LID 8-98194-178-1 01 1 1305-1411 ●
48 SPRING; GLOVE BOX LID
INTERIOR CUSTOM(RBD) 		8-98298-679-0 01 1 1412- ●
48 SPRING; GLOVE BOX LID 8-98298-679-0 01 1 1412- ●
49 LID; GLOVE BOX
INTERIOR CUSTOM(RBD) BLACK 		8-97423-320-1 01 1 1305- ●
49 LID; GLOVE BOX
BLACK 		8-97423-320-1 01 1 1305- ●
66 REINFORCEMENT; INST PANEL 8-98187-112-0 01 1 1305- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
BLACK 		8-97423-071-2 01 1 1305- ● ● ● ●
69 GRILLE; SIDE,AIR OUTLET
BLACK 		8-97423-072-2 01 1 1305- ● ● ● ●
108 GRILLE; INST PNL
BLACK 		8-97416-626-2 01 1 1305- ● ● ● ●
108 GRILLE; INST PNL
BLACK 		8-97416-625-2 01 1 1305- ● ●
108 GRILLE; INST PNL
EXC. REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK 		8-97416-625-2 01 1 1305- ● ●
108 GRILLE; INST PNL
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> BLACK 		8-97416-627-2 01 1 1305- ● ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98164-677-0 04 1 1305- ● ● ●
111 CLIP; CLUSTER PANEL,GRILLE
RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) 		8-98164-677-0 04 1 1305- ●
111 CLIP; CLUSTER PANEL,GRILLE 8-98164-677-0 02 1 1305- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,C LOCK(U1C) (A) 		8-98064-644-4 01 1 1305- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER(AK5) INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98064-645-4 01 1 1305- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) RADIO AM/FM STEREO,CD,MP3/WMA,D/DIN,RDS(UGQ), RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN,CD,C LOCK(U1C) (A) 		8-98064-646-4 01 1 1305- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
AIR BAG DRIVER & PASSENGER DELETE(AK6) INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) 		8-98064-647-4 01 1 1305- ● ● ● ●
124 REINFORCEMENT; INST PNL,UPR
(B) 		8-98232-645-0 01 1 1305- ● ● ● ●
262 GRILLE; DEFROSTER
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) BLACK 		8-97423-076-0 01 1 1305- ● ● ● ●
262 GRILLE; DEFROSTER
AUTO COOLER SYSTEM(CJ2),HEATER & DEFROSTER(C42), AIR CONDITIONER MANUAL CONT(C60) BLACK 		8-97423-077-0 01 1 1305- ● ● ● ●
265 HOLDER; CUP
BLACK 		8-97423-073-0 01 1 1305- ● ● ● ●
265 HOLDER; CUP
BLACK 		8-97423-074-0 01 1 1305- ● ● ● ●
341 LID; FUSE BOX
BLACK 		8-97416-611-3 01 1 1305- ● ● ● ●
341 LID; FUSE BOX
BLACK 		8-97416-612-3 01 1 1305- ● ● ● ●
402 SCREW; VENT GRILLE,INST
M5X16 TAPPING 		8-98167-449-0 02 1 1305- ● ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE(UL5),RADIO AM/FM STEREO,SEEK/SCAN, CD,CLOCK(U1C) (B) BLACK 		8-97416-624-2 01 1 1305- ● ● ●
500 CLUSTER; INST CENTER
RADIO DELETE(UL5) (B) BLACK 		8-97416-624-2 01 1 1305- ●
500 CLUSTER; INST CENTER
INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97416-621-1 01 1 1305- ● ● ● ●
500 CLUSTER; INST CENTER
(A) BLACK 		8-97416-622-4 01 1 1305- ● ●
500 CLUSTER; INST CENTER
INTERIOR BASIC(RBA) (A) BLACK 		8-97416-622-4 01 1 1305- ●
579 COVER; INST PNL
AIR BAG DRIVER & PASSENGER DELETE(AK6) (A) BLACK 		8-97423-078-0 01 1 1305- ● ● ● ●
579 COVER; INST PNL
(B) BLACK 		8-97423-075-4 01 1 1305- ● ● ● ●
592 HINGE; LID
INTERIOR CUSTOM(RBD) 		8-98194-176-1 02 1 1305- ●
592 HINGE; LID 8-98194-176-1 02 1 1305- ●
598 GROMMET; SCREW 8-98164-685-0 15 1 1305- ● ● ● ●
611 SHEET 8-98187-119-0 01 1 1305- ● ● ● ●
628 BEZEL; INST LWR
FRONT CONSOLE WO/LID<D54> BLACK 		8-97416-618-2 01 1 1305- ●
628 BEZEL; INST LWR
FRONT SEAT BUCKET MANUAL HEIGHT CONT<AR9>,FRONT SEAT BUCKET STANDARD<A50> FRONT CONSOLE WO/LID<D54> BLACK 		8-97416-618-2 01 1 1305- ●
628 BEZEL; INST LWR
FRONT CONSOLE WO/LID<D54> BLACK 		8-97416-617-2 01 1 1305- ●
726 PANEL; INST LW
REAR BODY FLAT BED(E39),REAR BODY DELETE(8HH) (A) BLACK 		8-97423-423-0 01 1 1305- ●
726 PANEL; INST LW
REAR BODY DELETE(8HH) (A) BLACK 		8-97423-423-0 01 1 1305- ● ● ●
726 PANEL; INST LW
REAR BODY DBL WALL CTR PULL(E63) (A) BLACK 		8-97416-615-5 01 1 1305- ● ● ● ●
726 PANEL; INST LW
(B) BLACK 		8-97416-635-4 01 1 1305- ● ● ● ●
729 COVER; GRILLE
COOLER WO/HEATER(C65) (A) BLACK 		8-97423-079-0 01 1 1305- ● ●
729 COVER; GRILLE
COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) BLACK 		8-97423-079-0 01 1 1305- ●
729 COVER; GRILLE
COOLER WO/HEATER(C65) (A) BLACK 		8-97423-080-0 01 1 1305- ● ●
729 COVER; GRILLE
COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (A) BLACK 		8-97423-080-0 01 1 1305- ●
729 COVER; GRILLE
COOLER WO/HEATER(C65) (B) BLACK 		8-97423-081-0 01 1 1305- ● ●
729 COVER; GRILLE
COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (B) BLACK 		8-97423-081-0 01 1 1305- ●
729 COVER; GRILLE
COOLER WO/HEATER(C65) (B) BLACK 		8-97423-082-0 01 1 1305- ● ●
729 COVER; GRILLE
COOLER WO/HEATER(C65),COOLER WO/HEATER FRESH AIR(8NF) (B) BLACK 		8-97423-082-0 01 1 1305- ●
730 BEZEL; LID
INTERIOR CUSTOM(RBD) BLACK 		8-97423-319-0 01 1 1305- ●
730 BEZEL; LID
BLACK 		8-97423-319-0 01 1 1305- ●
731 GRILLE; VENTILATOR
BLACK 		8-97416-639-4 01 1 1305- ● ●
731 GRILLE; VENTILATOR
INTERIOR BASIC(RBA) BLACK 		8-97416-639-4 01 1 1305- ●
731 GRILLE; VENTILATOR
BLACK 		8-97416-640-4 01 1 1305- ● ●
731 GRILLE; VENTILATOR
INTERIOR BASIC(RBA) BLACK 		8-97416-640-4 01 1 1305- ●
731 GRILLE; VENTILATOR
INTERIOR CUSTOM(RBD) SILVER 		8-97416-637-4 01 1 1305- ●
731 GRILLE; VENTILATOR
SILVER 		8-97416-637-4 01 1 1305- ●
731 GRILLE; VENTILATOR
INTERIOR CUSTOM(RBD) SILVER 		8-97416-638-4 01 1 1305- ●
731 GRILLE; VENTILATOR
SILVER 		8-97416-638-4 01 1 1305- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
