2-26 — MANUAL TRANSMISSION GEAR (#119524) — 79 parça

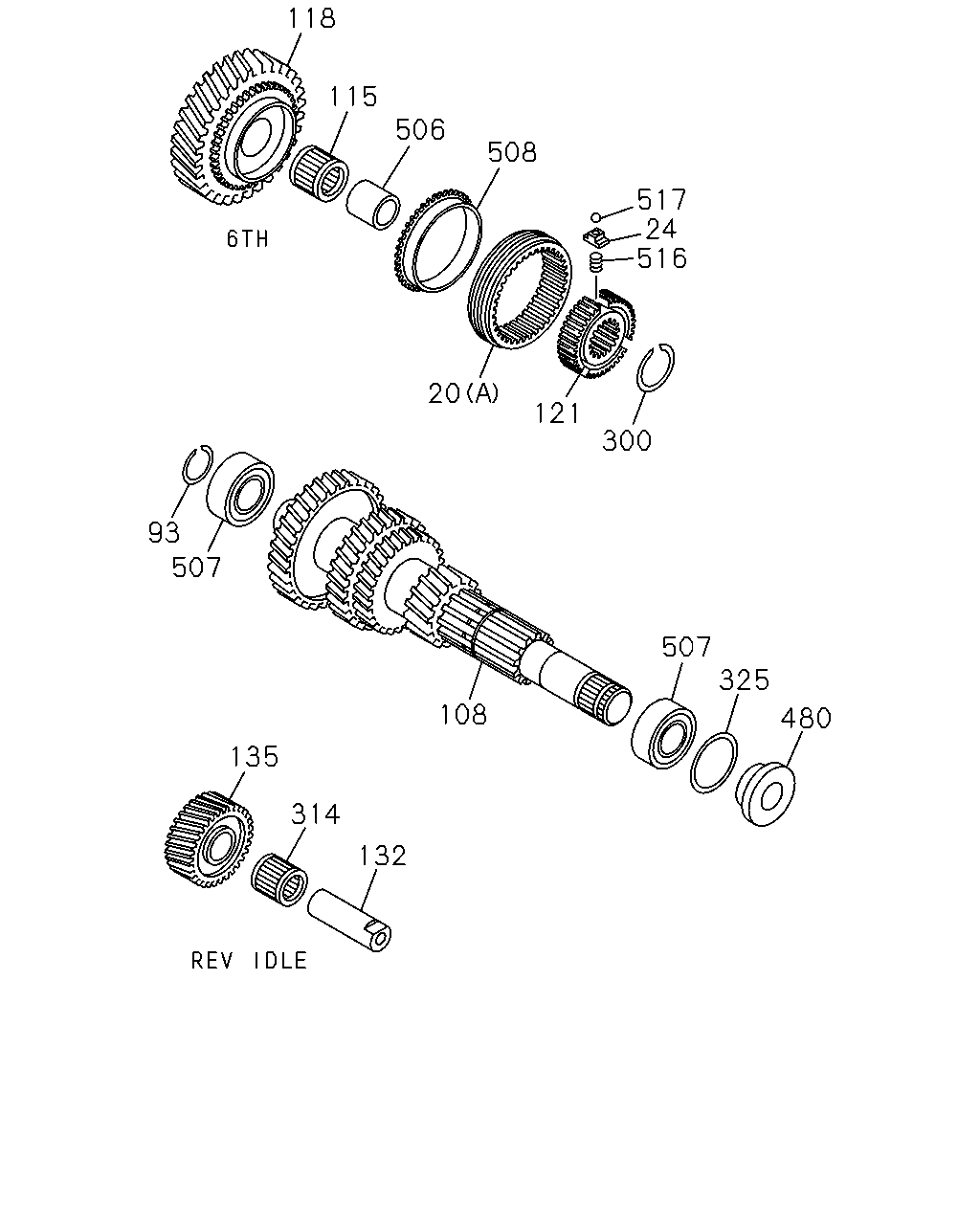

çizim 350639
118 115 508 506 517 516 24 300 121 93 135 507 108 507 325 480 132 314 20
BalonParca AdiParca NoAdetTipApplied Date
20 SLEEVE
(B) Z=54 IMA 		8-97241-295-2 02 1 1304-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1304-1311
20 SLEEVE
(A) Z=45 IMA 		8-98258-279-0 02 1 1312-
24 BLOCK; INDEX,SYN
IMA 		8-97241-313-1 12 1 1304-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=1.9 IMA 		8-97254-735-0 01 1 1304-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.1 IMA 		8-97254-738-0 01 1 1304-
93 RING; SNAP,COUNTER FRT BRG
ID=34.4 T=2.3 IMA 		8-97254-741-0 01 1 1304-
108 SHAFT; COUNTER
Z=46-38-29-21 		8-98113-224-0 01 1 1304-1308
108 SHAFT; COUNTER
Z=46-38-29-21 IMA 		8-98249-489-0 01 1 1309-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.8 		8-98286-084-0 01 1 1411-
115 BEARING; NEEDLE,6TH,COUNTER
OD=49.75 IMA 		8-97253-113-0 01 1 1304-
118 GEAR; 6TH,COUNTER
Z=47 IMA 		8-97241-246-0 01 1 1304-
121 HUB; CLU,6TH
IMA 		8-97241-301-2 01 1 1304-
132 SHAFT; REV
IMA 		8-97252-655-0 01 1 1304-
135 GEAR; REV IDLER
Z=26 IMA 		8-97241-292-2 01 1 1304-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.7 IMA 		8-97288-618-0 01 1 1304-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.8 IMA 		8-97288-619-0 01 1 1304-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.9 IMA 		8-97288-620-0 01 1 1304-
300 RING; SNAP,COUNTER SHAFT,RR END
ID=33.2 T=1.6 IMA 		8-97365-616-0 01 1 1304-
314 BEARING; NEEDLE,REV GEAR
NSK IMA 		8-97253-114-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.38 IMA 		8-97252-656-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.44 IMA 		8-97252-657-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.50 IMA 		8-97252-658-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.56 IMA 		8-97252-659-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.62 IMA 		8-97252-660-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.68 IMA 		8-97252-661-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.74 IMA 		8-97252-662-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.80 IMA 		8-97252-663-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.86 IMA 		8-97252-664-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.92 IMA 		8-97252-665-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.98 IMA 		8-97257-621-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.20 IMA 		8-97306-185-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.26 IMA 		8-97306-186-0 01 1 1304-
325 SHIM; COUNTER SHAFT BRG
ID=70 T=1.32 IMA 		8-97306-187-0 01 1 1304-
480 WASHER; THRUST,6TH
IMA 		8-97253-122-1 01 1 1304-
506 COLLAR; 6TH,COUNTER
IMA 		8-97253-120-1 01 1 1304-
507 BEARING; COUNTER SHAFT,FRT & RR
IMA 		8-97253-106-0 02 1 1304-
508 RING; BLOCK,6TH
Z=45 IMA 		8-97241-306-1 01 1 1304-
516 SPRING; SYNCHRO,INDEX
IMA 		8-97305-803-1 12 1 1304-
517 BALL; SYNCHRO,INDEX
IMA 		8-97252-935-0 12 1 1304-

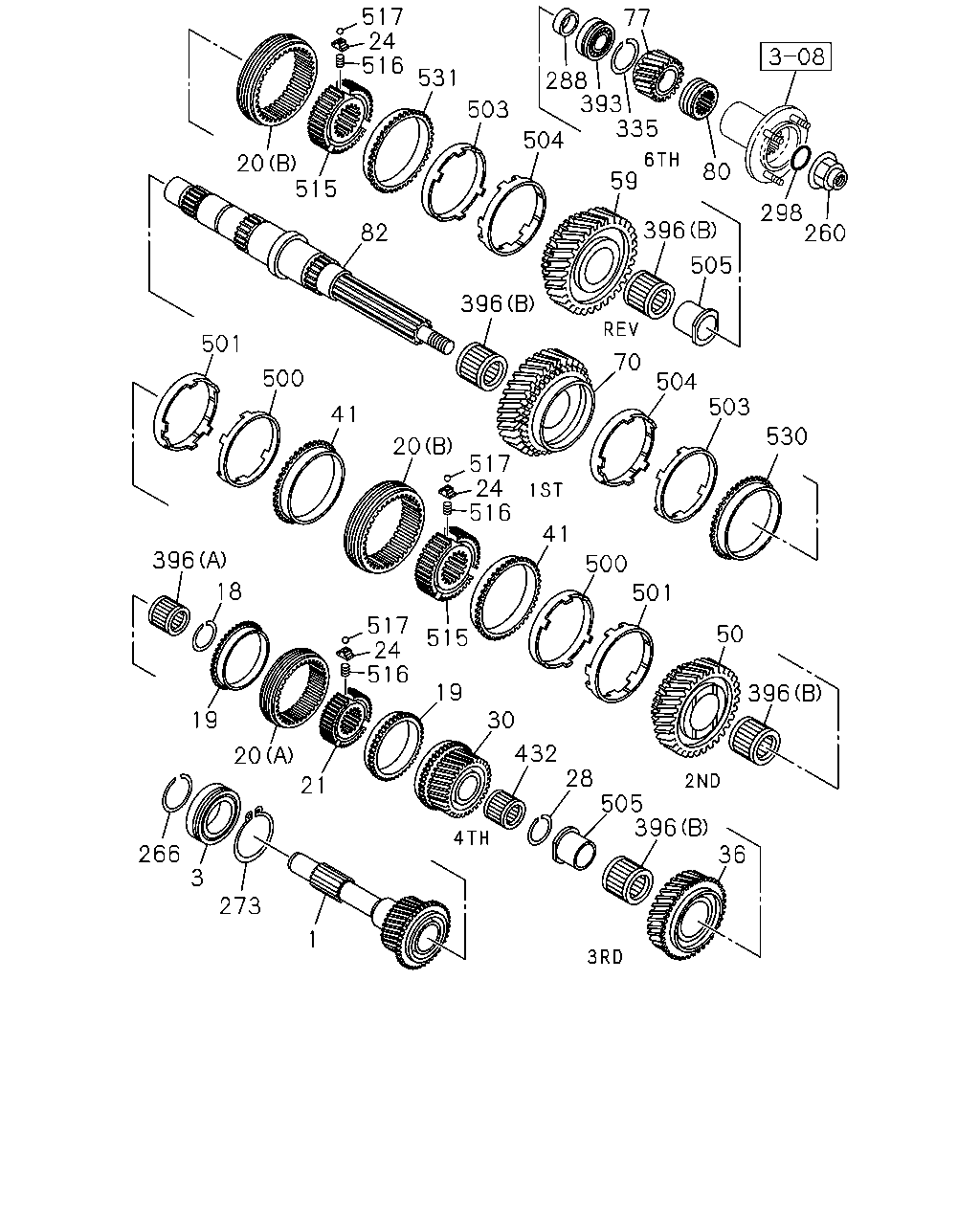

çizim 352066
517 531 516 24 77 288 503 335 393 504 396 59 260 298 80 530 503 504 70 396 82 515 20 501 41 500 517 41 516 24 500 501 50 396 36 396 505 28 432 30 21 20 1 273 3 266 516 19 515 517 24 18 19 396 20 505
BalonParca AdiParca NoAdetTipApplied Date
1 SHAFT; TOP GEAR,TRANS
Z=25 IMA 		8-97371-090-0 01 1 1304-
3 BEARING; TOP GEAR SHAFT
NSK IMA 		8-97253-097-1 01 1 1304-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 IMA 		8-97256-855-0 01 1 1304-
19 RING; BLOCK,4TH & 5TH
Z=45 IMA 		8-97241-306-1 02 1 1304-
20 SLEEVE
(B) Z=54 IMA 		8-97241-295-2 02 1 1304-
20 SLEEVE
(A) Z=45 		8-97241-296-1 02 1 1304-1311
20 SLEEVE
(A) Z=45 IMA 		8-98258-279-0 02 1 1312-
21 HUB; CLU,4TH & 5TH
IMA 		8-97241-299-3 01 1 1304-
24 BLOCK; INDEX,SYN
IMA 		8-97241-313-1 12 1 1304-
28 RING; SNAP,3RD GEAR
ID=46.5 T=1.8 IMA 		8-97254-743-0 01 1 1304-
30 GEAR; 4TH,MAINSHAFT
Z=28 IMA 		8-97252-628-0 01 1 1304-
36 GEAR; 3RD,MAINSHAFT
Z=31 IMA 		8-97252-630-1 01 1 1304-
41 RING; BLOCK,2ND & 3RD
Z=54 IMA 		8-97241-305-2 02 1 1304-
50 GEAR; 2ND,MAINSHAFT
Z=43 IMA 		8-97241-236-1 01 1 1304-
59 GEAR; REV MAINSHAFT
Z=45 IMA 		8-97241-243-0 01 1 1304-
70 GEAR; 1ST,MAINSHAFT
Z=45 IMA 		8-97241-241-0 01 1 1304-
77 GEAR; 6TH,MAINSHAFT
Z=20 IMA 		8-97252-634-0 01 1 1304-
80 GEAR; SPD DRIVE
Z=4 IMA 		8-97253-555-0 01 1 1304-
82 SHAFT; MAIN,TRANS
Z=26-42-23 IMA 		8-97253-115-3 01 1 1304-
260 NUT; MAINSHAFT END
M27 H=25 IMA 		8-97360-410-0 01 1 1304-
266 RING; SNAP,BRG INNER
IMA 		8-97286-915-0 01 1 1304-
273 RING; SNAP,BRG OUTER
IMA 		8-97254-609-0 01 1 1304-
288 SPACER; BRG,MAINSHAFT
IMA 		8-97252-941-0 01 1 1304-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=35.7 T=5 IMA 		1-09623-379-0 01 1 1304-
335 RING; SNAP,BEARING
IMA 		8-97254-720-0 01 1 1304-
393 BEARING; MAINSHAFT END
IMA 		8-97253-104-0 01 1 1304-
396 BEARING; NEEDLE,MAINSHAFT
(A) IMA 		8-97253-099-1 01 1 1304-
396 BEARING; NEEDLE,MAINSHAFT
(B) IMA 		8-97253-110-0 04 1 1304-
432 BEARING; NEEDLE,4TH
NSK IMA 		8-97253-111-0 01 1 1304-
500 RING; OUTSIDE,3RD & 2ND
IMA 		8-97241-307-1 02 1 1304-
501 RING; INSIDE,3RD & 2ND
IMA 		8-97241-311-1 02 1 1304-
503 RING; OUTSIDE,LOW & REV
IMA 		8-97241-307-1 02 1 1304-
504 RING; INSIDE,LOW & REV
IMA 		8-97241-311-1 02 1 1304-
505 COLLAR; 3RD & REV
IMA 		8-97253-119-2 02 1 1304-
515 HUB; CLU,1ST & REV,2ND & 3RD
IMA 		8-97239-155-2 02 1 1304-
516 SPRING; SYNCHRO,INDEX
IMA 		8-97305-803-1 12 1 1304-
517 BALL; SYNCHRO,INDEX
IMA 		8-97252-935-0 12 1 1304-
530 RING; BLOCK,LOW
Z=54 IMA 		8-97241-305-2 01 1 1304-
531 RING; BLOCK,REV
Z=54 IMA 		8-97241-305-2 01 1 1304-
