Sayfa 2-20A - Isuzu EPC

2-20A — MANUAL TRANSMISSION ASM AND CASE (#11952) — 479 parça

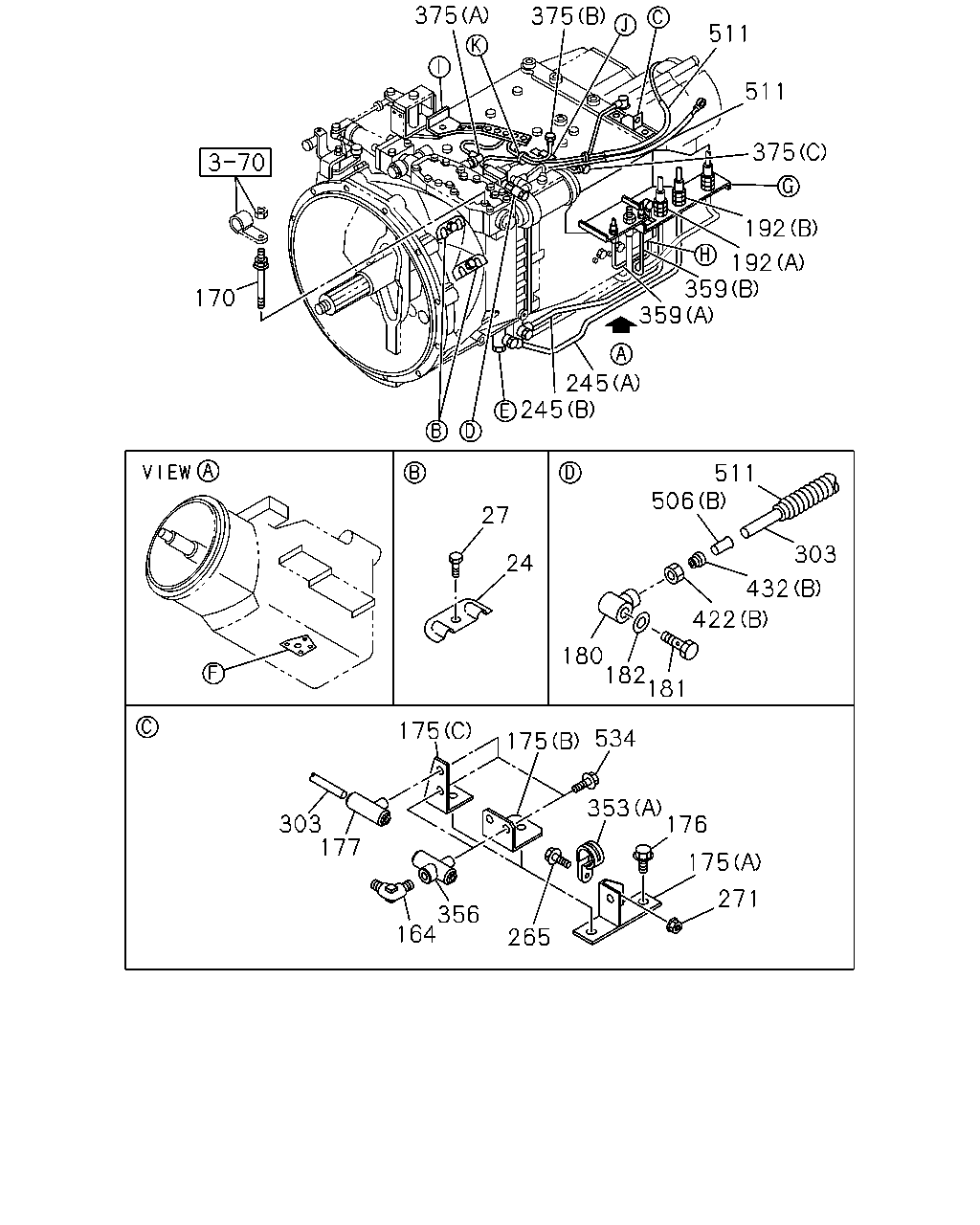

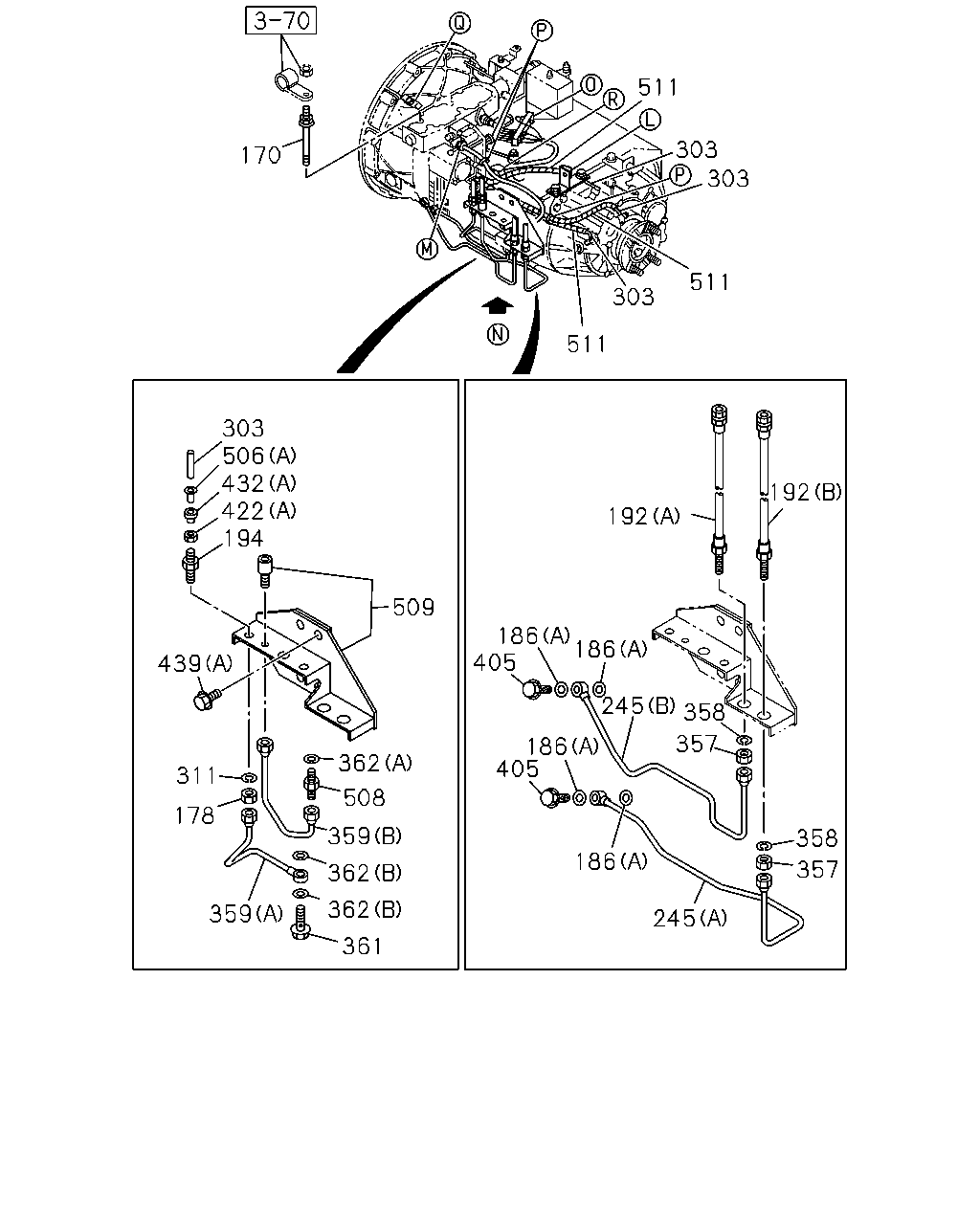

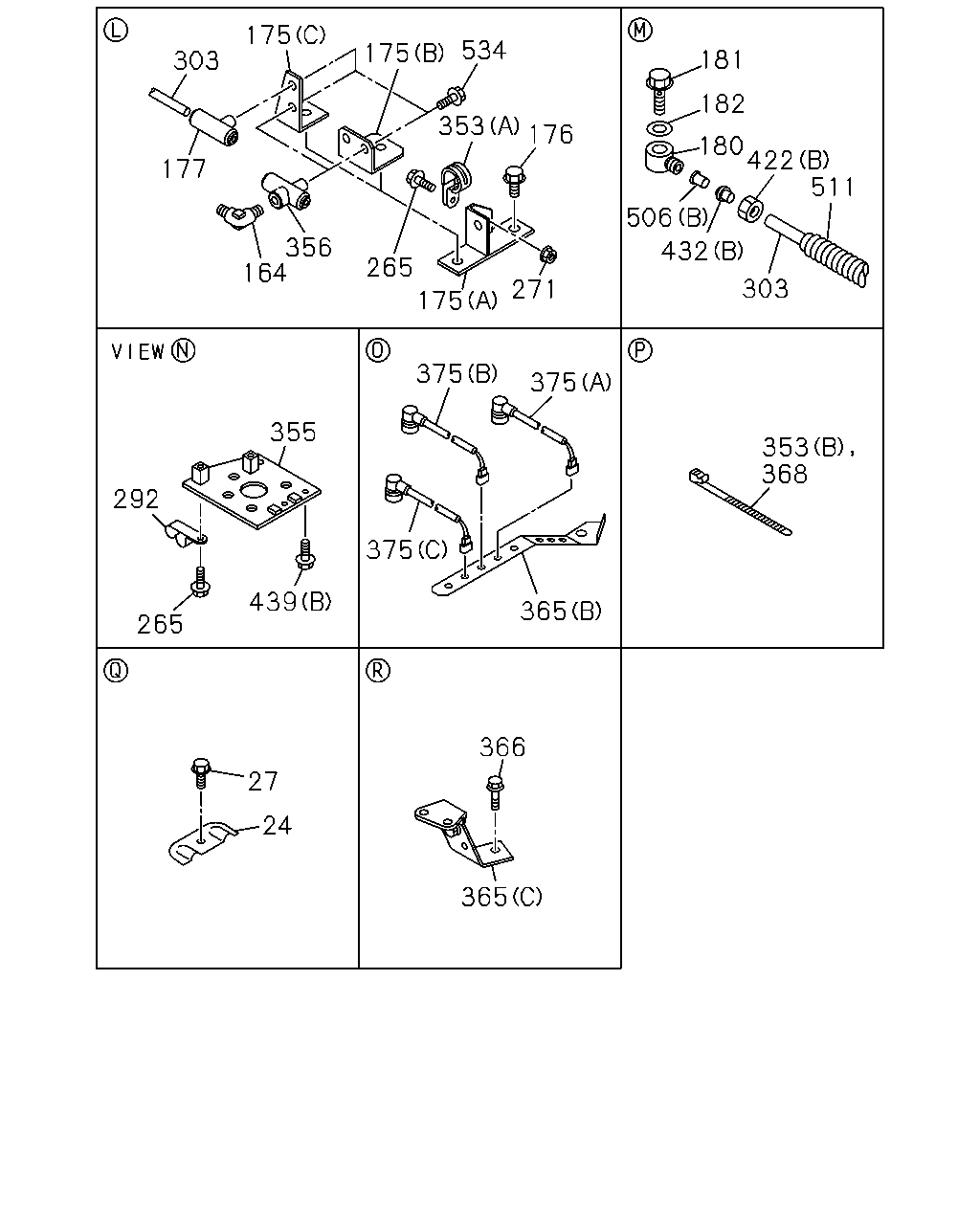

375 375 511 511 375 192 192 245 359 359 245 170 511 303 506 432 422 180 182 181 24 27 175 175 534 353 176 175 271 265 164 177 356 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	0105-	●	●
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	0105-0512	●	●
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28851-625-0	02	1	0601-	●	●
164	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-	●	●
170	STUD; QUAD BOX	1-09052-017-1	01	1	0108-	●	●
175	BRACKET; UNION (B)	1-47477-572-0	01	1	0106-0106	●	●
175	BRACKET; UNION (C)	1-47479-299-0	01	1	0107-	●	●
175	BRACKET; UNION (A)	1-47477-545-0	01	1	0105-	●	●
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	0105-0512	●	●
176	BOLT; UNION BRKT M16X25 FLANGE	0-28851-625-0	02	1	0601-	●	●
177	UNION; NYLON TUBE DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0107-	●	●
180	CONNECTOR; NYLON TUBE	1-09660-239-0	01	1	0105-	●	●
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	0105-	●	●
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	0105-	●	●
192	HOSE; FLEX,TRANS (B) L=311	1-09364-921-0	01	1	0105-	●
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	0105-	●	●
192	HOSE; FLEX,TRANS (B) L=535	1-09364-936-0	01	1	0105-		●
245	PIPE; OIL (A)	1-49161-055-0	01	1	0105-	●
245	PIPE; OIL (B)	1-49161-061-0	01	1	0105-	●
245	PIPE; OIL (B)	1-49119-468-1	01	1	0105-		●
245	PIPE; OIL (A)	1-49122-031-0	01	1	0105-		●
265	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0106-0106	●	●
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
265	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0105-0512		●
265	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-		●
271	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0106	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0106-0201		●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0202-0212	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0307	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0307	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0308-	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0308-	●
303	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0106-	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-0201	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0202-		●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0105-0105	●	●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0105-0105	●	●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0106-0106	●	●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0106-0106	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0107-0201	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-	●
353	CLIP; NYLON TUBE (A) ID=24 L=27	1-09700-809-0	01	1	0106-0106	●	●
353	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	0106-	●	●
356	UNION DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0106-	●	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	0105-0109	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-133-0	01	1	0110-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	0105-0109	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-134-0	01	1	0110-	●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0105-	●	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	0105-0109		●
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-135-0	01	1	0110-		●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	0105-0109		●
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-136-0	01	1	0110-		●
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	0105-	●	●
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	0105-	●	●
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	0105-	●	●
422	NUT; SLEEVE (B) M18	1-09660-213-0	01	1	0106-	●	●
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	0105-	●	●
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	0105-	●	●
432	SLEEVE; TUBE (B) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0106-	●	●
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0105-	●	●
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	0105-	●	●
506	INSERT (B) ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0106-	●	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0105-	●	●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0105-	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0202-		●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0202-0307	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0308-	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0106-	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0106-0106	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0107-0201	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0202-	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-0105	●	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0106-	●	●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0105-	●	●
534	BOLT; UNION M8X12 FLANGE	0-28080-812-0	01	1	0106-0106	●	●
534	BOLT; UNION M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●	●
534	BOLT; UNION M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●

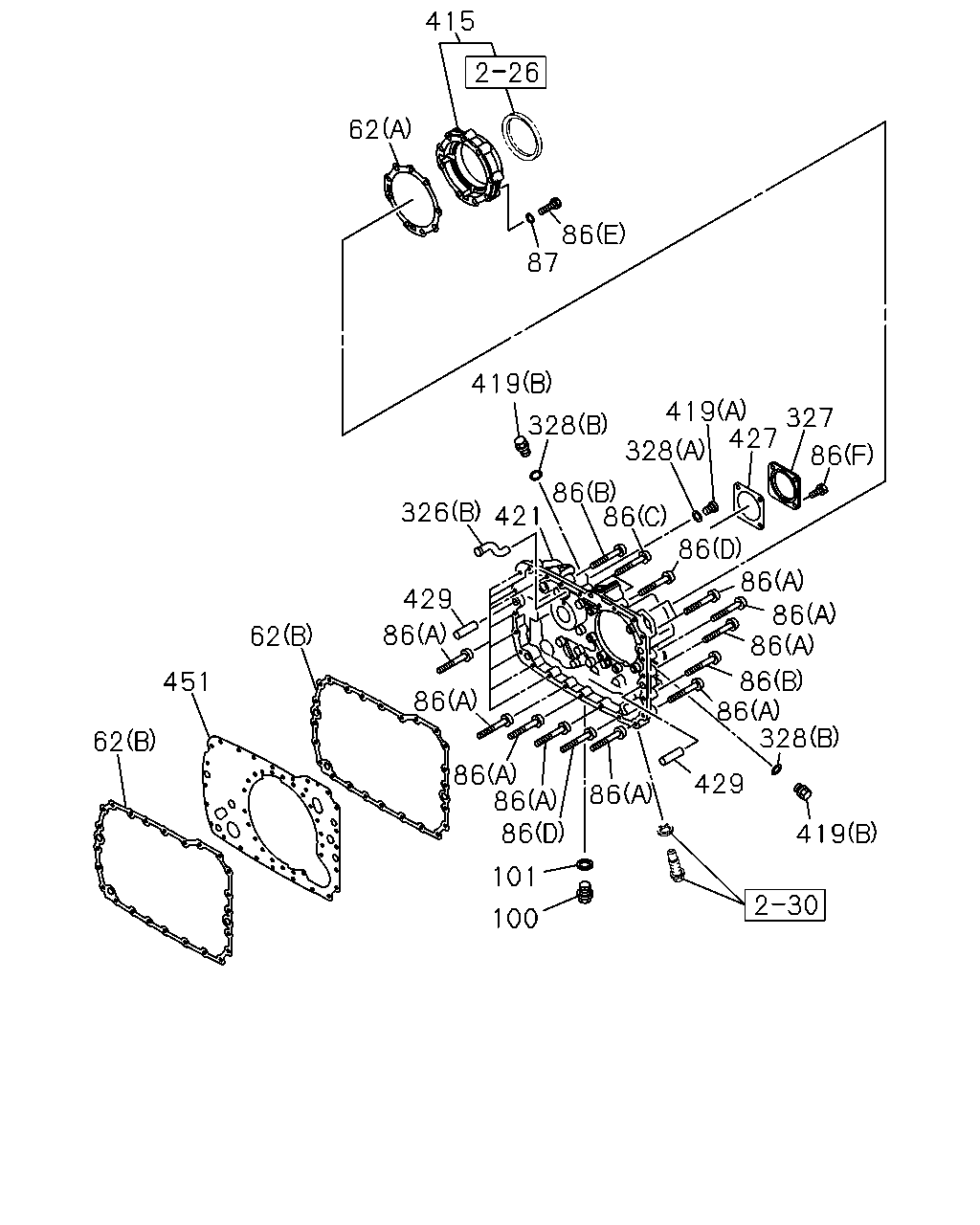

415 62 86 87 419 419 427 327 86 328 328 86 86 86 86 86 86 86 86 86 86 86 86 421 429 62 451 62 86 101 100 429 419 86 328 326

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (B)	1-33119-399-0	02	1	0105-	●	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T). (A)	1-33139-053-0	01	1	0105-	●	●
86	BOLT; RR COVER (A)	1-33119-266-0	18	1	0105-	●	●
86	BOLT; RR COVER (E)	1-33139-054-0	09	1	0105-	●	●
86	BOLT; RR COVER (B)	1-33139-056-0	02	1	0105-	●	●
86	BOLT; RR COVER (C) M10X110	1-33139-057-0	02	1	0105-	●	●
86	BOLT; RR COVER (D) M10X50	1-33139-058-0	02	1	0105-	●	●
86	BOLT; RR COVER EXC. PTO ZF TRANS RR(BDM) (F) M12X25	1-33119-400-0	04	1	0105-	●	●
87	WASHER; LK,RR COVER	1-09469-010-0	09	1	0105-	●	●
100	PLUG; DRAIN RR COVER	1-33119-268-0	01	1	0105-	●	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	0105-	●	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-272-0	01	1	0105-	●
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	0105-	●	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-282-0	01	1	0105-		●
327	COVER; RR,COUNTER EXC. PTO ZF TRANS RR(BDM)	1-33131-165-0	01	1	0105-	●	●
328	GASKET; PLUG (B)	1-33119-249-0	02	1	0105-	●	●
328	GASKET; PLUG (C)	1-33119-264-0	01	1	0105-	●	●
328	GASKET; PLUG (A)	1-33139-023-0	01	1	0105-	●	●
415	COVER; BRG	1-33159-039-0	01	1	0105-	●	●
419	PLUG; RR COVER (B)	1-33119-171-0	02	1	0105-	●	●
419	PLUG; RR COVER (A)	1-34119-008-0	01	1	0105-	●	●
421	COVER; RR,TRANS	1-33131-244-0	01	1	0105-	●	●
427	GASKET; RR COVER EXC. PTO ZF TRANS RR(BDM)	1-33132-054-0	01	1	0105-	●	●
429	PIN; STRAIGHT	1-33119-265-0	07	1	0105-	●	●
451	PLATE; RR COVER	1-33139-055-0	01	1	0105-	●	●

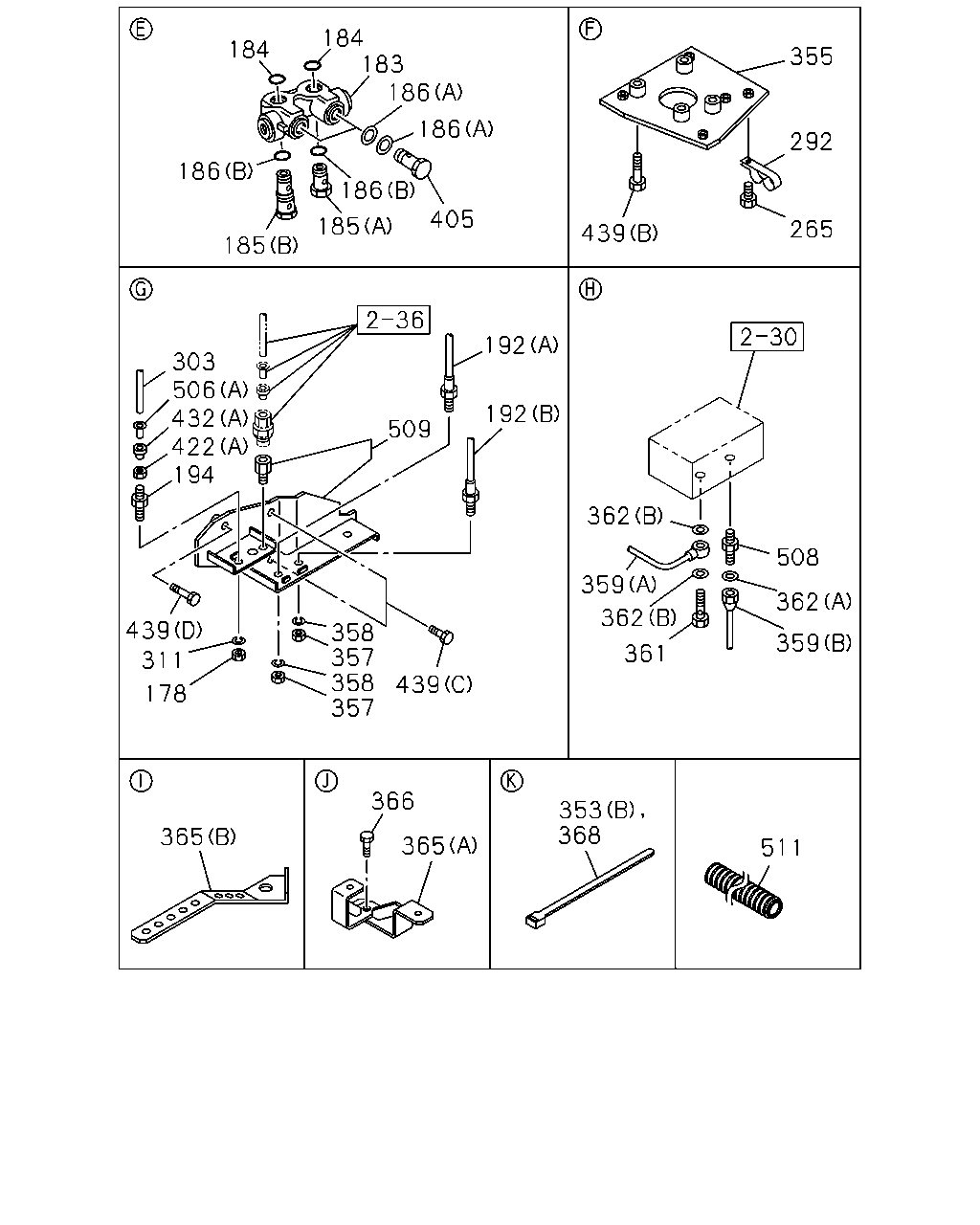

184 184 186 183 186 186 186 185 185 405 439 265 292 355 192 192 509 303 506 432 422 194 439 311 178 357 358 357 358 439 362 359 362 361 359 508 362 511 353 368 365 366 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
178	NUT; UNION M14	9-99111-414-0	01	1	0105-0512	●	●
178	NUT; UNION M14	0-91111-514-0	01	1	0601-	●	●

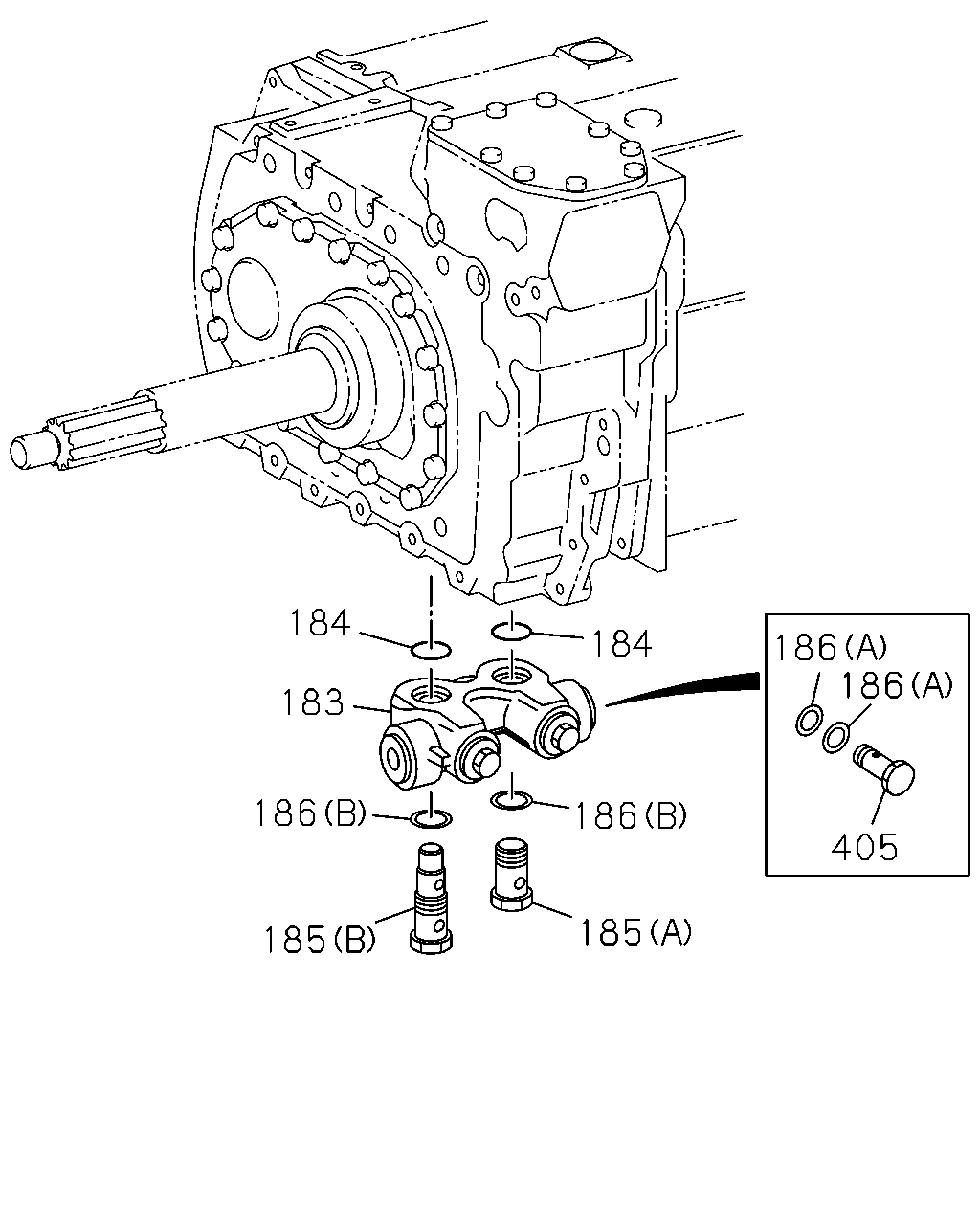

183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	0105-	●	●
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	0105-	●	●
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	0105-	●	●
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	0105-	●	●
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	0105-	●	●
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	0105-	●	●
192	HOSE; FLEX,TRANS (B) L=311	1-09364-921-0	01	1	0105-	●
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	0105-	●	●
192	HOSE; FLEX,TRANS (B) L=535	1-09364-936-0	01	1	0105-		●
194	UNION; NYLON TUBE M14	1-09664-230-0	01	1	0105-	●	●
265	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0106-0106	●	●
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
265	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0105-0512		●
265	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-		●
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	0105-	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0106-0201		●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0202-0212	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0307	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0307	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0308-	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0308-	●
303	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0106-	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-0201	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0202-		●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0105-0105	●	●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0105-0105	●	●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0106-0106	●	●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0106-0106	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0107-0201	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-	●
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
311	WASHER; LK ID=14.2	0-91510-514-0	01	1	0604-	●	●
353	CLIP; NYLON TUBE (A) ID=24 L=27	1-09700-809-0	01	1	0106-0106	●	●
353	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	0106-	●	●
355	BRACKET; OIL PIPE	1-47477-500-1	01	1	0105-	●
355	BRACKET; OIL PIPE	1-47478-217-1	01	1	0105-		●
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	0105-0512	●	●
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	0601-	●	●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0105-0106	●	●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0107-0603	●	●
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-	●	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	0105-0109	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-133-0	01	1	0110-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	0105-0109	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-134-0	01	1	0110-	●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0105-	●	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	0105-0109		●
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-135-0	01	1	0110-		●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	0105-0109		●
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-136-0	01	1	0110-		●
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	0105-	●	●
362	GASKET; AIR PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-	●	●
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	0105-	●	●
365	BRACKET; HARNESS (C)	1-47477-902-0	01	1	0109-		●
365	BRACKET; HARNESS (A)	1-47479-047-0	01	1	0105-	●
365	BRACKET; HARNESS (B)	1-82699-490-2	01	1	0105-	●	●
366	BOLT; BRKT,HARNESS M12X16	0-28181-216-0	01	1	0109-0512		●
366	BOLT; BRKT,HARNESS M12X16	0-28151-216-0	01	1	0601-		●
366	BOLT; BRKT,HARNESS M12X25 FLANGE	0-28181-225-0	01	1	0105-0512	●
366	BOLT; BRKT,HARNESS M12X25 FLANGE	0-28151-225-0	01	1	0601-	●
368	CLIP; BAND,CABLE L=140	5-09707-031-1	02	1	0105-0105	●	●
368	CLIP; BAND,CABLE L=140	5-09707-031-1	03	1	0106-	●	●
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	0105-	●	●
422	NUT; SLEEVE (B) M18	1-09660-213-0	01	1	0106-	●	●
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	0105-	●	●
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	0105-	●	●
432	SLEEVE; TUBE (B) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0106-	●	●
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0105-	●	●
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	0105-	●	●
439	BOLT; BRKT (C) M16X25 FLANGE	0-28881-625-0	02	1	0105-0512	●
439	BOLT; BRKT (C) M16X25 FLANGE	0-28851-625-0	02	1	0601-	●
439	BOLT; BRKT (D) M16X40 FLANGE	0-28881-640-0	01	1	0105-0512	●
439	BOLT; BRKT (D) M16X40 FLANGE	0-28851-640-0	01	1	0601-	●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	0105-0512	●	●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28751-040-0	04	1	0601-	●	●
439	BOLT; BRKT (A) M16X35 FLANGE	0-28881-635-0	04	1	0105-0512		●
439	BOLT; BRKT (A) M16X35 FLANGE	0-28851-635-0	04	1	0601-		●
506	INSERT (B) ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0106-	●	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0105-	●	●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0105-	●	●
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	0105-	●	●
509	BRACKET; PIPE	1-47477-447-2	01	1	0105-	●
509	BRACKET; PIPE	1-47478-215-2	01	1	0105-		●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0202-		●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0202-0307	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0308-	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0106-	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0106-0106	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0107-0201	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0202-	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-0105	●	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0106-	●	●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0105-	●	●

175 534 175 353 176 303 177 164 356 265 271 175 181 182 180 422 511 506 432 303 353 368 375 375 375 365 355 292 439 265 27 24 366 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-038-0	03	1	0105-	●	●
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28881-625-0	02	1	0105-0512	●	●
27	BOLT; COVER TO CLU HSG M16X25 FLANGE	0-28851-625-0	02	1	0601-	●	●
164	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0106-	●	●
175	BRACKET; UNION (B)	1-47477-572-0	01	1	0106-0106	●	●
175	BRACKET; UNION (C)	1-47479-299-0	01	1	0107-	●	●
175	BRACKET; UNION (A)	1-47477-545-0	01	1	0105-	●	●
176	BOLT; UNION BRKT M16X25 FLANGE	0-28881-625-0	02	1	0105-0512	●	●
176	BOLT; UNION BRKT M16X25 FLANGE	0-28851-625-0	02	1	0601-	●	●
177	UNION; NYLON TUBE DIN8X2 & M8 2WAY	1-09661-133-0	01	1	0107-	●	●
180	CONNECTOR; NYLON TUBE	1-09660-239-0	01	1	0105-	●	●
181	BOLT; EYE,NYLON TUBE M12 L=35.5	1-09675-169-0	01	1	0105-	●	●
182	GASKET; EYE BOLT,NYLON TUBE ID=12.2	9-09571-412-0	01	1	0105-	●	●
265	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0106-0106	●	●
265	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0105-0512	●
265	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	01	1	0601-	●
265	BOLT; CLIP M8X40 FLANGE	0-28680-840-0	01	1	0105-0512		●
265	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	01	1	0601-		●
271	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0106-0106	●	●
292	CLIP; OIL PIPE ID=16 & 16 L=28	1-09701-219-0	01	1	0105-	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0106-0201		●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0202-0212	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0307	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0307	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0308-	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0308-	●
303	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0106-	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-0201	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0202-		●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0105-0105	●	●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0105-0105	●	●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0106-0106	●	●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0106-0106	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0107-0201	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-	●
353	CLIP; NYLON TUBE (A) ID=24 L=27	1-09700-809-0	01	1	0106-0106	●	●
353	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	03	1	0106-	●	●
355	BRACKET; OIL PIPE	1-47477-500-1	01	1	0105-	●
355	BRACKET; OIL PIPE	1-47478-217-1	01	1	0105-		●
356	UNION DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0106-	●	●
365	BRACKET; HARNESS (C)	1-47477-902-0	01	1	0109-		●
365	BRACKET; HARNESS (A)	1-47479-047-0	01	1	0105-	●
365	BRACKET; HARNESS (B)	1-82699-490-2	01	1	0105-	●	●
366	BOLT; BRKT,HARNESS M12X16	0-28181-216-0	01	1	0109-0512		●
366	BOLT; BRKT,HARNESS M12X16	0-28151-216-0	01	1	0601-		●
366	BOLT; BRKT,HARNESS M12X25 FLANGE	0-28181-225-0	01	1	0105-0512	●
366	BOLT; BRKT,HARNESS M12X25 FLANGE	0-28151-225-0	01	1	0601-	●
368	CLIP; BAND,CABLE L=140	5-09707-031-1	02	1	0105-0105	●	●
368	CLIP; BAND,CABLE L=140	5-09707-031-1	03	1	0106-	●	●
375	CABLE; TRANS (A) L=250	1-82659-134-1	01	1	0105-	●	●
375	CABLE; TRANS (B) L=580	1-82659-135-1	01	1	0105-	●	●
375	CABLE; TRANS (C) L=880	1-82659-137-1	01	1	0105-	●	●
422	NUT; SLEEVE (B) M18	1-09660-213-0	01	1	0106-	●	●
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	0105-	●	●
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	0105-	●	●
432	SLEEVE; TUBE (B) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0106-	●	●
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0105-	●	●
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	0105-	●	●
439	BOLT; BRKT (C) M16X25 FLANGE	0-28881-625-0	02	1	0105-0512	●
439	BOLT; BRKT (C) M16X25 FLANGE	0-28851-625-0	02	1	0601-	●
439	BOLT; BRKT (D) M16X40 FLANGE	0-28881-640-0	01	1	0105-0512	●
439	BOLT; BRKT (D) M16X40 FLANGE	0-28851-640-0	01	1	0601-	●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	0105-0512	●	●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28751-040-0	04	1	0601-	●	●
439	BOLT; BRKT (A) M16X35 FLANGE	0-28881-635-0	04	1	0105-0512		●
439	BOLT; BRKT (A) M16X35 FLANGE	0-28851-635-0	04	1	0601-		●
506	INSERT (B) ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0106-	●	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0105-	●	●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0105-	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0202-		●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0202-0307	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0308-	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0106-	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0106-0106	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0107-0201	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0202-	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-0105	●	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0106-	●	●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0105-	●	●
534	BOLT; UNION M8X12 FLANGE	0-28080-812-0	01	1	0106-0106	●	●
534	BOLT; UNION M8X16 FLANGE	0-28080-816-0	02	1	0107-0512	●	●
534	BOLT; UNION M8X16 FLANGE	0-28050-816-0	02	1	0601-	●	●

170 511 303 303 511 511 303 303 506 192 192 432 422 194 509 439 311 362 508 178 359 362 362 361 359 245 357 186 358 405 357 186 245 358 405 186 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
170	STUD; QUAD BOX	1-09052-017-1	01	1	0108-	●	●
178	NUT; UNION M14	9-99111-414-0	01	1	0105-0512	●	●
178	NUT; UNION M14	0-91111-514-0	01	1	0601-	●	●
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	0105-	●	●
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	0105-	●	●
192	HOSE; FLEX,TRANS (B) L=311	1-09364-921-0	01	1	0105-	●
192	HOSE; FLEX,TRANS (A) L=406	1-09364-961-0	01	1	0105-	●	●
192	HOSE; FLEX,TRANS (B) L=535	1-09364-936-0	01	1	0105-		●
194	UNION; NYLON TUBE M14	1-09664-230-0	01	1	0105-	●	●
245	PIPE; OIL (A)	1-49161-055-0	01	1	0105-	●
245	PIPE; OIL (B)	1-49161-061-0	01	1	0105-	●
245	PIPE; OIL (B)	1-49119-468-1	01	1	0105-		●
245	PIPE; OIL (A)	1-49122-031-0	01	1	0105-		●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0106-0201		●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0202-0212	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0307	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0301-0307	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0308-	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	01	1	0308-	●
303	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	01	1	0106-	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0107-0201	●	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0202-		●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0105-0105	●	●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0105-0105	●	●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0106-0106	●	●
303	TUBE; NYLON L=2000 OD=8	1-87410-073-0	01	1	0106-0106	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0107-0201	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0202-0212	●
303	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0301-	●
311	WASHER; LK ID=14.2	9-09150-514-0	01	1	0105-0603	●	●
311	WASHER; LK ID=14.2	0-91510-514-0	01	1	0604-	●	●
357	NUT; UNION,FLEX HOSE M22	9-09111-522-0	02	1	0105-0512	●	●
357	NUT; UNION,FLEX HOSE M22	0-91111-522-0	02	1	0601-	●	●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0105-0106	●	●
358	WASHER; LK,UNION ID=22.5	9-09150-522-0	02	1	0107-0603	●	●
358	WASHER; LK,UNION ID=22.5	0-91510-522-0	02	1	0604-	●	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	0105-0109	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-133-0	01	1	0110-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	0105-0109	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-134-0	01	1	0110-	●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0105-	●	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	0105-0109		●
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-135-0	01	1	0110-		●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	0105-0109		●
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-136-0	01	1	0110-		●
361	BOLT; EYE,AIR PIPE M12X24 EYE-BOLT	1-09675-229-0	01	1	0105-	●	●
362	GASKET; AIR PIPE (A) ID=10.2 OD=15.2	1-09630-083-0	01	1	0105-	●	●
362	GASKET; AIR PIPE (B) ID=12.2	1-09630-084-0	02	1	0105-	●	●
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	0105-	●	●
422	NUT; SLEEVE (B) M18	1-09660-213-0	01	1	0106-	●	●
422	NUT; SLEEVE (B) M14	1-09660-212-0	01	1	0105-	●	●
422	NUT; SLEEVE (A) M14	1-09660-767-0	01	1	0105-	●	●
432	SLEEVE; TUBE (B) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	0106-	●	●
432	SLEEVE; TUBE (B) ID=8.15 OD=11 L=9.5	1-09666-042-0	01	1	0105-	●	●
432	SLEEVE; TUBE (A) ID=8.2 L=9.5	1-09666-067-0	01	1	0105-	●	●
439	BOLT; BRKT (C) M16X25 FLANGE	0-28881-625-0	02	1	0105-0512	●
439	BOLT; BRKT (C) M16X25 FLANGE	0-28851-625-0	02	1	0601-	●
439	BOLT; BRKT (D) M16X40 FLANGE	0-28881-640-0	01	1	0105-0512	●
439	BOLT; BRKT (D) M16X40 FLANGE	0-28851-640-0	01	1	0601-	●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28781-040-0	04	1	0105-0512	●	●
439	BOLT; BRKT (B) M10X40 FLANGE	0-28751-040-0	04	1	0601-	●	●
439	BOLT; BRKT (A) M16X35 FLANGE	0-28881-635-0	04	1	0105-0512		●
439	BOLT; BRKT (A) M16X35 FLANGE	0-28851-635-0	04	1	0601-		●
506	INSERT (B) ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	0106-	●	●
506	INSERT (B) ID=4.5 OD=5.8 L=18	1-09669-054-0	01	1	0105-	●	●
506	INSERT (A) ID=5 OD=5.9 L=16	1-09669-122-0	01	1	0105-	●	●
508	UNION; AIR M10 & M12 STRAIGHT	1-09664-235-0	01	1	0105-	●	●
509	BRACKET; PIPE	1-47477-447-2	01	1	0105-	●
509	BRACKET; PIPE	1-47478-215-2	01	1	0105-		●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0202-		●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0202-0307	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0308-	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	01	1	0106-	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0106-0106	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0107-0201	●	●
511	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0202-	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0105-0105	●	●
511	TUBE; CORRUGATE SERVICED BY L=800 ID=7	1-83129-031-1	01	1	0106-	●	●
511	TUBE; CORRUGATE L=350 SERVICED BY L=2000 ID=10	1-87411-019-0	03	1	0105-	●	●

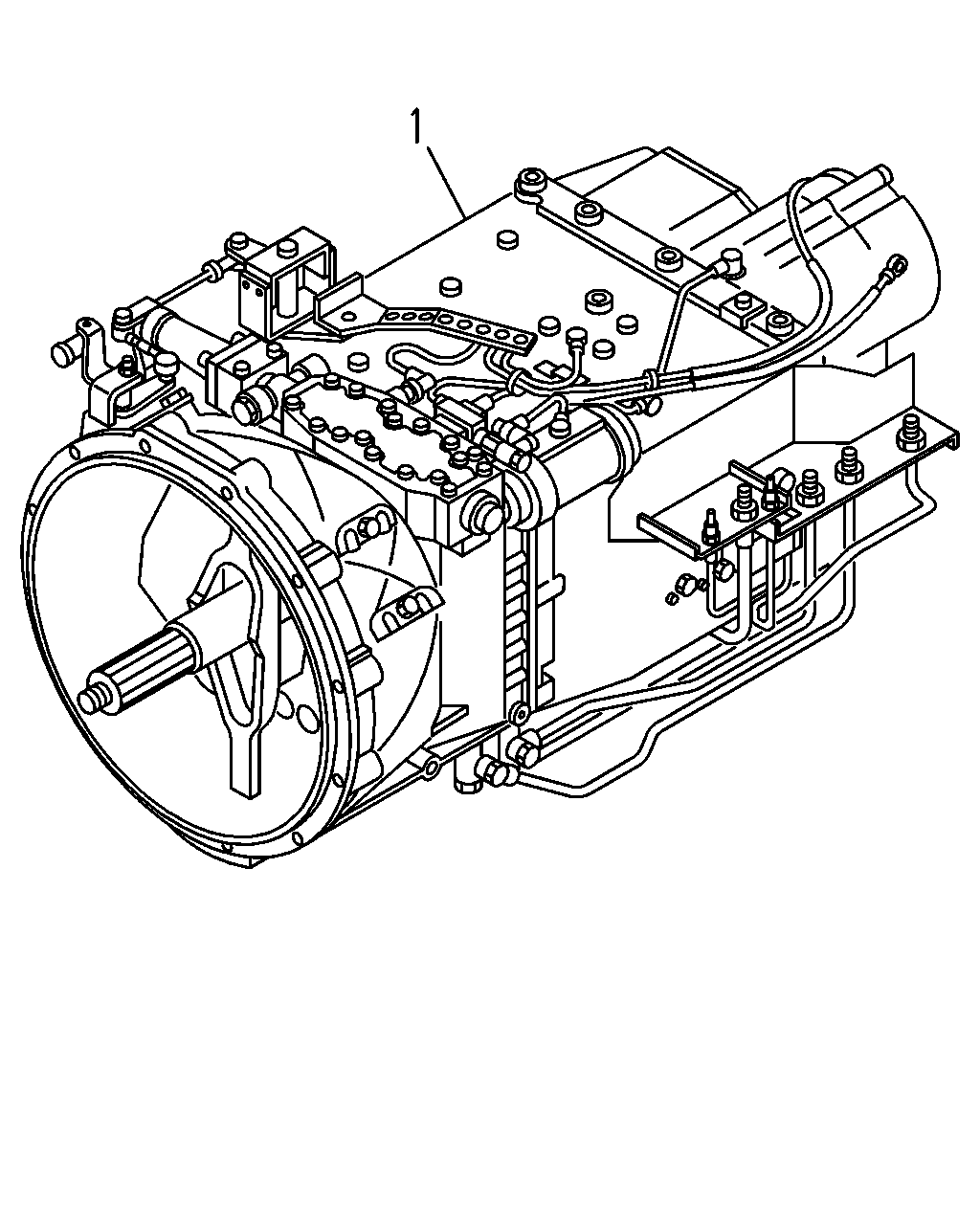

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-018-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33043-384-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-017-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33043-380-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-034-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33043-385-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-033-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33043-381-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-33043-023-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-33043-387-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33043-021-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33043-383-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM)	1-33043-022-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM)	1-33043-386-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM)	1-33043-020-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM)	1-33043-382-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU>	1-33042-165-0	01	1	0105-0109		●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU>	1-33043-379-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-011-0	01	1	0105-0109		●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33043-377-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-012-0	01	1	0105-0109		●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33043-376-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33042-166-0	01	1	0105-0109		●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33043-378-0	01	1	0110-		●

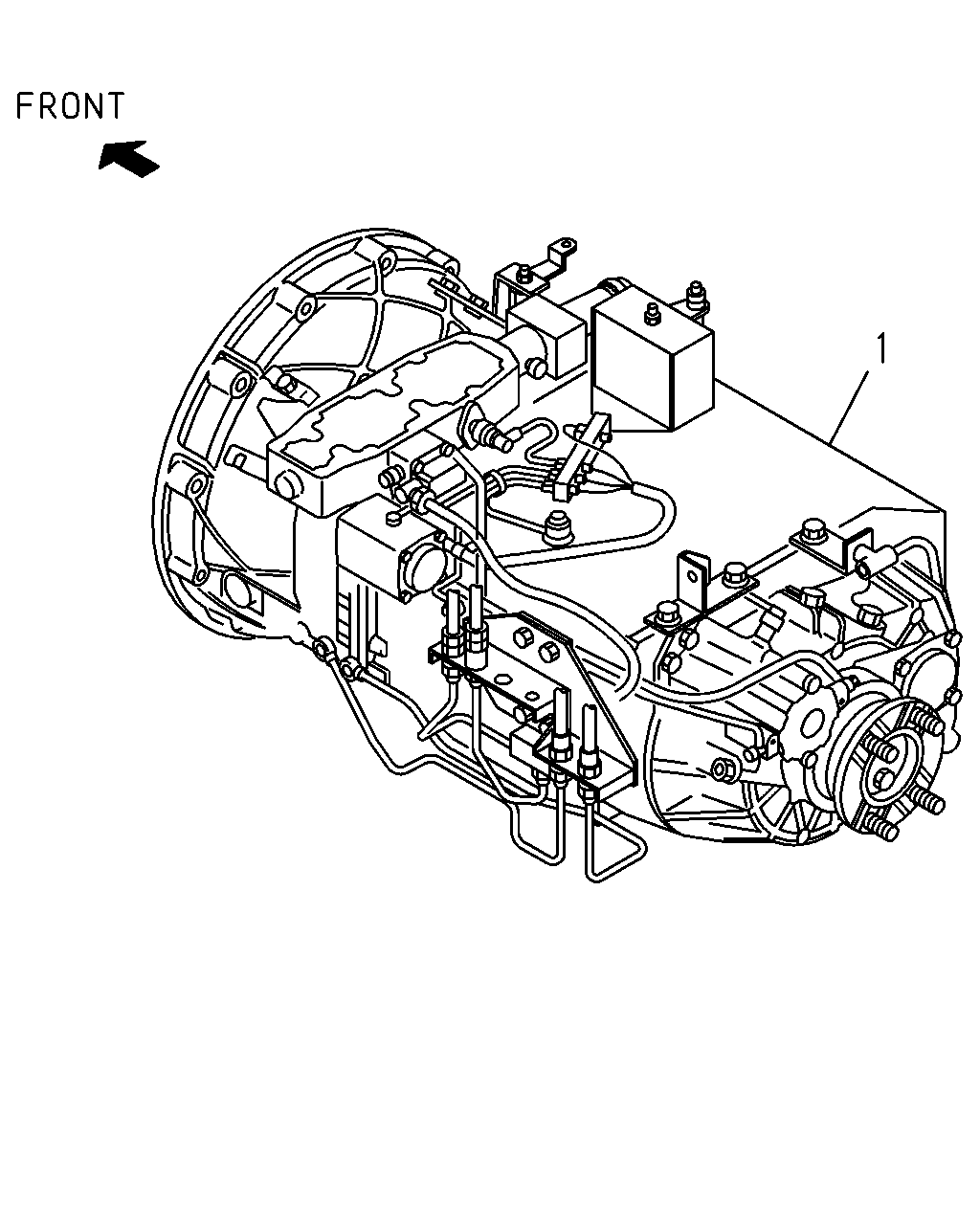

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-018-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33043-384-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-017-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33043-380-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-034-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33043-385-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-033-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33043-381-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-33043-023-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-33043-387-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33043-021-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33043-383-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM)	1-33043-022-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE) EXC. PTO ZF TRANS RR(BDM)	1-33043-386-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM)	1-33043-020-0	01	1	0105-0109	●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) EXC. PTO ZF TRANS RR(BDM)	1-33043-382-0	01	1	0110-	●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU>	1-33042-165-0	01	1	0105-0109		●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) TRANS SELECT DETENT HEAVY<BFU>	1-33043-379-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33042-011-0	01	1	0105-0109		●
1	TRANSMISSION ASM; MANUAL PTO ZF TRANS RR(BDM) EXC. TRANS SELECT DETENT HEAVY<BFU>	1-33043-377-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33042-012-0	01	1	0105-0109		●
1	TRANSMISSION ASM; MANUAL EXC. PTO ZF TRANS RR(BDM),TRANS SELECT DETENT HEAVY<BFU>	1-33043-376-0	01	1	0110-		●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33042-166-0	01	1	0105-0109		●
1	TRANSMISSION ASM; MANUAL TRANS SELECT DETENT HEAVY<BFU> EXC. PTO ZF TRANS RR(BDM)	1-33043-378-0	01	1	0110-		●

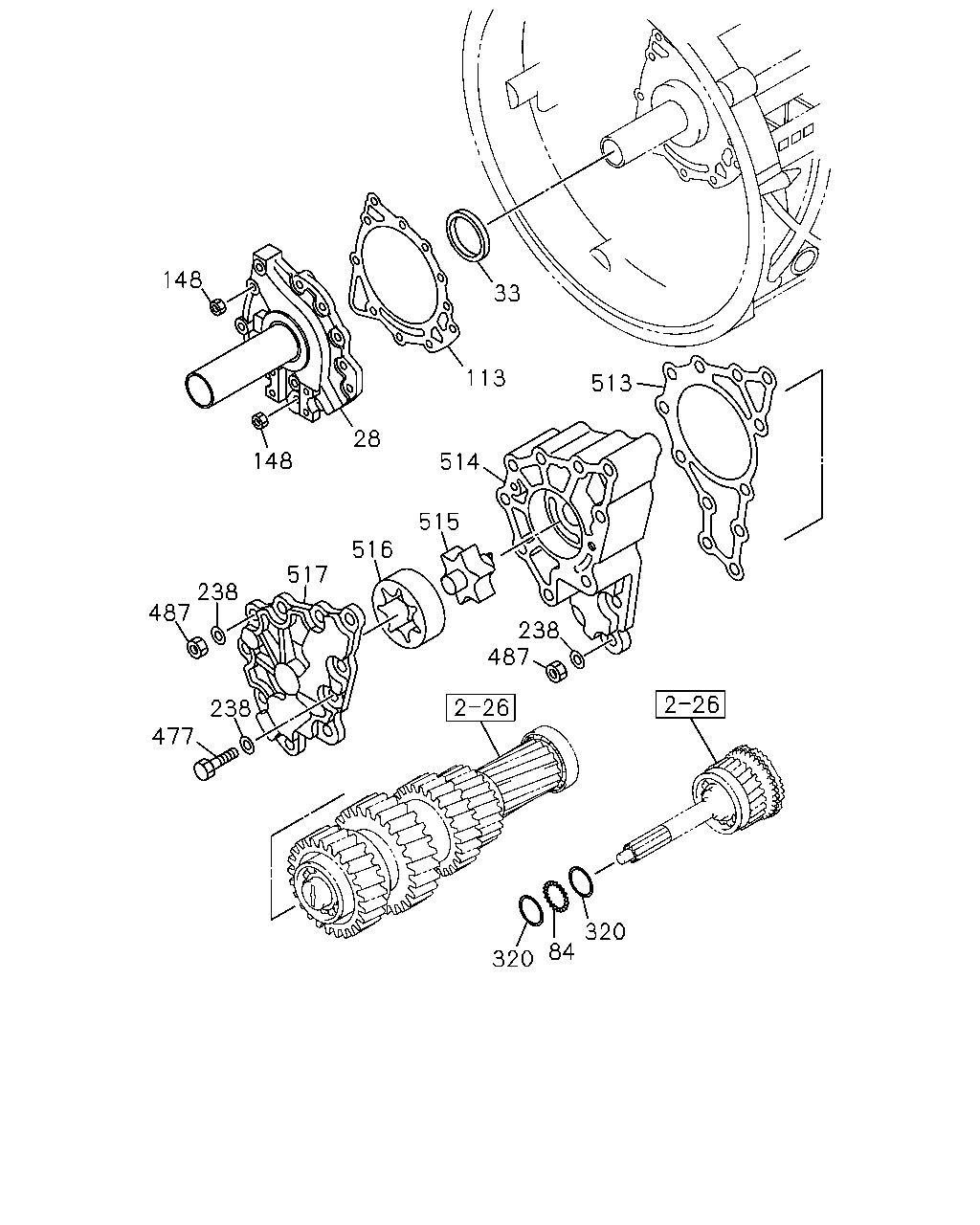

33 113 513 148 148 28 514 515 516 517 238 238 487 487 238 477 320 320 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
28	COVER; FRT,TRANS CASE CLUTCH-15.5" TWIN PLATE STRAP DRIVE PULL TYPE(TGE)	1-33121-146-0	01	1	0105-	●
28	COVER; FRT,TRANS CASE CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV)	1-33121-149-0	01	1	0105-	●
28	COVER; FRT,TRANS CASE	1-33121-149-0	01	1	0105-		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-33219-248-0	01	1	0105-	●	●
84	SPACER; COVER,TRANS	1-33129-006-0	01	1	0105-	●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33122-018-0	01	1	0105-	●	●
148	NUT	1-33529-056-0	11	1	0105-	●	●
238	WASHER; PL	1-09469-010-0	14	1	0105-	●	●
320	WASHER; COVER	1-33129-007-0	02	1	0105-	●	●
477	BOLT; OIL PUMP	1-33529-055-0	02	1	0105-	●	●
487	NUT; COVER,OIL PUMP	1-33529-056-0	12	1	0105-	●	●
513	GASKET; HOUSING	1-34159-058-0	01	1	0105-	●	●
514	HOUSING; OIL PUMP	1-34155-027-0	01	1	0105-	●	●
515	SHAFT; OIL PUMP	1-34159-070-0	01	1	0105-	●	●
516	ROTOR; OIL PUMP	1-34159-060-0	01	1	0105-	●	●
517	COVER; OIL PUMP	1-34159-071-0	01	1	0105-	●	●

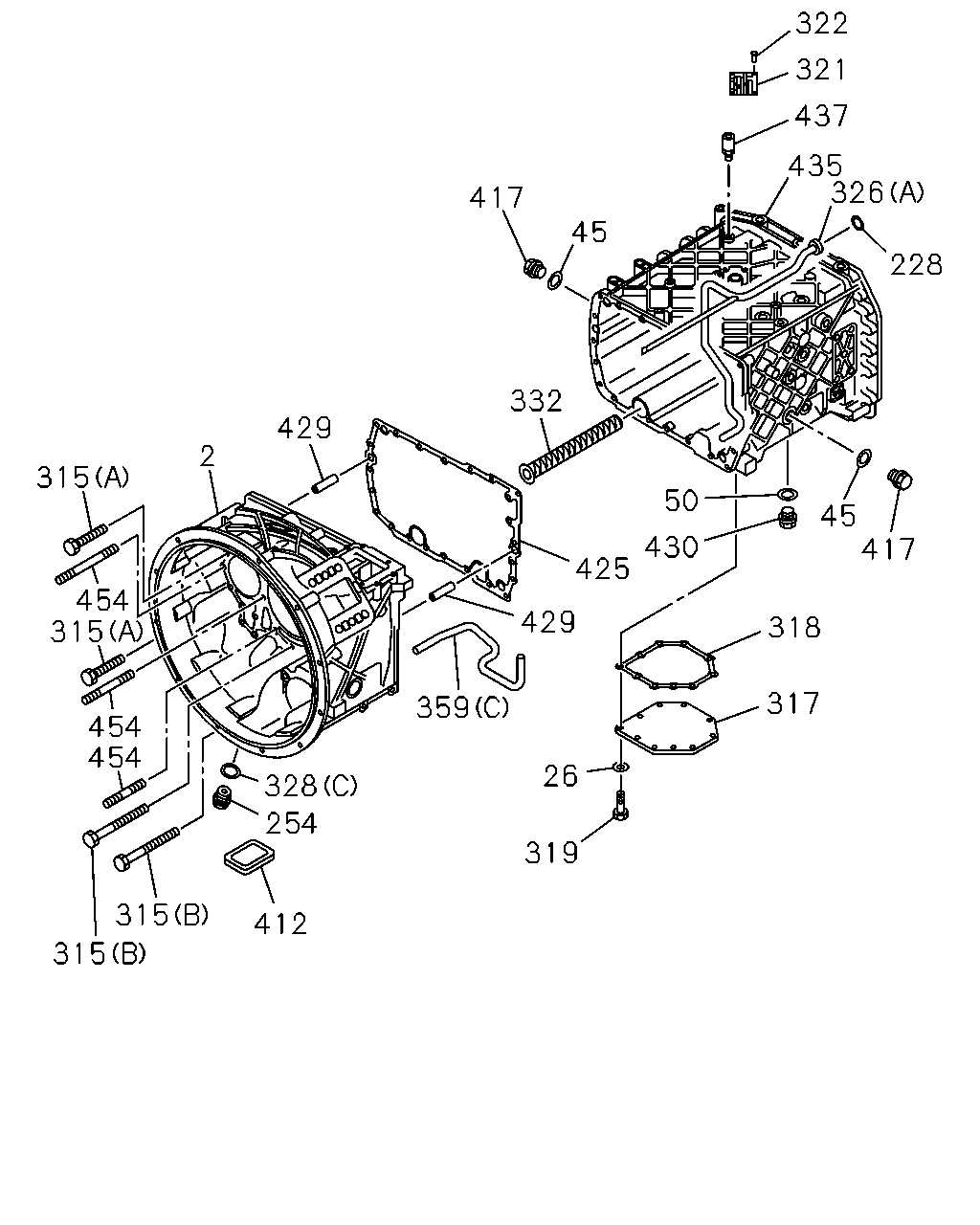

322 321 417 437 435 326 228 45 2 332 429 50 45 430 417 425 318 317 429 26 319 359 412 254 315 328 315 454 454 315 315 454

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; CLU	1-31111-194-0	01	1	0105-	●	●
26	WASHER; PL,COVER	1-09469-010-0	10	1	0105-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	02	1	0105-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T).	1-33119-264-0	01	1	0105-	●	●
228	GASKET; NOZZLE	1-33119-273-0	01	1	0105-	●	●
254	PLUG; DRAIN,OIL	1-33119-376-0	01	1	0105-	●	●
315	BOLT; CASE (A)	1-33119-266-0	15	1	0105-	●	●
315	BOLT; CASE (B)	1-33119-267-0	07	1	0105-	●	●
317	COVER; CASE	1-33119-274-0	01	1	0105-	●	●
318	GASKET; COVER	1-33119-409-0	01	1	0105-	●	●
319	BOLT; COVER	1-33119-276-0	10	1	0105-	●	●
321	PLATE; NAME	1-33119-277-0	01	1	0105-	●	●
322	RIVET; NAME PLATE	1-33119-398-0	04	1	0105-	●	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-272-0	01	1	0105-	●
326	NOZZLE; OIL,OUTLET (B)	1-33139-021-0	01	1	0105-	●	●
326	NOZZLE; OIL,OUTLET (A)	1-33119-282-0	01	1	0105-		●
328	GASKET; PLUG (B)	1-33119-249-0	02	1	0105-	●	●
328	GASKET; PLUG (C)	1-33119-264-0	01	1	0105-	●	●
328	GASKET; PLUG (A)	1-33139-023-0	01	1	0105-	●	●
332	FILTER; OIL	1-33119-370-0	01	1	0105-	●	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49118-935-0	01	1	0105-0109	●
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-133-0	01	1	0110-	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49118-937-0	01	1	0105-0109	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-134-0	01	1	0110-	●
359	PIPE; AIR,TRANS TO UNION (C)	1-33119-395-0	01	1	0105-	●	●
359	PIPE; AIR,TRANS TO UNION (B)	1-49119-463-1	01	1	0105-0109		●
359	PIPE; AIR,TRANS TO UNION (B)	1-49123-135-0	01	1	0110-		●
359	PIPE; AIR,TRANS TO UNION (A)	1-49119-464-1	01	1	0105-0109		●
359	PIPE; AIR,TRANS TO UNION (A)	1-49123-136-0	01	1	0110-		●
412	CAP; CLU HSG	1-31119-022-0	01	1	0105-	●	●
417	PLUG; OIL FILLER,TRANS	1-33119-268-0	02	1	0105-	●	●
425	GASKET; CLU HSG TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	1-33119-262-0	01	1	0105-	●	●
429	PIN; STRAIGHT	1-33119-265-0	07	1	0105-	●	●
430	PLUG; OIL DRAIN	1-33119-268-0	01	1	0105-	●	●
435	CASE; TRANS	1-33111-290-0	01	1	0105-	●
435	CASE; TRANS	1-33111-286-0	01	1	0105-		●
437	BREATHER; TRANS	1-36122-004-0	01	1	0105-	●	●
454	STUD; CLU HSG M10 L=50	1-33119-381-0	04	1	0105-	●	●
454	STUD; CLU HSG M10 L=80	1-33119-393-0	08	1	0105-	●	●
454	STUD; CLU HSG M10 L=25	1-33119-394-0	11	1	0105-	●	●

184 183 186 185 185 186 184 186 186 405

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
183	VALVE; BYPASS,TRANS	1-32569-046-0	01	1	0105-	●	●
184	GASKET; BYPASS VLV	1-32568-003-0	02	1	0105-	●	●
185	UNION; SCREW,BYPASS VLV (A) M22	1-32567-011-0	01	1	0105-	●	●
185	UNION; SCREW,BYPASS VLV (B)	1-32567-016-0	01	1	0105-	●	●
186	RING; SEAL (A) ID=22	1-32568-001-0	04	1	0105-	●	●
186	RING; SEAL (B) ID=22	1-32568-002-0	02	1	0105-	●	●
405	BOLT; EYE,OIL PIPE M22X37	1-09675-060-0	02	1	0105-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
