1-50 — EXHAUST PIPE AND SILENCER (#119519) — 104 parça

2 36 1 25 329 44 8 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PIPE; EXH THA	8-97924-538-0	01	1	1304-	●	●
2	GASKET; PIPE TO MANIF IMA	8-97384-590-0	01	1	1304-	●	●
8	BRACKET; EXH PIPE IMA	8-98026-063-0	01	1	1304-	●	●
25	PIPE; EXH,BRK VLV TO SILENCER THA	8-97924-537-1	01	1	1304-	●	●
36	NUT; EXH PIPE M10 FLANGE IMA	8-97096-192-1	03	1	1304-	●	●
43	CLAMP; EXH PIPE IMA	8-97351-200-1	01	1	1304-	●	●
44	BOLT; BRKT (A) M10X25 FLANGE THA	0-28151-025-0	02	1	1304-	●	●
44	BOLT; BRKT (B) M10X30 FLANGE THA	0-28651-030-0	02	1	1304-	●	●
329	NUT; EXH PIPE TO PIPE M8 FLANGE THA	0-91180-108-0	04	1	1304-	●	●

118 117 115 345 115 84 12 14 576 113 59 115 117 118 376 352 337 577 577 577 352 115 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	SILENCER ASM; EXH THA	8-97924-544-0	01	1	1304-	●	●
14	GASKET; SILENCER TO EXH PIPE ID=64 IMA	8-97373-108-0	01	1	1304-	●	●
59	BRACKET; EXH SILENCER,FRT THA	8-98082-156-0	01	1	1304-	●	●
84	GASKET; EXH PIPE ID=64 IMA	8-97373-108-0	01	1	1304-	●	●
113	COLLAR; DIST,MTG BRKT L=37.5 THA	9-22151-217-0	02	1	1304-	●	●
115	RUBBER; MTG,SILENCER (A)	8-94457-277-1	02	1	1304-1308	●	●
115	RUBBER; MTG,SILENCER (A) THA	8-97948-226-0	02	1	1309-	●	●
115	RUBBER; MTG,SILENCER (B)	8-94457-278-1	02	1	1304-1308	●	●
115	RUBBER; MTG,SILENCER (B) THA	8-97948-227-0	02	1	1309-	●	●
117	WASHER; PL,SILENCER MTG BRKT OD=55 IMA	9-09852-169-0	02	1	1304-	●	●
118	NUT; SILENCER MTG BRKT M10 FLANGE IMA	5-09440-006-0	02	1	1304-	●	●
337	BOLT; RUBBER,SUPPORT M10X30 FLANGE THA	0-28651-030-0	02	1	1304-	●	●
345	BRACKET; EXH SILENCER,RR THA	8-98027-822-0	01	1	1304-	●	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	02	1	1304-	●	●
352	NUT; BRKT M10 FLANGE THA	0-91180-110-0	04	1	1304-	●	●
376	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	1304-	●	●
576	BRACKET; DPD FRT TO FRAME IMA	8-98067-992-0	01	1	1304-	●	●
577	BRACKET; DPD RR TO FRAME SINGLE RR TIRE<6TD> (A) IMA	8-98084-130-0	01	1	1304-	●
577	BRACKET; DPD RR TO FRAME EXC. SINGLE RR TIRE<6TD> (B) IMA	8-98067-994-0	01	1	1304-	●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM<24W> (B) IMA	8-98067-994-0	01	1	1304-		●
577	BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM<33W> (C) IMA	8-98072-145-0	01	1	1304-		●

81 105 124 166 162 104 165 88 97 125 70 137 144 126 38 94 143 137 94 164 88 357 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; SILENCER M8 FLANGE THA	0-91180-108-0	04	1	1304-	●	●
70	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	1304-	●	●
81	NUT; BRKT M10 FLANGE THA	0-91180-110-0	04	1	1304-	●	●
88	CLAMP; EXH PIPE IMA	8-97373-158-0	02	1	1304-	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE THA	0-28051-045-0	01	1	1304-	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE THA	8-97301-165-0	01	1	1304-	●	●
95	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	1304-	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22 IMA	0-91614-610-0	01	1	1304-	●	●
104	NUT; BRKT SINGLE RR TIRE<6TD> M10 FLANGE THA	0-91180-110-0	01	1	1304-	●
104	NUT; BRKT WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	02	1	1304-		●
104	NUT; BRKT WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	02	1	1304-		●
105	NUT; CLAMP M10 THA	0-91110-510-0	01	1	1304-	●	●
124	NUT; SUPPORT RUBBER WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	01	1	1304-		●
124	NUT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	01	1	1304-		●
125	NUT; CLAMP M10 THA	0-91110-510-0	01	1	1304-	●	●
126	PIPE; EXH,RR SINGLE RR TIRE<6TD> (A) THA	8-97924-502-1	01	1	1304-	●
126	PIPE; EXH,RR WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> (B) THA	8-97924-503-1	01	1	1304-		●
126	PIPE; EXH,RR WHEEL BASE 3300MM<33W> (C) THA	8-97924-504-1	01	1	1304-		●
137	BRACKET; TAIL PIPE SINGLE RR TIRE<6TD> (C) IMA	8-98001-893-1	01	1	1304-	●
137	BRACKET; TAIL PIPE SINGLE RR TIRE<6TD> (D) IMA	8-98001-903-0	01	1	1304-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> (A) IMA	8-98038-762-1	01	1	1304-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> (B) IMA	8-98075-678-0	01	1	1304-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM<33W> (E) IMA	8-98075-674-0	01	1	1304-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM<33W> (F) IMA	8-98075-675-1	01	1	1304-		●
143	RUBBER; SUPPORT IMA	8-98034-767-0	01	1	1304-	●	●
144	NUT; MTG RUBBER M8 FLANGE THA	0-91180-108-0	01	1	1304-	●	●
162	RUBBER; SUPPORT,TAIL PIPE (A) IMA	8-98032-150-0	01	1	1304-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM<24W> (A) IMA	8-98032-150-0	01	1	1304-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM<33W> (B) L=115 IMA	8-98034-765-0	01	1	1304-		●
164	COLLAR; DIST,TAIL PIPE (A) L=23 IMA	8-98006-011-0	01	1	1304-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM<24W> (A) L=23 IMA	8-98006-011-0	01	1	1304-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM<33W> (B) L=37.5 THA	9-22151-217-0	01	1	1304-		●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE THA	0-28051-045-0	01	1	1304-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> (A) M10X45 FLANGE THA	0-28051-045-0	01	1	1304-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM<33W> (B) M10X70 FLANGE THA	0-28051-070-0	01	1	1304-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 IMA	0-91614-810-0	01	1	1304-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22 IMA	0-91614-610-0	01	1	1304-	●	●

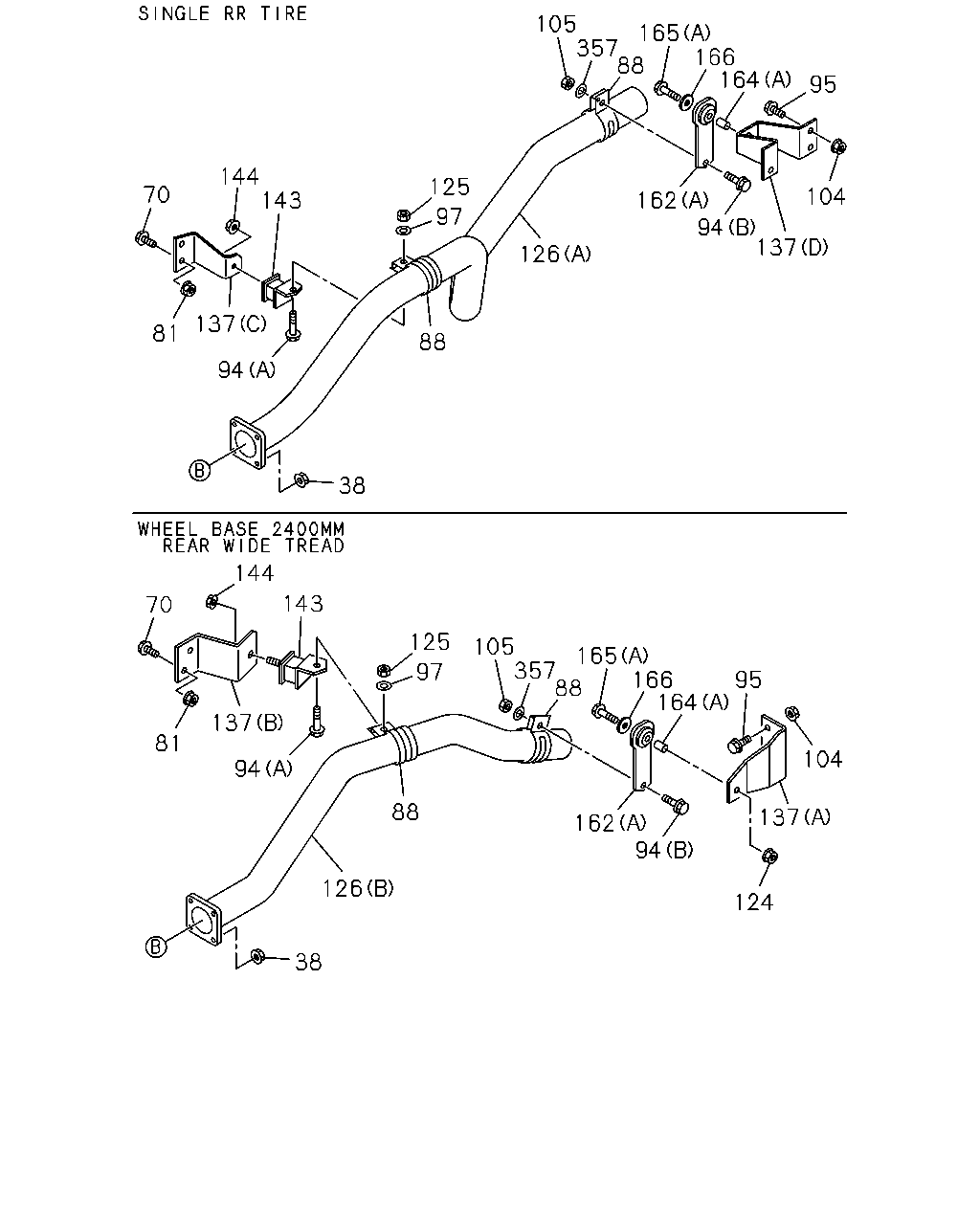

105 162 104 94 126 88 165 357 95 164 166 137 88 125 143 144 70 94 137 81 97 38 144 70 81 94 88 126 38 124 137 94 162 104 95 166 164 88 357 105 165 125 97 137 143

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; SILENCER M8 FLANGE THA	0-91180-108-0	04	1	1304-	●	●
70	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	1304-	●	●
81	NUT; BRKT M10 FLANGE THA	0-91180-110-0	04	1	1304-	●	●
88	CLAMP; EXH PIPE IMA	8-97373-158-0	02	1	1304-	●	●
94	BOLT; CLAMP (B) M10X45 FLANGE THA	0-28051-045-0	01	1	1304-	●	●
94	BOLT; CLAMP (A) M10X50 FLANGE THA	8-97301-165-0	01	1	1304-	●	●
95	BOLT; BRKT M10X30 FLANGE THA	0-28651-030-0	02	1	1304-	●	●
97	WASHER; PL,CLAMP ID=10.5 OD=22 IMA	0-91614-610-0	01	1	1304-	●	●
104	NUT; BRKT SINGLE RR TIRE<6TD> M10 FLANGE THA	0-91180-110-0	01	1	1304-	●
104	NUT; BRKT WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	02	1	1304-		●
104	NUT; BRKT WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	02	1	1304-		●
105	NUT; CLAMP M10 THA	0-91110-510-0	01	1	1304-	●	●
124	NUT; SUPPORT RUBBER WHEEL BASE 3300MM<33W> M10 FLANGE THA	0-91180-110-0	01	1	1304-		●
124	NUT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> M10 FLANGE THA	0-91180-110-0	01	1	1304-		●
125	NUT; CLAMP M10 THA	0-91110-510-0	01	1	1304-	●	●
126	PIPE; EXH,RR SINGLE RR TIRE<6TD> (A) THA	8-97924-502-1	01	1	1304-	●
126	PIPE; EXH,RR WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> (B) THA	8-97924-503-1	01	1	1304-		●
126	PIPE; EXH,RR WHEEL BASE 3300MM<33W> (C) THA	8-97924-504-1	01	1	1304-		●
137	BRACKET; TAIL PIPE SINGLE RR TIRE<6TD> (C) IMA	8-98001-893-1	01	1	1304-	●
137	BRACKET; TAIL PIPE SINGLE RR TIRE<6TD> (D) IMA	8-98001-903-0	01	1	1304-	●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> (A) IMA	8-98038-762-1	01	1	1304-		●
137	BRACKET; TAIL PIPE WHEEL BASE 2400MM<24W> REAR WIDE TREAD<V4T> (B) IMA	8-98075-678-0	01	1	1304-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM<33W> (E) IMA	8-98075-674-0	01	1	1304-		●
137	BRACKET; TAIL PIPE WHEEL BASE 3300MM<33W> (F) IMA	8-98075-675-1	01	1	1304-		●
143	RUBBER; SUPPORT IMA	8-98034-767-0	01	1	1304-	●	●
144	NUT; MTG RUBBER M8 FLANGE THA	0-91180-108-0	01	1	1304-	●	●
162	RUBBER; SUPPORT,TAIL PIPE (A) IMA	8-98032-150-0	01	1	1304-	●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM<24W> (A) IMA	8-98032-150-0	01	1	1304-		●
162	RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM<33W> (B) L=115 IMA	8-98034-765-0	01	1	1304-		●
164	COLLAR; DIST,TAIL PIPE (A) L=23 IMA	8-98006-011-0	01	1	1304-	●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM<24W> (A) L=23 IMA	8-98006-011-0	01	1	1304-		●
164	COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM<33W> (B) L=37.5 THA	9-22151-217-0	01	1	1304-		●
165	BOLT; SUPPORT RUBBER (A) M10X45 FLANGE THA	0-28051-045-0	01	1	1304-	●
165	BOLT; SUPPORT RUBBER WHEEL BASE 2400MM<24W> (A) M10X45 FLANGE THA	0-28051-045-0	01	1	1304-		●
165	BOLT; SUPPORT RUBBER WHEEL BASE 3300MM<33W> (B) M10X70 FLANGE THA	0-28051-070-0	01	1	1304-		●
166	WASHER; PL,SUPPORT RUBBER,EXH PIPE ID=10.5 OD=32 IMA	0-91614-810-0	01	1	1304-	●	●
357	WASHER; PL,CLAMP ID=10.5 OD=22 IMA	0-91614-610-0	01	1	1304-	●	●
