Isuzu WW
▶
PICKUP
▶
TFR
▶
51421 - TFR/TFS(MALAYSIA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-10 - CAUTION PLATE AND LABEL
▶

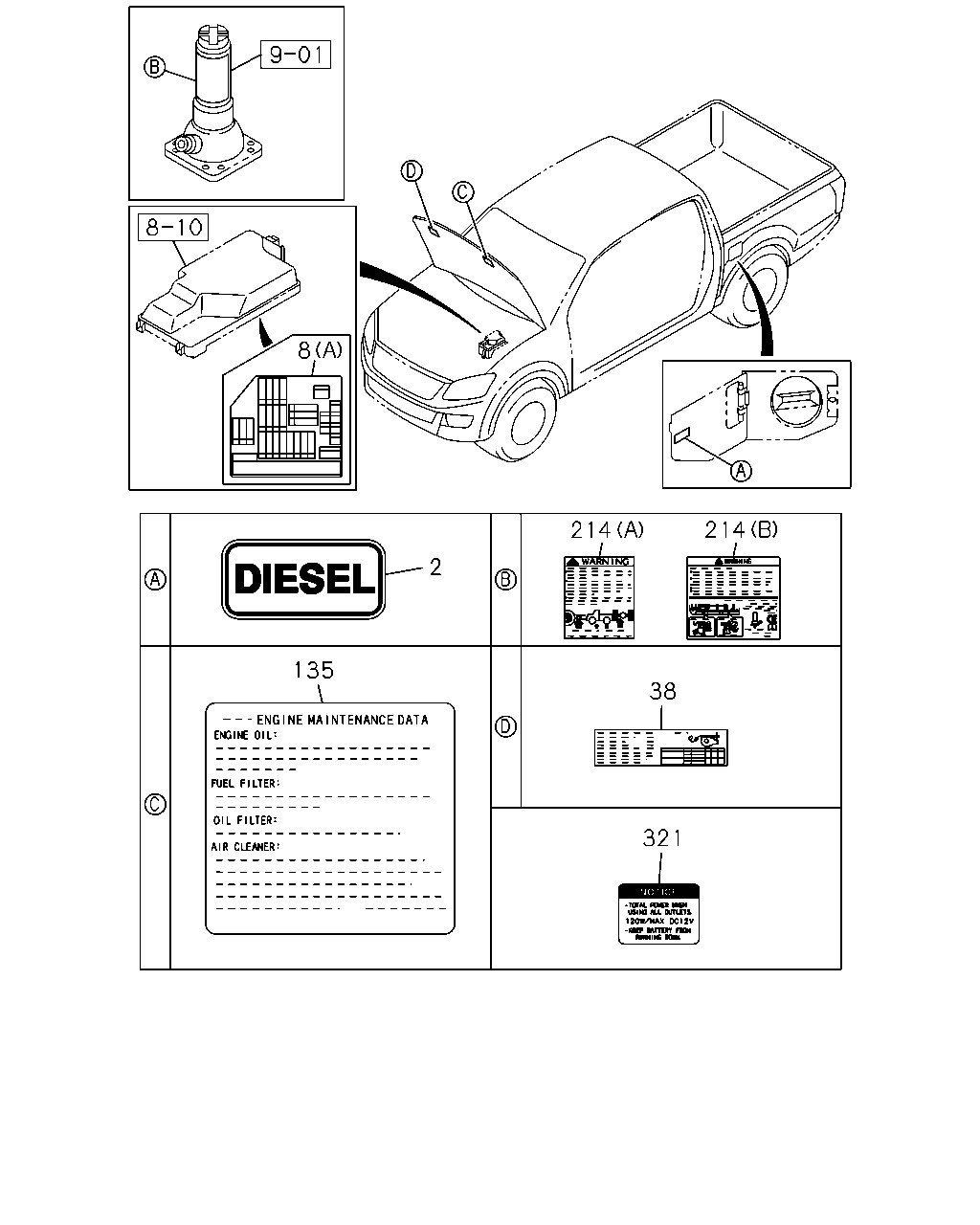

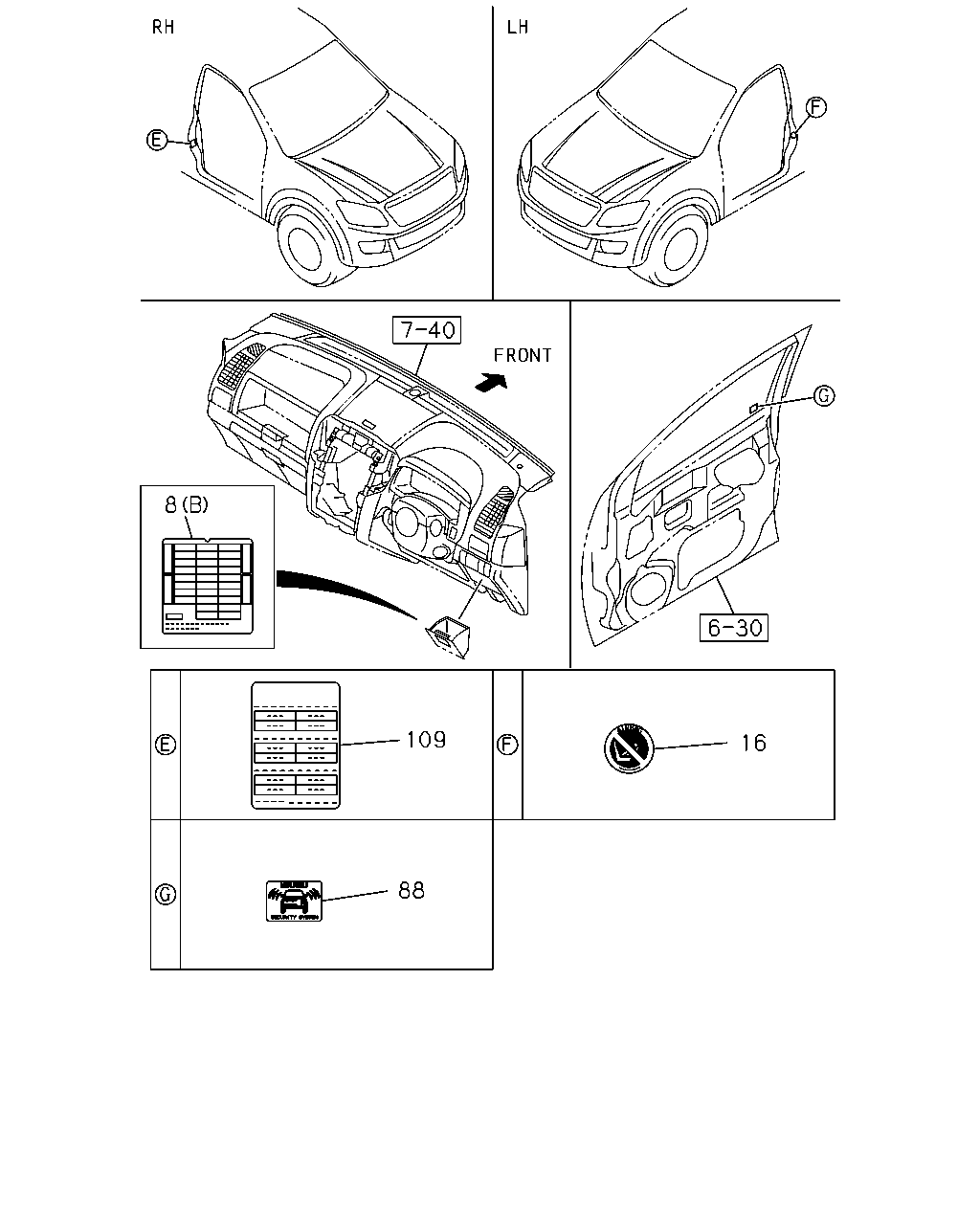

7-10 — CAUTION PLATE AND LABEL
(#119513) — 27 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5SF
D - TFS5WF
◀
[710A] NO.2 (10 parça)
[710A] NO.1 (14 parça)
[710A] NO.3 (3 parça)
▶
8
109
16
88
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
8
LABEL; FUSE
(B)
8-98167-404-1
01
1
1305-
●
●
●
●
8
LABEL; FUSE
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) (A)
8-98181-920-1
01
1
1305-
●
8
LABEL; FUSE
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A)
8-98181-920-1
01
1
1305-
●
8
LABEL; FUSE
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) (A)
8-98166-842-3
01
1
1305-
●
●
●
16
PLATE; CAUTION,SIR
AIR BAG DRIVER & PASSENGER(AK5)
8-97378-569-0
01
1
1305-
●
●
●
●
88
LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>
8-98141-993-2
02
1
1305-
●
●
109
PLATE; CAUTION,TIRE PLACARD
FRT&RR 215/70R15C DUNLOP TIRE(CWP),FRT&RR 195R15C(QZO)
8-98100-752-1
01
1
1305-
●
109
PLATE; CAUTION,TIRE PLACARD
EXC. HIGH RIDE SUSPENSION(7YC)
8-98100-752-1
01
1
1305-
●
109
PLATE; CAUTION,TIRE PLACARD
HIGH RIDE SUSPENSION(7YC)
8-98102-346-1
01
1
1305-
●
109
PLATE; CAUTION,TIRE PLACARD
FRT&RR 205R16C(CUY),FRT&RR 245/70R16 ALS(QCQ), FRT&RR 255/65R17(QZX)
8-98102-346-1
01
1
1305-
●
●
214
214
38
321
135
2
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63)
8-98147-133-0
01
1
1305-1510
●
●
●
●
8
LABEL; FUSE
(B)
8-98167-404-1
01
1
1305-
●
●
●
●
8
LABEL; FUSE
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) (A)
8-98181-920-1
01
1
1305-
●
8
LABEL; FUSE
4JA1-T ENG(LP0) M/T MUA 5 SPEED 5G(RSP) EURO2 SPECIFICATION<NT2> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,ELECTRONIC TRACTION CONTROL<NW9> (A)
8-98181-920-1
01
1
1305-
●
8
LABEL; FUSE
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ) (A)
8-98166-842-3
01
1
1305-
●
●
●
38
PLATE; CAUTION,LSV
8-97947-380-1
01
1
1305-
●
38
PLATE; CAUTION,LSV
BRK WHL LK CONT LSPV<JR9>
8-97947-380-1
01
1
1305-
●
●
●
135
PLATE; CAUTION,ENGINE
4JA1-T ENG(LP0)
8-97332-377-1
01
1
1305-
●
●
135
PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0)
8-98200-831-0
01
1
1305-
●
●
●
214
LABEL; JACK
(A)
8-97315-282-1
01
1
1305-1312
●
●
●
●
214
LABEL; JACK
(B)
8-98245-069-0
01
1
1401-1501
●
●
●
●
214
LABEL; JACK
(B)
8-98304-658-0
01
1
1502-
●
●
●
●
321
LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5>
8-98183-494-1
01
1
1305-
●
●
●
321
LABEL; WARNING,POWER
8-98183-494-1
01
1
1305-
●
319
269
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
269
LABEL; CAUTION,EGR
4JA1-T ENG(LP0)
8-97943-094-0
01
1
1305-
●
269
LABEL; CAUTION,EGR
4JA1-T ENG(LP0) EURO2 SPECIFICATION<NT2>
8-97943-094-0
01
1
1305-
●
319
LABEL; TOP TETHER
8-98174-417-0
02
1
1305-
●
●
