6-20 — SIDE PANEL AND STEP (#119511) — 214 parça

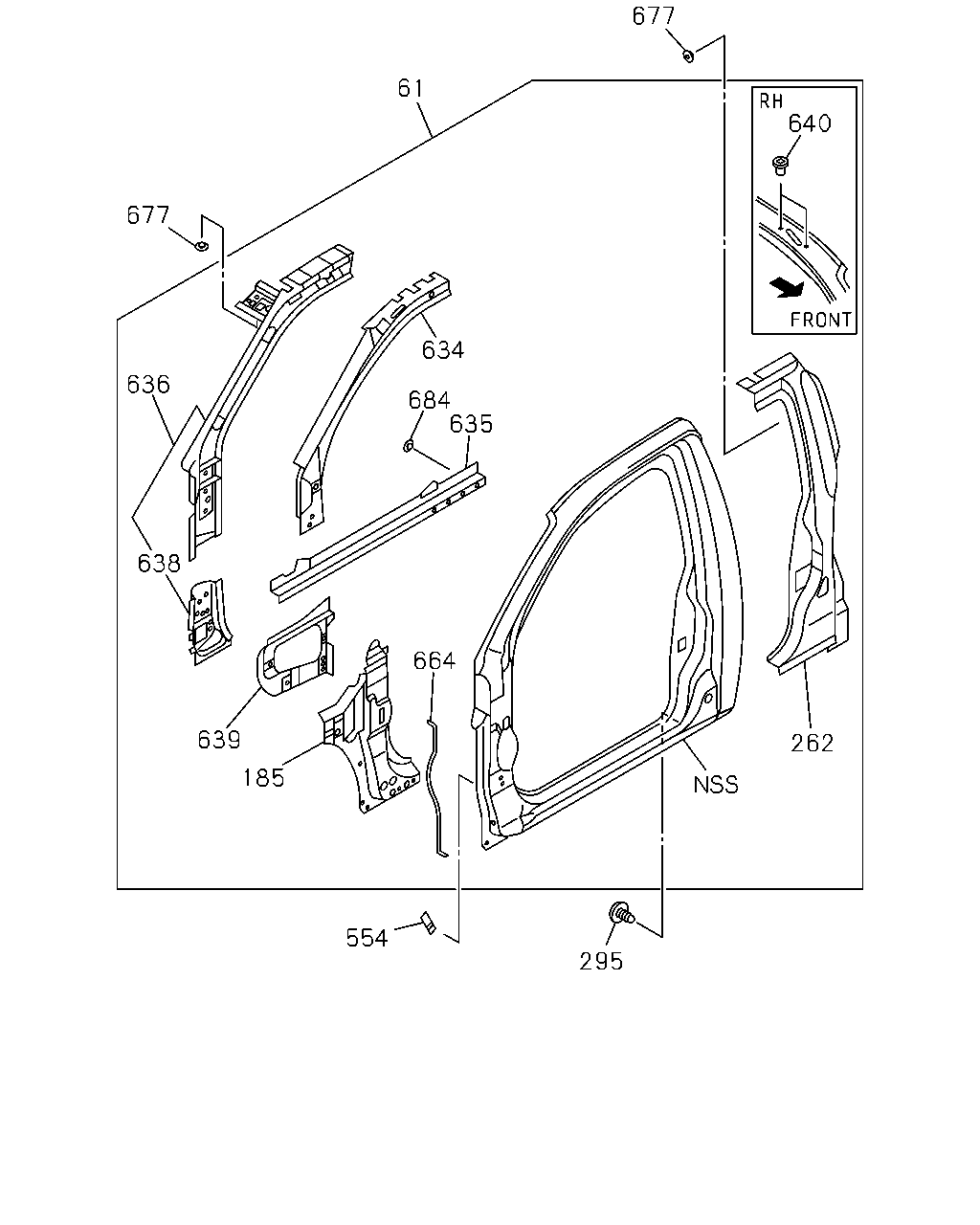

çizim 351287
554 185 639 638 636 677 61 634 684 635 664 295 262 640 677
BalonParca AdiParca NoAdetTipApplied Date A B C D
61 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> 		8-98156-763-6 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98156-763-6 01 1 1410- ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> ROOF RADIO ANTENNA<U71> 		8-98156-771-6 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98156-771-6 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98103-242-6 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98103-245-6 01 1 1410- ●
61 PANEL; SIDE OUTER 8-98160-817-3 01 1 1305-1409 ● ●
61 PANEL; SIDE OUTER
4JA1-T ENG(LP0) 		8-98160-817-5 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98160-817-5 01 1 1410- ●
61 PANEL; SIDE OUTER 8-98160-830-3 01 1 1305-1409 ● ●
61 PANEL; SIDE OUTER
4JA1-T ENG(LP0) 		8-98160-830-5 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98160-830-5 01 1 1410- ●
61 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) 		8-98160-819-4 01 1 1305-1409 ●
61 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) EXC. EQUIPMENT IMPACT<EPS> 		8-98160-819-6 01 1 1410- ●
61 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) EXC. ROOF RADIO ANTENNA<U71> 		8-98160-831-4 01 1 1305-1409 ●
61 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) EXC. EQUIPMENT IMPACT<EPS>,ROOF RADIO ANTENNA<U71> 		8-98160-831-6 01 1 1410- ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) 		8-98160-824-4 01 1 1305-1409 ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) 		8-98160-824-4 01 1 1305-1409 ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) EXC. EQUIPMENT IMPACT<EPS> 		8-98160-824-6 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98160-824-6 01 1 1410- ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) ROOF RADIO ANTENNA<U71> 		8-98160-832-4 01 1 1305-1409 ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) 		8-98160-832-4 01 1 1305-1409 ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) ROOF RADIO ANTENNA<U71> EXC. EQUIPMENT IMPACT<EPS> 		8-98160-832-6 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98160-832-6 01 1 1410- ●
185 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1305- ● ● ● ●
185 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1305- ● ● ● ●
262 PANEL; PILLAR 8-98104-375-9 01 1 1305-1409 ● ●
262 PANEL; PILLAR 8-98269-897-0 01 1 1410- ● ●
262 PANEL; PILLAR 8-98192-993-1 01 1 1305- ● ●
295 CLIP; BODY SIDE STEP
OD=18 		8-94269-290-0 04 1 1305- ● ●
295 CLIP; BODY SIDE STEP
EXC. SIDE STEP<6TC> OD=18 		8-94269-290-0 06 1 1305- ● ●
554 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1305-1409 ● ● ● ●
554 SEAL; INNER BODY
EXC. EQUIPMENT IMPACT<EPS> 115X25 		8-98178-886-0 02 1 1410- ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1305- ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1305- ● ● ● ●
635 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> 		8-98104-793-4 01 1 1410- ●
635 REINFORCEMENT; ROCKER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98104-793-4 01 1 1410- ●
635 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> ROOF RADIO ANTENNA<U71> 		8-98104-794-4 01 1 1410- ●
635 REINFORCEMENT; ROCKER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98104-794-4 01 1 1410- ●
635 REINFORCEMENT; ROCKER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98104-503-2 01 1 1410- ●
635 REINFORCEMENT; ROCKER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98104-504-2 01 1 1410- ●
635 REINFORCEMENT; ROCKER 8-98161-043-1 01 1 1305-1409 ● ●
635 REINFORCEMENT; ROCKER
4JA1-T ENG(LP0) 		8-98161-043-1 01 1 1410- ●
635 REINFORCEMENT; ROCKER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98161-043-1 01 1 1410- ●
635 REINFORCEMENT; ROCKER 8-98161-047-1 01 1 1305-1409 ● ●
635 REINFORCEMENT; ROCKER
4JA1-T ENG(LP0) 		8-98161-047-1 01 1 1410- ●
635 REINFORCEMENT; ROCKER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98161-047-1 01 1 1410- ●
635 REINFORCEMENT; ROCKER 8-98161-051-2 01 1 1305-1409 ● ●
635 REINFORCEMENT; ROCKER
EXC. EQUIPMENT IMPACT<EPS> 		8-98161-051-2 01 1 1410- ● ●
635 REINFORCEMENT; ROCKER 8-98161-050-2 01 1 1305-1409 ● ●
635 REINFORCEMENT; ROCKER
EXC. EQUIPMENT IMPACT<EPS> 		8-98161-050-2 01 1 1410- ● ●
636 PANEL; FRONT PILLAR INNER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> 		8-98104-510-9 01 1 1410-1505 ●
636 PANEL; FRONT PILLAR INNER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98104-510-9 01 1 1410-1505 ●
636 PANEL; FRONT PILLAR INNER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> 		8-98297-962-0 01 1 1506- ●
636 PANEL; FRONT PILLAR INNER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98297-962-0 01 1 1506- ●
636 PANEL; FRONT PILLAR INNER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> ROOF RADIO ANTENNA<U71> 		8-98104-512-9 01 1 1410-1505 ●
636 PANEL; FRONT PILLAR INNER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98104-512-9 01 1 1410-1505 ●
636 PANEL; FRONT PILLAR INNER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> ROOF RADIO ANTENNA<U71> 		8-98297-963-0 01 1 1506- ●
636 PANEL; FRONT PILLAR INNER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98297-963-0 01 1 1506- ●
636 PANEL; FRONT PILLAR INNER 8-98161-090-5 01 1 1305-1409 ● ● ● ●
636 PANEL; FRONT PILLAR INNER 8-98161-090-7 01 1 1410- ● ●
636 PANEL; FRONT PILLAR INNER
EXC. EQUIPMENT IMPACT<EPS> 		8-98161-090-7 01 1 1410- ● ●
636 PANEL; FRONT PILLAR INNER 8-98161-087-5 01 1 1305-1409 ● ● ● ●
636 PANEL; FRONT PILLAR INNER 8-98161-087-7 01 1 1410- ● ●
636 PANEL; FRONT PILLAR INNER
EXC. EQUIPMENT IMPACT<EPS> 		8-98161-087-7 01 1 1410- ● ●
638 PANEL; DASH SIDE INNER 8-98104-641-5 01 1 1305- ● ● ● ●
638 PANEL; DASH SIDE INNER 8-98104-640-5 01 1 1305- ● ● ● ●
639 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1305- ● ● ● ●
639 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1305- ● ● ● ●
640 POP NUT
M5 POP NUT 		8-97249-574-0 02 1 1305- ● ●
640 POP NUT
EXC. INTERIOR BASIC(RBA) M5 POP NUT 		8-97249-574-0 02 1 1305- ●
664 SEAL; TAPE 8-98193-408-2 01 1 1305- ● ● ● ●
664 SEAL; TAPE 8-98193-408-2 01 1 1305- ● ● ● ●
677 RIVET; PANEL 8-98057-864-0 16 1 1305- ● ● ● ●
684 FASTENER 8-98057-864-0 07 1 1305- ● ●
684 FASTENER 8-98057-864-0 07 1 1305- ● ●
684 FASTENER 8-98057-864-0 10 1 1305- ● ●
684 FASTENER 8-98057-864-0 10 1 1305- ● ●

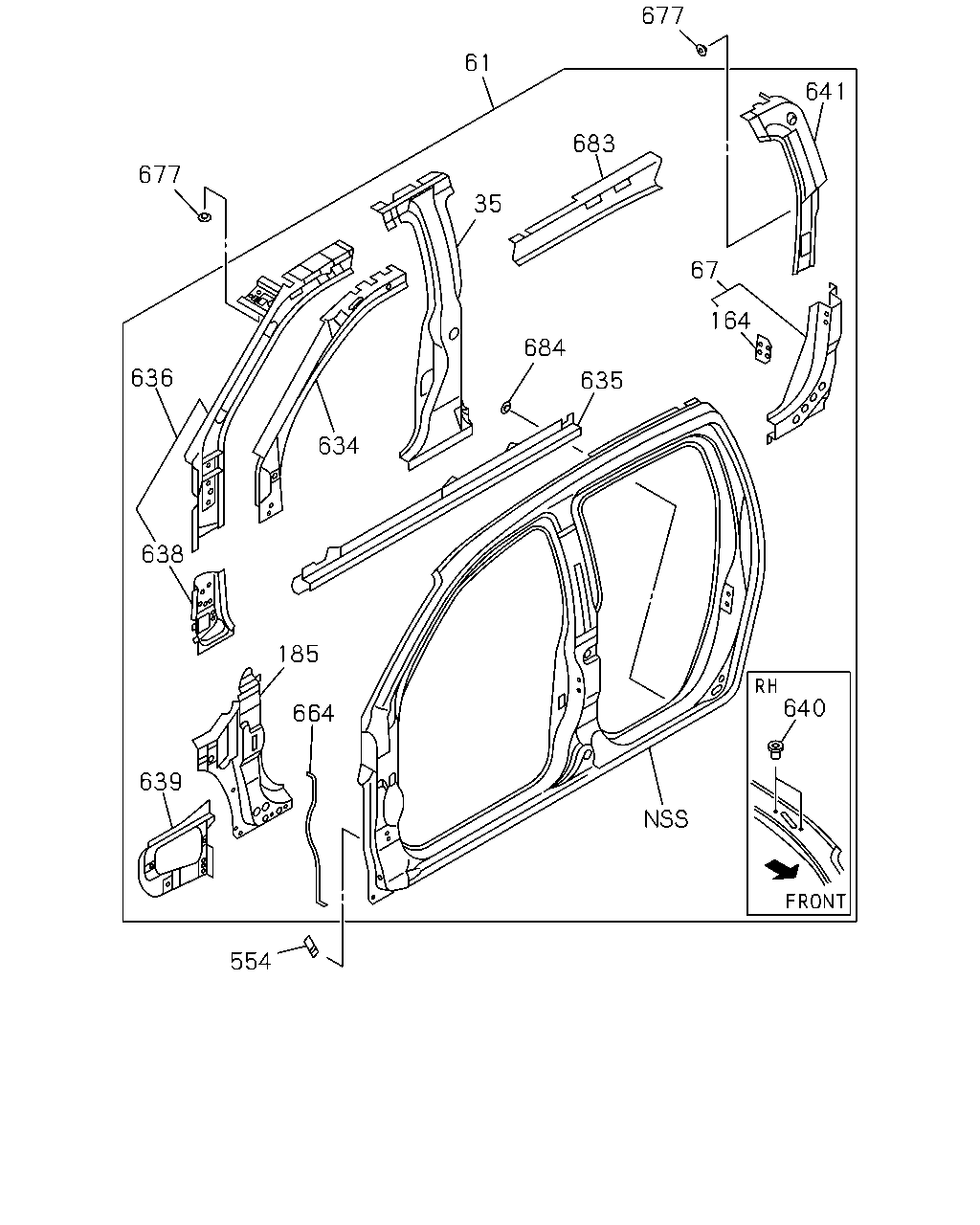

çizim 351298
677 636 638 639 554 634 185 664 61 35 684 635 683 677 67 164 641 640
BalonParca AdiParca NoAdetTipApplied Date A B C D
35 PANEL; CENTER PILLAR,INNER 8-98104-767-8 01 1 1305- ● ●
35 PANEL; CENTER PILLAR,INNER 8-98104-766-7 01 1 1305- ● ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> 		8-98156-763-6 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98156-763-6 01 1 1410- ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> ROOF RADIO ANTENNA<U71> 		8-98156-771-6 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98156-771-6 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98103-242-6 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98103-245-6 01 1 1410- ●
61 PANEL; SIDE OUTER 8-98160-817-3 01 1 1305-1409 ● ●
61 PANEL; SIDE OUTER
4JA1-T ENG(LP0) 		8-98160-817-5 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98160-817-5 01 1 1410- ●
61 PANEL; SIDE OUTER 8-98160-830-3 01 1 1305-1409 ● ●
61 PANEL; SIDE OUTER
4JA1-T ENG(LP0) 		8-98160-830-5 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98160-830-5 01 1 1410- ●
61 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) 		8-98160-819-4 01 1 1305-1409 ●
61 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) EXC. EQUIPMENT IMPACT<EPS> 		8-98160-819-6 01 1 1410- ●
61 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) EXC. ROOF RADIO ANTENNA<U71> 		8-98160-831-4 01 1 1305-1409 ●
61 PANEL; SIDE OUTER
INTERIOR BASIC(RBA) EXC. EQUIPMENT IMPACT<EPS>,ROOF RADIO ANTENNA<U71> 		8-98160-831-6 01 1 1410- ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) 		8-98160-824-4 01 1 1305-1409 ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) 		8-98160-824-4 01 1 1305-1409 ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) EXC. EQUIPMENT IMPACT<EPS> 		8-98160-824-6 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98160-824-6 01 1 1410- ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) ROOF RADIO ANTENNA<U71> 		8-98160-832-4 01 1 1305-1409 ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) 		8-98160-832-4 01 1 1305-1409 ●
61 PANEL; SIDE OUTER
INTERIOR CUSTOM(RBD) ROOF RADIO ANTENNA<U71> EXC. EQUIPMENT IMPACT<EPS> 		8-98160-832-6 01 1 1410- ●
61 PANEL; SIDE OUTER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98160-832-6 01 1 1410- ●
67 PANEL; INNER,RR PILLAR LWR 8-98104-787-6 01 1 1305- ● ●
67 PANEL; INNER,RR PILLAR LWR 8-98104-786-6 01 1 1305- ● ●
164 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 1305- ● ●
164 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 1305- ● ●
185 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1305- ● ● ● ●
185 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1305- ● ● ● ●
554 SEAL; INNER BODY
115X25 		8-98178-886-0 02 1 1305-1409 ● ● ● ●
554 SEAL; INNER BODY
EXC. EQUIPMENT IMPACT<EPS> 115X25 		8-98178-886-0 02 1 1410- ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1305- ● ● ● ●
634 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1305- ● ● ● ●
635 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> 		8-98104-793-4 01 1 1410- ●
635 REINFORCEMENT; ROCKER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98104-793-4 01 1 1410- ●
635 REINFORCEMENT; ROCKER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> ROOF RADIO ANTENNA<U71> 		8-98104-794-4 01 1 1410- ●
635 REINFORCEMENT; ROCKER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98104-794-4 01 1 1410- ●
635 REINFORCEMENT; ROCKER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98104-503-2 01 1 1410- ●
635 REINFORCEMENT; ROCKER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98104-504-2 01 1 1410- ●
635 REINFORCEMENT; ROCKER 8-98161-043-1 01 1 1305-1409 ● ●
635 REINFORCEMENT; ROCKER
4JA1-T ENG(LP0) 		8-98161-043-1 01 1 1410- ●
635 REINFORCEMENT; ROCKER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98161-043-1 01 1 1410- ●
635 REINFORCEMENT; ROCKER 8-98161-047-1 01 1 1305-1409 ● ●
635 REINFORCEMENT; ROCKER
4JA1-T ENG(LP0) 		8-98161-047-1 01 1 1410- ●
635 REINFORCEMENT; ROCKER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98161-047-1 01 1 1410- ●
635 REINFORCEMENT; ROCKER 8-98161-051-2 01 1 1305-1409 ● ●
635 REINFORCEMENT; ROCKER
EXC. EQUIPMENT IMPACT<EPS> 		8-98161-051-2 01 1 1410- ● ●
635 REINFORCEMENT; ROCKER 8-98161-050-2 01 1 1305-1409 ● ●
635 REINFORCEMENT; ROCKER
EXC. EQUIPMENT IMPACT<EPS> 		8-98161-050-2 01 1 1410- ● ●
636 PANEL; FRONT PILLAR INNER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> 		8-98104-510-9 01 1 1410-1505 ●
636 PANEL; FRONT PILLAR INNER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98104-510-9 01 1 1410-1505 ●
636 PANEL; FRONT PILLAR INNER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> 		8-98297-962-0 01 1 1506- ●
636 PANEL; FRONT PILLAR INNER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98297-962-0 01 1 1506- ●
636 PANEL; FRONT PILLAR INNER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> ROOF RADIO ANTENNA<U71> 		8-98104-512-9 01 1 1410-1505 ●
636 PANEL; FRONT PILLAR INNER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98104-512-9 01 1 1410-1505 ●
636 PANEL; FRONT PILLAR INNER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> ROOF RADIO ANTENNA<U71> 		8-98297-963-0 01 1 1506- ●
636 PANEL; FRONT PILLAR INNER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98297-963-0 01 1 1506- ●
636 PANEL; FRONT PILLAR INNER 8-98161-090-5 01 1 1305-1409 ● ● ● ●
636 PANEL; FRONT PILLAR INNER 8-98161-090-7 01 1 1410- ● ●
636 PANEL; FRONT PILLAR INNER
EXC. EQUIPMENT IMPACT<EPS> 		8-98161-090-7 01 1 1410- ● ●
636 PANEL; FRONT PILLAR INNER 8-98161-087-5 01 1 1305-1409 ● ● ● ●
636 PANEL; FRONT PILLAR INNER 8-98161-087-7 01 1 1410- ● ●
636 PANEL; FRONT PILLAR INNER
EXC. EQUIPMENT IMPACT<EPS> 		8-98161-087-7 01 1 1410- ● ●
638 PANEL; DASH SIDE INNER 8-98104-641-5 01 1 1305- ● ● ● ●
638 PANEL; DASH SIDE INNER 8-98104-640-5 01 1 1305- ● ● ● ●
639 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1305- ● ● ● ●
639 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1305- ● ● ● ●
640 POP NUT
M5 POP NUT 		8-97249-574-0 02 1 1305- ● ●
640 POP NUT
EXC. INTERIOR BASIC(RBA) M5 POP NUT 		8-97249-574-0 02 1 1305- ●
641 PANEL; BACK BODY PILLER 8-98121-124-6 01 1 1305- ● ●
641 PANEL; BACK BODY PILLER 8-98121-123-6 01 1 1305- ● ●
664 SEAL; TAPE 8-98193-408-2 01 1 1305- ● ● ● ●
664 SEAL; TAPE 8-98193-408-2 01 1 1305- ● ● ● ●
677 RIVET; PANEL 8-98057-864-0 16 1 1305- ● ● ● ●
683 PANEL; HEADER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> 		8-98161-125-3 01 1 1410- ●
683 PANEL; HEADER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98161-125-3 01 1 1410- ●
683 PANEL; HEADER
INTERIOR CUSTOM(RBD) EQUIPMENT IMPACT<EPS> ROOF RADIO ANTENNA<U71> 		8-98161-129-3 01 1 1410- ●
683 PANEL; HEADER
4JK1-TCX ENG(LR0) EQUIPMENT IMPACT<EPS> 		8-98161-129-3 01 1 1410- ●
683 PANEL; HEADER
INTERIOR BASIC(RBA) 		8-98161-122-1 01 1 1305-1409 ●
683 PANEL; HEADER
INTERIOR BASIC(RBA) EXC. EQUIPMENT IMPACT<EPS> 		8-98161-122-2 01 1 1410- ●
683 PANEL; HEADER
INTERIOR BASIC(RBA) EXC. ROOF RADIO ANTENNA<U71> 		8-98161-126-1 01 1 1305-1409 ●
683 PANEL; HEADER
INTERIOR BASIC(RBA) EXC. EQUIPMENT IMPACT<EPS>,ROOF RADIO ANTENNA<U71> 		8-98161-126-2 01 1 1410- ●
683 PANEL; HEADER
INTERIOR CUSTOM(RBD) 		8-98161-123-1 01 1 1305-1409 ●
683 PANEL; HEADER
4JK1-TCX ENG(LR0) 		8-98161-123-1 01 1 1305-1409 ●
683 PANEL; HEADER
INTERIOR CUSTOM(RBD) EXC. EQUIPMENT IMPACT<EPS> 		8-98161-123-2 01 1 1410- ●
683 PANEL; HEADER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98161-123-2 01 1 1410- ●
683 PANEL; HEADER
INTERIOR CUSTOM(RBD) ROOF RADIO ANTENNA<U71> 		8-98161-127-1 01 1 1305-1409 ●
683 PANEL; HEADER
4JK1-TCX ENG(LR0) 		8-98161-127-1 01 1 1305-1409 ●
683 PANEL; HEADER
INTERIOR CUSTOM(RBD) ROOF RADIO ANTENNA<U71> EXC. EQUIPMENT IMPACT<EPS> 		8-98161-127-2 01 1 1410- ●
683 PANEL; HEADER
4JK1-TCX ENG(LR0) EXC. EQUIPMENT IMPACT<EPS> 		8-98161-127-2 01 1 1410- ●
684 FASTENER 8-98057-864-0 07 1 1305- ● ●
684 FASTENER 8-98057-864-0 07 1 1305- ● ●
684 FASTENER 8-98057-864-0 10 1 1305- ● ●
684 FASTENER 8-98057-864-0 10 1 1305- ● ●

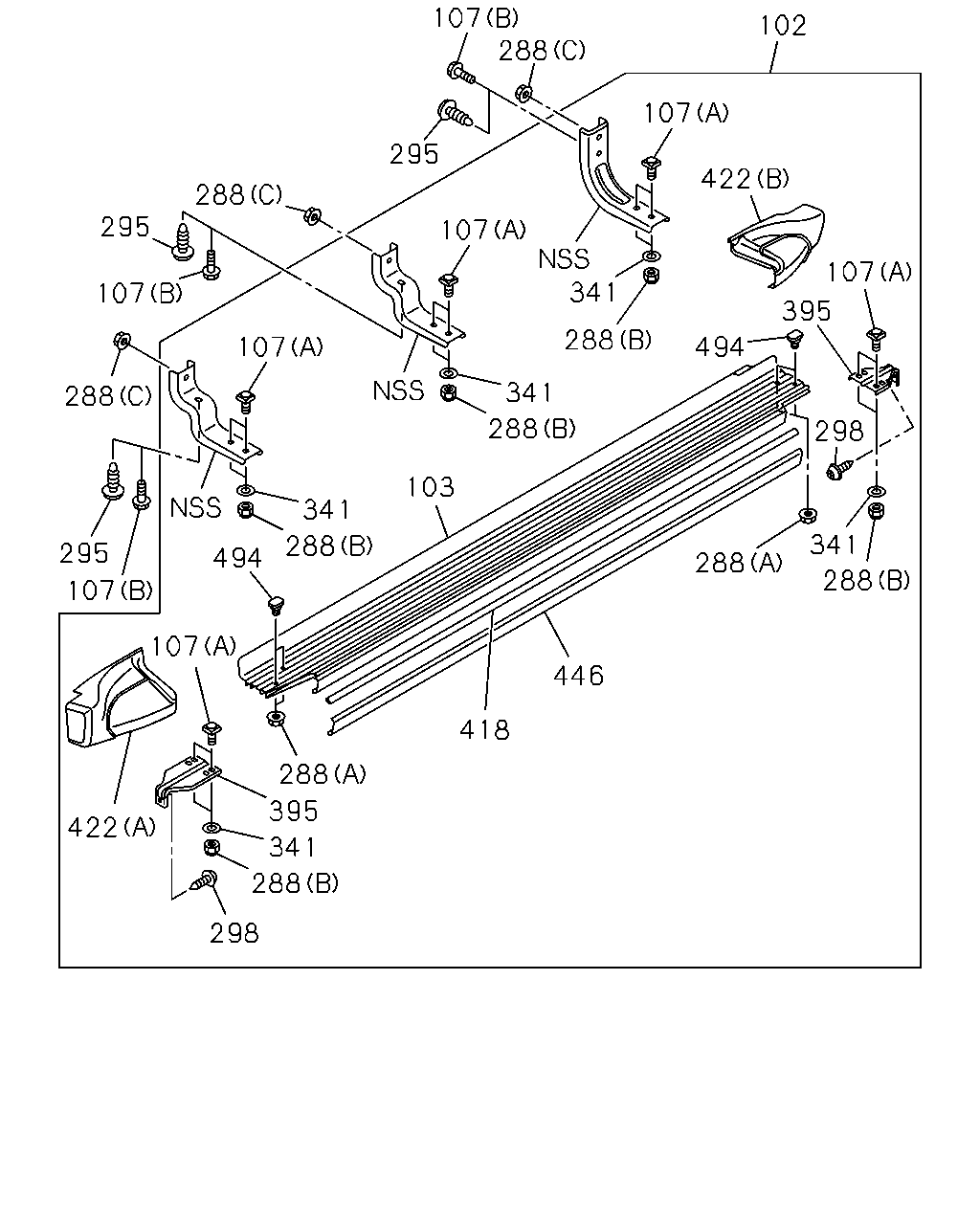

çizim 351304
295 288 107 288 295 107 494 107 422 107 295 107 107 288 107 102 422 107 395 298 341 288 288 446 418 288 395 341 288 298 288 103 288 341 288 341 494 341
BalonParca AdiParca NoAdetTipApplied Date A B C D
102 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-321-5 01 1 1305- ● ●
102 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-322-5 01 1 1305- ● ●
103 PLATE; STEP
SIDE STEP<6TC> 		8-98292-968-0 01 1 1409- ● ●
103 PLATE; STEP
SIDE STEP<6TC> 		8-98292-969-0 01 1 1409- ● ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> (A) 		8-98251-460-0 20 1 1409- ● ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> (B) M8X25 FLANGE 		8-98048-998-0 06 1 1305- ● ●
288 NUT; STEP
SIDE STEP<6TC> (A) M6 FLANGE 		0-91180-106-0 08 1 1409- ● ●
288 NUT; STEP
SIDE STEP<6TC> (B) M8 FLANGE 		0-91180-108-0 20 1 1409- ● ●
288 NUT; STEP
SIDE STEP<6TC> (C) M8 FLANGE 		0-91180-208-0 06 1 1305- ● ●
295 CLIP; BODY SIDE STEP
OD=18 		8-94269-290-0 04 1 1305- ● ●
295 CLIP; BODY SIDE STEP
EXC. SIDE STEP<6TC> OD=18 		8-94269-290-0 06 1 1305- ● ●
298 SCREW; SIDE STEP
SIDE STEP<6TC> M5X16 		8-98073-081-0 04 1 1409- ● ●
341 WASHER; PL,STEP
SIDE STEP<6TC> ID=8.4 OD=18 		0-91614-608-0 20 1 1409- ● ●
395 BRACKET; SIDE STEP
SIDE STEP<6TC> 		8-98292-978-0 04 1 1409- ● ●
418 RUBBER; STEP
SIDE STEP<6TC> 		8-98293-008-0 02 1 1409- ● ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (A) FRONT SILVER 		8-97466-036-1 01 1 1409- ● ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (A) FRONT SILVER 		8-97466-042-1 01 1 1409- ● ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (B) REAR SILVER 		8-97466-046-1 01 1 1409- ● ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (B) REAR SILVER 		8-97466-050-1 01 1 1409- ● ●
446 FINISHER; STEP
SIDE STEP<6TC> SILVER 		8-97466-048-0 02 1 1409- ● ●
494 STUD; BRKT
SIDE STEP<6TC> 		8-98056-035-0 08 1 1409- ● ●

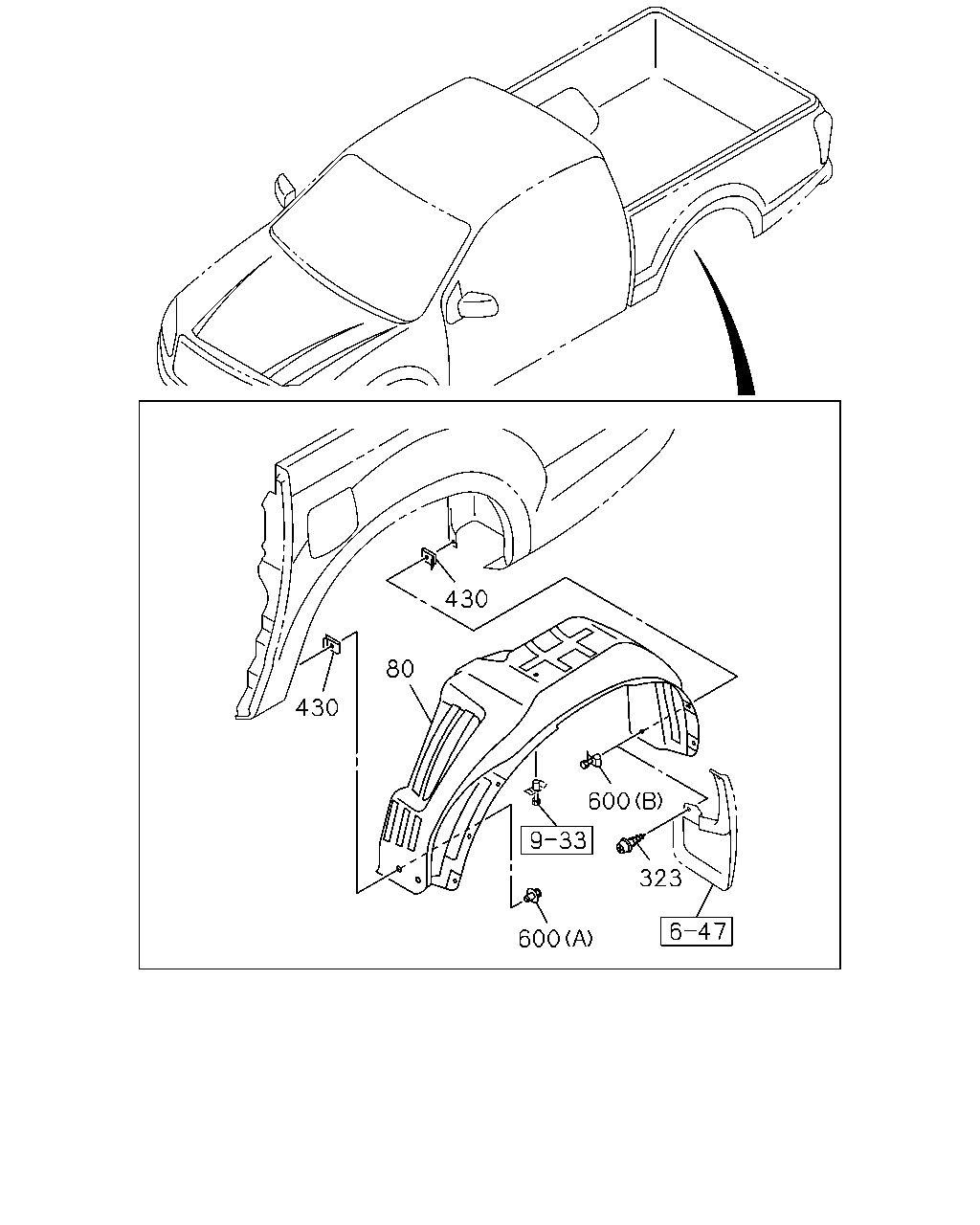

çizim 352400
430 80 430 600 600 323
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-943-4 01 1 1305- ●
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-943-4 01 1 1305- ●
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-944-4 01 1 1305- ●
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) 		8-98101-944-4 01 1 1305- ●
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98101-945-5 01 1 1305- ●
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-945-5 01 1 1305- ● ●
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-98101-946-5 01 1 1305- ●
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-946-5 01 1 1305- ● ●
323 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1305- ● ● ● ●
323 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1305- ●
323 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1305- ● ●
430 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-97125-519-0 06 1 1305- ● ● ● ●
430 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) HIGH RIDE SUSPENSION(7YC) 		8-97125-519-0 02 1 1305- ●
430 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) 		8-97125-519-0 02 1 1305- ● ●
600 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98186-355-0 04 1 1305- ● ● ● ●
600 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-94221-150-0 02 1 1305- ●
600 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) EXC. HIGH RIDE SUSPENSION(7YC) (B) 		8-94221-150-0 02 1 1305- ●
600 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) EXC. FORMED MUD FLAP FRT & RR<Q8H> (B) 		8-94221-150-0 06 1 1305- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
